2500

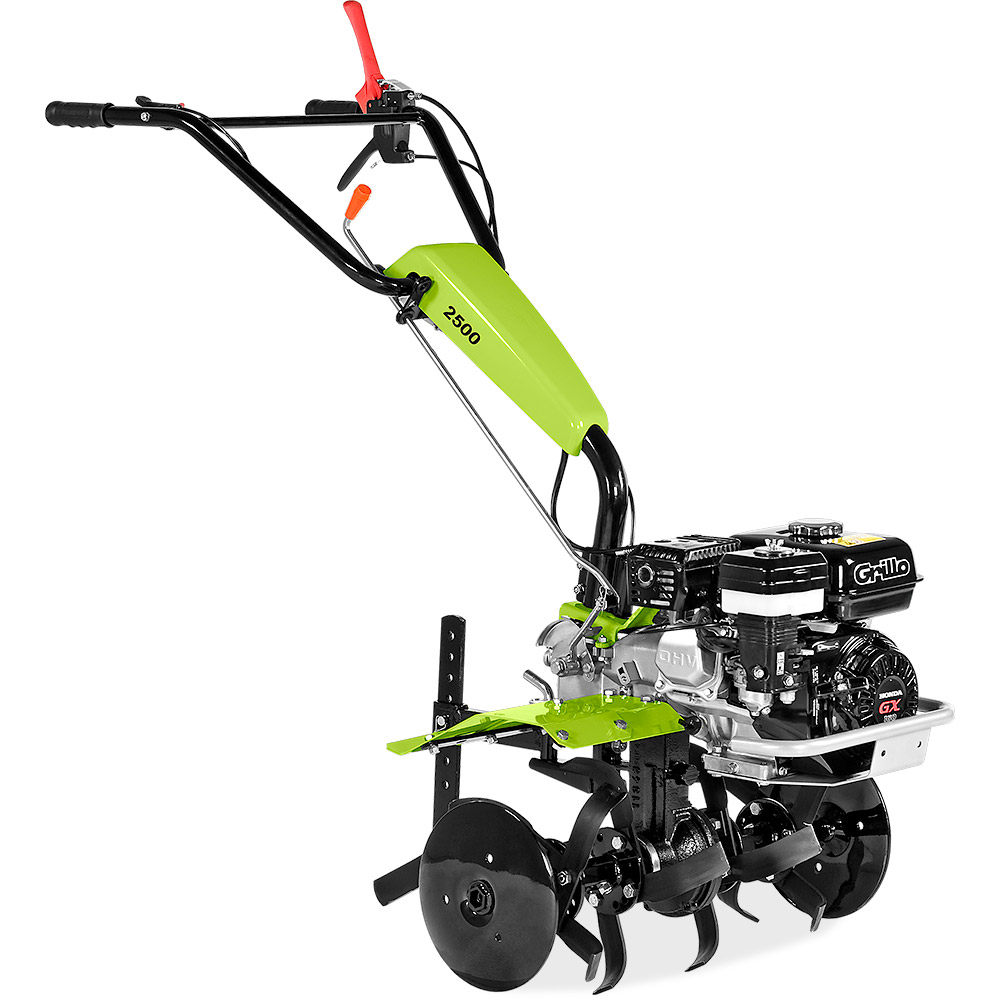

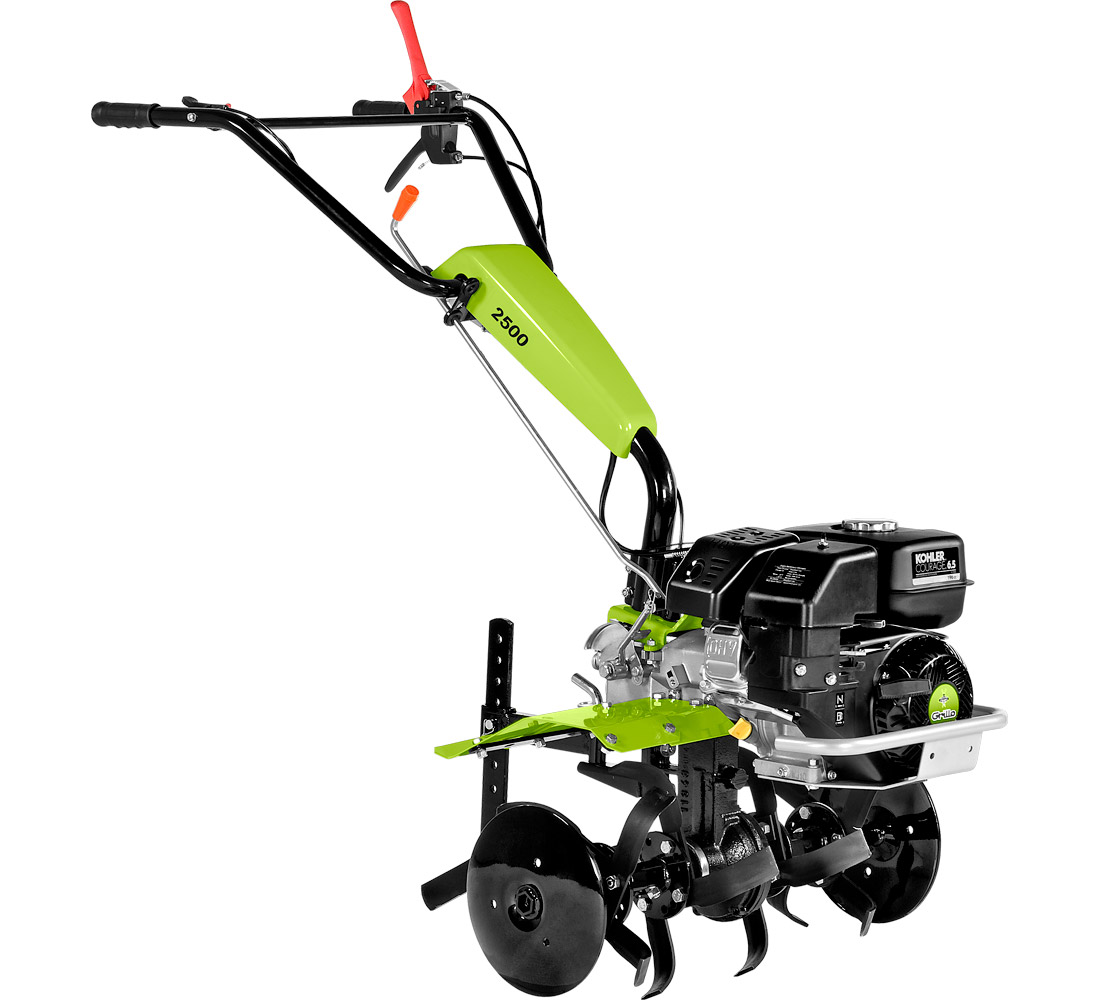

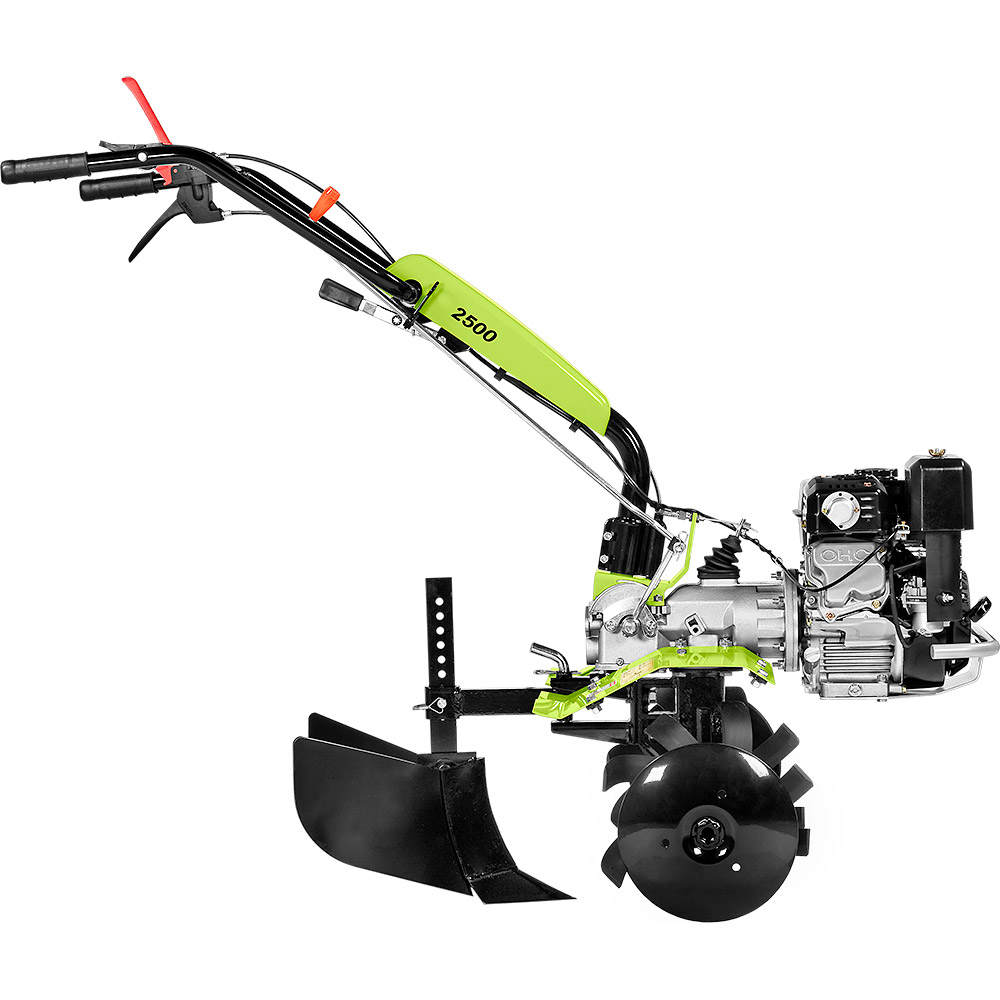

Grillo 2500
Grillo 2500 Grillo 2500 Grillo 2500 Grillo 2500 Grillo 2500

Walk behind hoes designed with agility and strength to meet up to a professional standard for commercial use and bigger jobs.


Technical data sheet
Technical data sheet 2500
Engine Honda GX160 OHV
Start recoil starter
Supply fuel
Displacement 163 cc, 1 Cylinder
Power 4.8 HP (3.6 kW)
Air cooled
Oil bath air filter
Engine Kohler Lombardini 3000 Series OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Engine Robin Subaru EX17 OHC
Start recoil starter
Supply fuel
Displacement 169 cc, 1 Cylinder
Power 5 HP (3.7 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 3,1 L eng. GX160 OHC - 3,6 L eng. EX 17 - 3,6 L eng. SH265
Transmission with gears in oil bath
Gearbox 2 forward gears
Clutch conic active

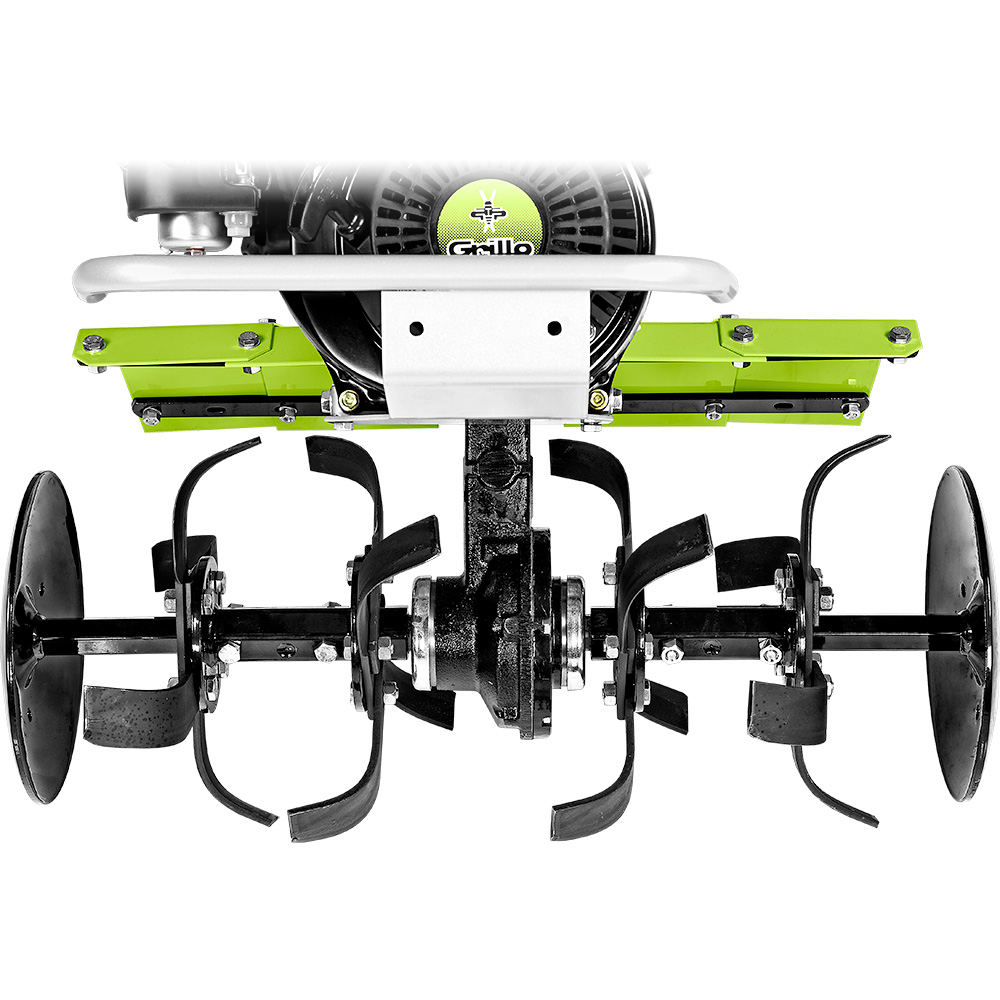

Standard rotary tiller with 4 hoes system and side discs, working width 72 cm. With hexagonal shaft 2,7 cm
Hoes system diametre 33 cm
Working width area with side disks 72 cm (99 cm with extension kit cod. 933512)
Working depth area without side disks 58 cm (85 cm with extension kit cod. 933512)
Working depth 32 cm
Max. revolutions tiller 1st gear 53 rpm – 2nd gear 123 rpm

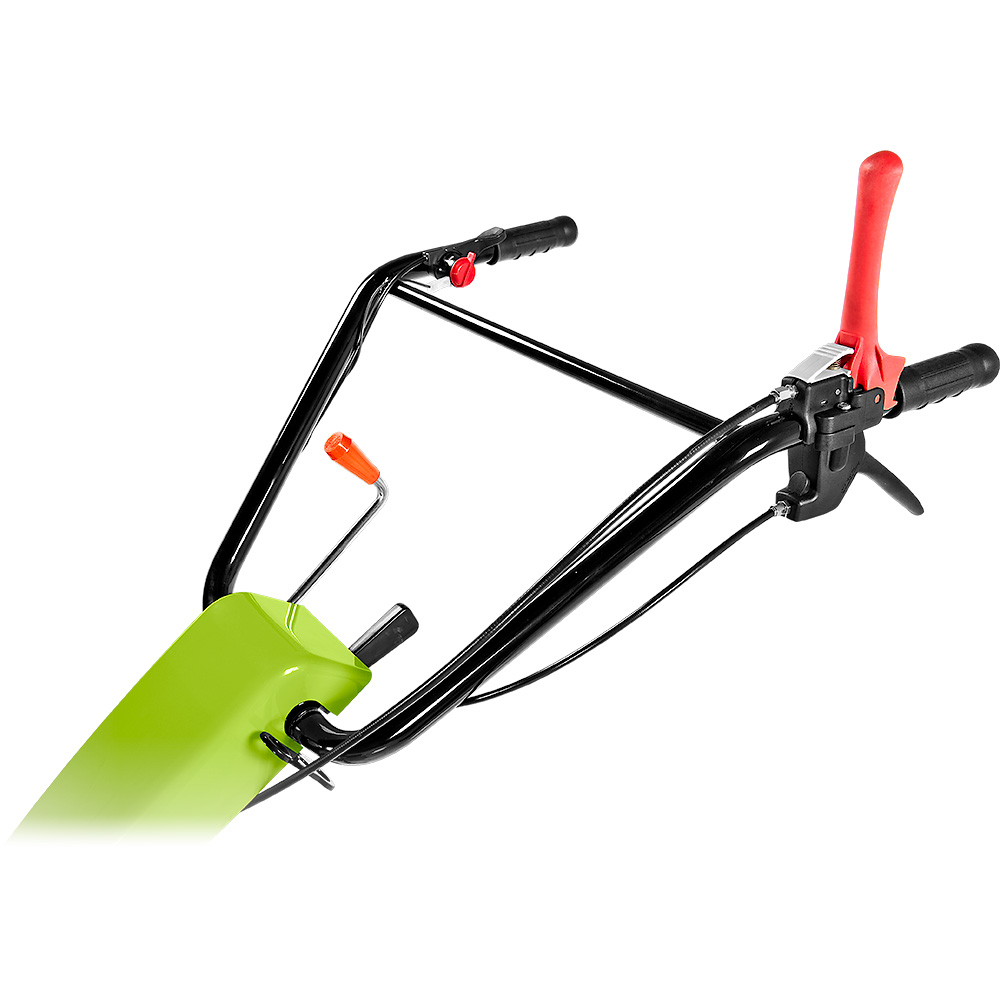

Handlebar height and side adjustment
Weight 72 kg with eng. GX160 OHC - 74 kg with eng. EX 17 - 75 kg with eng. SH265

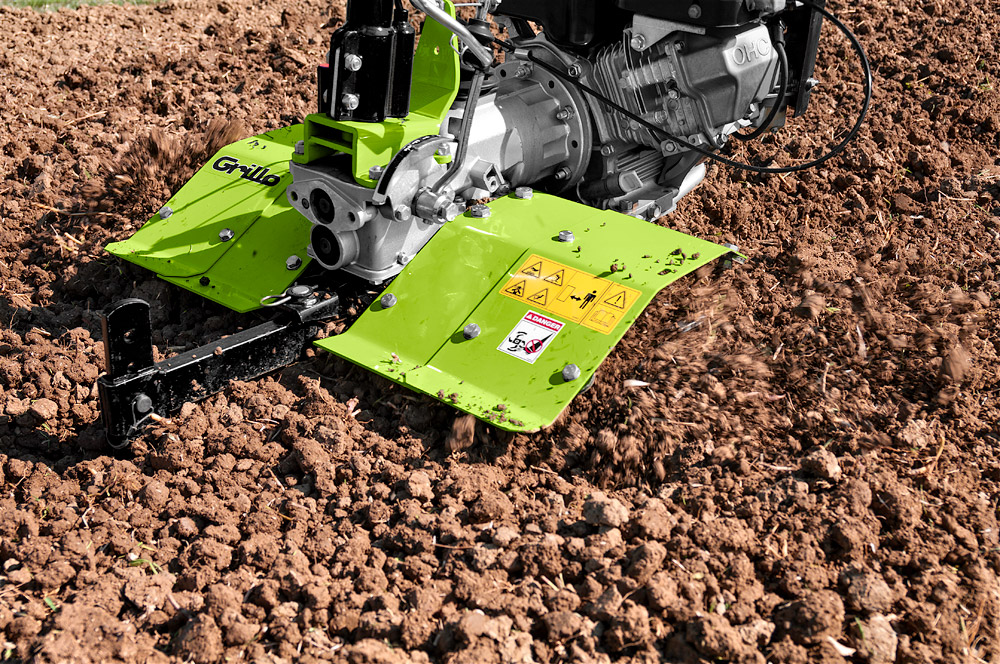

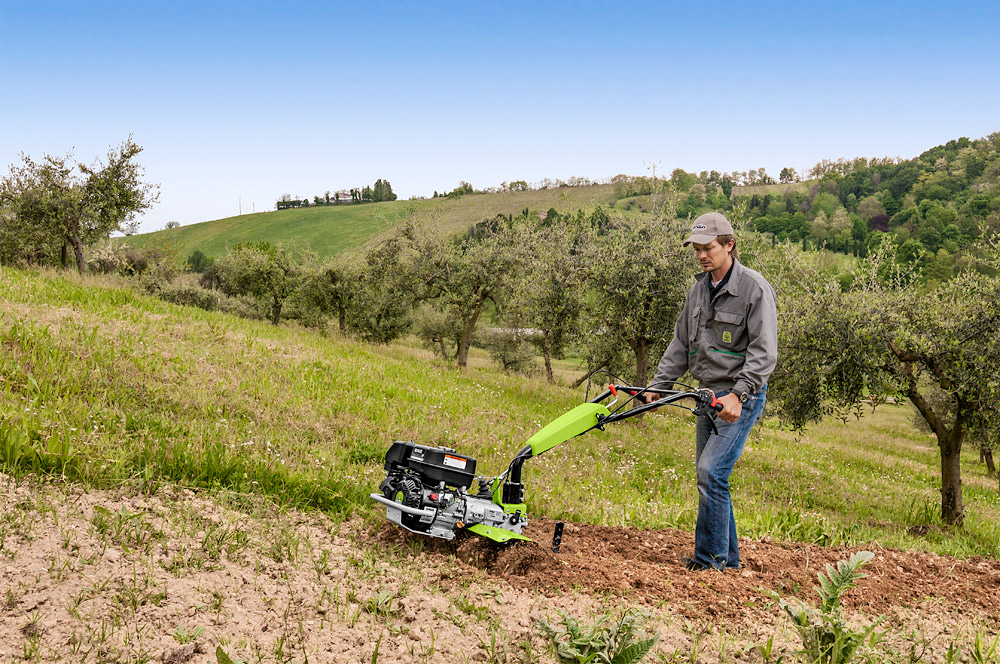

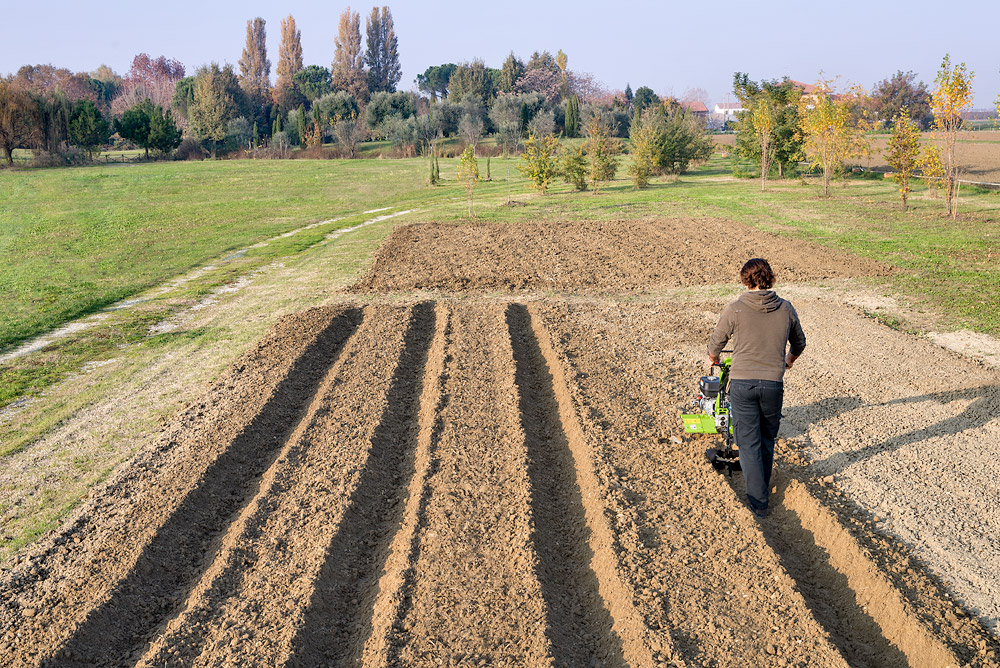

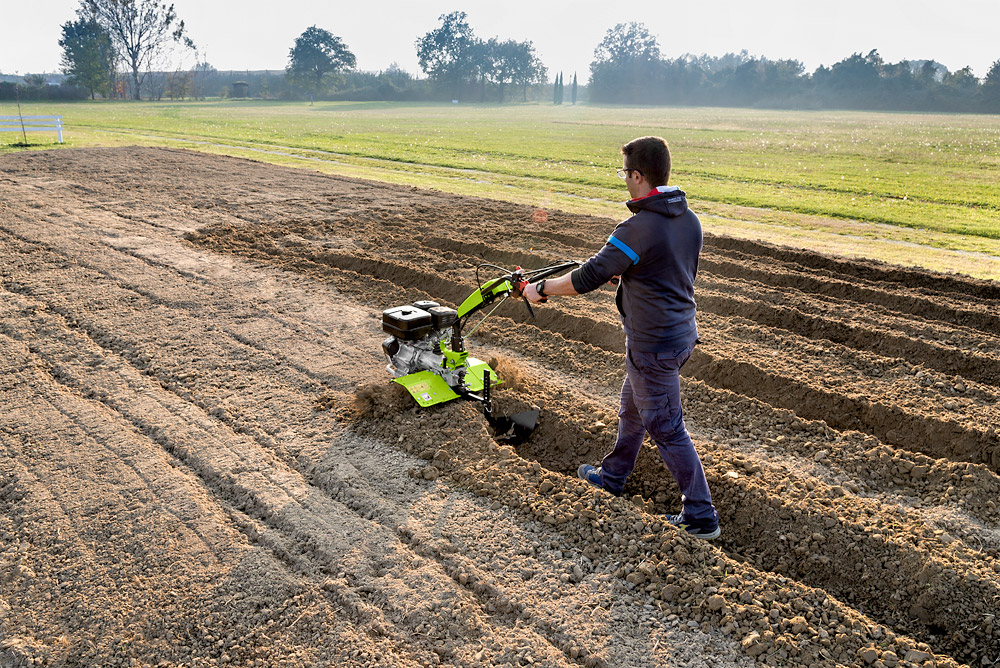

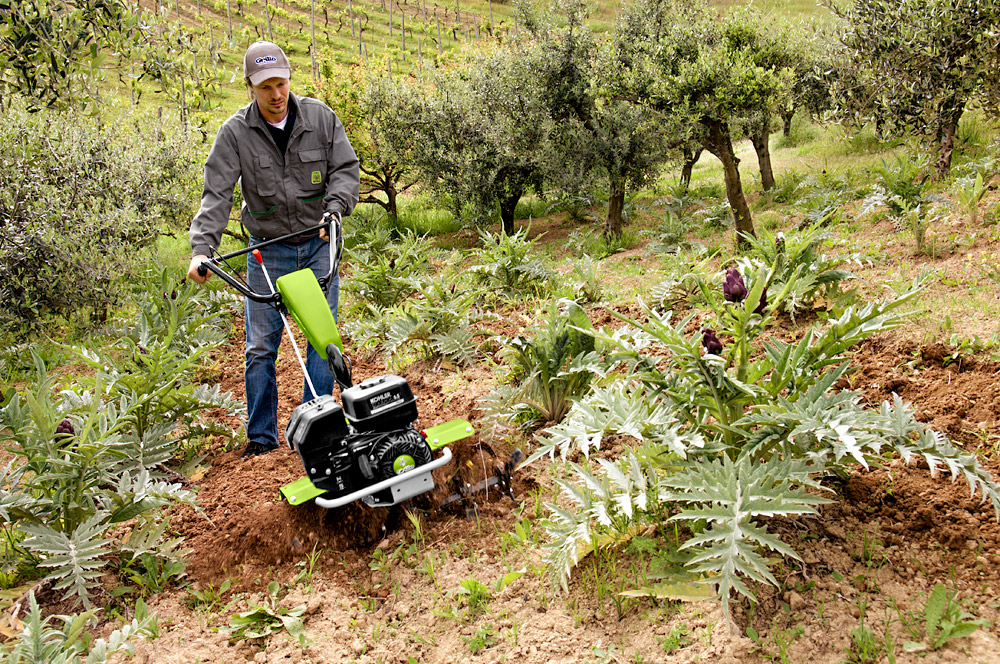

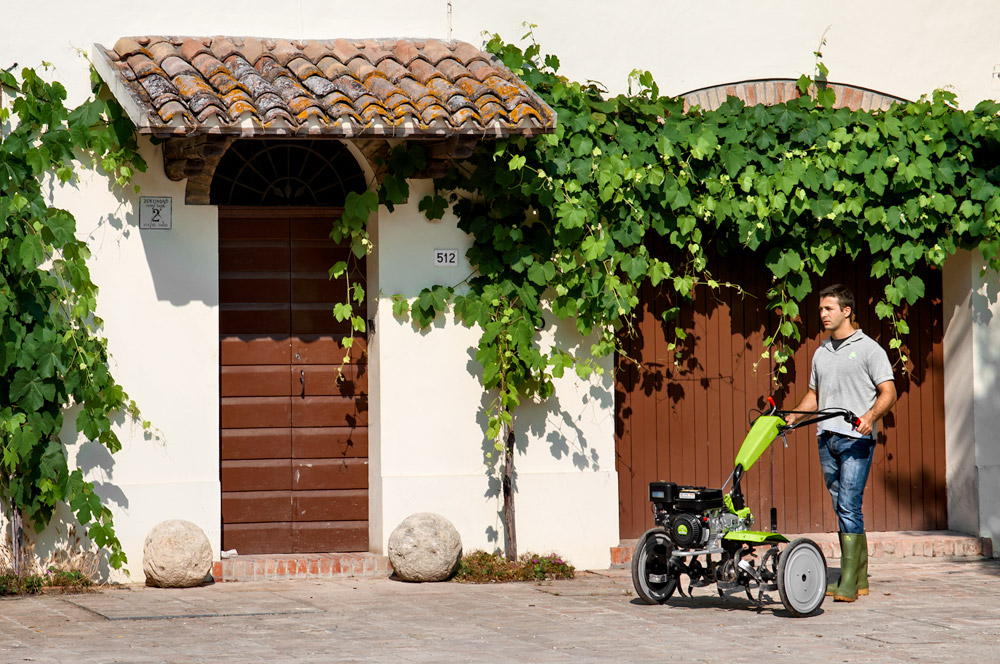

In action! Photos and Videos
In action! Photos and Videos
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Grillo 2500
Implements
Implements 2500

Rotary tiller extensions 2500 (pair)

Rotary tiller extensions (pair) 2500  - COD. 933512
to be applied on 2500
item no.: 933512
weight: 6 kg

Single furrow plough - item no. 945322 needed, pneumatic wheels 5.00-12 and wheel weights are recommended

Single furrow plough - COD. 943122
to be applied on 11500 - 2500 - 3500 - G 107d - G 108 - G 110 - G 85d
item no.: 943122
weight: 12 kg

Turn-wrest plough 180°

Turn-wrest plough 180 ° - COD. 943222
to be applied on 11500 - 2500 - 3500 - G 107d - G 108 - G 110 - G 131 - G 85d
item no.: 943222
weight: 21 kg

on motorhoes item no. 950522 needed;



on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

Frame for attachments for plough (item no. 900412 and item no. 9C4312 needed)

Frame for attachments for plough - COD. 950522
to be applied on 11500 - 2500 - 3500
item no.: 950522
weight: 7 kg

Adjustable furrower (item no. 942722 needed, 5.00-10 pneumatic wheels and wheel weights item no. 9G1212 are recommended)

942622
to be applied on 11500 - 2500 - 3500 - G 55
item no.: 942622
weight: 8 kg

Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair

Pair pneumatic “Tractor” wheels  5.00-10 [adjustable discs] - COD. 900412
to be applied on 11500 - 2500 - 3500 - G 107d - G 108 - G 110 - G 55 - G 85d - GF 3 - GF 3DF
item no.: 900412
weight: 22 kg

The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.



On walking tractor G55 they can be mounted only when using plough or furrower.



Item 9C4312 (wheels extensions) is needed on 2500, 3500, 11500 rotavators equipped with plough.

Wheelextensions (pair)

Pair wheels extensions for rotavators - COD. 9C4312
to be applied on 11500 - 2500 - 3500
item no.: 9C4312
weight: 4 kg

Transport wheels for rotavator Ø 42 cm (pair)

Side wheels pair for rotavator Ø 42 cm - COD. 9C7522
to be applied on 11500 - 2500 - 3500 - Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 9C7522
weight: 7 kg

Liftable front transport wheel

Liftable front transport wheel - COD. 9B5611
to be applied on 11500 - 2500 - 3500
item no.: 9B5611
weight: 3 kg
