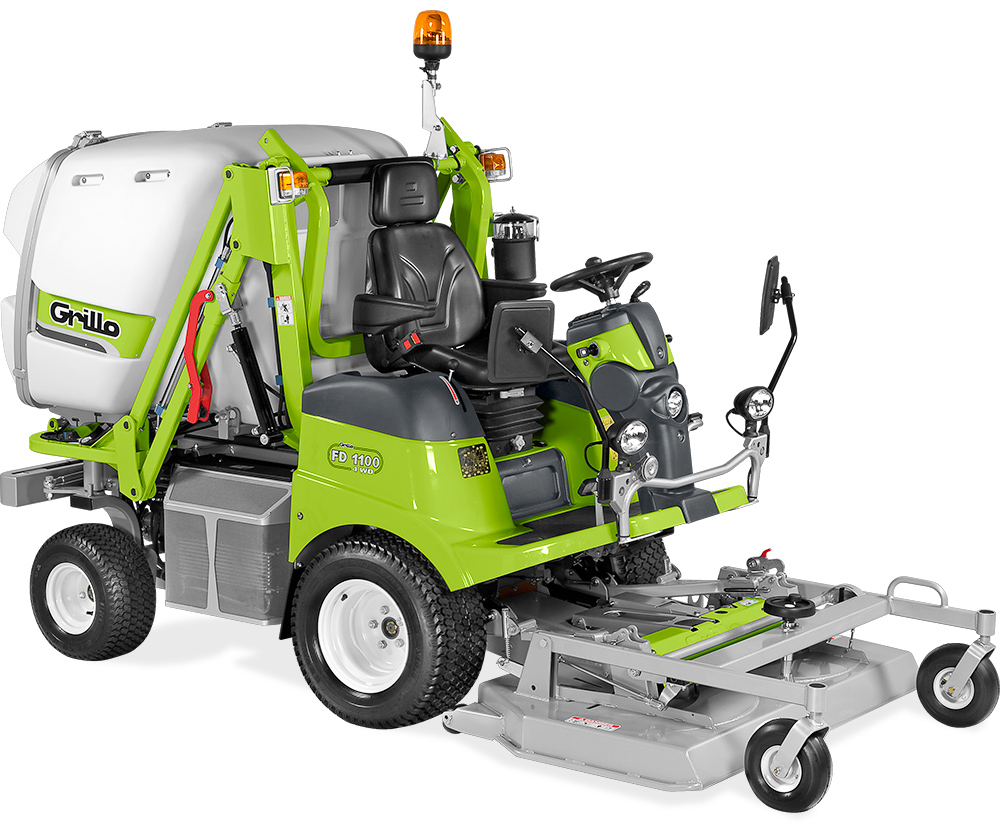

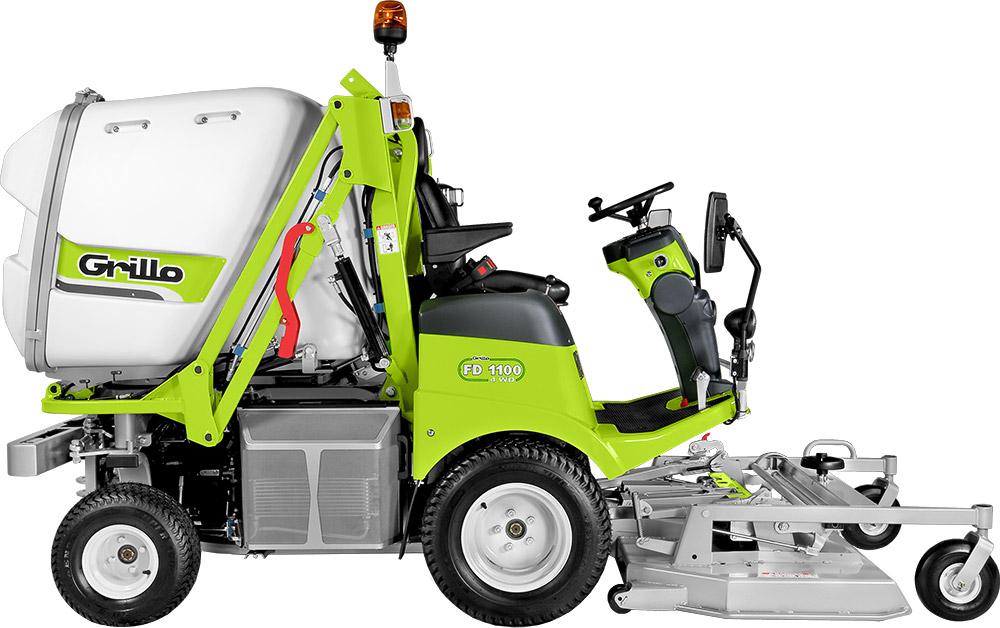

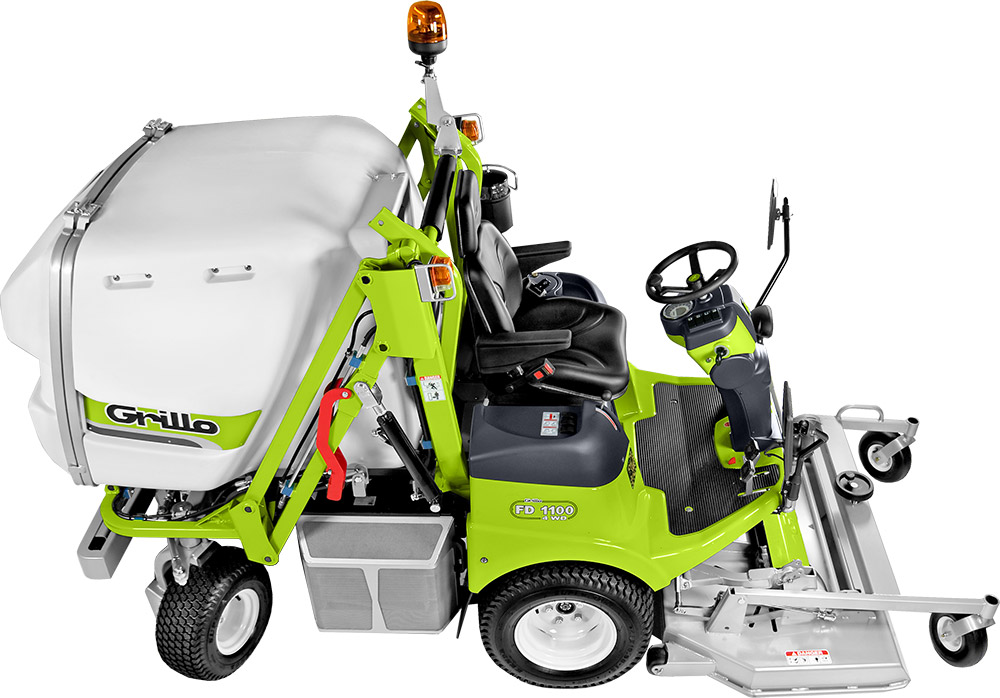

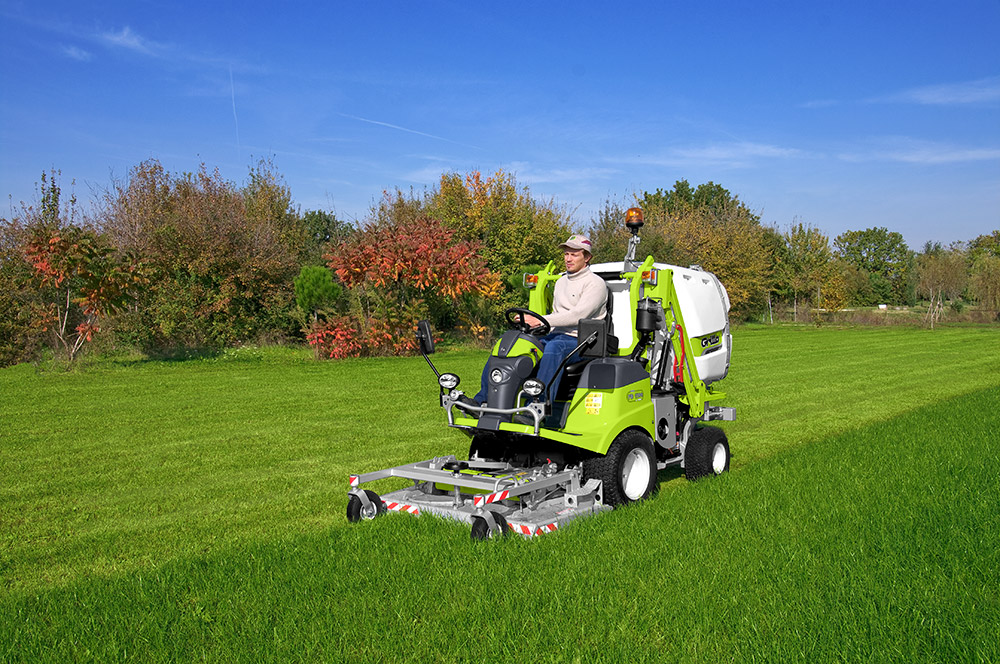

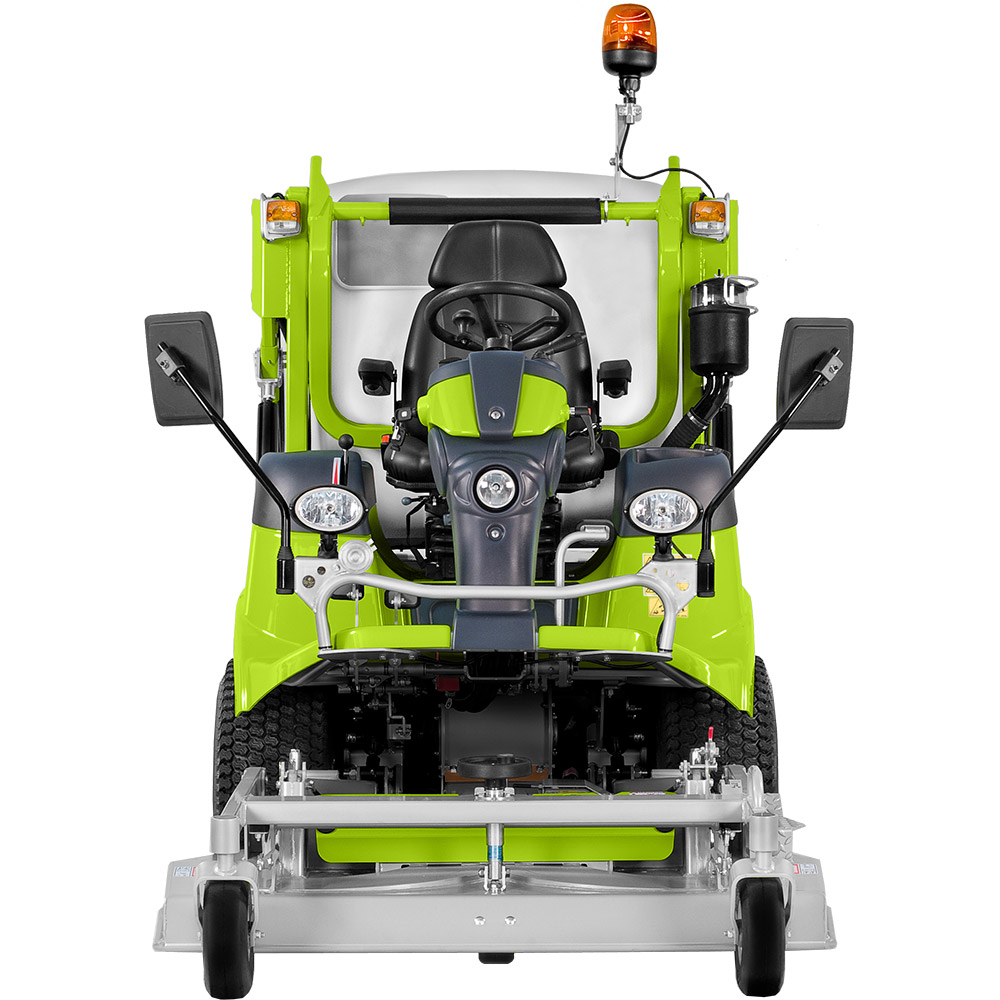

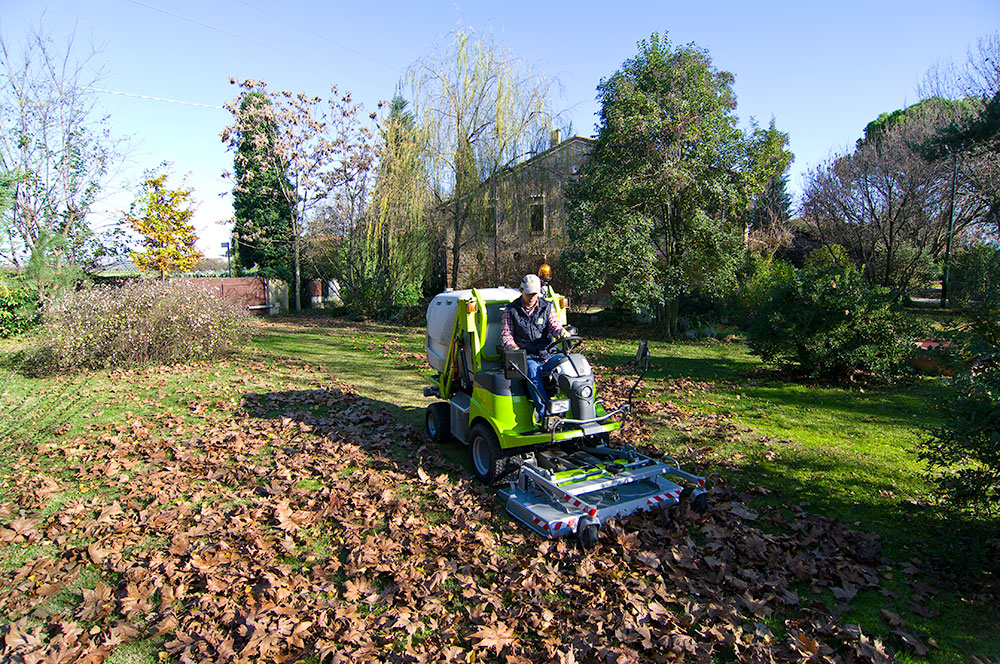

FD 1100 4WD

	Engine	Yanmar 3TNV76 Start electric, with 12 V battery Supply diesel Displacement 1116 cc, 3 Cylinders Power 26 HP (19.2 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges
	Fuel tank capacity	25 L
	Hydraulic oil tank	20 L
	Traction	Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
	Gearbox	Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
	Clutch	Clutch: electromagnetic for PTO with magnetic blade brake

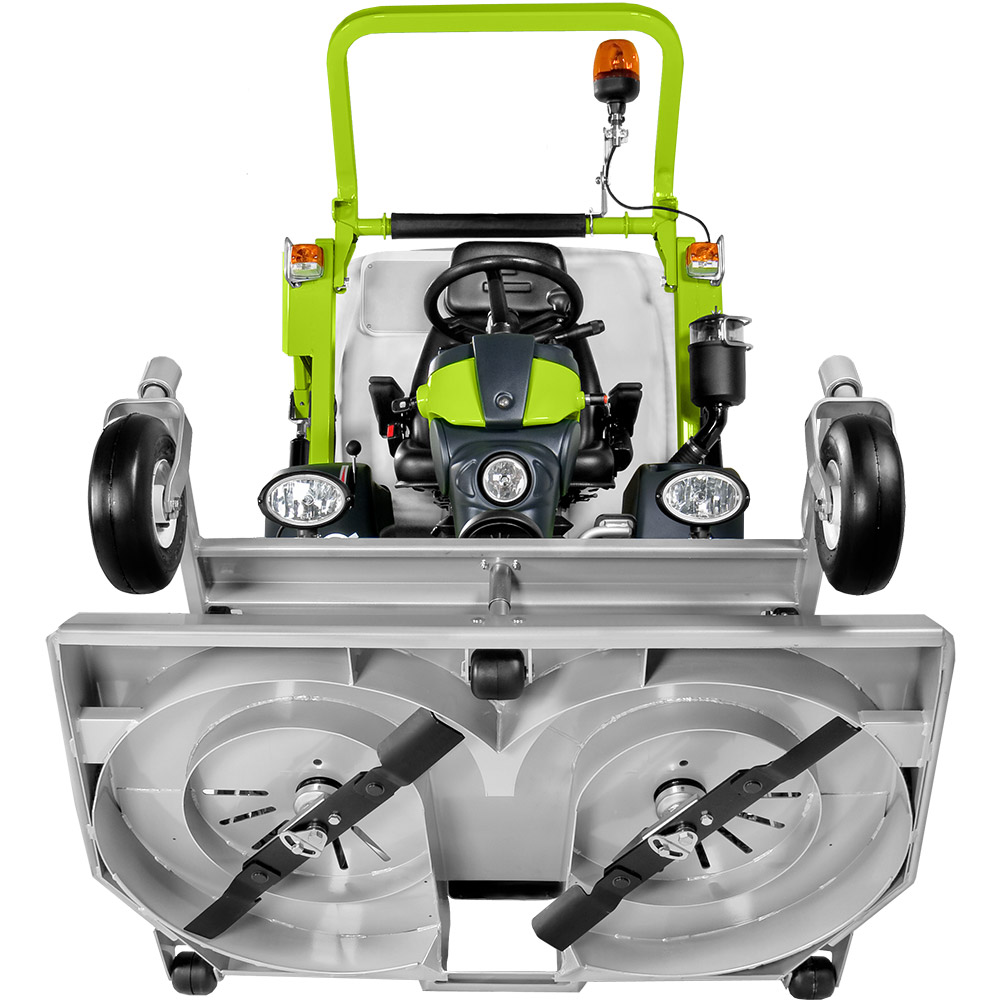

	Cutter deck	Cutting deck with collection and mulching kit [cod. 9M2111]
	Cutting deck width	1410 mm
	Cutting width	1320 mm
	Cutting height	Adjustable from 20 to 90 mm, with a handwheel

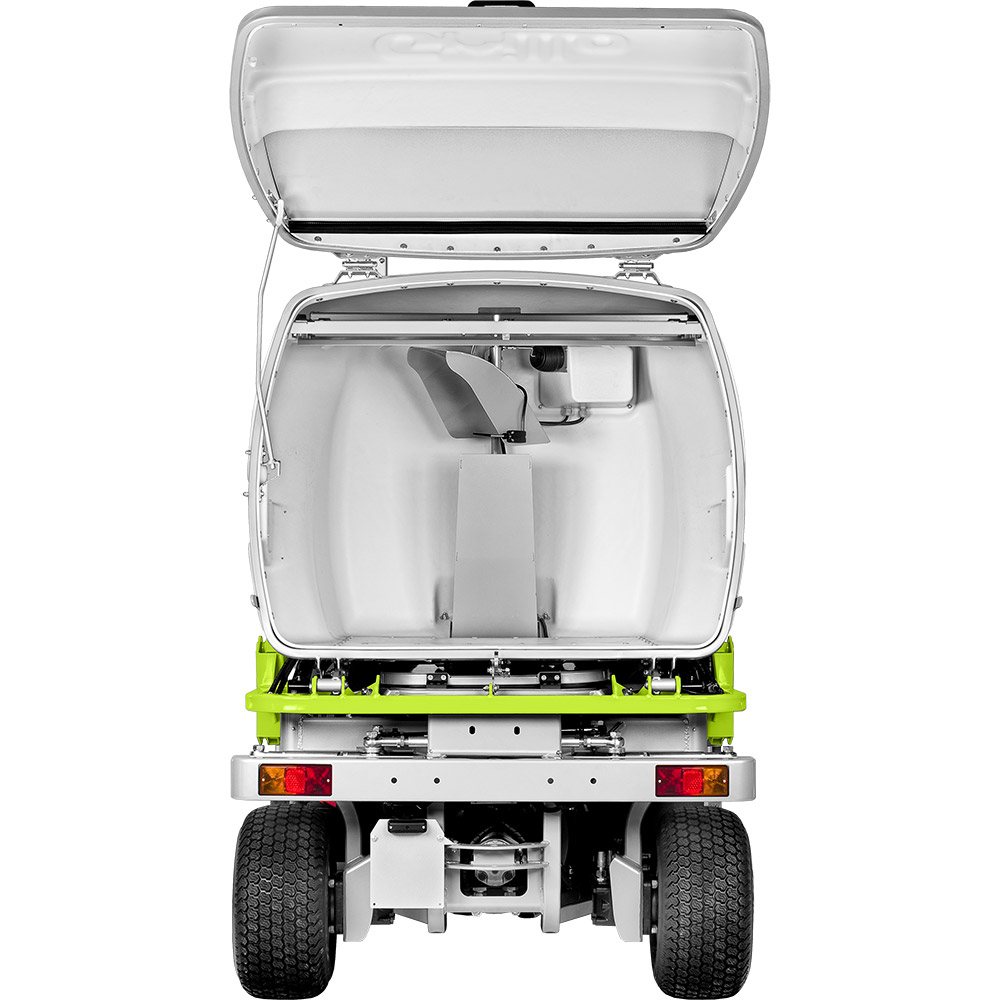

	Grass collector capacity	900 L
	Grass catcher charging system	Charging turbine with floating blades, diameter 350 mm. Belt transmission + independent electromagnetic clutch. Grass catcher equipped with motorised baffle inside the for even filling

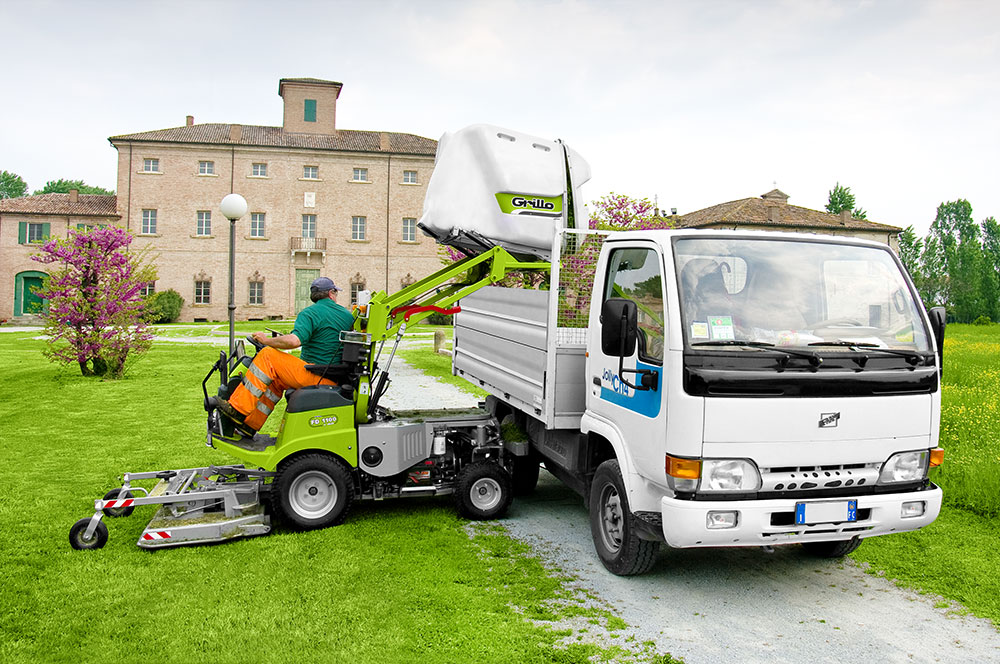

	Grass collector discharging system	Hydraulic grass catcher emptying with automatic opening
	Maximal discharging height	1900 mm
	Rear projection	300 mm
	Differential locking	Automatic and manual by push-button control
	Front tyres	Turf 23x10.50-12
	Rear tyres	Turf 18x8.50-8

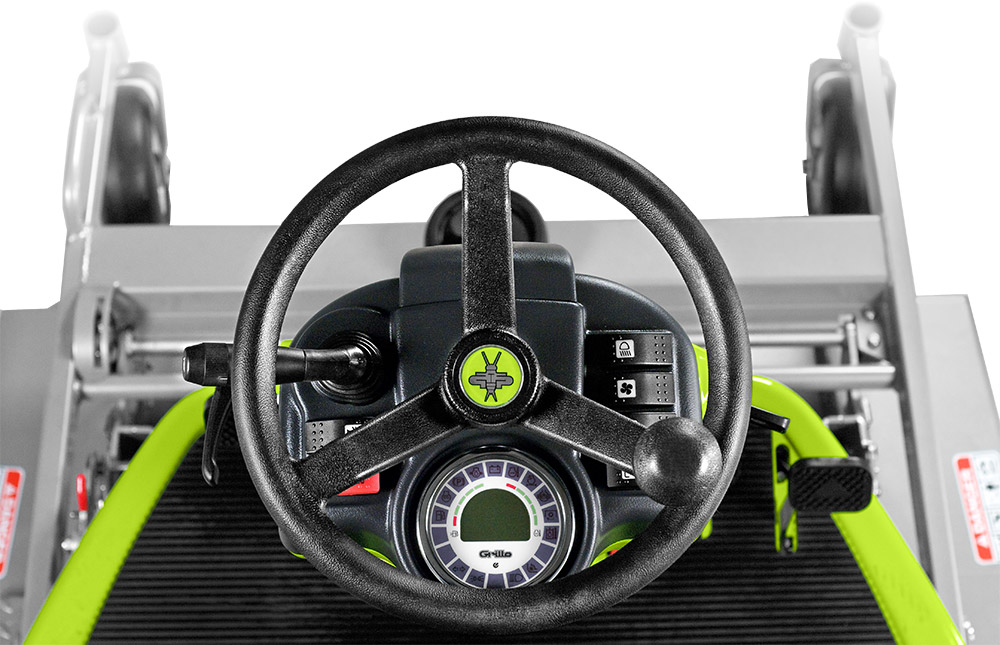

	Steering system	Steering wheel fixed on a reclinable column
	Speed	Continuously variable from 0 to 15 km/h
	Inner turning radius	310 mm
	Seat	Comfortable seat equipped with arm-rest, adjustable and fitted with springs.
	Service brake	disk brake
	Parking brake	disk brake
	Mowing capacity per hour (indicative)	10000 m^2
	Standard features	Automatic disengagement of blades and load accelerator when the grass catcher is full. Hydraulic cutting deck lifting and emptying. Mulching kit for cutting deck cod. 9M2111. Lights and indicator kit
	Length	3250 mm
	Width	1410 mm with cutting deck [cod. 9M2111]
	Height	1750 mm
	Distance between axles	1230 mm
	Clear span from the ground	150 mm
	Weight	975 kg without cutting deck - 1145 kg with cutting deck [cod. 9M2111]
