FD 13.09 4WD

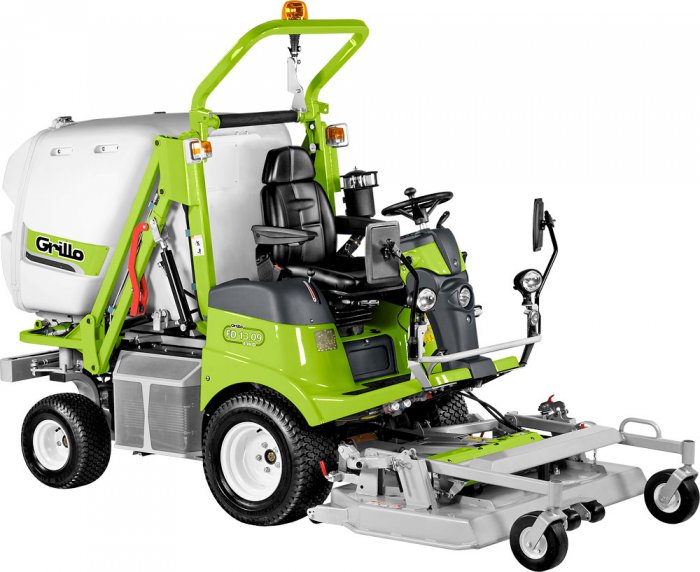

Grillo FD13.09 4WD
Grillo FD13.09 4WD Grillo FD13.09 4WD Grillo FD13.09 4WD Grillo FD13.09 4WD Grillo FD13.09 4WD Grillo FD13.09 4WD Grillo FD13.09 4WD Grillo FD13.09 4WD Grillo FD13.09 4WD Grillo FD13.09 4WD

Technical data sheet
Technical data sheet FD 13.09 4WD
Engine Yanmar 3TNV82
Start electric, with 12 V battery
Supply diesel
Displacement 1331 cc, 3 Cylinders
Power 31 HP (23 kW)
Liquid cooled with electric impeller and equipped with automatic radiator cleaning device
Dry air filter
Fuel tank capacity 23 L
Hydraulic oil tank 20 L
Traction Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
Gearbox Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
Clutch Clutch: hydraulic for PTO.
Cutter deck Cutting deck with collection and mulching kit
Cutting deck width 1410 mm
Cutting width 1320 mm
Cutting height from 20 to 100 mm, continuously adjustable through hydraulic.
Grass collector capacity 900 L.
Grass catcher charging system Load accelerator (Ø 350 mm) with floating blades, belt transmission and independent magnetic clutch. Motorised baffle providing full and even grass catcher filling.
Grass collector discharging system Automatic opening for grass-catcher hydraulic discharge
Maximal discharging height 2000 mm
Rear projection 300 mm
Differential locking Automatic differential lock and manual with push button
Front tyres 23x10.50-12 TURF WHEELS
Rear tyres 18x8.50-8 TURF WHEELS
Steering system Hydraulic drive with steering wheel
Speed From 0 to 15 km/h continuously variable
Inner turning radius 310 mm
Seat Super comfort and adjustable sprung seat with arm-rests.
Service brake Drum brake
Parking brake Drum brake
Mowing capacity per hour (indicative) 12000 m²/h
Standard features Automatic disengagement of blades and load accelerator when the grass catcher is full. Hydraulic cutting deck lifting and grass catcher discharge. Mulching kit for 132 cm cutting deck. Lights and indicator kit.
Length 3250 mm
Width 1410 mm
Height 1750 mm
Distance between axles 1230 mm
Clear span from the ground 150 mm
Weight 1040 kg without cutting deck; 1230 kg with cutting deck
In action! Photos and Videos
In action! Photos and Videos
Grillo FD 13.09 4WD
Grillo FD 13.09 4WD
Grillo FD 13.09 4WD
Grillo FD 13.09 4WD
Grillo FD 13.09 4WD
Grillo FD 13.09 4WD
Grillo FD 13.09 4WD
Grillo FD 13.09 4WD
Implements
Implements FD 13.09 4WD

Cutting deck 155 cm with collection and mulching kit

9M5111
to be applied on FD 13.09 4WD
item no.: 9M5111
weight: 270 kg

Electrically operated hydraulic cutting height adjustment, hydraulic maintenance position.

(from s/n 596441)

Cutting deck 132 cm with collection and mulching kit

9M4211
to be applied on FD 13.09 4WD
item no.: 9M4211
weight: 190 kg

Electrically operated hydraulic cutting height adjustment.

130 cm MP cutting deck

9M4411
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 9M4411
weight: 148 kg
  • Hydraulic cutting height adjustment
  • Rear discharge and mulching
  • Hydraulic operated Quick Shft lever

Cutting deck LMP 160 cm

9M4511
to be applied on FD 13.09 4WD - FD 2200 4WD - FD 2200TS 4WD - FM 13.09 4WD
item no.: 9M4511
weight: 170 kg

Three functions:

  • side discharge
  • mulching
  • rear discharge

All purpose flail 135 cm with solid wheels and blades scarifiers kit

9G5122
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 9G5122
weight: 160 kg

Snow chains for 23x10.50-12 wheels (pair)

9M3622
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 9M3622
weight: 2 kg

Front blade 150 cm with rubber end

9G5222
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 9G5222
weight: 135 kg

The orientable front blade allows to rapidly free pathways from snow and ice; it's useful for removing stone piles or sand heaps.
All blade movements are hydraulically controlled; the blade can be lifted up and inclined laterally of + / - 30°.
The rubber end helps avoiding damages on stone pavings and streets.
Hydraulic kit is needed with this implement.

Comfort cabin with heating

Comfort cabin with heating
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 948912
weight: 190 kg

The comfort cabin is equipped with an anti-condensation heating system and ensures a great visibility on the area to be cut.
The equipment includes windscreen wipers, windows as well as internal and external safety closing.

Pneumatic dampened seat and electric air compressor

9A8811
to be applied on FD 13.09 4WD - FD 2200 4WD - FM 13.09 4WD - FM 2200 4WD
item no.: 9A8811
weight: 15 kg

Rear stabiliser weight

9A9411
to be applied on FD 13.09 4WD
item no.: 9A9411
weight: 34 kg
Download
Download
Pdf Full Range Catalogue 2018 (Download - file pdf - 14,06 MB)
Pdf FD13.09 4WD - leaflet (Download - file pdf - 3,60 MB)
