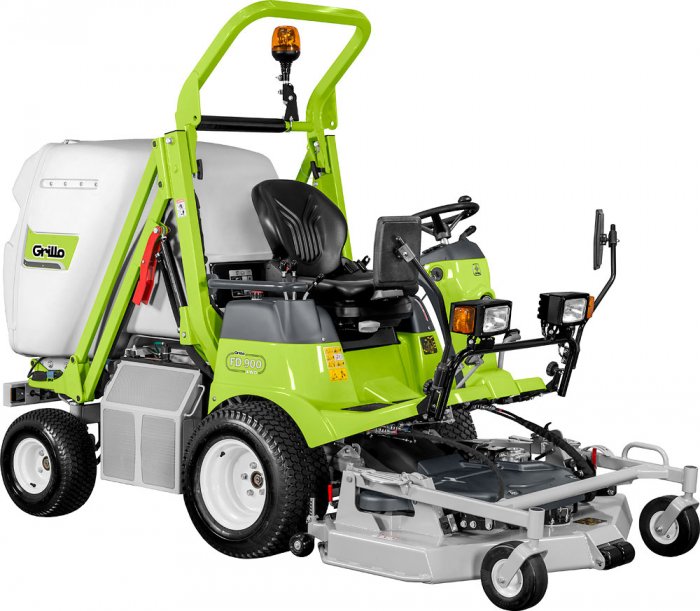

FD 900 4WD

Grillo FD 900 4WD
Grillo FD 900 4WD Grillo FD 900 4WD Grillo FD 900 4WD Grillo FD 900 4WD

Technical data sheet
Technical data sheet FD 900 4WD
Engine Yanmar 3TNV76
Start electric, with 12 V battery
Supply diesel
Displacement 1116 cc, 3 Cylinders
Power 26 HP (19.2 kW)
Liquid cooled with electric impeller and equipped with automatic radiator cleaning device
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 31 L.
Hydraulic oil tank 6,3 L
Traction Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
Gearbox Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
Clutch Electromagnetic for PTO
Cutter deck Cutting deck with collection
Cutting deck width 133 cm
Cutting width 126 cm
Cutting height From 2 to 10 cm, continuously adjustable through hydraulic.
Grass collector capacity 750 L.
Grass catcher charging system The two main blades are fitted with steel fans of the shaft. Motorised baffle providing full and even grass catcher filling.
Grass collector discharging system Automatic opening for grass-catcher hydraulic discharge
Maximal discharging height 195 cm
Rear projection 30 cm
Differential locking Automatic differential lock and manual with push button
Front tyres 23x10.50-12 Turf
Rear tyres 18x7.50-8 Turf
Steering system Hydraulic drive with steering wheel
Speed From 0 to 15 km/h continuously variable
Inner turning radius 37 cm
Seat Grammer, super comfort and adjustable sprung seat. With side steel protections.
Service brake Drum brake
Parking brake Drum brake
Mowing capacity per hour (indicative) 9000 m²/h
Standard features Automatic disengagement of blades when the grass catcher is full. Hydraulic cutting deck lifting and grass catcher discharge. Road homologation lights.
Length 291 cm
Width 133 cm
Height 166 cm
Distance between axles 119 cm
Clear span from the ground 15 cm
Weight 795 kg without cutting deck; 970 kg with cutting deck
In action! Photos and Videos
In action! Photos and Videos
Grillo FD 900 4WD
Grillo FD 900 4WD
Grillo FD 900 4WD
Grillo FD 900 4WD
Grillo FD 900 4WD
Grillo FD 900 4WD
Pdf Full Range Catalogue 2018 (Download - file pdf - 14,06 MB)
Pdf FD900 catalogue (Download - file pdf - 3,15 MB)
