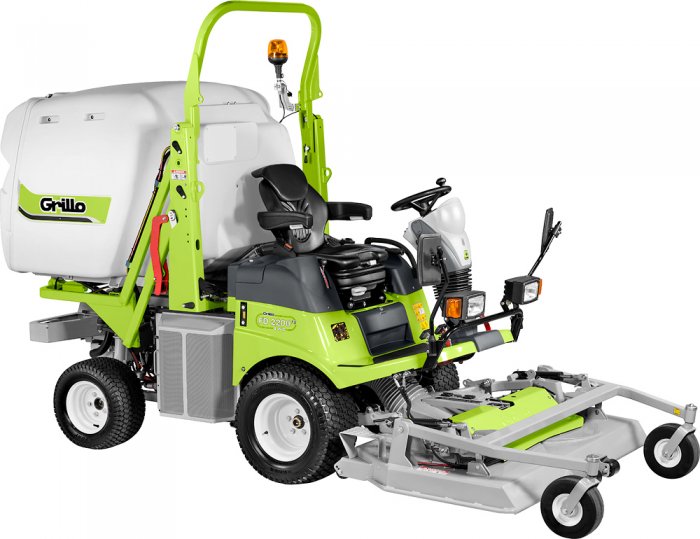

Grillo FD 2200TS 4WD
Grillo FD 2200TS 4WD Grillo FD 2200TS 4WD Grillo FD 2200TS 4WD Grillo FD 2200TS 4WD

Technical data sheet
Technical data sheet FD 2200TS 4WD
Engine Yanmar 4 TNV 88
Start electric, with 12 V battery
Supply diesel
Displacement 2190 cc, 4 Cylinders
Power 48 HP (36 kW)
Liquid cooled with hydraulic impeller and equipped with automatic radiator cleaning device
Dry air filter with interchangeable filter cartridges, safety filter and centrifugal prefilter
Fuel tank capacity 50 L
Hydraulic oil tank 25 L
Traction hydraulic, 4 wheel drive (permanent even with narrow turning radius)
Gearbox hydrostatic transmission with hydraulic motors on the 4 wheels
Clutch hydraulic, with electric control activated through PTO and with blade brake
Cutting height hydraulic adjustable from 20 to 120 mm
Grass collector capacity 1400 L
Grass catcher charging system Ø 400 cm (16 “) turbine with hydraulic motor fitted with a safety valve to avoid damage due to foreign objects. Turbine activation independent of the cutting deck. Double working speed.
Grass collector discharging system hydraulic grass catcher emptying with automatic opening
Maximal discharging height 2300 mm
Rear projection 500 mm
Differential locking self-engaging and manual with push button
Front tyres 24x12.00-12 garden
Rear tyres 20x10.00-10 garden
Steering system steering wheel with hydraulic drive
Speed from 0 to 22 km/h continuously variable
Inner turning radius 620 mm
Seat super comfort adjustable and sprung seat with armrests
Mowing capacity per hour (indicative) 15500 m^2/h
Standard features automatic disengagement of blade and turbine when grass catcher is full. Hydraulic deck lifting and grass catcher emptying. Lights and indicators kit
Standard features digital display with rpm indication and safety micro-switches control
Length 2600 mm without cutting deck - 3520 with cutting deck [p/n. 9M5211]
Width 1350 mm without cutting deck - 1620 mm with cutting deck [p/n. 9L9611]
Height 1830 mm (72”) (with roll bar or cabin 2380 mm -94”)
Distance between axles 1260 mm
Clear span from the ground 180 mm
Weight 1380 kg without cutting deck - 1600 kg [p/n. 9M5211]
In action! Photos and Videos
In action! Photos and Videos
Grillo FD 2200TS 4WD
Grillo FD 2200TS 4WD
Grillo FD 2200TS 4WD
Grillo FD 2200TS 4WD
Implements
Implements FD 2200TS 4WD

155 cm cutting deck with collection and mulching kit

9M5211
to be applied on FD 2200TS 4WD
item no.: 9M5211
weight: 250 kg

Electrically operated hydraulic cutting height adjustment, hydraulic maintenance position.

180 cm cutting deck with collection and mulching kit.

9M5911
to be applied on FD 2200TS 4WD
item no.: 9M5911
weight: 320 kg

Electrically operated hydraulic cutting height adjustment, hydraulic maintenance position.

Cutting deck LMP 160 cm

9M4511
to be applied on FD 13.09 4WD - FD 2200 4WD - FD 2200TS 4WD - FM 13.09 4WD
item no.: 9M4511
weight: 170 kg

Three functions:

  • side discharge
  • mulching
  • rear discharge

All purpose flail 150 cm with blades scarifier kit item no. 952722

All purpose flail 150 cm  with blades scarifier kit - COD. 9G5522
to be applied on FD 2200 4WD - FD 2200TS 4WD - FM 2200 4WD
item no.: 9G5522
weight: 180 kg

The all purpose flail is the ideal implement to clean rustic areas also with shrubs.
The flail's transmission is particularly reliable.
Its front wheels are puncture-proof.
Cutting height adjustment is achieved via removal or addition of the spacers on the front wheel supports.
It is equipped with an anti-scalp rear roller and is reliable even in the most demanding conditions, thanks to three adjoined belts and to the right angle gearboxes.
In order to grind the cut grass further, the all purpose flail is equipped with a mulching cutter blade.
The cutter deck can be lifted up hydraulically and can be tipped easily for inspection, transport and maintenance without the need to disassemble the cardan joint.
The blade scarifier kit which comes as part of the standard equipment, makes possible the quick transformation of this implement from an all purpose flail into a profesional scarifier.

9B1812
to be applied on FD 2200TS 4WD
item no.: 9B1812
weight: 7 kg

Front blade 175 cm with rubber end (for FD 2200 cod. 9B6712 needed)

Floating front blade 175 cm + rubber end - COD. 9G0822
to be applied on FD 2200 4WD - FD 2200TS 4WD - FM 2200 4WD
item no.: 9G0822
weight: 200 kg

The orientable front blade allows to rapidly free pathways from snow and ice; it's also useful for removing stone piles or sand heaps.
All blade's movements are hydraulically controlled; the blade can be lifted up and inclined laterally + / - 30°.
The rubber end helps avoiding damages on stone pavings and streets.
Hydraulic kit is needed with this implement.


Comfort cabin with heating FD2200

950012
to be applied on FD 2200 4WD - FD 2200TS 4WD
item no.: 950012
weight: 170 kg

The comfort cabin is equipped with anti-condensation heating system and it ensures a great visibility on the area to be cut.
The equipment includes windscreen wipers, windows as well internal and external safety closing
