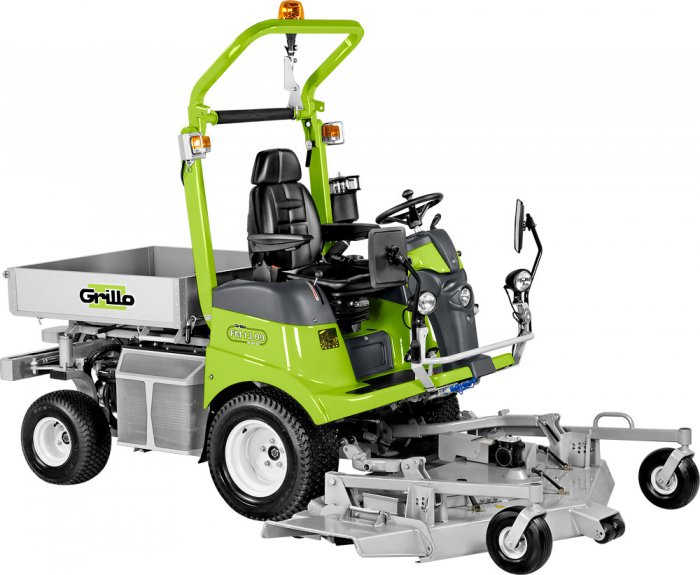

FM 13.09 4WD

Grillo FM13.09 4WD
Grillo FM13.09 4WD Grillo FM13.09 4WD

Technical data sheet
Technical data sheet FM 13.09 4WD
Engine Yanmar 3TNV82
Start electric, with 12 V battery
Supply diesel
Displacement 1331 cc, 3 Cylinders
Power 31 HP (23 kW)
Liquid cooled with electric impeller and equipped with automatic radiator cleaning device
Dry air filter
Fuel tank capacity 23 L
Hydraulic oil tank 20 L
Traction Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
Gearbox Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
Clutch Clutch: electromagnetic for PTO with magnetic blade brake
Cutter deck with rear and side discharge / mulching
Cutting deck width 1600 mm
Cutting height from 20 to 100 mm
Load bed Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened
Differential locking Automatic differential lock and manual with push button
Front tyres 23x10.50-12 TURF WHEELS
Rear tyres 18x8.50-8 TURF WHEELS
Steering system Hydraulic drive with steering wheel
Speed From 0 to 15 km/h continuously variable
Inner turning radius 310 mm
Seat Super comfort and adjustable sprung seat with arm-rests.
Service brake Drum brake
Parking brake Drum brake
Mowing capacity per hour (indicative) 12000 m²/h
Standard features Twin-hydraulic takes-off (max. pressure 120 bar, max. capacity 34L/1’ at 2400 rpm). Lights and indicator kit
Length 3250 mm
Width 1920 mm
Height 1750 mm
Clear span from the ground 150 mm
Weight 1102 kg (with 160 LMP cutting deck)
In action! Photos and Videos
In action! Photos and Videos
Implements
Implements FM 13.09 4WD

130 cm MP cutting deck

9M4411
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 9M4411
weight: 148 kg
  • Hydraulic cutting height adjustment
  • Rear discharge and mulching
  • Hydraulic operated Quick Shft lever

Cutting deck LMP 160 cm

9M4511
to be applied on FD 13.09 4WD - FD 2200 4WD - FD 2200TS 4WD - FM 13.09 4WD
item no.: 9M4511
weight: 170 kg

Three functions:

  • side discharge
  • mulching
  • rear discharge

All purpose flail 135 cm with solid wheels and blades scarifiers kit

9G5122
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 9G5122
weight: 160 kg

Snow chains for 23x10.50-12 wheels (pair)

9M3622
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 9M3622
weight: 2 kg

Front blade 150 cm with rubber end

9G5222
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 9G5222
weight: 135 kg

The orientable front blade allows to rapidly free pathways from snow and ice; it's useful for removing stone piles or sand heaps.
All blade movements are hydraulically controlled; the blade can be lifted up and inclined laterally of + / - 30°.
The rubber end helps avoiding damages on stone pavings and streets.
Hydraulic kit is needed with this implement.

Comfort cabin with heating

Comfort cabin with heating
to be applied on FD 13.09 4WD - FM 13.09 4WD
item no.: 948912
weight: 190 kg

The comfort cabin is equipped with an anti-condensation heating system and ensures a great visibility on the area to be cut.
The equipment includes windscreen wipers, windows as well as internal and external safety closing.

Pneumatic dampened seat and electric air compressor

9A8811
to be applied on FD 13.09 4WD - FD 2200 4WD - FM 13.09 4WD - FM 2200 4WD
item no.: 9A8811
weight: 15 kg
