HWT 550 TILT

Grillo HWT 550 WD
Grillo HWT 550 TILT Grillo HWT 550 TILT Grillo HWT 550 TILT Grillo HWT 550 TILT Grillo HWT 550 TILT

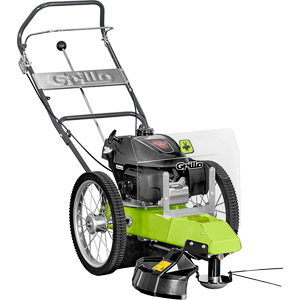

The Grillo 550 HWT is a light, easy to handle brush-cutter, ideal for working in small places with obstacles, in rustic areas and for finish operations where a standard lawn mower cannot work.
It can be used as well to mow the lawn on small flat areas.

This Trimmer is equipped with a Honda GCV170 4-stroke petrol engine,
It has a long-life high resistance drive belt placed between the engine and the cutter head.
The machine comes with a lateral side guard which prevents that the cut grass is thrown away on roads or driveways.

Standard equipment also includes a plastic transparent guard in front of the engine and a flexible rubber strip between the wheels to protect
the operator.

The large wheels (which are not propelled) allow you to work close to all obstacles with agility and manoeuvrability.

The cutter head can be inclined in three positions (central, right and left): This allows working near kerbsides, pavements and walls in such way to completely eliminate grass rests.
The handlebar is comfortable, with a front lever to engage the cutter and a rod to change its 3 position tilting cutter head (centre, right or left).The tilting positions are ideal to work close to curbs, pavements and walls. You can brush the ground and cut the grass to zero.

You can tilt the wheels to either the right or left to facilitate cutting close to edgings along the
roads, walls or flowerbeds.
You can get the desired inclination easily by pressing on the pedal at the bottom of the chassis.

Painting of all Grillo machines incorporates a double electrostatic powder coating process. At the first stage are the washing baths and preparation, then a first protective coat is applied which is then baked in a special oven, this has proven to be the best base for the application of the finish. The second coat consists of powder coating and still further baking in an oven at 190°C, this then produces the characteristic hardness and shine.
All machines are assembled with care in every detail and tested scrupulously by trained personnel. Final inspection will include running the engine in order to check all its functions and ensure the further and final guarantee of a first class product.

Grillo dealers will help you with quality and courtesy to make the right choice according to your needs. High-quality components quickly available even for 30-year-old machines.


Technical data sheet
Technical data sheet HWT 550 TILT
Engine Honda GCV170 OHC
Start recoil starter
Supply fuel
Displacement 166 cc, 1 Cylinder
Power 4.8 HP (3.6 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 0,9 L
Transmission belt
Cutting configuration 2 double square cables, 3 mm thickness, nylon
Cutting width 60 cm
Cutting height Adjustable at 1.5 - 3 - 5 - 6 cm
Cutting head laterally reclinable in 3 positions: left, right and central
Wheels 16" mounted on bearings
Wheel axle adjuststable
Standard features grass-guard protection
External sizes of the wheels 55 cm
Weight 42 kg
In action! Photos and Videos
In action! Photos and Videos
Grillo HWT 550 TILT
Grillo HWT 550 TILT
Grillo HWT 550 TILT
Grillo HWT 550 TILT
Grillo HWT 550 TILT
Grillo HWT 550 TILT
Download
Download
Pdf Full Range Catalogue 2021 (Download - file pdf - 10,78 MB)
Pdf HWT Trimmer catalogue (Download - file pdf - 2,08 MB)
