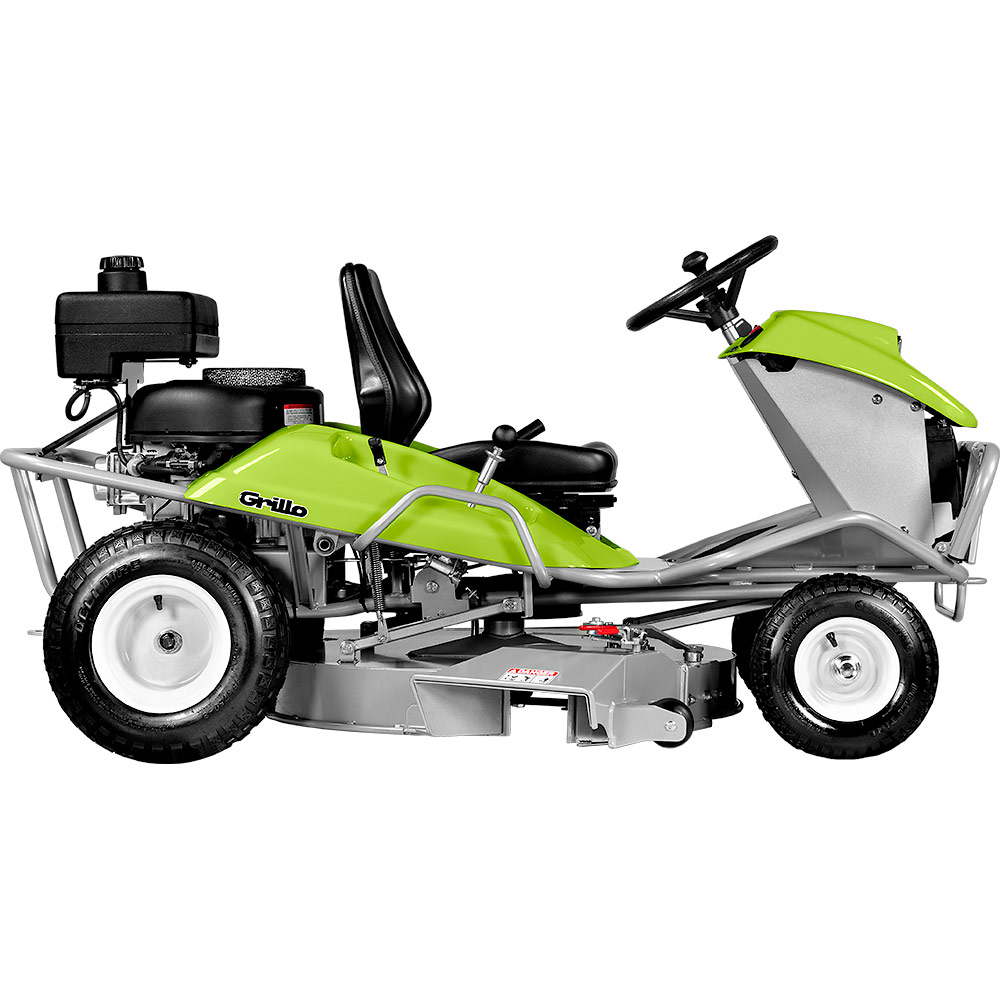

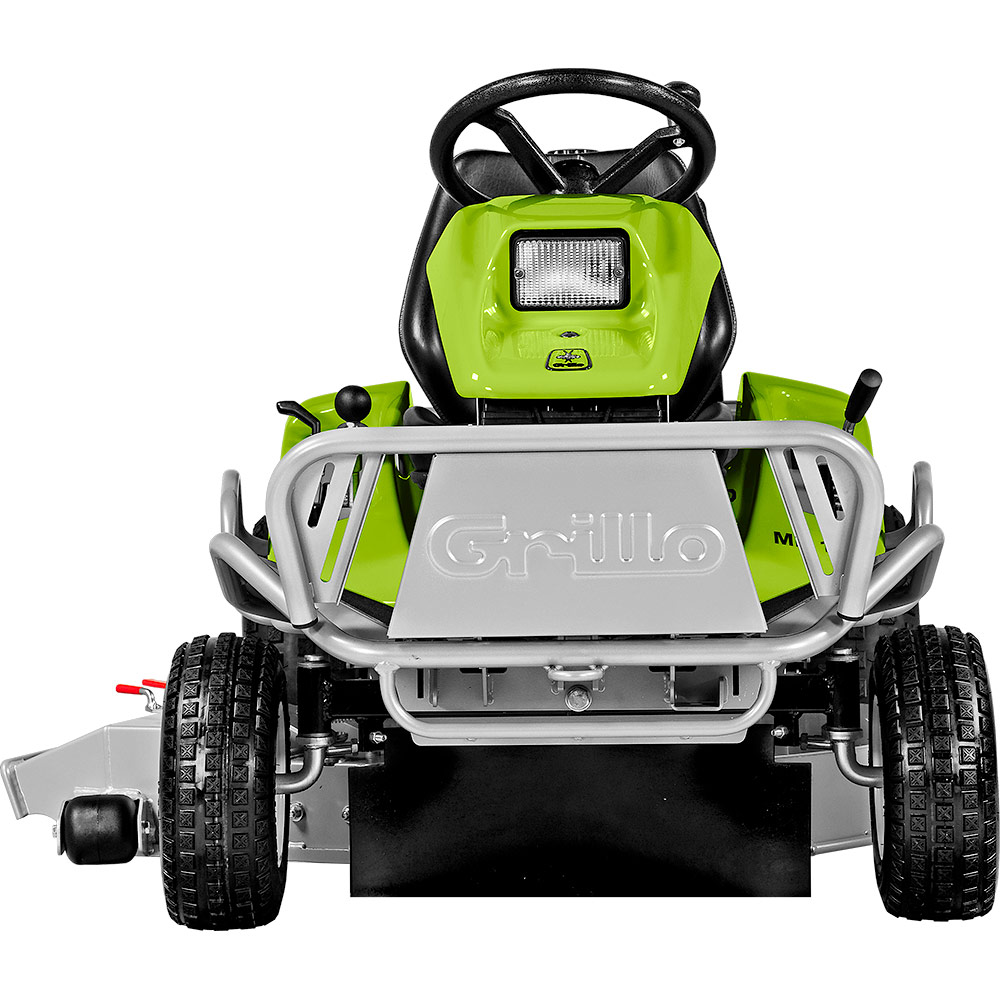

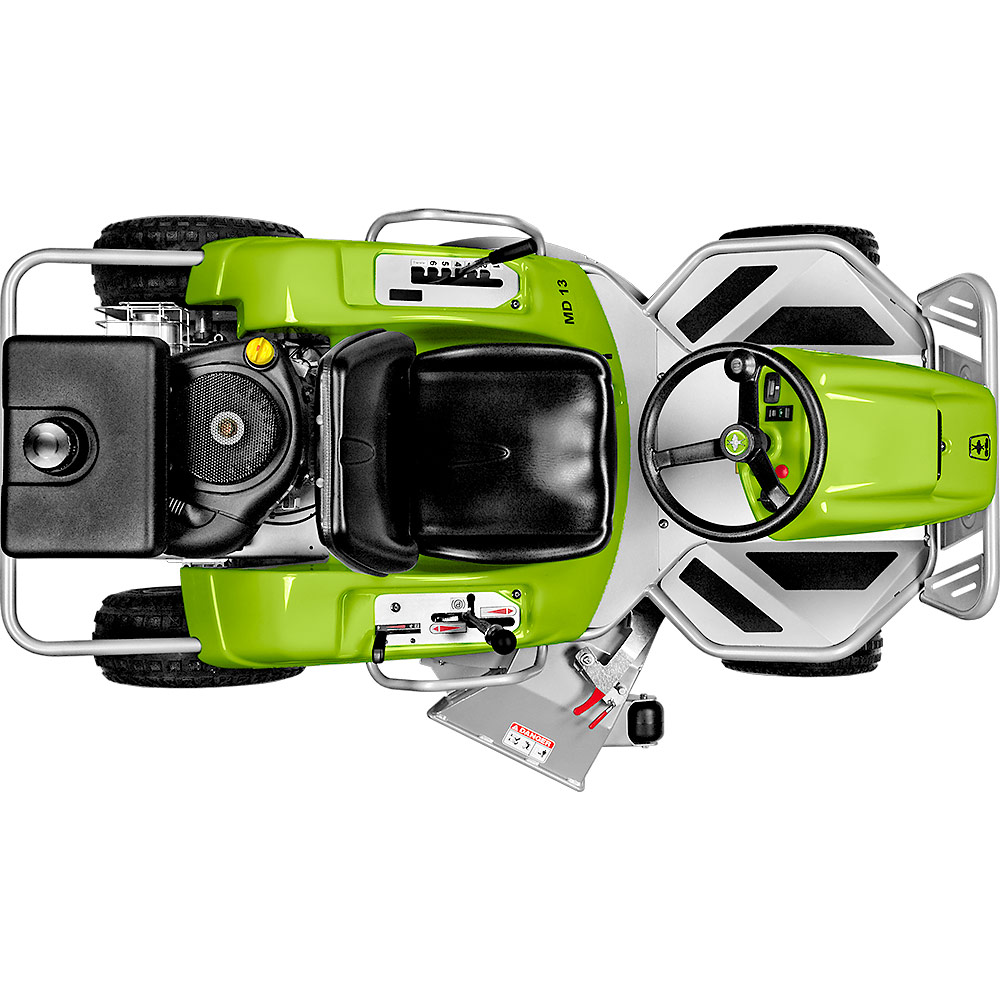

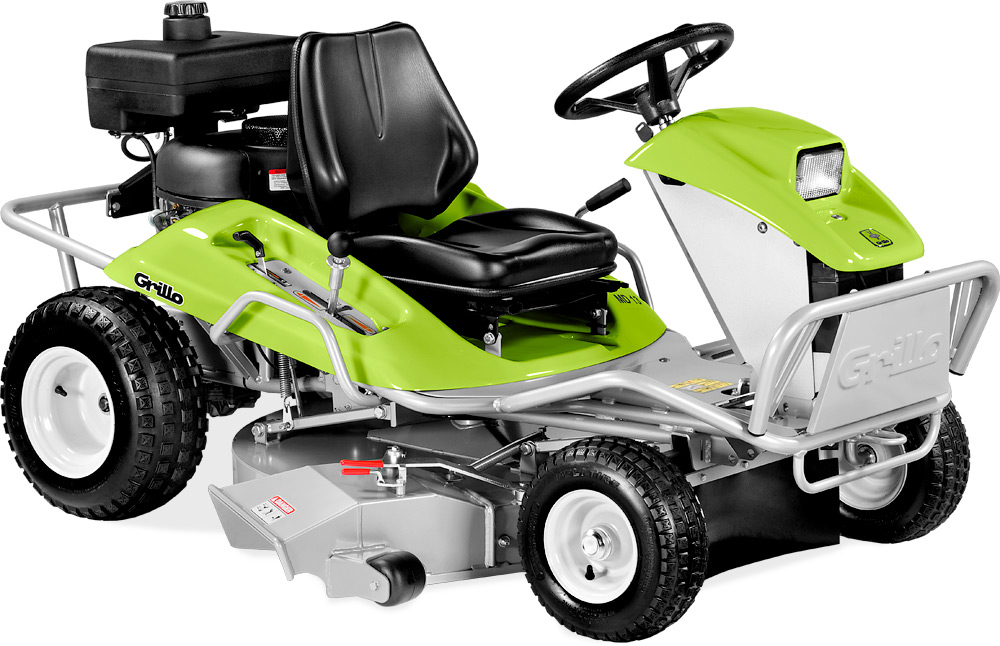

MD 13

 Hydrostatic lawnmower with a dual function cutter deck, side discharge and Mulching, equipped with a 10 HP engine!

The MD13 is a hydrostatic lawnmower with a dual function cutter deck including a “Quick Shift” lever which allows you to change from side discharge to mulch mode whilst remaining comfortably seated.
 MD13 is a compact machine with a low centre of gravity, an optimal weight distribution, it is built to ensure maximum stability and safety for the operator. The Grillo MD13 is an extremely comfortable machine! The extraordinary space is derived from a low positioned and longitudinally on 2 positions adjustable platform. The aggressive design is up to the minute! The modern lines and the care taken with every detail of the chassis and the fairing catch immediately one's eye! With the possibility to choose among the mulch or side discharge, the MD13 will always be 100% efficient The “Quick Shift” lever allows you to change the cutting modes whilst remaining comfortably seated also during the cutting procedure and without stopping. There is no need to change the blades.

The MD13 is a hydrostatic lawnmower with dual function cutter deck incorporating a “Quick Shift” levers which allows you change from side discharge to mulch mode whilst remaining comfortably seated on the machine. The Grillo MD13 has an electromagnetic clutch and is ideal for cutting lawns even on slopes.

The powerful 10HP engine, its easy manageability, smooth steering action and fast work speed make the Grillo MD13 a rapid and efficient machine, which is, at the same time, a pleasure to use.

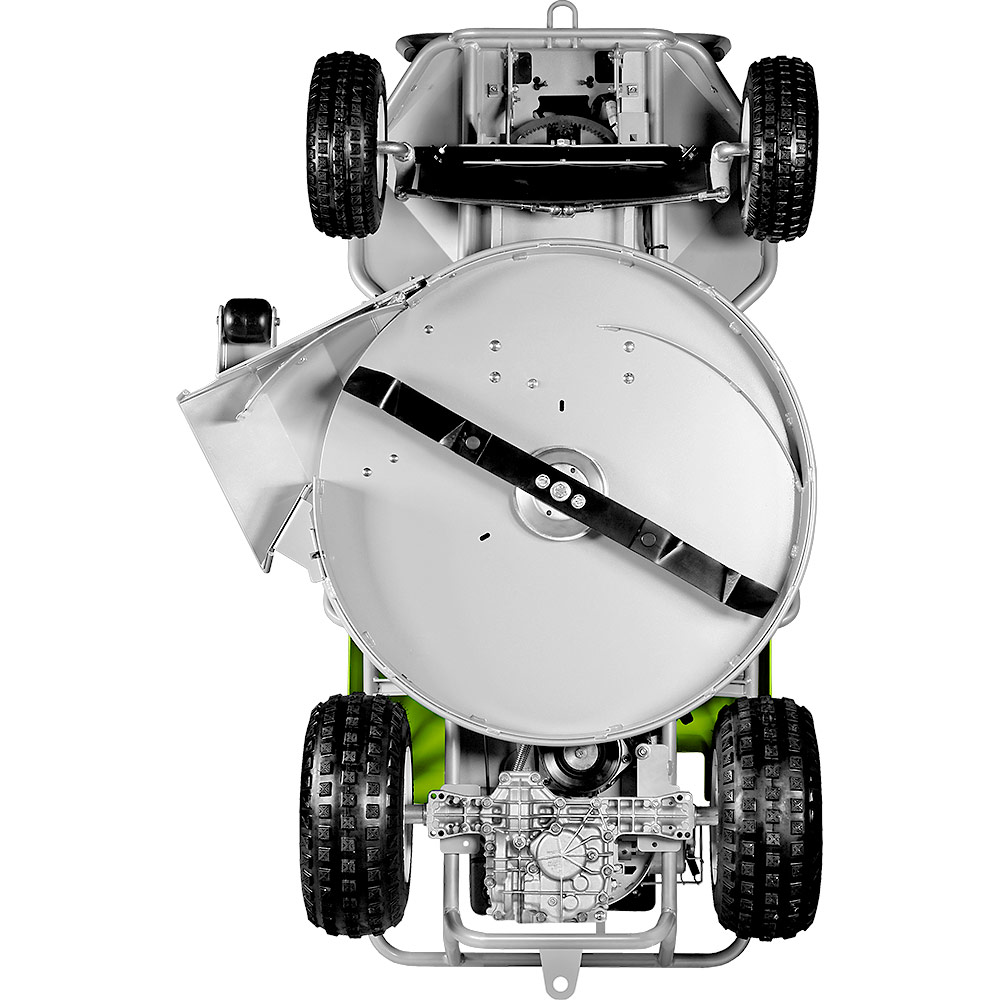

The innovative 83 cm single blade cutter deck will always produce an excellent finish!
With the possibility to choose among the mulch or side discharge, the MD13 will always be 100% efficient.
The “Quick Shift” lever allows you to change the cutting modes whilst remaining comfortably seated also during the cutting procedure and without stopping. There is no need to change the blades between the different modes.

The cutter blade’s swing tips are shock-resistant and their special cutting profile ensures a precise cut in all conditions.
The rear discharge cut mode is ideal when mowing high grass; the grass is discharged outwards through into the steel side chute. The chute is built in compliance with all laws ensuring optimal safety for the operator, and it is further equipped with an anti-scalp roller.
The mulch mode is ideal when cutting frequently, the clippings are finely shred and are quickly absorbed back into the ground, therefore giving additional nourishment to the soil.
Also the mulch cut mode can be used after the first pass of the side discharge helping to ensure a better finish!

he cutter deck is made of steel and is protected from accidental damages thanks to the very robust side discharge casing fixed with screws.
The large diameter blade shaft and heavy duty transmission ensure reliability even under most demanding working conditions for extended periods of work and in complete safety.
To further improve the reliability and to protect against accidental damage some of the hinges are positioned inside the casing.

The MD13 is a compact machine with a low centre of gravity, an optimal weight distribution, it is built to ensure maximum stability and safety for the operator. The low ground clearance makes the MD13 ideal for works under low positioned branches.
The low positioned seat as well as the very low positioned endothermic engine, with its vertical crank, which is positioned in the centre between the 4 wheels and the battery positioned on top of the front axle, make the machine extraordinarily stable.

he extremely small turning radius of just 45 cm allows access in narrow places, it is easy to manouvre around obstacles such as circular flower beds, trees, street lights etc.
The turf tyre profile help to keep marks on the grass to a minimum.
The pivoting front axle keeps all four wheels on the ground even on extremely undulating surfaces.

The transmission consists of a hydrostatic axle with an oil cooling fan which is essential to increase the transmission’s output by reducing the working temperature. Speed is continuously variable from 0 to 9 km/h thus allowing a precise choice of the drive speed.

The engagement of the blades is made via an electric switch positioned near the steering wheel, which is equipped with a handle. The cutting heights range from 25 to 75 mm and can be adjusted, whilst remaining seated, by means of a lever having 6 cutting positions; this same lever has a further position for transport therefore enabling you to raise the whole cutter deck from the ground by interrupting automatically the blade rotation in order to mount kerbs and pavements without any problem.


Belt-tension is self-adjusting. The whole cutter deck is constantly kept parallel to the ground improving its cutting quality even after many years of intensive use!

The Grillo MD13 is an extremely comfortable machine!
The extraordinary space is derived from a low positioned and longitudinally on 2 positions adjustable platform. The operator’s feet lean toward the optimum angle in order to ensure maximum safety. The drive lever as well as the steering wheel are smooth when engaging them. The seat is dampened, comfortable and longitudinally adjustable.
The disc parking brake acts on the transmission.
Driving the MD13 will protect the operator from fatigue even after long work periods.

The MD13 is fitted with a Briggs & Stratton INTEK 3.130 AVS petrol engine, a fuel tank with 7 L capacity and electric start. The single cylinder overhead valve engine has a cylinder with a cast iron liner and 344 cc displacement . It incorporates the latest cutting edge technology ensuring reliability, low emissions, reduced consumption, high performance and vibrations reduced to the minimum thanks to the AVS-system (anti vibration system).
The air filter is easily accessible for quick cleaning.

The aggressive design is up to the minute! The modern lines and the care taken in each detail of the chassis and the fairing catch immediately one's eye!
The MD13 passed very stringent tests to check the reliability of the transmission, the cutter deck, the chassis as well as all its components.
A tow bar, hour metre and front light are standard features.

All components, from the simplest to the most complex, are of a high quality standard.
Chassis, cutter deck transmission, cutter deck itself are built by Grillo in Italy by using only premium materials and cutting edge technology. All this to achieve a constant and 100% controlled high level quality.
The finish on all Grillo machines consists of a double electrostatic powder coated process. First are the washing baths and preparation, then a first protective coat is applied together with baking in the oven, this turns out to be the best basis for the application of the finish. The second coat consists of powder coating and further baking in the oven at 190°C to produce the characteristic hardness and brilliance.
All the Grillo MD13 components have been assembled with care in every detail and tested scrupulously by specialised personnel. Final inspection means a machine whose engine has been run in order to check its performance. This is a further and final guarantee of a high quality product.

MD13, as with all Grillo products, is designed and built to last and retain their value over many years.
All Grillo products are distributed and serviced by a widespread Grillo specialist dealer net. Spare parts remain available also after many years.


Technical data sheet
Technical data sheet MD 13
Engine Briggs & Stratton Intek 3.130 AVS
Start electric, with 12 V battery
Supply fuel
Displacement 344 cc, 1 Cylinder
Power 10 HP (7.2 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity Fuel tank 7 litres (reserve tank 1,5 litres)
Gearbox hydrostatic transmission
Clutch Clutch: electromagnetic for PTO with blade brake
Cutter deck side discharge and mulching, with “QUICK SHIFT” lever in order to change the cutting function
Cutting configuration rotating single blade with floating terminals
Cutting width 830 mm
Cutting height 6 different cutting positions from 25 to 85 mm plus 1 for transfer
Peripheral blade speed 72 m/s
Front tyres Turf 13x5.00-6
Rear tyres Turf 16x7.50-8
Speed continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h
Inner turning radius 45 cm
Seat Dampened and adjustable seat
Parking brake rear parking disc brake
Mowing capacity per hour (indicative) 4500 m^2/h
Standard features tow bar and front headlight
Length 1895 mm
Width 1130 mm
Height 975 mm
Weight 218 kg
In action! Photos and Videos
In action! Photos and Videos
The GRILLO MD13 cutter deck is equipped with a 'Quick Shift' lever which allows you to change from mulching cut mode to side discharge cut mode.
The GRILLO MD13 cutter deck is equipped with a 'Quick Shift' lever which allows you to change from mulching cut mode to side discharge cut mode.
The powerful 13HP engine, its easy manageability, smooth steering action and fast work speed make the Grillo MD13 a rapid and efficient machine, which is, at the same time, a pleasure to use.
The powerful 13HP engine, its easy manageability, smooth steering action and fast work speed make the Grillo MD13 a rapid and efficient machine, which is, at the same time, a pleasure to use.
Implements
Implements MD 13

Orientable front blade 125 cm

9G2611
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - MD 13 - MD 18 - MD 22 - MD 22N
item no.: 9G2611
weight: 54 kg

Item no. 949411 for Climber 9 Series needed

Item no. 949311 for Climber 7 Series needed

Rubber end for blade 125 cm

Rubber end for blade 125 cm - COD. 9E5911C
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G 85d - GF 3 - GF 3DF - MD 13 - MD 18 - MD 22 - MD 22N
item no.: 9E5911C
weight: 1 kg

Coupling for 125 cm snow blade for Climber 7 series, MD

949311
to be applied on Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - MD 13 - MD 18 - MD 22N
item no.: 949311
weight: 5 kg

Snow chains for rear wheels 16x7.50-8 (pair) for MD13 and MD16

9M3822
to be applied on MD 13 - MD 18
item no.: 9M3822
weight: 1,5 kg

Seat suspension kit

9A4511
to be applied on Climber 10 AWD 22 - Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - Climber 9.27 - MD 13
item no.: 9A4511
weight: 9 kg
