PK 400

Dear Customer, we remind you that this model has been discontinued but its spare parts and our After Sales&Service are always at your disposal. Discover the new models!

Technical data sheet PK 400

Back to

	Engine	Briggs & Stratton 18 Vanguard V-Twin OHV Start electric, with 12 V battery Supply fuel Displacement 570 cc, 2 Cylinders Power 18 HP (13.3 kW) Air cooled Dry air filter with interchangeable filter cartridges
	Fuel tank capacity	20 L
	Transmission	Continuously variable (CVT) with gears in oil bath. Twin speed range available (reduced and fast gears) operated from the driver’s position and reverse gear.
	Traction	Two-wheel rear drive

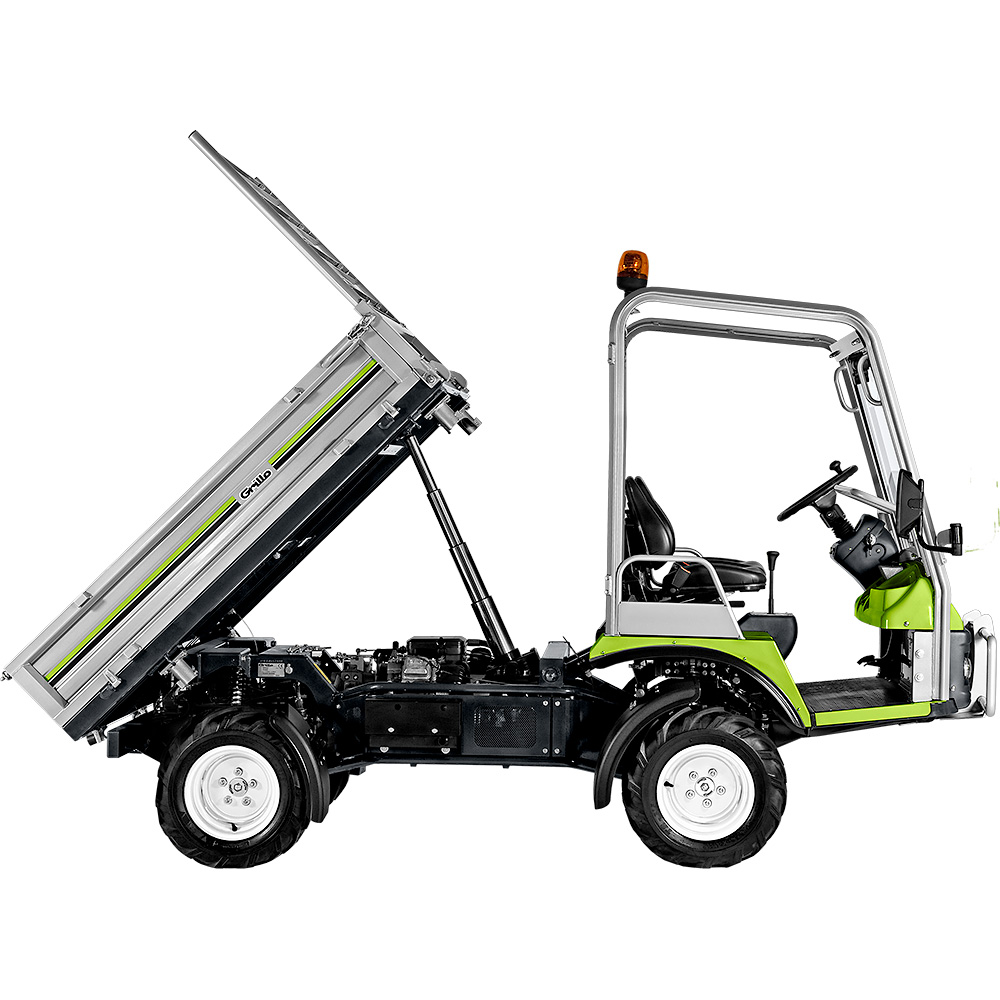

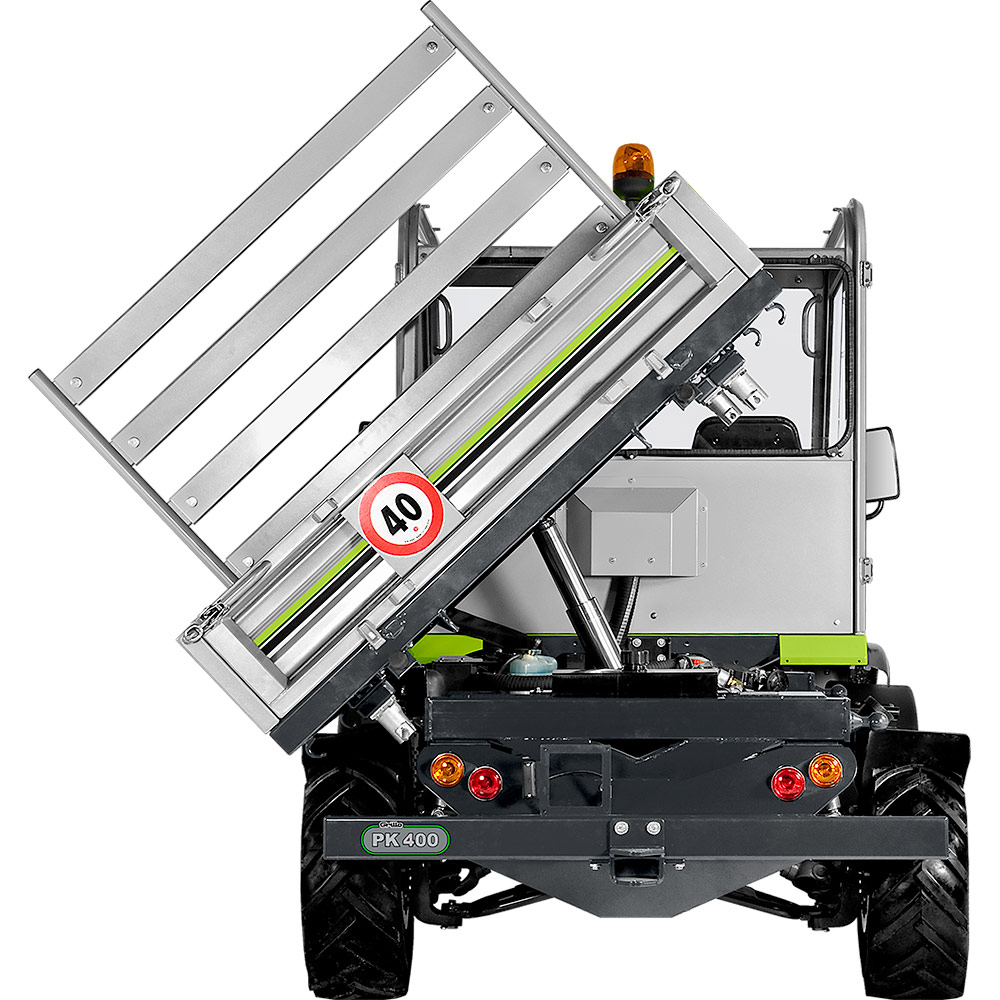

	Load bed	Floor of the body made of steel sheet and side dump boards made of chequer plate . Hydraulic three-way tipping body. Electric tip operated from the driver’s position. With hooks and pre-adjustment for side board extension.
	Internal size of the load bed	1770 x 1470 mm, boards height 300 mm
	Capacity	max. 900 kg including 2 people on board
	Load bed height from the ground	840 mm
	Wheels	Half-road tyres 23x10.50-12 [8PR], or turf tyres 23x10.50-12 or Golf Course tyres 24x12.00-12 [8PR]
	Frame structure	Supporting frame structure made of steel tube
	Suspensions	4 independent dampers mounted on the wheels with oscillating double articulated arms
	Speed	With 23x10.50-12 and low gear series, max. speed 20 km/h. With 23x10.50-12 and high gear series, max. speed 40 km/h
	Inner turning radius	2.6 m

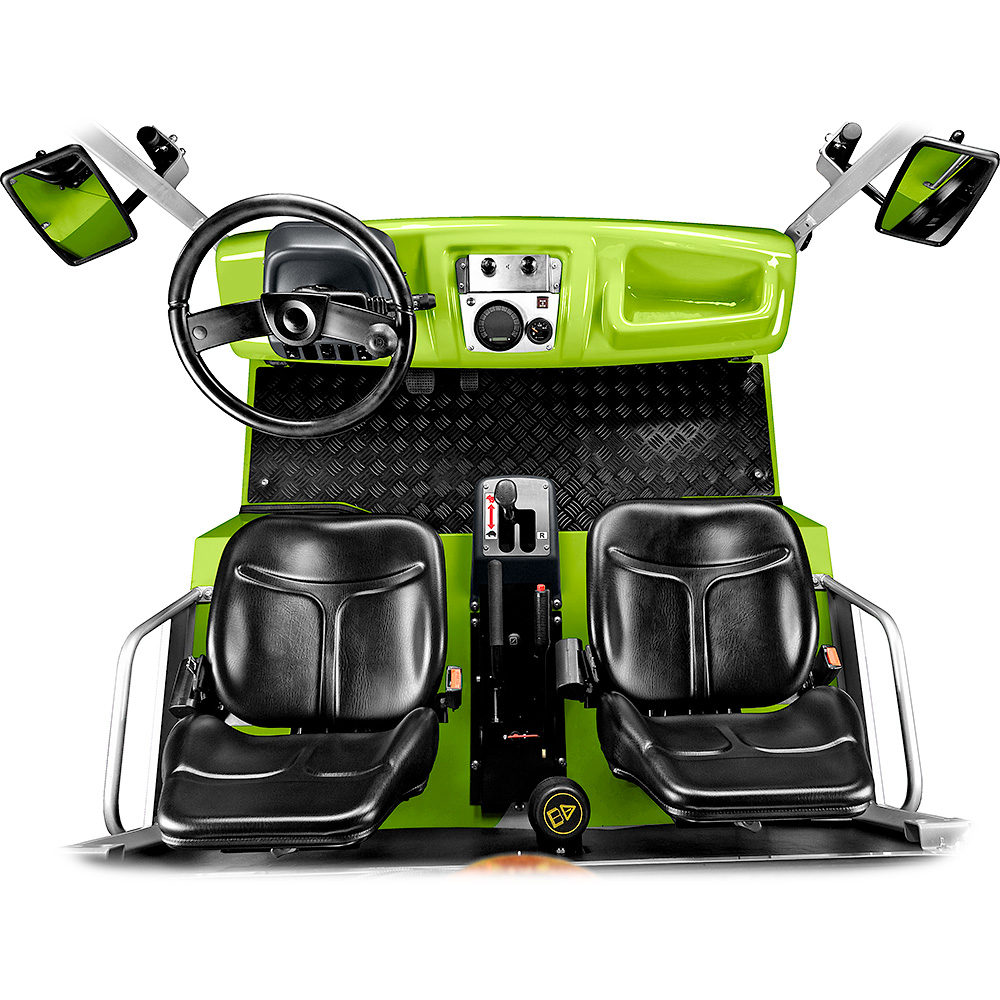

	Seat	Both seats are fitted with springs and are adjustable
	Service brake	4 hydraulic disk brakes acting on the 4 wheels
	Parking brake	Mechanical disk brake acting on the transimission
	Steering wheel	Hydraulic steering system
	Driver's protecting grill	At the front side of the load body
	Length	3340 mm
	Width	1600 mm (excl. wing mirrors)
	Height	2030 mm
	Track width	1350 mm
	Distance between axles	1705 mm
	Weight	1100 kg
