PK 600 4WD

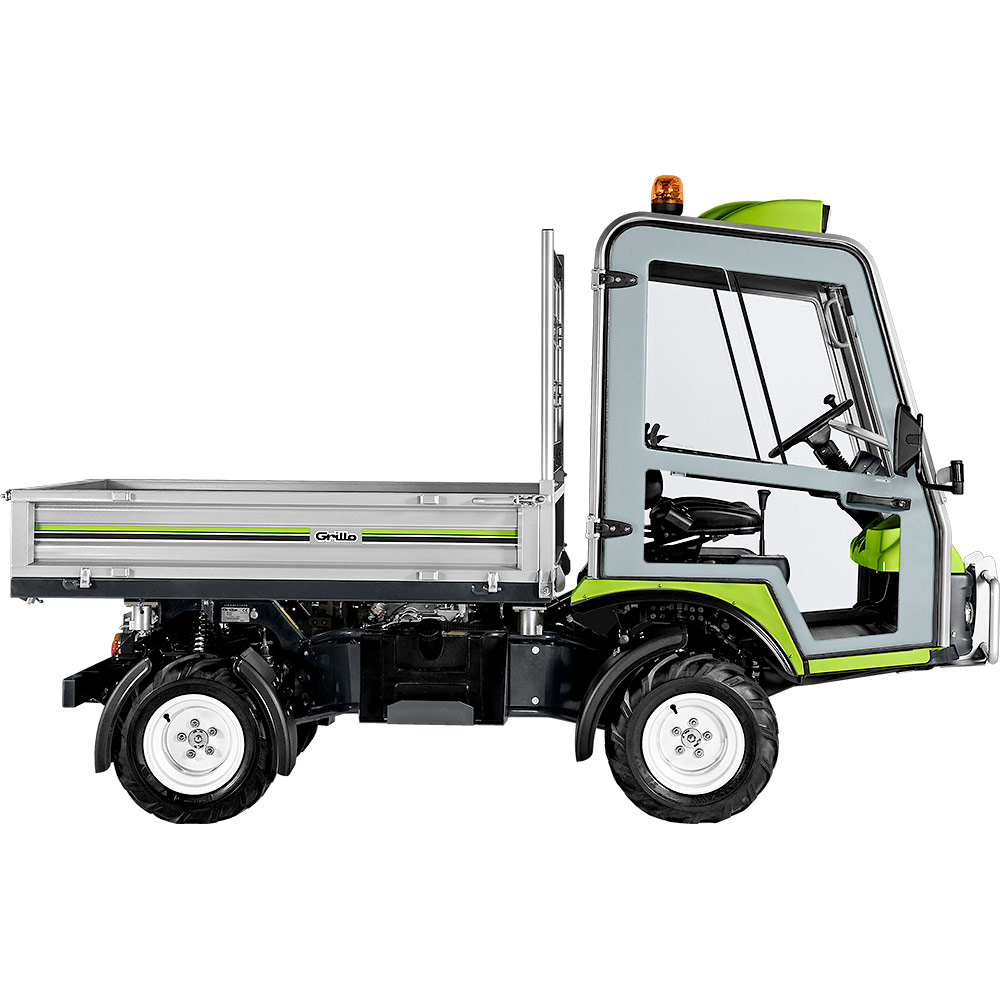

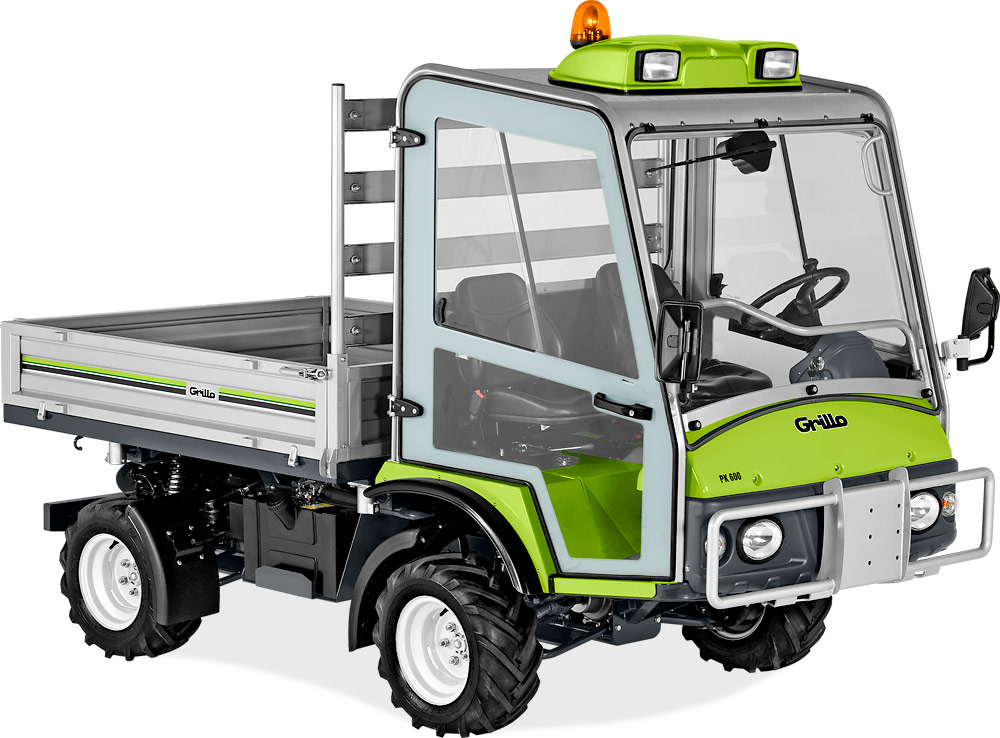

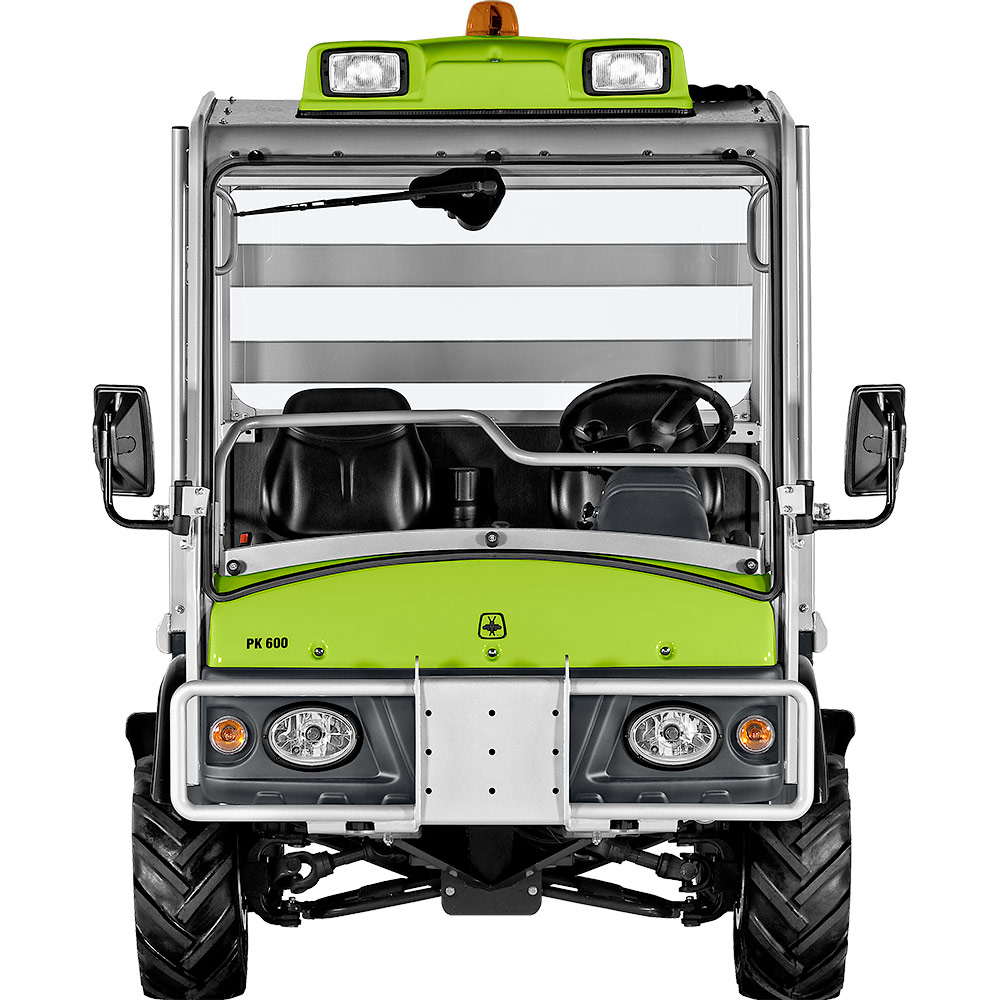

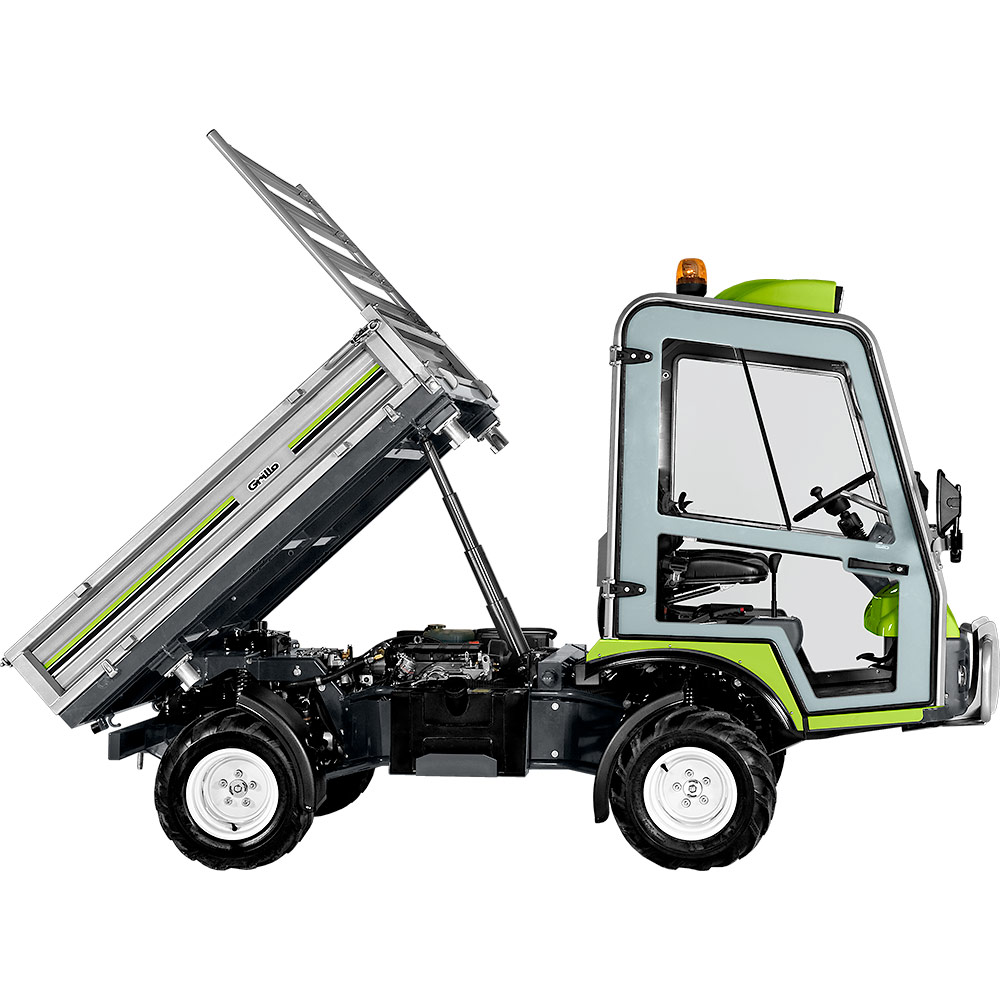

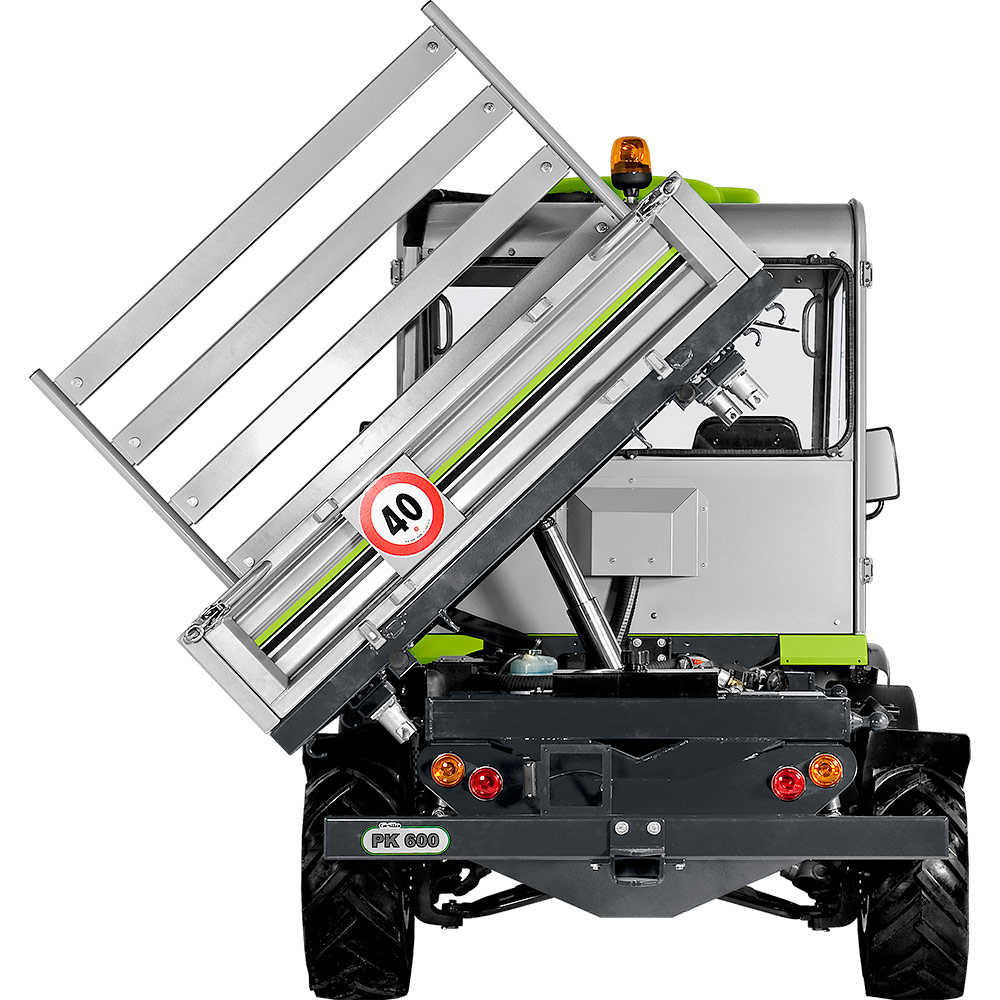

Grillo PK600 4WD
Grillo PK600 4WD Grillo PK600 4WD Grillo PK600 4WD Grillo PK600 4WD Grillo PK600 4WD

Dear Customer, we remind you that this model has been discontinued but its spare parts and our After Sales&Service are always at your disposal. Discover the new models!


Technical data sheet
Technical data sheet PK 600 4WD
Engine Kohler LDW1003 FOCS PLUS
Start electric, with 12 V battery
Supply diesel
Displacement 1028 cc, 3 Cylinders
Power 25 HP (18.6 kW)
Liquid cooled
Dry air filter with interchangeable filter cartridges, safety filter and prefilter
Fuel tank capacity 20 L
Transmission Speed is continuously variable (CVT) and with oil bath gears. 2 speed ranges available (reduced and fast) which can be chosen in from the driver’s position and reverse gear. Differential on both axles.
Traction permanent 4-wheel drive
Load bed Floor of the body made of iron sheet and side dump boards made of chequer plate . Hydraulic three-way tipping body. Electric tip operated from the driver’s position. With hooks and pre-adjustment for side board extension.
Internal size of the load bed 1770 x 1470 mm, boards height 300 mm

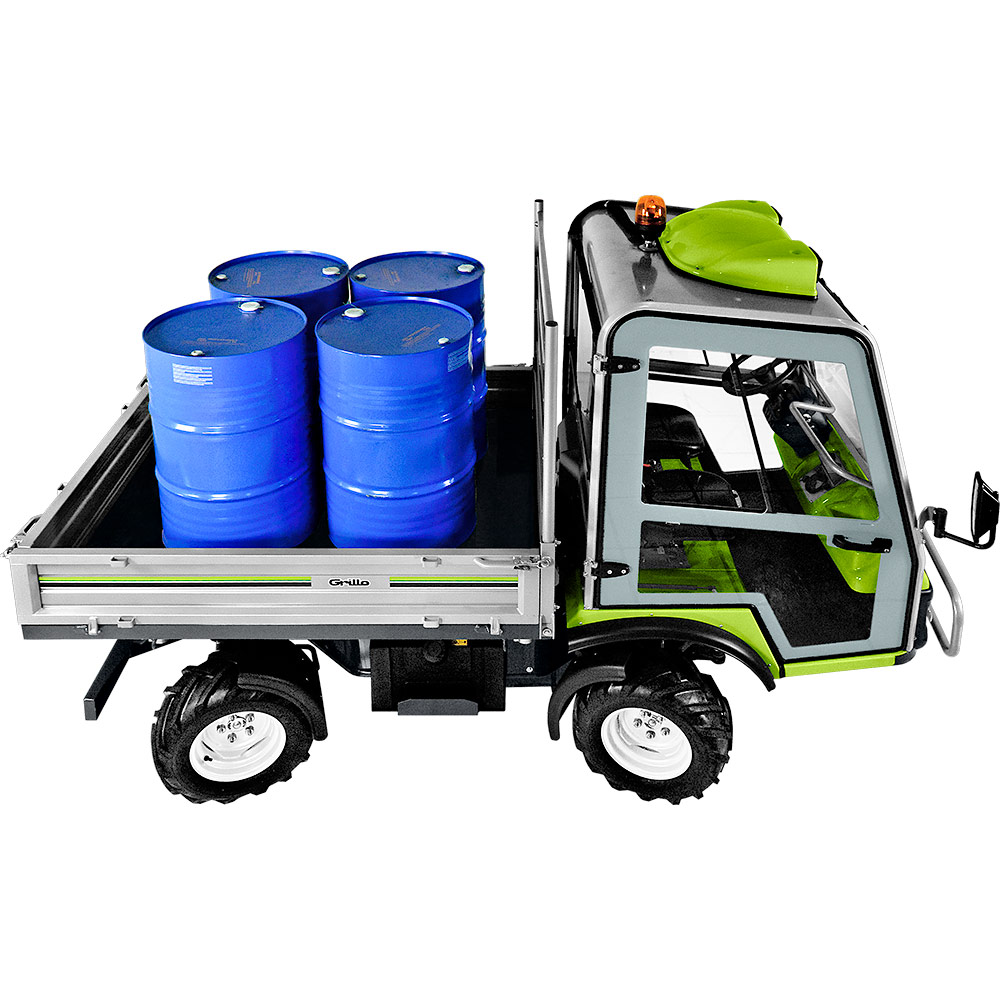

Capacity max. 900 kg including 2 people on board
Load bed height from the ground 900 mm
Differential locking Manual controlled differential locking device on the rear axle
Wheels Half-road tyres 23x10.50-12 [8PR], or turf tyres 23x10.50-12 or Golf Course tyres 24x12.00-12 [8PR]
Frame structure Supporting frame structure made of steel tube
Suspensions 4 independent dampers mounted on the wheels with oscillating double articulated arms
Speed With 23x10.50-12 and low speed series, max. speed 20 km/h. With 23x10.50-12 and high speed series, max. speed 40 km/h
Inner turning radius 1.8 m with 2 steering axles
Seat Both seats are fitted with springs and are adjustable
Service brake 4 hydraulic disk brakes acting on the 4 wheels
Parking brake magnetic disk brake acting on the transimission
Steering wheel Hydraulic. Steering front axle, disconnectable steering rear axle
Standard features Windscreen and roof. Tow bar, emergency bar
Driver's protecting grill On the front side of the box
Length 3460 mm
Width 1600 mm (driving mirrors excluded)
Height 2030 mm - 2060 mm with heater kit
Track width 1350 mm
Distance between axles 1705 mm
Weight 1150 kg

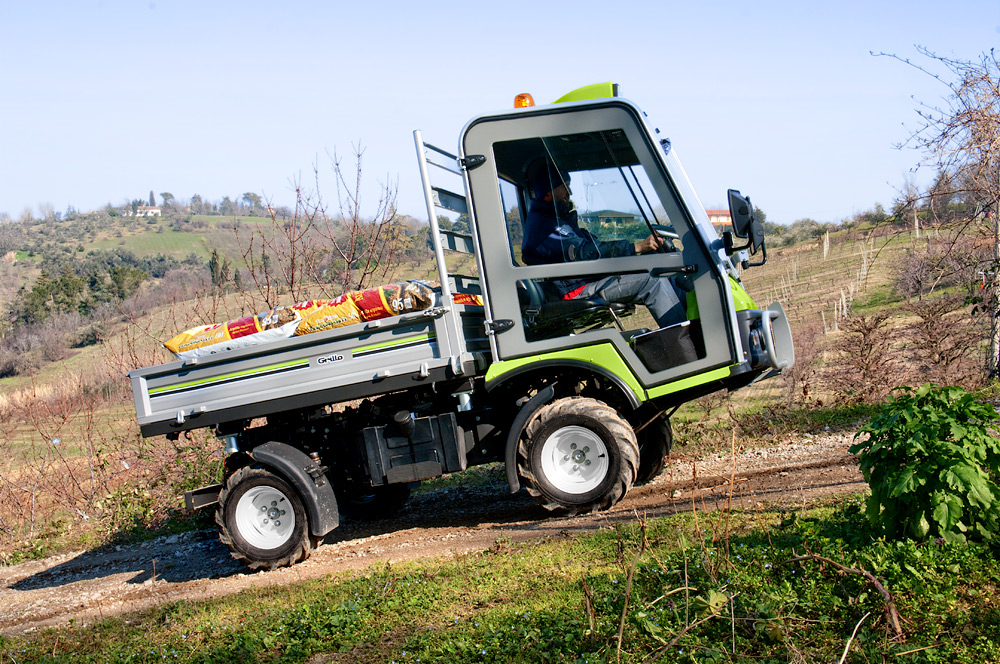

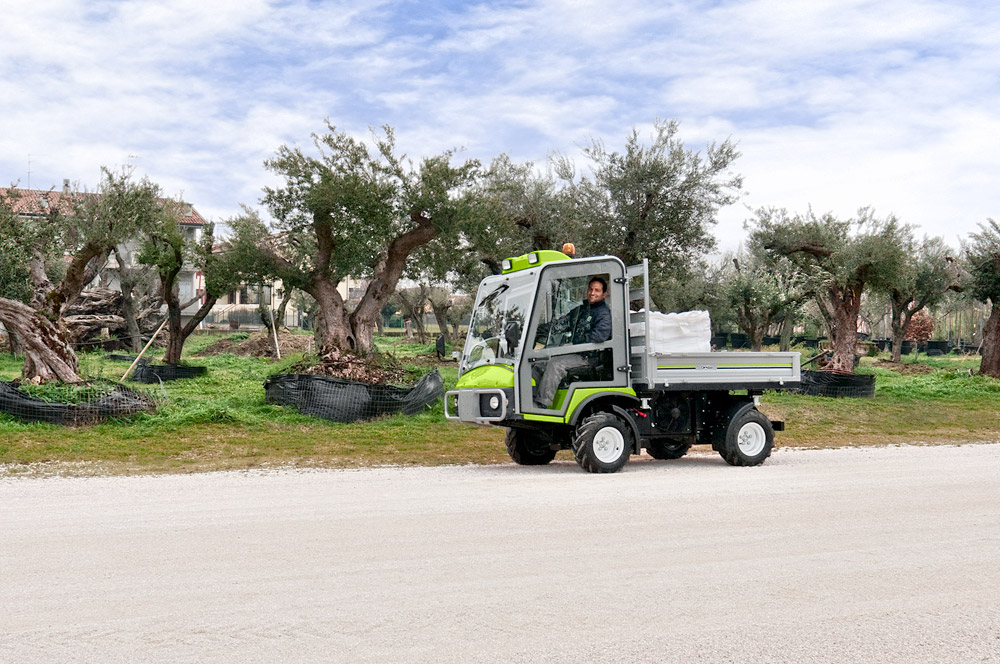

In action! Photos and Videos
In action! Photos and Videos
Grillo PK600 4WD
Grillo PK600 4WD
Grillo PK600 4WD
Grillo PK600 4WD
Grillo PK600 4WD
Grillo PK600 4WD
Implements
Implements PK 600 4WD

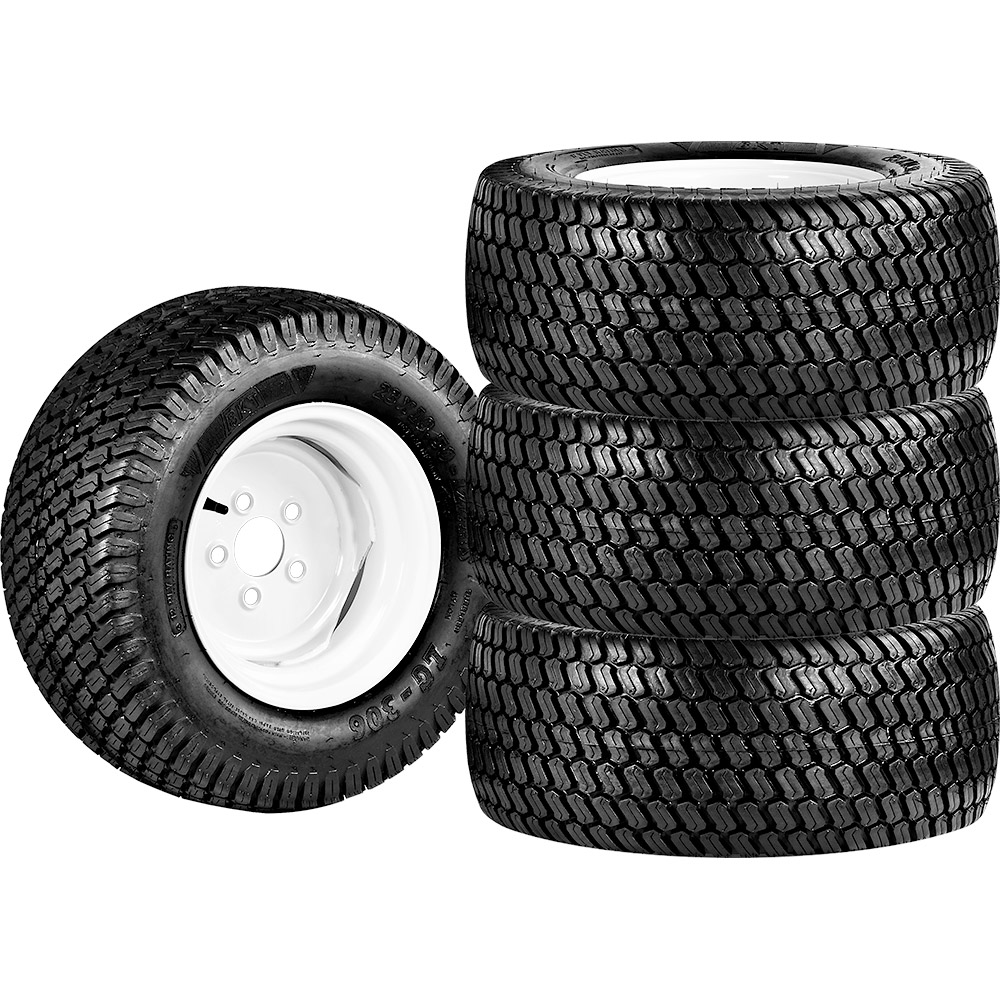

Set 4 Turf/Golf wheels 24x12.00-12 8PR

918612
to be applied on PK 600 4WD
item no.: 918612
weight: 80 kg

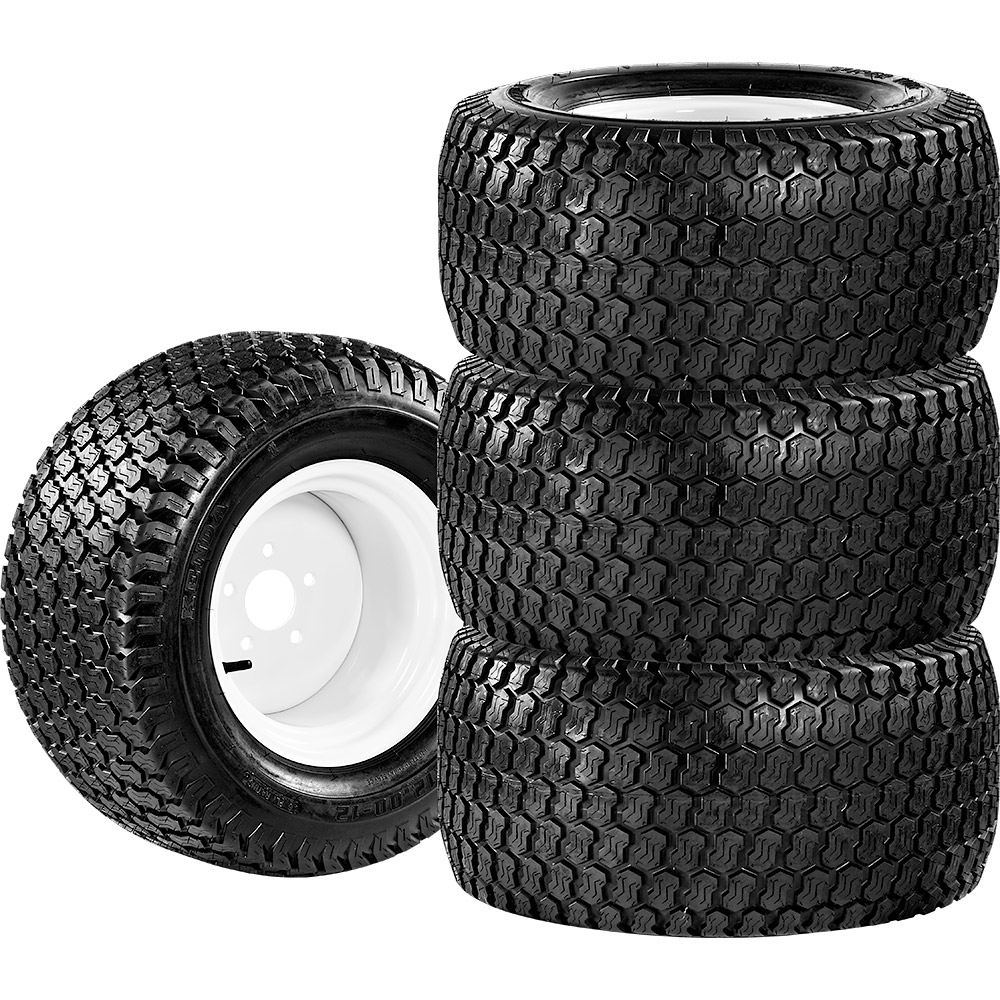

Set 4 Turf wheels 23x10.50-12

918512
to be applied on PK 600 4WD
item no.: 918512
weight: 130 kg

951922
to be applied on PK 1400 4WD - PK 600 4WD
item no.: 951922
weight: 73 kg

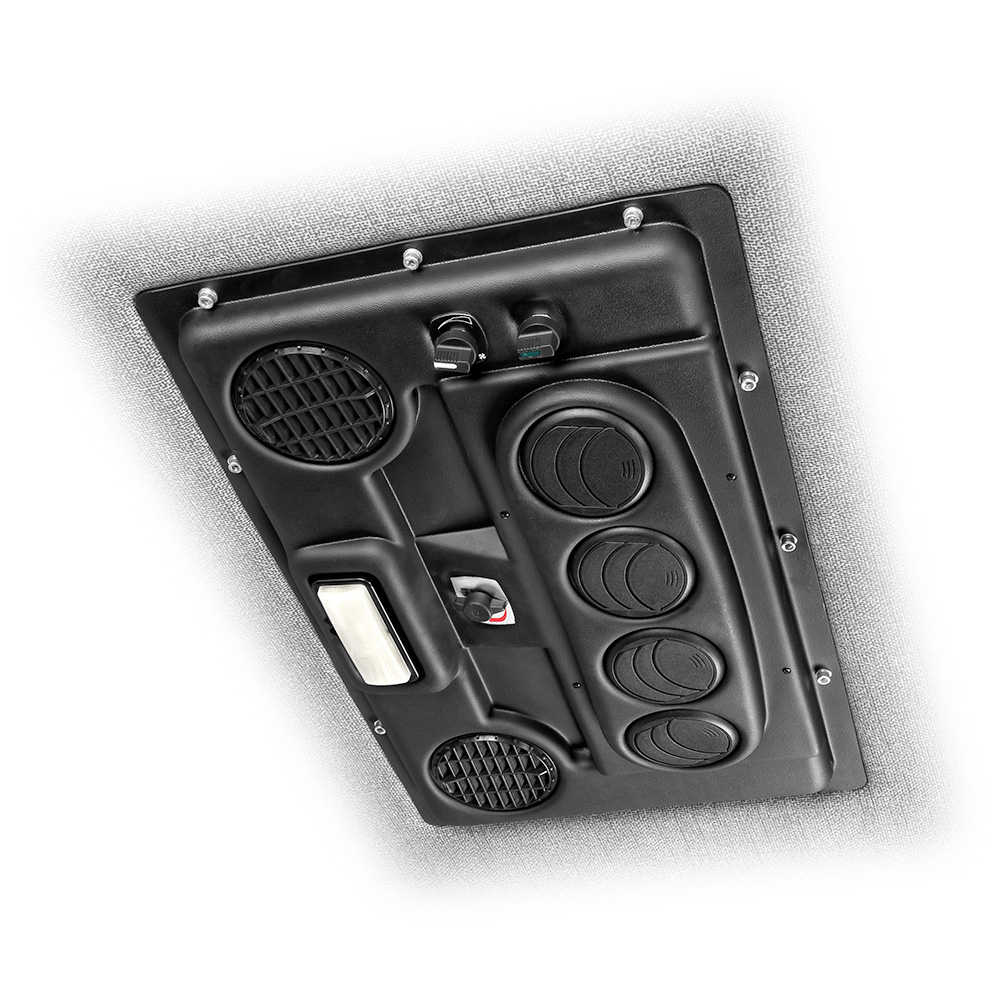

Heater Kit

Heater Kit PK800 - COD. 951712
to be applied on PK 1400 4WD - PK 600 4WD - PK 800 4WD
item no.: 951712
weight: 15 kg

The heater kit ensures with its four orientable air outlet nozzles, and it assures the cabin's heating and the condense elimination.
In addition to that it is equipped with compartment lights.

9B0511
to be applied on PK 600 4WD
item no.: 9B0511
weight: 12 kg

9B0711
to be applied on PK 600 4WD
item no.: 9B0711
weight: 6 kg

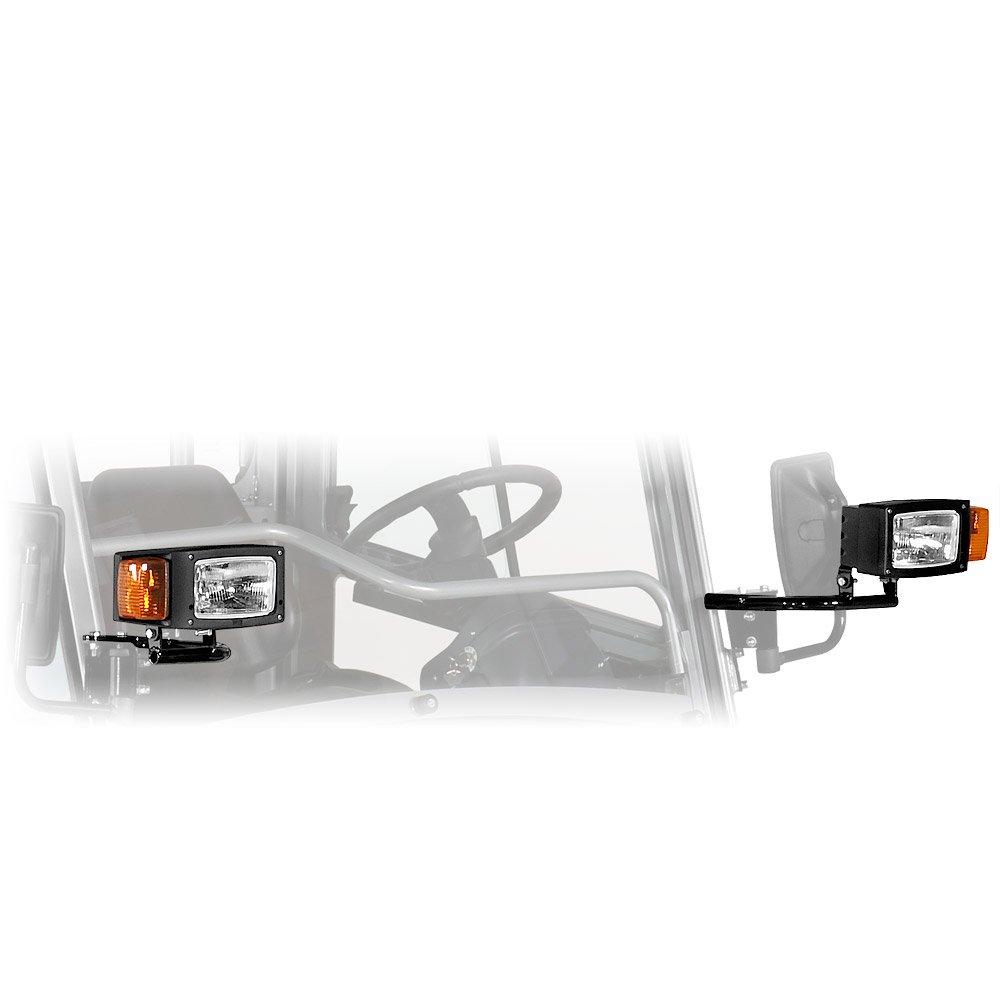

Additional high-positioned lights kit for frontal attachments

9A9711
to be applied on PK 1400 4WD - PK 600 4WD
item no.: 9A9711
weight: 6 kg
