The G52 is a small walking tractor able to accept a range of attachments. · 50cm tilling width · All gear drive · Adjustable handles with anti vibration · 1 forward & 1 reverse gear


Technical data sheet
Technical data sheet G 52
Engine Kohler Lombardini 3000 Series OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 3,6 L.
Transmission with oil bath gears
Gearbox 1 forward gear + 1 reverse gear
Standard rotary tiller Adjustable rotary tiller with x 4 tines. Working width 500 mm
Hoes system diametre 280 mm
Working width 500 mm (370 mm with Kit cod. 929512)
Working depth 13 cm
P.T.O. For the walking tractor version, 644 rpm with anticlockwise rotarion. For the sickle bar version 965 rpm with clockwise rotation
Available tyres Tractor 13x5.00-6 wheels
Speed For the walking tractor version 1st gear 1,4 km/h, reverse gear 2,2 km/h. For the sickle bar version 1st gear 2,2 km/h, reverse gear 1,4 km/h. For the SPECIAL VERSION FOR OLIVES 1st gear 2,1 km/h, reverse gear 3,2 km/h
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Standard features Attachments quick coupling having 50 mm diameter
Safety devices ACTIVE COUPLING AND AUTOMATIC DISENGAGEMENT OF THE TILLER IN REVERSE GEAR
External sizes of the wheels 400 mm with 13x5.00-6 wheels
Weight Weight: standard version 67 kg
In action! Photos and Videos
In action! Photos and Videos
Grillo G 52
Grillo G 52
Grillo G 52
Grillo G 52
Grillo G 52
Grillo G 52
Grillo G 52
Grillo G 52
Implements
Implements G 52

Adjustable rotary tiller 50 cm (4x4 tines)

Adjustable rotary tiller 50 cm [4X4 tines] - COD. 978511
to be applied on G 52
item no.: 978511
weight: 24 kg

Kit to adjust tiller at 37 cm

Kit to adjust at 37 cm for tiller G52 and G55 - COD. 929512
to be applied on G 52 - G 55
item no.: 929512
weight: 2 kg

Furrower behind the rotary tiller (cod. 944622)

Adjustable furrower - COD. 944622
to be applied on G 45 - G 46 - G 52 - G 85d
item no.: 944622
weight: 3 kg

Central cutter bar 86 cm Mulching

Central mulching cutter bar 86 cm  - COD. 9L1111
to be applied on G 52 - GF 1
item no.: 9L1111
weight: 23 kg

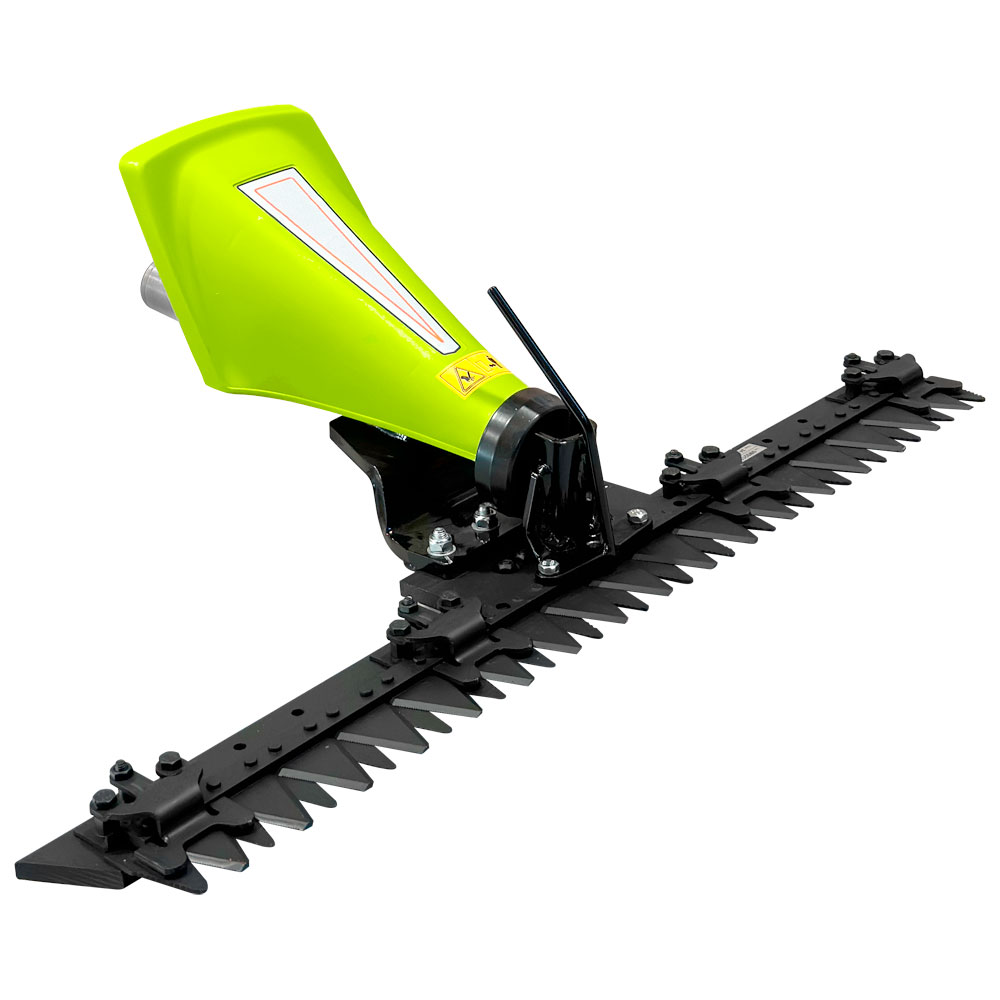

Double blade central cutter bar 96 cm

Central double blade cutter bar 96 cm Mulching - COD. 9L2411
to be applied on G 52 - GF 1
item no.: 9L2411
weight: 20 kg

Rotary cutter 50 cm

Rotary cutter 50 cm - COD. 9M5411
to be applied on G 52 - GF 1
item no.: 9M5411
weight: 29 kg

Wheel extensions 10 and 17 cm (pair)

Pair wheel extensions 5 and 8,5 cm - COD. 936911
to be applied on G 52 - GF 1
item no.: 936911
weight: 1 kg

Front blade 80 cm

Floating front blade 80 cm - COD. 9E6311
to be applied on G 52 - GF 1
item no.: 9E6311
weight: 34 kg

Weight for front blade

Weight 20 kg for front blade - COD. 9E6111
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF
item no.: 9E6111
weight: 20 kg

Rubber end for blade 80 cm

Rubber end for blade 80 cm - COD. 9E5911A
to be applied on G 52 - GF 1
item no.: 9E5911A
weight: 1 kg

Pair of snow chains for 13x5.00-6

9M3322
to be applied on G 52 - GF 1
item no.: 9M3322
weight: 2 kg

9L9922
to be applied on G 52 - G 55 - GF 1 - GF 2
item no.: 9L9922
weight: 50 kg
