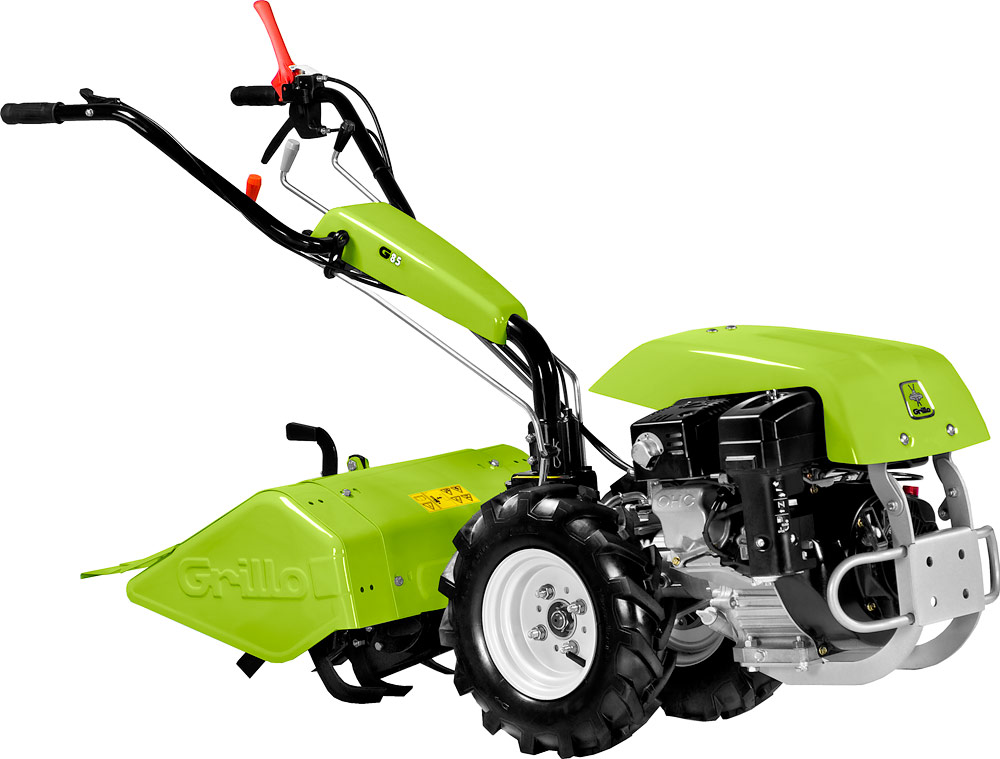

G 85

Grillo G 85

A Top of the range Commercial walking tractor, numerous attachments available ·Tilling width options from 58 to 70cm ·Heavy duty professional all gear drive ·Handles adjustable in height and from side to side ·Petrol or Diesel engine options available ·Electric start option on Diesel engine ·Low Vibration levels ·2 forward + 2 reverse gears ·Aggressive agricultural wheels


Technical data sheet
Technical data sheet G 85
Engine . EX27 OHC
Start recoil starter
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter
Engine Lombardini 15LD350
Start recoil starter
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Engine Lombardini 15LD350
Start electric, with 12 V battery
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 6,1 L eng. EX 27 OHC - 4,3 L eng. 15 LD 350
Transmission With oil bath gears
Gearbox With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
Reverse gear unit By lever
Clutch Conic active
Standard rotary tiller Adjustable rotary tiller with x 4 tines. Working width 580 mm
Hoes system diametre 315 mm
Working width Adjustable at 370 and 470 mm (680 mm with extensions cod. 929112)
Working depth 16 cm
Item no. standard rotary tiller 984511
P.T.O. 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Available tyres Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20x10.00-8 (extensions cod. 937112 needed)
Speed With 4.00-8 wheels 1st gear 1,1 km/h, 2nd gear 2,6 km/h
Service brake Brake drum (kit upon request cod. 978111)
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Safety devices Active clutch, reverse speed – PTO cut-out
External sizes of the wheels 420 or 370 mm with 4.00-8 wheels (disk having 2 adjustments)
Weight Weight: standard version 112 kg
