GF 3DF

A powerful sickle bar and well-balanced, with diff-lock and brakes

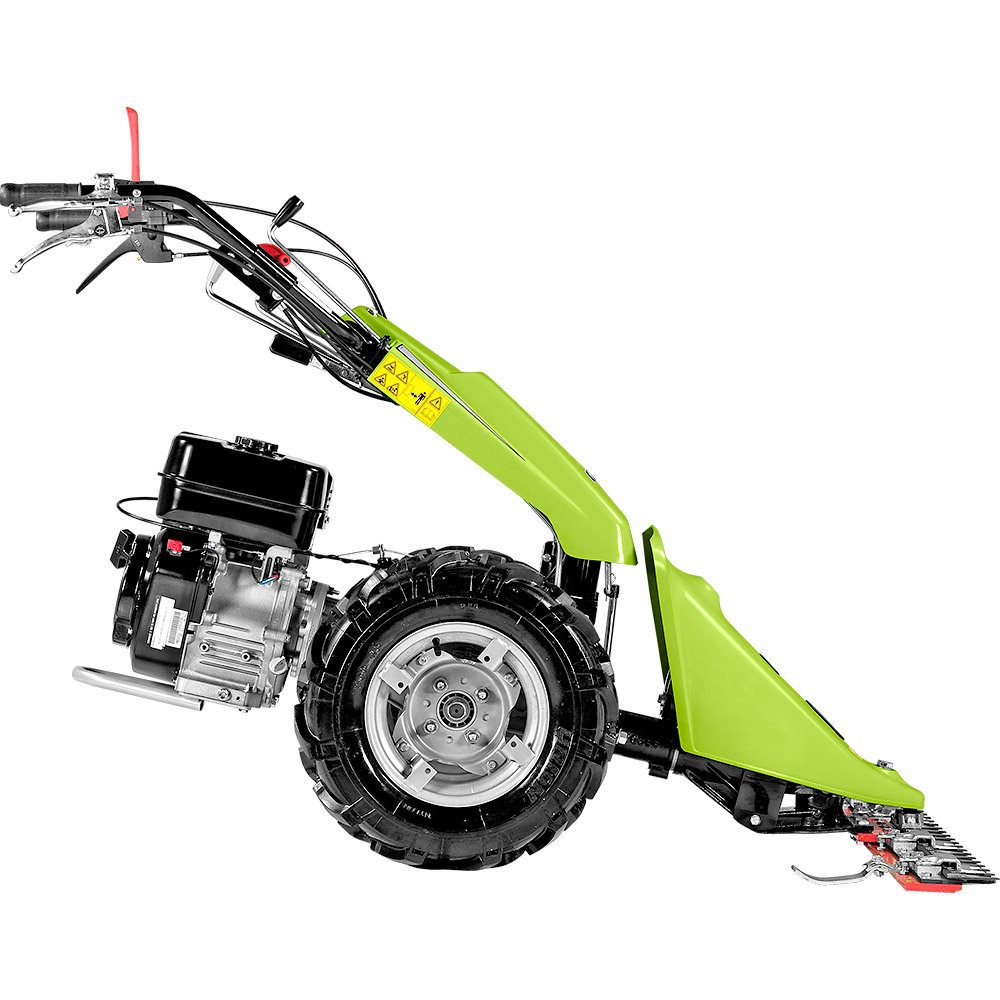

Grillo GF 3DF
Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF Grillo GF3 DF
The Grillo GF3 is a perfectly balanced sickle bar; the engine and the PTO are positioned in such way to obtain the ideal ground clearance for the professional mowing even on slopes.
The centre of gravity was designed to make the GF3 DF manoeuvrable and safe also under the most demanding working conditions.
The diff-lock and the independent braking on each wheel ensures complete and easy manoeuvrability. .
The 3 gears are all utilisable whilst mowing
The Grillo GF3 DF is equipped with an active cone clutch, a device considerably increasing the operator’s safety.
The Robin Subaru EX 27 OHC petrol or the Lombardini 15LD350 diesel engine and are ideal for professional mowing on slopes.
The vast choice of cutter bars allows you to fulfill all cutter bar users’ requirements.
The large range of accessories make the GF3 DF a real multi-purpose machine!

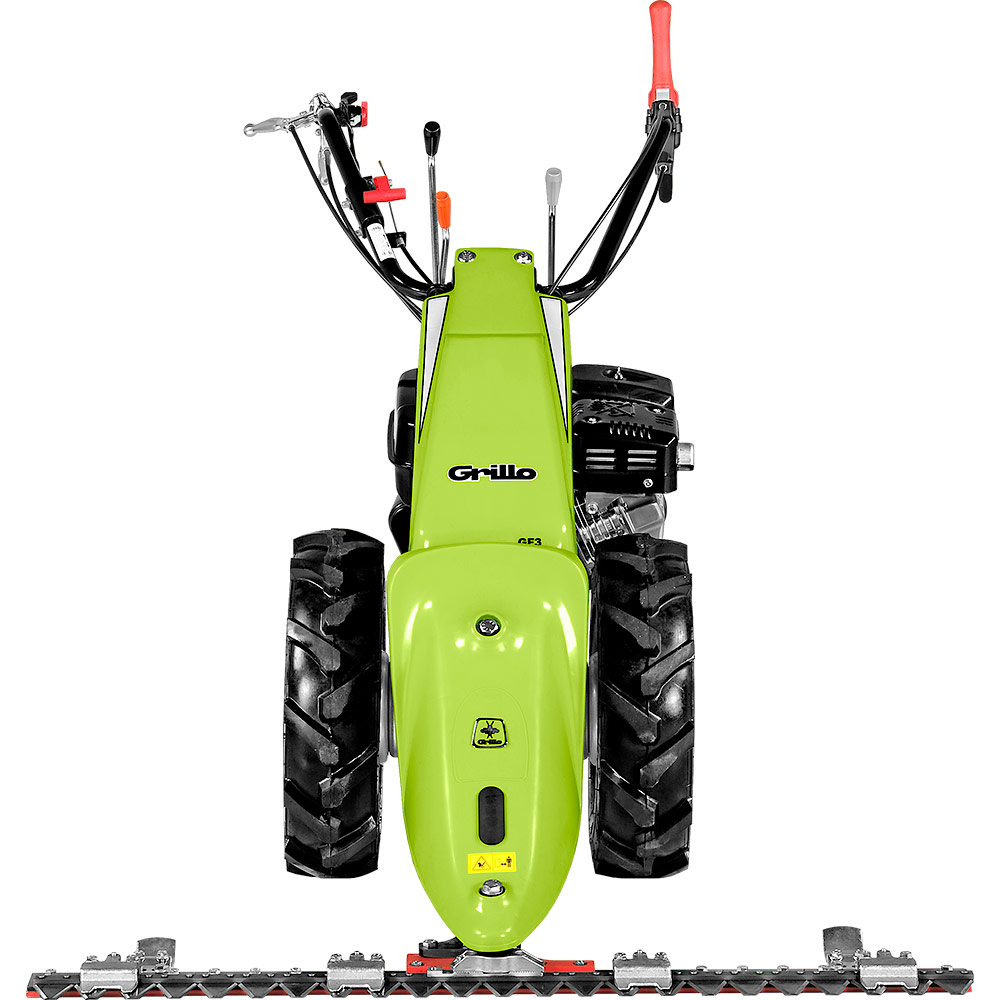

The standard cutter bar is “Tirol” 115 cm cutting width and crank action.
It is appropriate for cutting all kinds of grass types and can be used in rustic areas, fruit orchards or grass used for animal feed.
The crank mechanism was built using only top quality steel types and is equipped with greaser nipples in all articulating parts.
The grass disperser is mounted on vibration-proof rubbers, it has a special profile to allow better the grass dispersal in demanding situations: the cut grass is taken and dropped to the ground by the action of the wheels allowing easier control when travelling forwards.
The blade sections are made of special steel and fixed with 6 mm rivets.
The cutter bar’s teeth have a special profile to give a perfect cut and are made from heat treated steel.
The blade tensioners are adjustable ensuring constant adherence between blade and teeth.

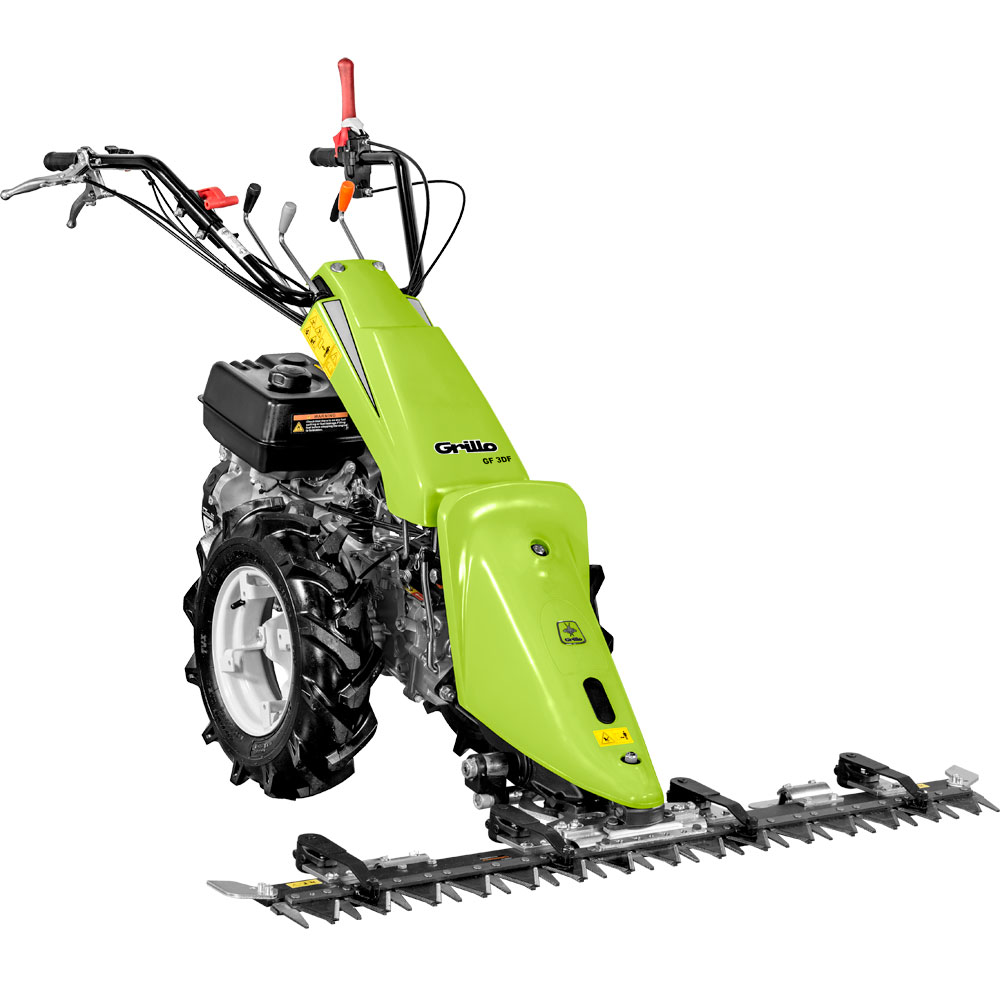

The central cutter bar “Tirol” 115 cm is also available with an oil bath action and adjustable cutting head.
The oil bath action reduces maintenance and makes the cutter bar ideal for more intensive and demanding work.

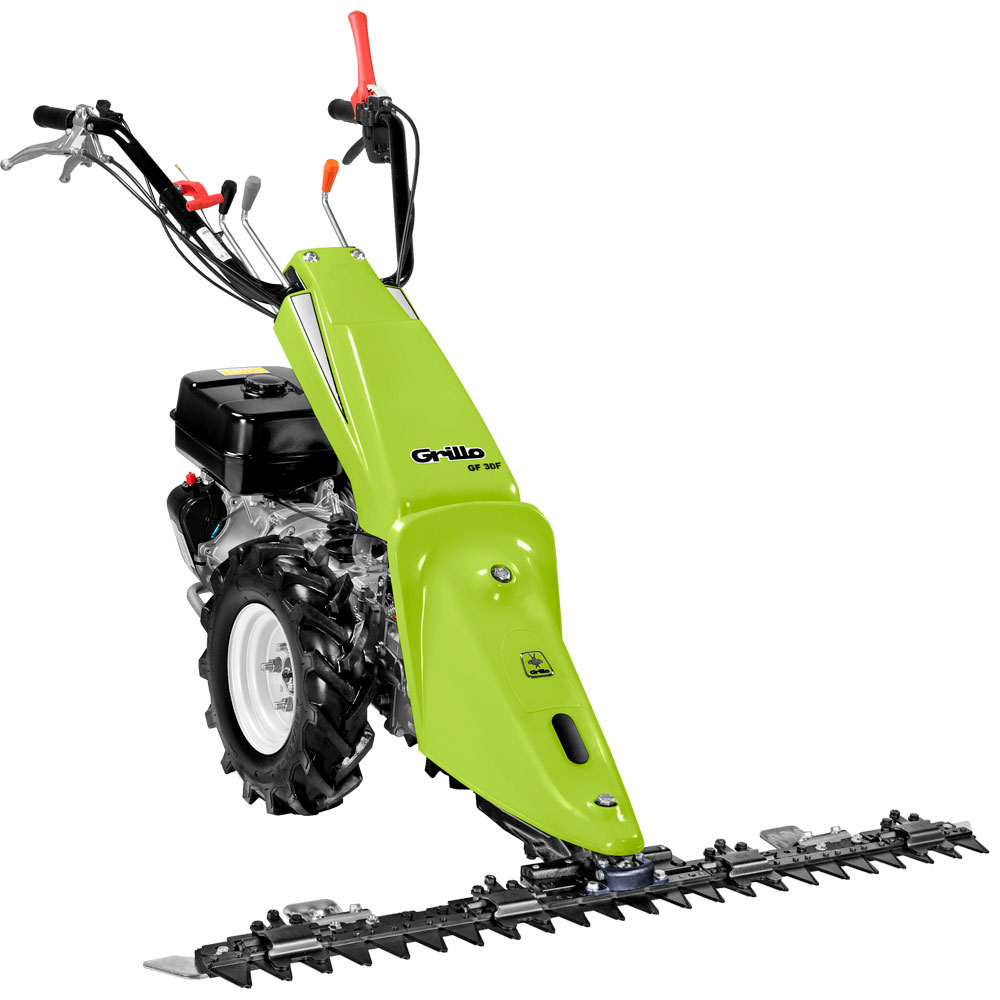

The 117 cm double blade central cutter bar with its action has a mulch cut mode and is fitted with two blades moving in opposite direction. This “scissors like“ cutting action reduces the vibrations considerably on the handlebar when mowing ensuring an optimum quality cut even in the most demanding conditions.
Thanks to its characteristics the 117cm double blade central cutter bar is ideal for cutting in rustic areas, fruit orchards or produce grass for animal feed.
The grass disperser is mounted on vibration-proof rubbers, it has a special profile to allow better the grass dispersal in demanding situations: the cut grass is taken and dropped to the ground by the action of the wheels allowing easier control when travelling forwards.
The high quality blades are made of special heat treated steel; the blade tensioners made of a flexible material to ensure contact between the two blades.

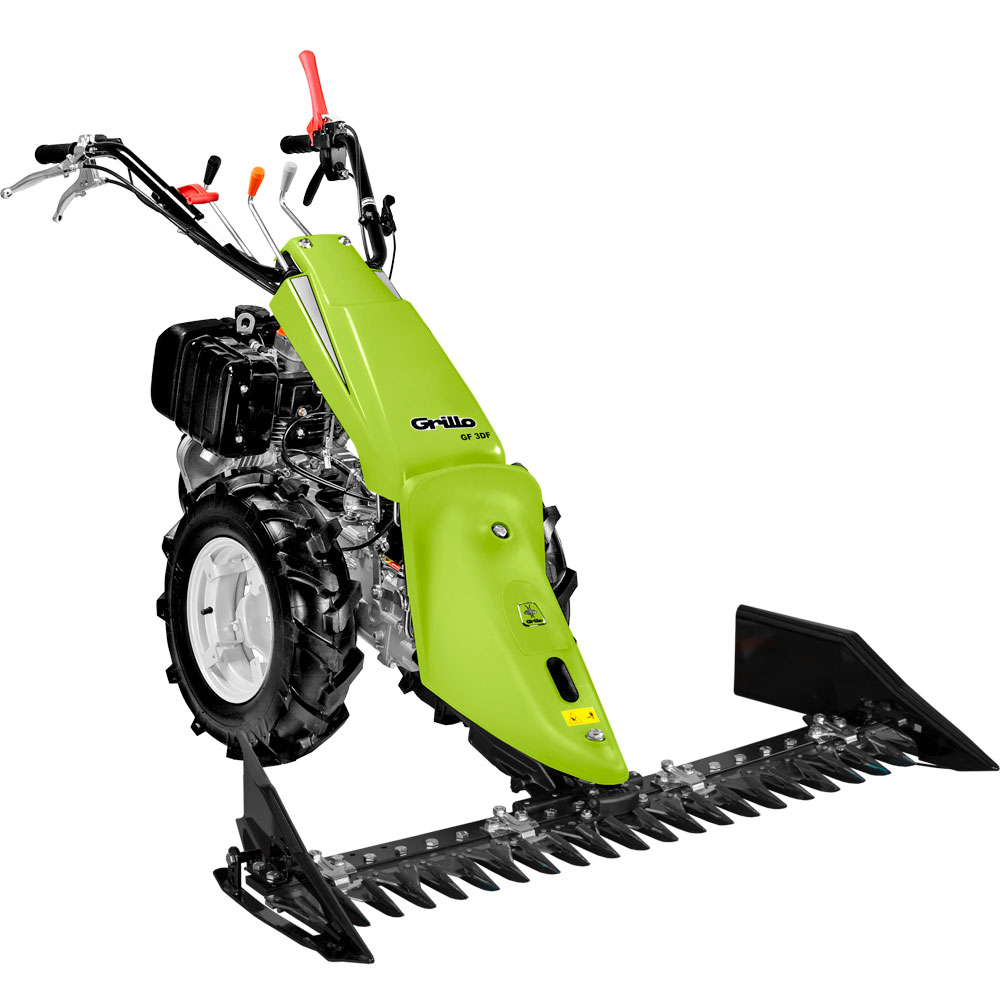

The normal 127 cm central cutter bar, available also in 110 cm width, has a crank action
It is the specific cutter bar to obtain grass for animal feed.
The crank mechanism is built with high quality steel types and is fitted with grease nipples on all articulating parts.
The grass disperser is mounted on vibration-proof rubbers, it has a special profile to allow better the grass dispersal in demanding situations: the cut grass is taken and dropped to the ground by the action of the wheels allowing easier control when travelling forwards.
The cutter bar teeth have a special profile to ensure a perfect cut and are built with thermally treated special steel.
The blade tensioners are adjustable ensuring constant contact between blade and teeth.
For better balance we recommend the use of the 127 cm cutter bar in combination with the Lombardini 15LD350 diesel engine.

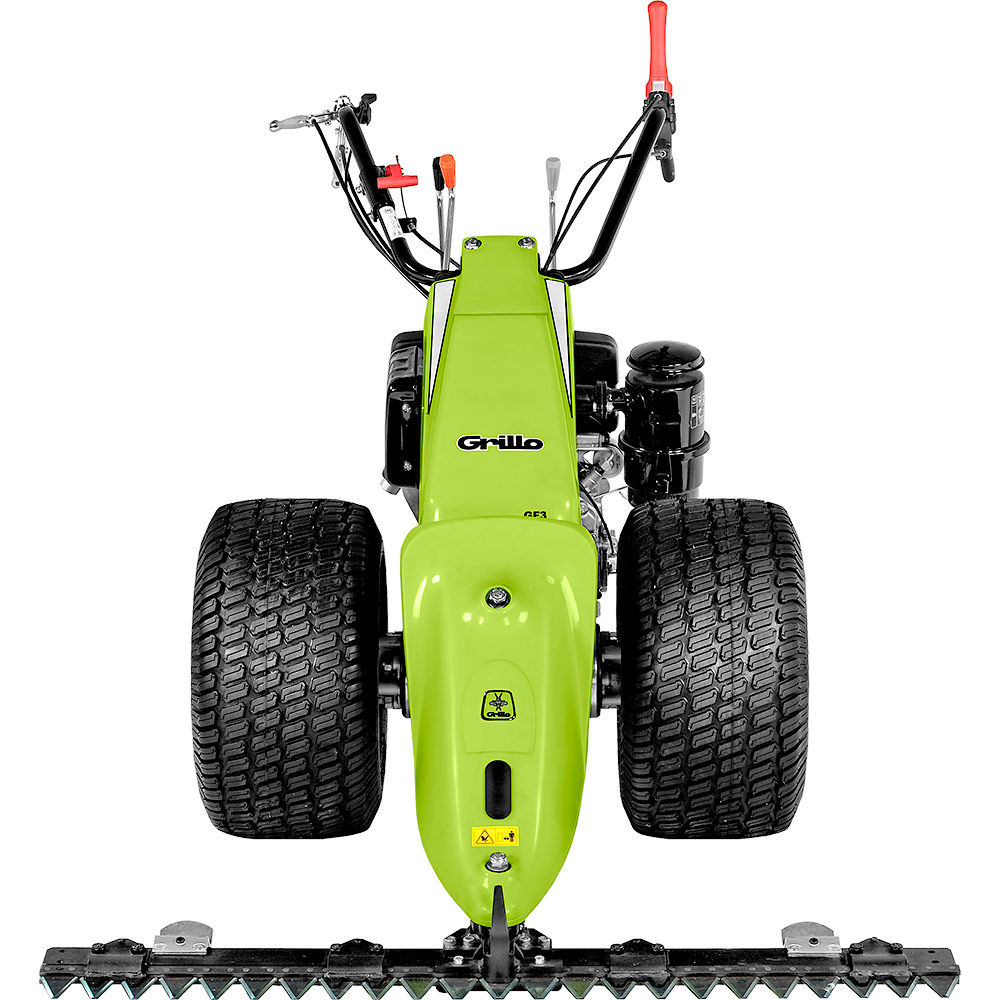

The GF3 DF’ s weight distribution has been designed in such way to increase its stability when mowing on slopes. In order to further increase stability on slopes, Grillo has a wheel extension kit to obtain a wider track up to 24 cm, pneumatic wheels with high adherence tyre profile design and a laterally adjustable handlebar.

The GF3 DF’s mechanical transmission with its oil bath gears is located inside an aluminium pressed casing. The levers operated controls for the gears and P.T.O are all easily accessible.
The active cone clutch lever controls the drive; once you let go the handlebar the cutter bar will stop with the engine still running. For further safety of the operator, the drive lever is equipped with a double control to avoid any involuntary actons. The double control can be activated with only one hand.

The differential increases the manoeuvrability and, combined with the brakes, makes the Grillo GF3 DF agile also during the manoeuvres on slopes. The two brake drums mounted on the wheels are operated by the two levers on the handlebar and allow alternative braking of respectively one wheel so to improve the turning radius. Apart from that the levers are equipped with a block so to convert the service brakes into parking brakes able to hold the sickle bar tightly even on slopes.
The diff-lock is operated by a T-shaped lever on the handlebar and turns out to be indispensable to ensure the straight advancement without any efforts to the GF3 DF.

The gearbox has 3 forward and 3 reverse gears and has been designed by Grillo to achieve the optimum mowing speed, 1.1, 2.6 and 4.3 km/h when fitted with the “Tractor” wheels 4.00-8.
In order to produce an even cut, the cutter bar is freely inclinable to allow for any ground undulations.
The handlebar is mounted on anti-vibrating rubbers which dampen the vibrations also laterally.
The handlebar is laterally adjustable for use on slopes and height adjustable to meet all user requirements. It is also reversible and can be lowered to considerably reduce the machine’s size.
All controls are in a comfortable position including the handlebar adjusting levers.

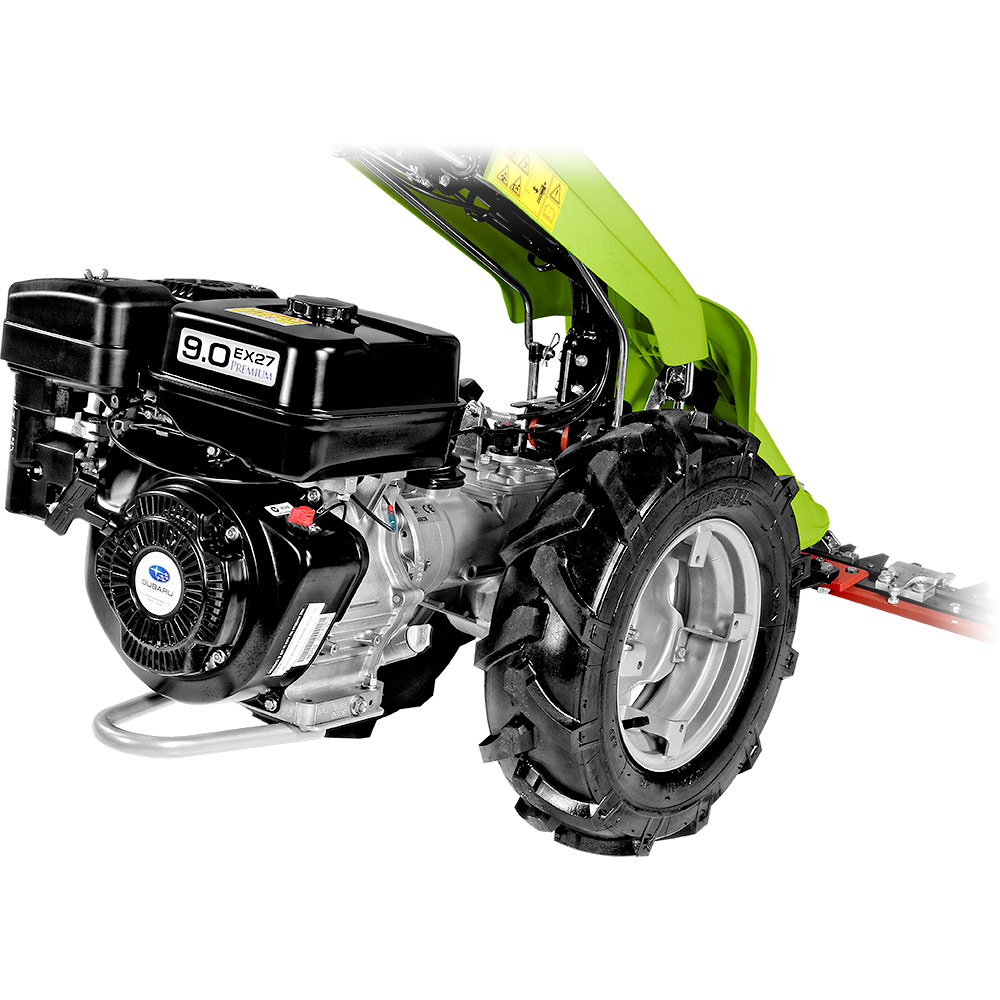

The GF3 DF is supplied with a Robin Subaru EX27 OHC petrol engine having 8.3 HP or the Lombardini 15LD350 diesel engine having 7.5HP.
Both engines with recoil start and adopt the latest innovations which ensure an easy engine starts, reliability low emissions, high performance and vibrations reduced to the minimum. The Grillo GF3 DF’s engines are designed for professional use on slopes and are equipped with a rear bumper.

Grillo has a vast accessory range in order to enhance the use of the GF3 DF, such as 75 cm the rotary cutter with blade brake, the 68 cm all purpose flail and, for winter use, the 125 cm orientable snow blade of 125cm as well as the 70 cm two stage snow thrower.

GF3 DF , as with all Grillo products, is designed and built to last and retain their value over many years.
All components, from the simplest to the most complex, are of a high quality standard.
Grillo mounts the best engines of the world on its machines!
The GF3 DF passed very stringent tests to prove the reliability of its transmission, frame structure and of all its components.
Chassis, handlebar, carter, everything is built by Grillo in Italy by using only premium materials and cutting edge technology. All this to achieve a constant and 100% controlled high level quality:

The finish on all Grillo machines consists of a double electrostatic powder coated process. First are the washing baths and preparation, then a first protective coat is applied together with baking in the oven, this turns out to be the best basis for the application of the finish. The second coat consists of powder coating and further baking in the oven at 190°C to produce the characteristic hardness and brilliance.
All the GF 3 DF’s components have been assembled with care in every detail and tested scrupulously by specialised personnel. Final inspection means a machine whose engine has been run in order to check its performance. This is a further and final guarantee of a high quality product.




All Grillo products are distributed and serviced by a widespread Grillo specialist dealer net. Spare parts remain available also after a lot of years.


Technical data sheet
Technical data sheet GF 3DF
Engine Robin Subaru EX27 OHC
Start recoil starter
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter
Engine Lombardini 15LD350
Start recoil starter
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 6,1 L eng. EX27 OHC - 4,3 L eng. 15LD350
Transmission with oil bath gears, equipped with differential lock
Gearbox 3 forward gears + 3 reverse gears
Clutch conic active
Standard cutter bar Central cutter bar TIROL, cutting width 115 cm with crank action [cod. 9L7811 998111]
P.T.O. 965 rpm anticlockwise rotation
Differential locking Differential with locking device by lever action
Available tyres Pneumatic wheels Tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks), 5.00-10 (adjustable disks). Pneumatic Turf wheels 20x10.00-8
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Brakes Brake drum
Standard features differential with locking device and brakes
Safety devices Active conic clutch according to law
Weight Weight: standard version 114 kg
In action! Photos and Videos
In action! Photos and Videos
Grillo GF3 DF
Grillo GF3 DF
Implements
Implements GF 3DF

Pneumatic tractor wheels 4.00-8 (fixed disks with two positions); pair

Pair pneumatic "Tractor" wheels 4.00-8 [fixed discs] - COD. 900112
to be applied on G 107d - G 55 - G 84 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 900112
weight: 9 kg

Pneumatic tractor wheels 4.00-10 (adjustable disks); pair

Pair pneumatic "Tractor" wheels 4.00-10 [adjustable discs] - COD. 902412
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 902412
weight: 16 kg

Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair

Pair pneumatic “Tractor” wheels  5.00-10 [adjustable discs] - COD. 900412
to be applied on 11500 - 2500 - 3500 - G 107d - G 108 - G 110 - G 55 - G 85d - GF 3 - GF 3DF
item no.: 900412
weight: 22 kg

The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.



On walking tractor G55 they can be mounted only when using plough or furrower.



Item 9C4312 (wheels extensions) is needed on 2500, 3500, 11500 rotavators equipped with plough.

Pneumatic Turf wheels 20x10.00-8(fixed disks); item 937112 needed

911712
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 918712
weight: 17 kg

Agri wheels 21x11.00-8 (pair)

Pair pneumatic "Tractor" wheels 21X11.00-8 - COD. 919212
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 919212
weight: 21 kg

Wheel extensions 12 cm (pair) (fit 2 pairs max)

Pair wheels extensions 12 cm - COD. 937112
to be applied on G 107d - G 108 - G 110 - G 131 - G 55 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 937112
weight: 2 kg

Middle cut fingers central cutter bar 110 cm with crank action

Middle cut fingers central cutter bar 110 cm with crank action - COD. 9L7611 998111
to be applied on G 107d - G 84 - G 85d - GF 3 - GF 3DF
item no.: 9L7611 998111
weight: 36 kg

Central cutter bar 127 cm with crank action

Middle cut finger central cutter bar 127 cm with crank action - COD. 9L7011 998111
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9L7011 998111
weight: 44 kg

Central cutter bar TIROL 115 cm with crank action

CENTRAL CUTTER BAR "TIROL" 115 CM WITH CRANK ACTION - COD. 9L7811 998111
to be applied on G 107d - G 84 - G 85d - GF 3 - GF 3DF
item no.: 9L7811 998111
weight: 35 kg

Central cutter bar TIROL 115 cm with oil bath action

9L8011 997811
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9L8011 997811
weight: 42 kg

Central cutter bar TIROL 135 cm with oil bath action

9L7411 997811
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9L7411 997811
weight: 45 kg

Double blade central cutter bar 117 cm with action

Central cutter double blade bar 117 cm with action - COD. 9L6911
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 7
item no.: 9L6911
weight: 45 kg

Cutter bar crank action

Cutter bar crank action - COD. 998111
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 998111
weight: 15 kg

Cutter bar oil bath action

Cutter bar oil bath action - COD. 997811
to be applied on G 107d - G 131 - G 85d - GF 3 - GF 3DF
item no.: 997811
weight: 22 kg

Cutter bar side protections for item 9L2811 and item 9L6911

Cutter bar side protections for cod. 9L2811 and cod. 9L6911 - COD. 9C0112
to be applied on G 107d - G 108 - G 110 - G 55 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 9C0112
weight: 1,5 kg

Cutter bar Tirol side protection

Cutter bar "TIROL" side protection  - COD. 9C1621
to be applied on G 107d - G 108 - G 110 - G 55 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 9C1621
weight: 1,5 kg

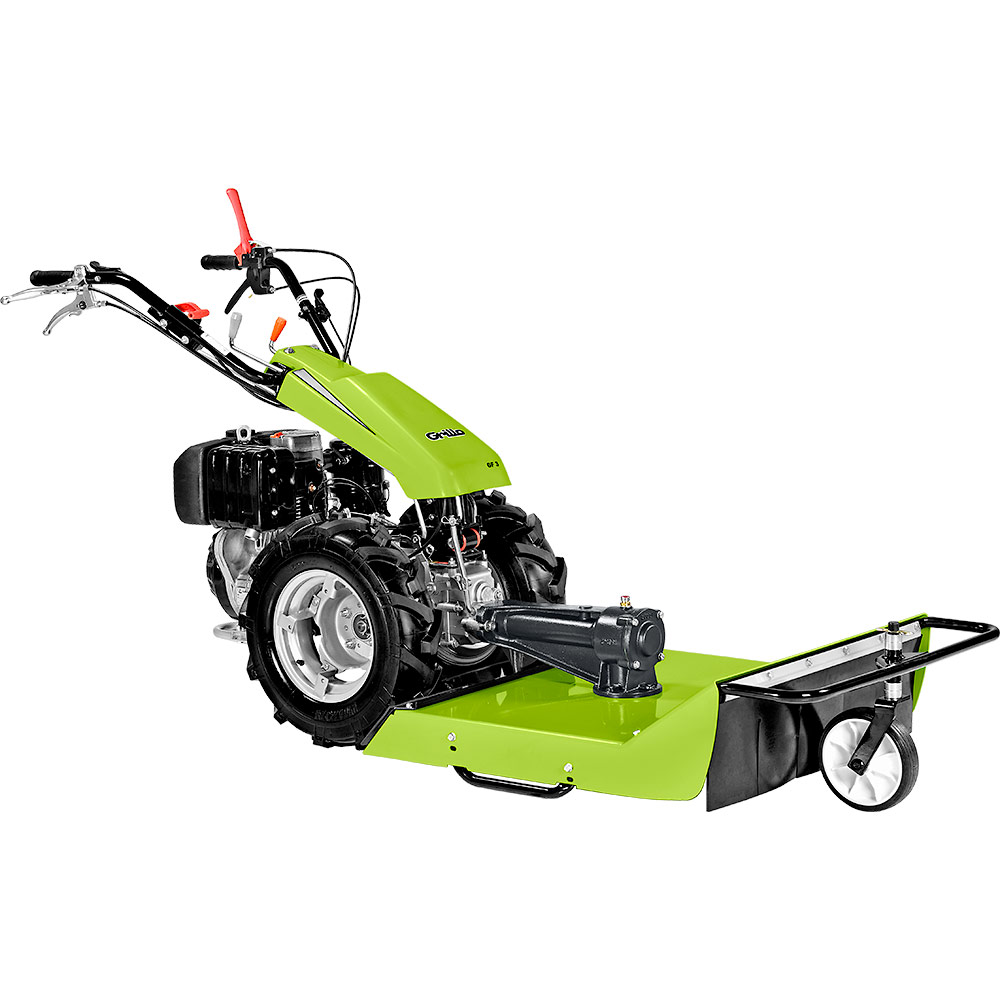

Rotary cutter 75 cm with blade brake, wheel and skid hoes (for diesel engines item no. 9G4812 needed)

Rotary cutter 75 cm - COD. 9M1111
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9M1111
weight: 60 kg

Weight for grass cutter for diesel engine

Weight for grass cutter 6 kg - COD. 9G4812
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9G4812
weight: 6 kg

All purpose flail for diesel engines 68 cm (item no. 954412 needed)

ALL PURPOSE FLAIL 68 CM FOR DIESEL ENGINES - COD. 9F5622
to be applied on G 107d - GF 3 - GF 3DF
item no.: 9F5622
weight: 87 kg

Front coupling assembly for quick coupling Ø 6 cm

Front quick coupling assembly for quick coupling Ø 6 cm  - COD. 954412
to be applied on Dumper 507 - G 107d - G 85d - GF 3 - GF 3DF
item no.: 954412
weight: 2,5 kg

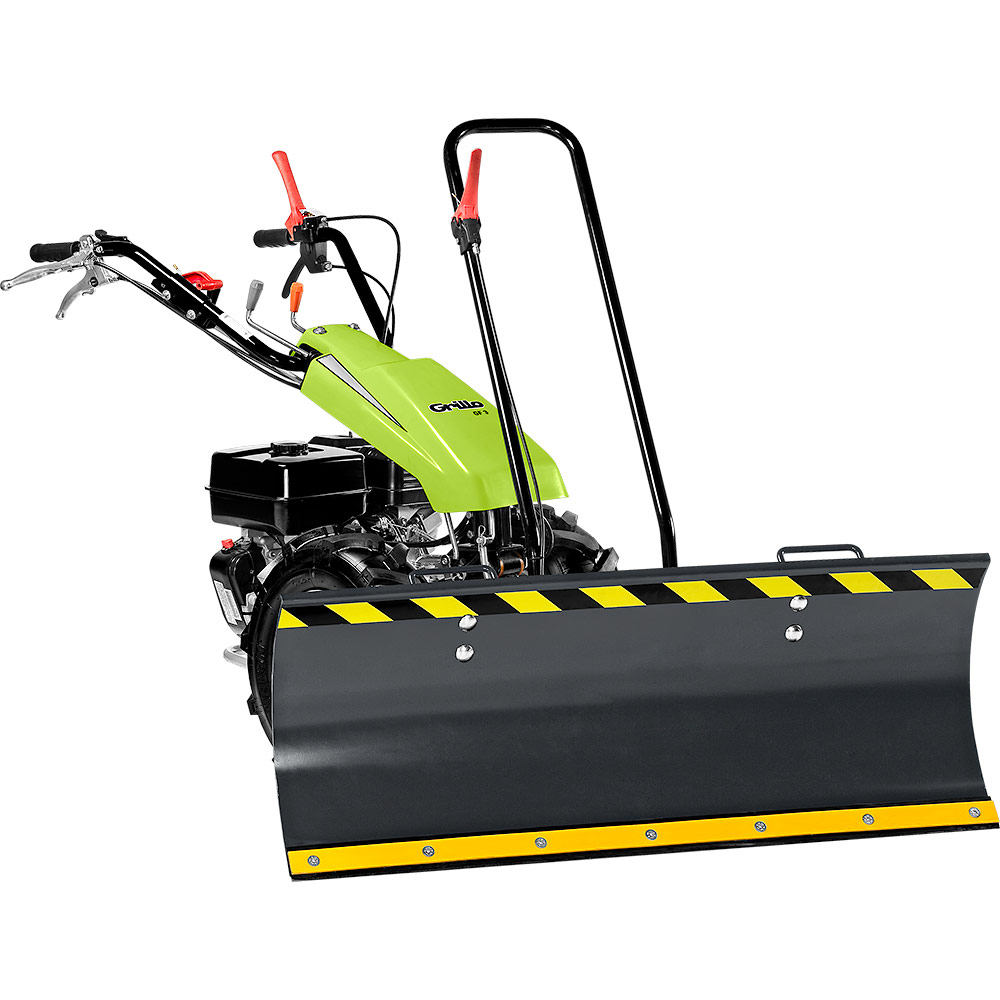

Front blade 125 cm with quick coupling Ø 5 cm (item 954712 needed)

Floating front blade 125 cm with quick coupling Ø 5 cm - COD. 9E6511
to be applied on Dumper 507 - G 107d - G 131 - G 85d - GF 3 - GF 3DF
item no.: 9E6511
weight: 40 kg

Front coupling assembly for quick coupling Ø 5 cm

Front quick coupling assembly for quick coupling Ø 5cm  - COD. 954712
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 954712
weight: 2 kg

Weight for front blade

Weight 20 kg for front blade - COD. 9E6111
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF
item no.: 9E6111
weight: 20 kg

Rubber end for blade 125 cm

Rubber end for blade 125 cm - COD. 9E5911C
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G 85d - GF 3 - GF 3DF - MD 13 - MD 18 - MD 22 - MD 22N
item no.: 9E5911C
weight: 1 kg

Snow chains for 5.00-10 wheels (pair)

9M3522
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9M3522
weight: 2 kg

Weight for snow thrower

9A8911
to be applied on G 107d - G 108 - G 110 - GF 2 - GF 3 - GF 3DF
item no.: 9A8911
weight: 7 kg

Weight for snow thrower cod. 9G2722 e cod. 9G2922 needed

Snow thrower two-stage 70 cm

9E9622
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9E9622
weight: 69 kg

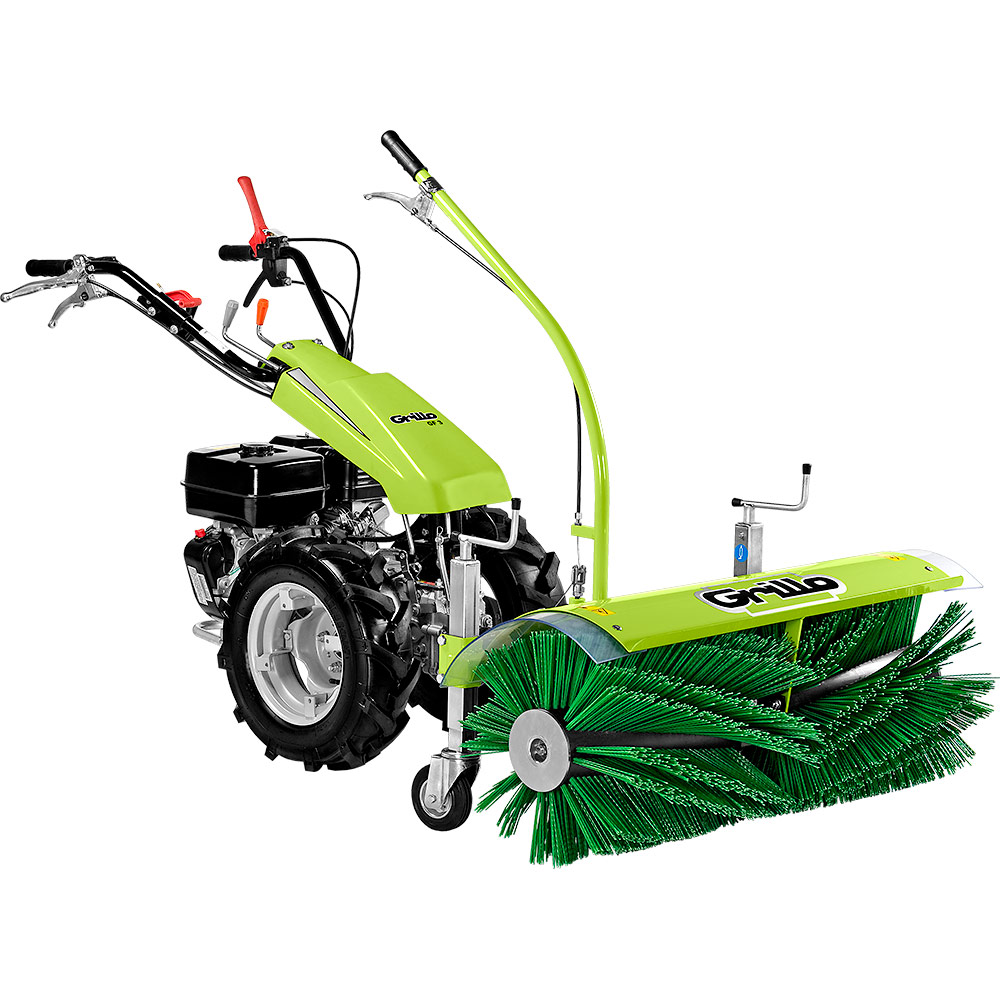

Orientable sweeper 100 cm (inverter item no. 9A3912 needed)

9F5422
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9F5422
weight: 55 kg
