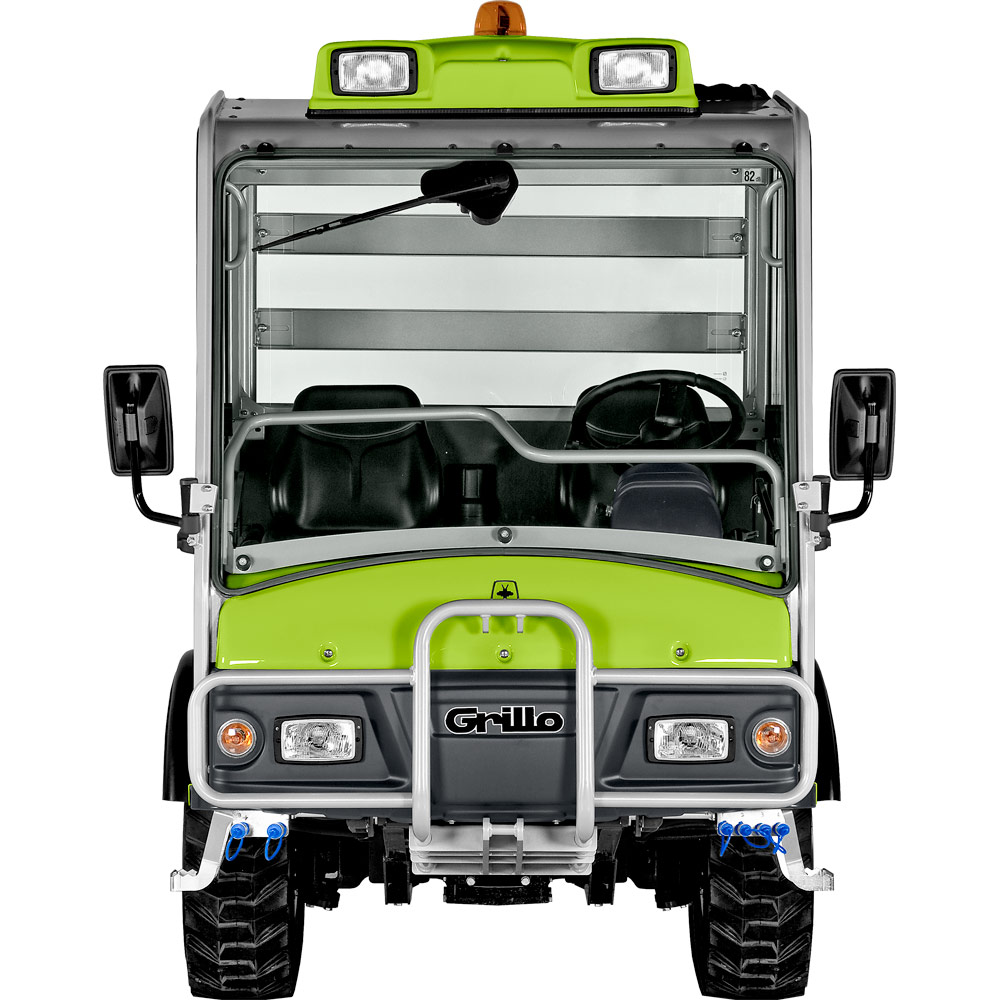

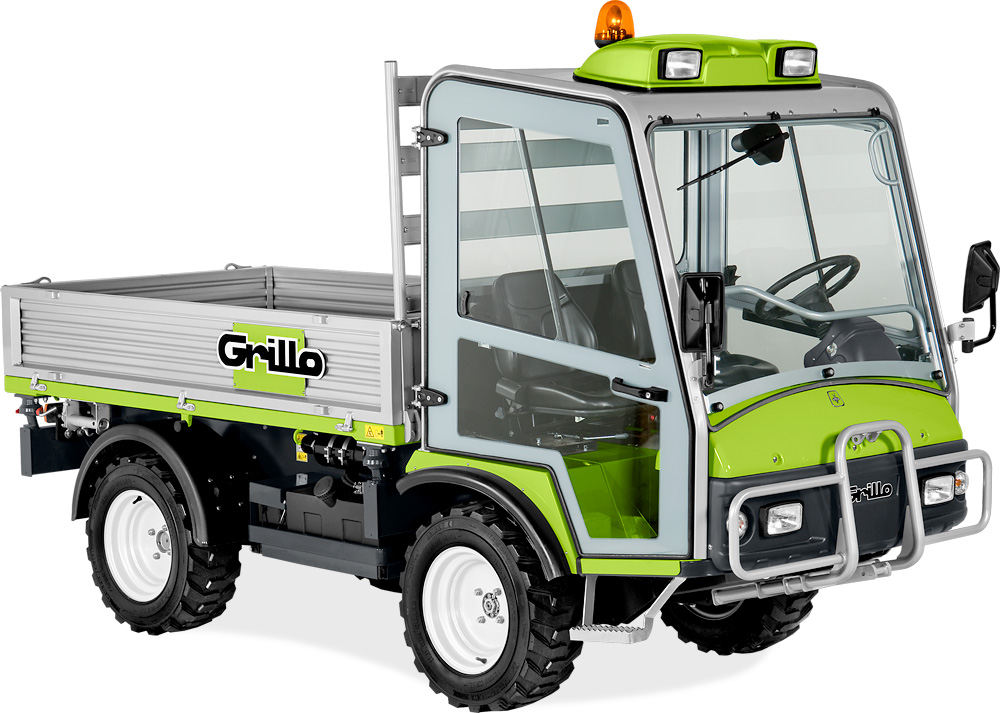

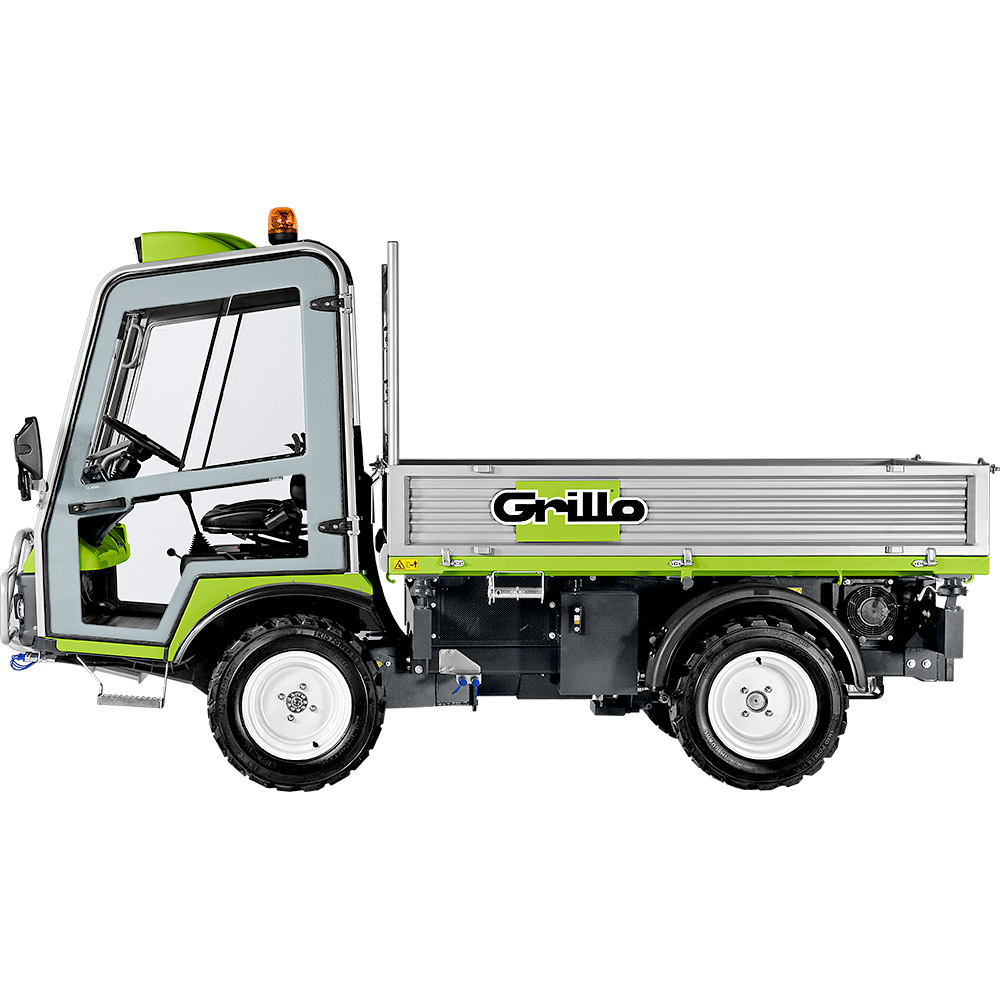

PK 800 4WD

Dear Customer, we remind you that this model has been discontinued but its spare parts and our After Sales&Service are always at your disposal. Discover the new models!

Technical data sheet PK 800 4WD

Back to

	Engine	Kohler LDW1003 FOCS PLUS Start electric, with 12 V battery Supply diesel Displacement 1028 cc, 3 Cylinders Power 25 HP (18.6 kW) Liquid cooled Dry air filter with interchangeable filter cartridges, safety filter and prefilter
	Fuel tank capacity	35 L
	Hydraulic oil tank	18 L
	Transmission	With oil bath gears. Differential on both axles
	Traction	permanent 4-wheel drive
	Gearbox	10 synchronised gears. 8 forward gears (4 of these are reduced) + 2 reverese gears (1 of these is reduced). With reduction gear unit.
	Clutch	single dry disc with pedal control

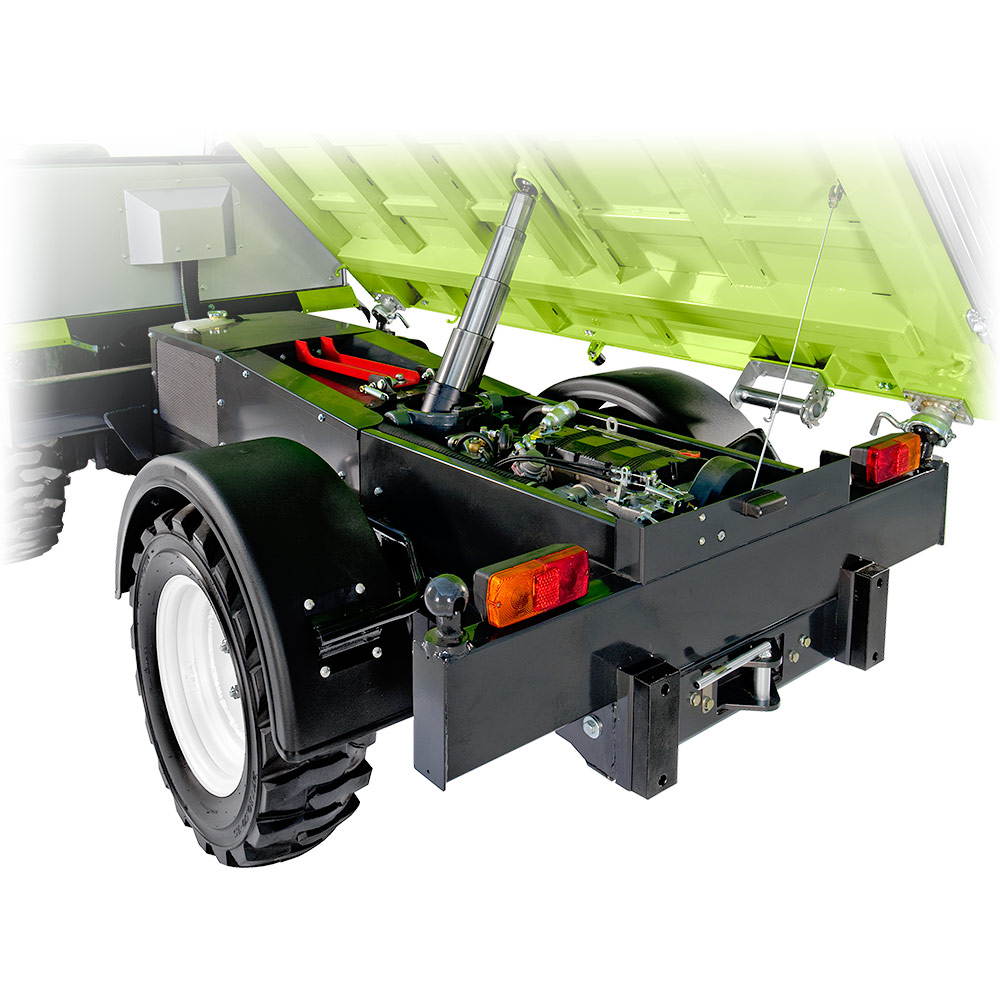

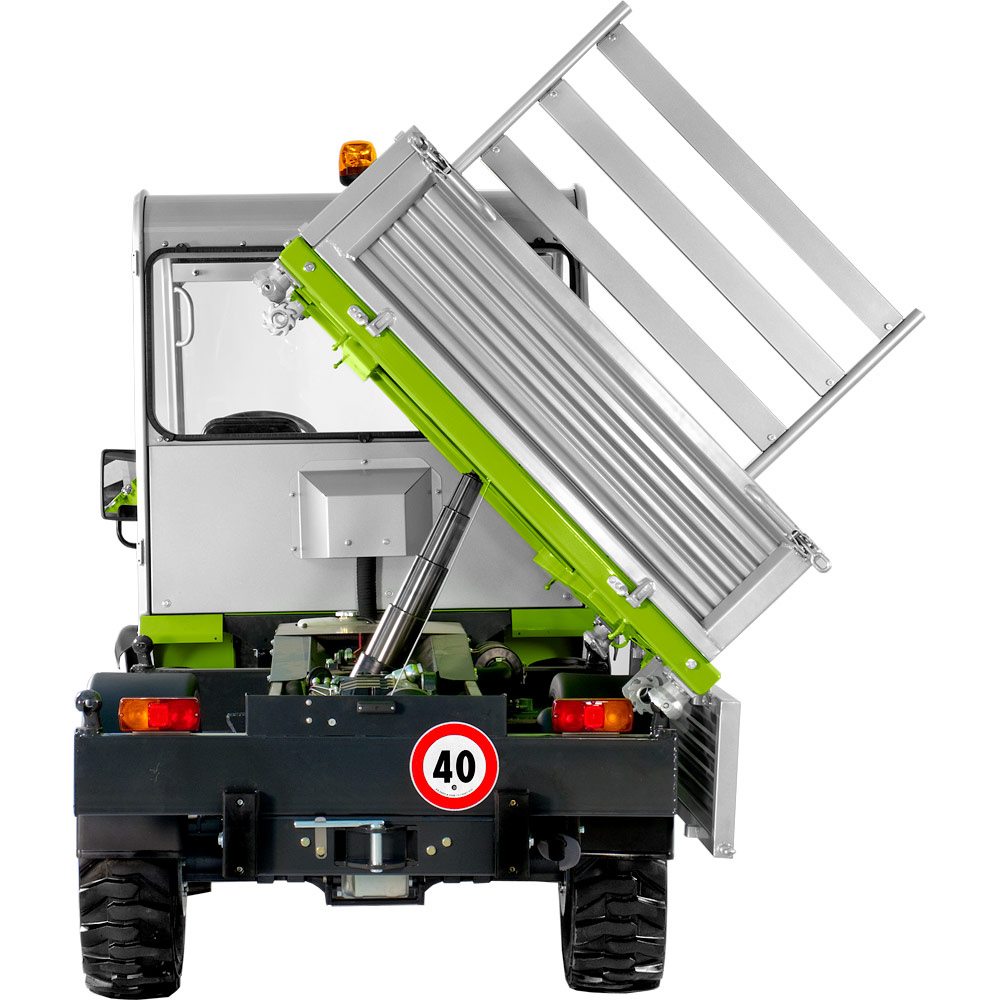

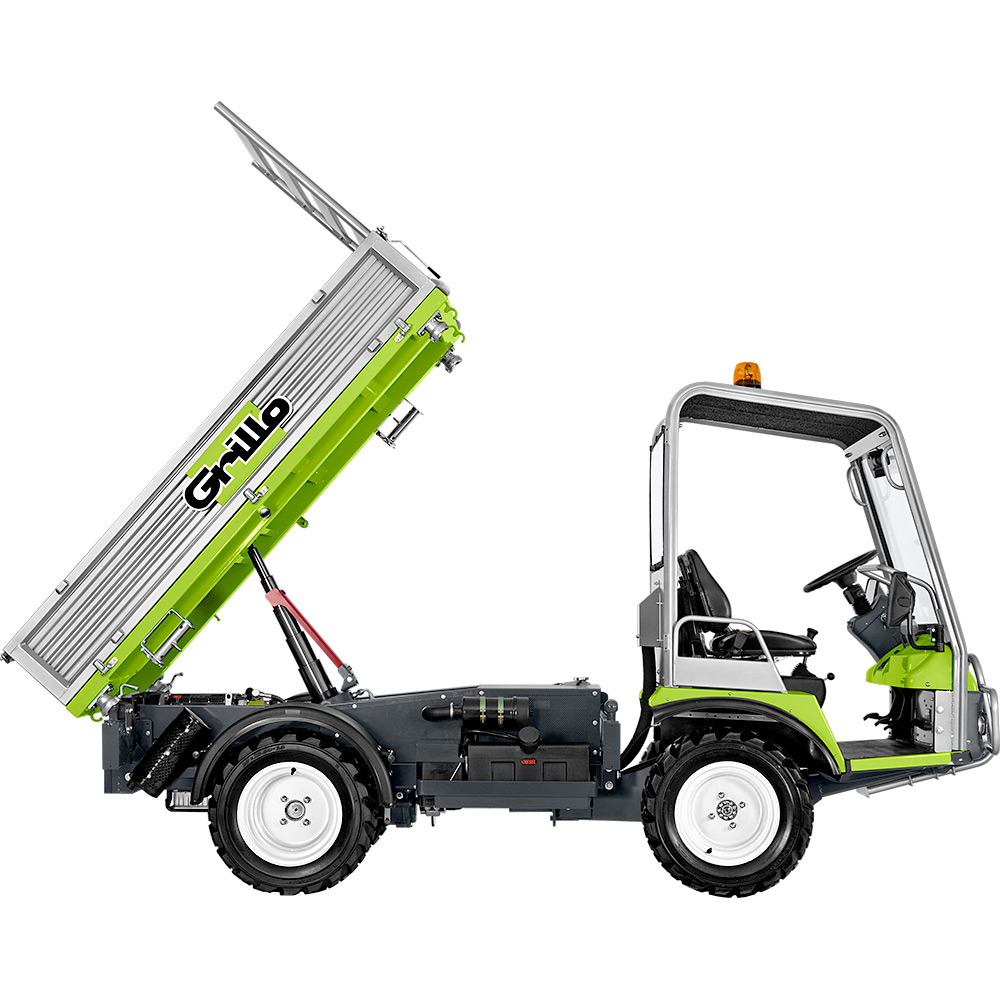

	Load bed	Bottom of the box made of iron sheet and side dump boards made of chequered plate . Hydraulic three-way tipping body. Steering for electric tipping inside the driver’s cab With hooks, winches and pre-adjustment for side board extension.
	Internal size of the load bed	2220 x 1275 mm, boards height 350 mm
	Capacity	1750 kg (with 2 people inside the driver’s cab)
	Load bed height from the ground	900 mm
	Differential locking	Differential blocking device on the rear axle by electric control and electromechanic activation
	Wheels	tractor 27x10.50-15 (8PR)wheels
	Frame structure	Frame supporting structure made of Domex steel profiles. Frame articulated at 15° angle
	Suspensions	Cabin fitted on adjustable shock absorbers and silent-blocks
	Speed	With 27x10.50-15 wheels, max. speed 37,1 km/h
	Inner turning radius	3.3 m
	Seat	Both seats are fitted with springs and are adjustable
	Service brake	4 hydraulic disk brakes acting on the 4 wheels
	Parking brake	Mechanic disk brake acting on the transmission
	Steering wheel	Hydraulic. Steering front axle
	Standard features	Windshield and cabin roof. Manual accelerator control. Tow bar, emergency bar.
	Driver's protecting grill	On the front side of the box
	Length	3900 mm
	Width	1420 mm (driving mirrors excluded)
	Height	2120 mm
	Track width	1162 mm
	Distance between axles	1800 mm
	Weight	1750 kg

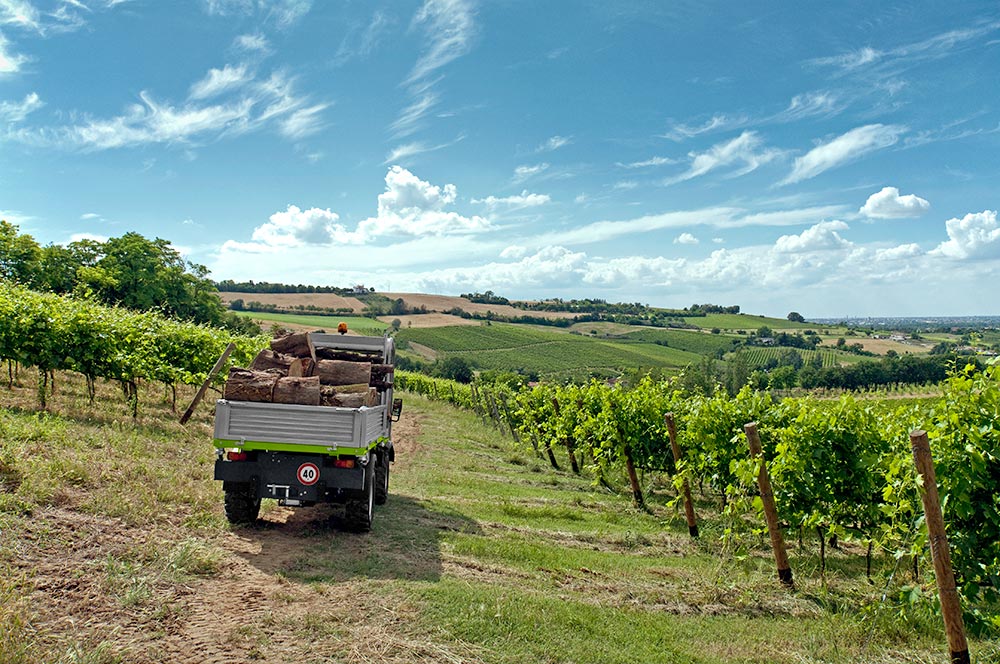

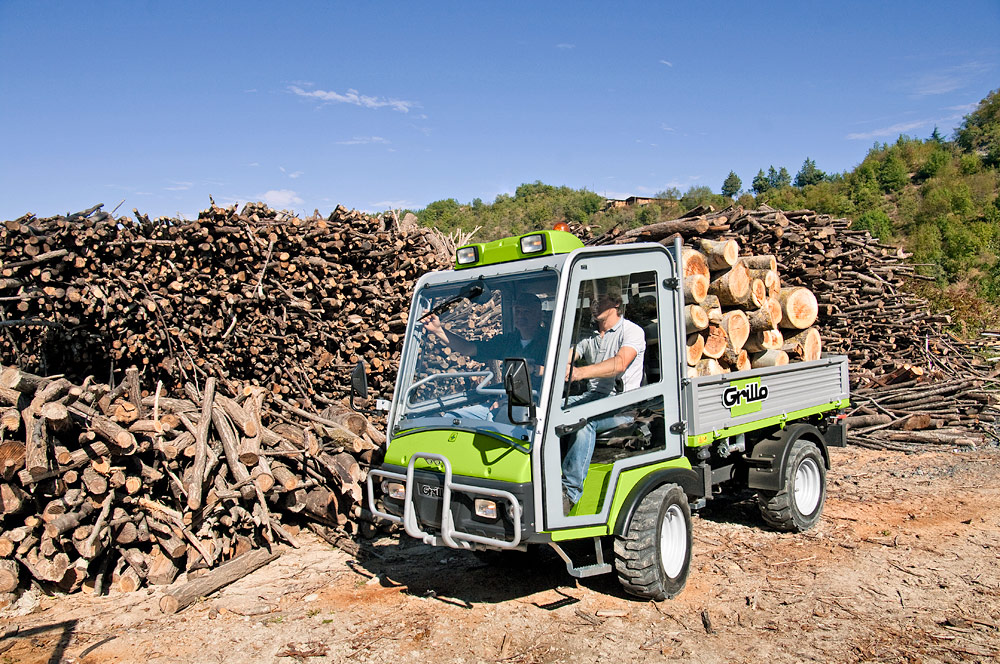

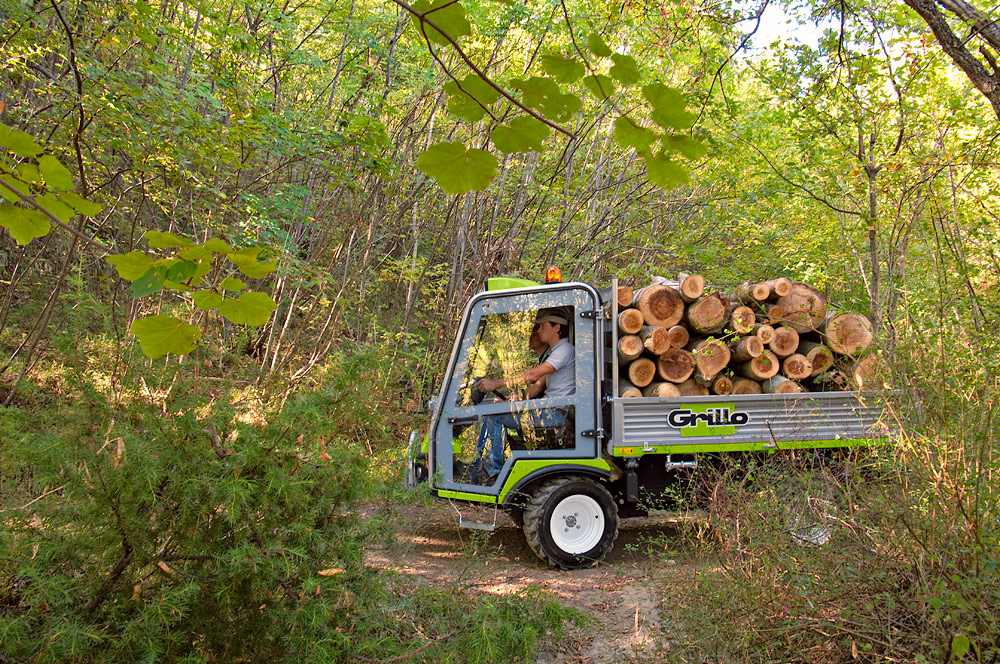

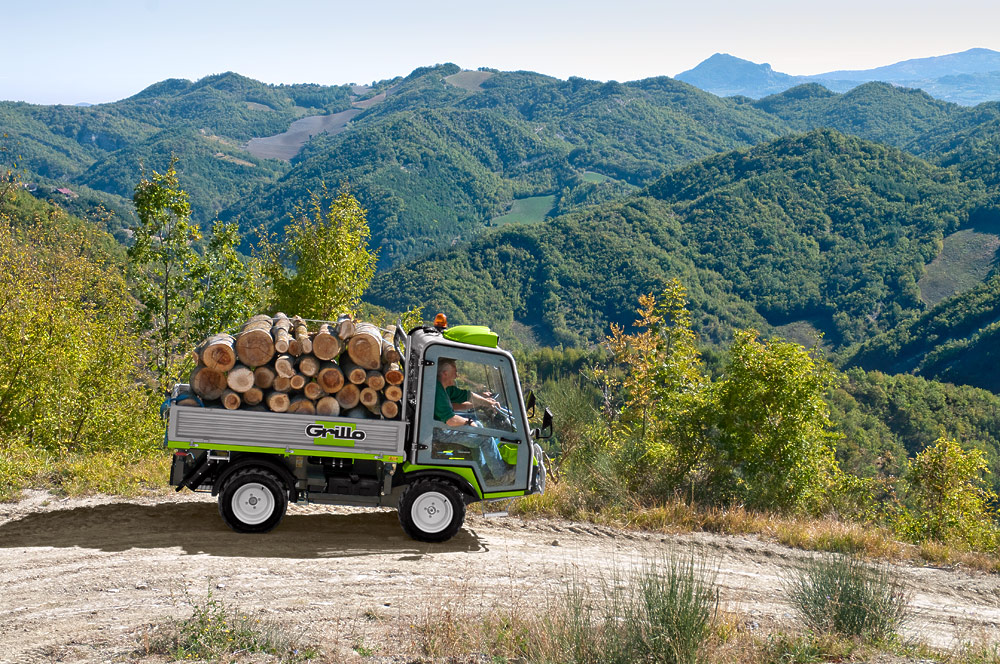

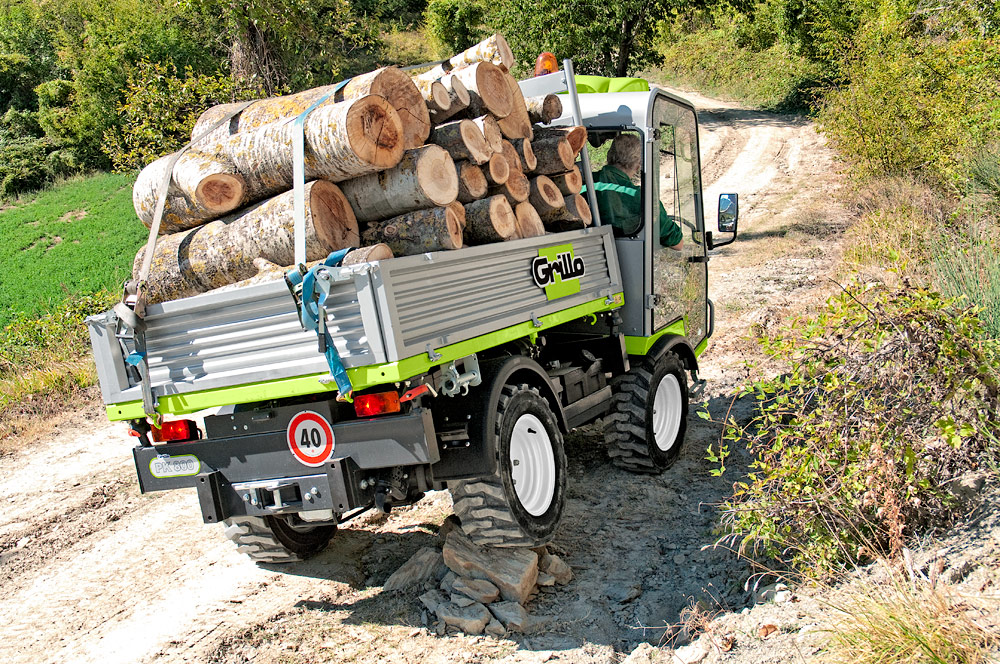

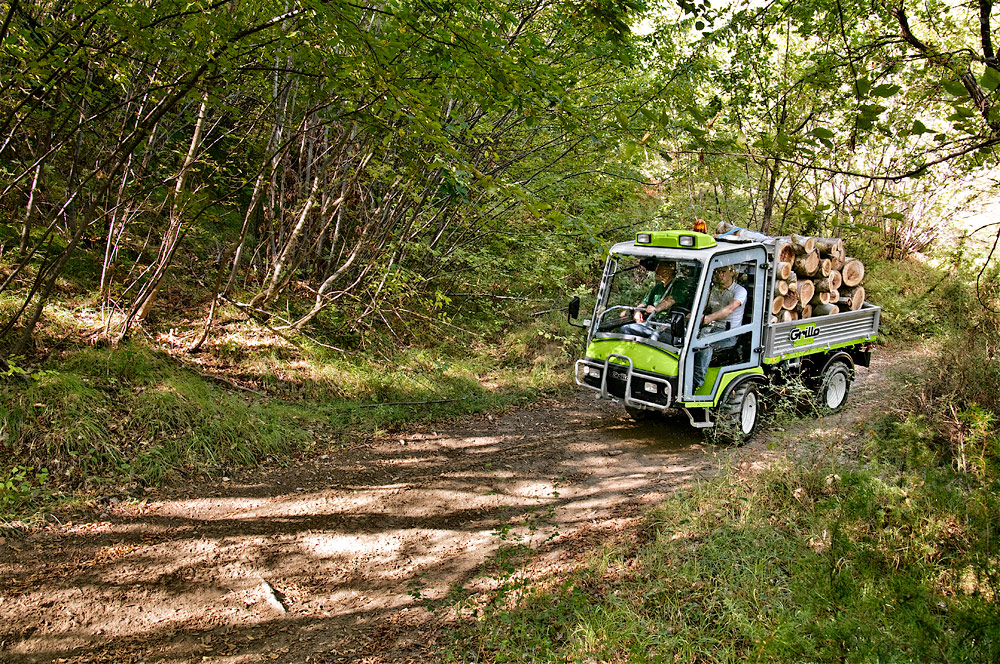

In action! Photos and Videos

Back to

Grillo PK800 4WD

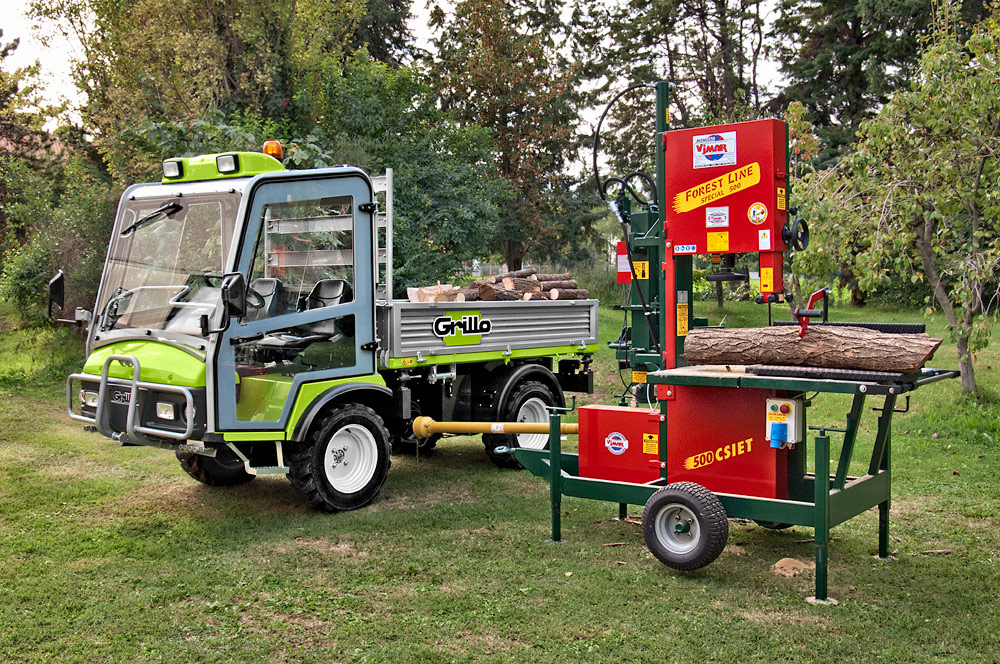

Grillo PK800 4WD - PTO

Grillo PK800 4WD

Implements PK 800 4WD

Back to

Turf wheels 27x10.50-15

to be applied on PK 1400 4WD - PK 800 4WD

item no.: 918112

weight: 150 kg

Heater Kit

to be applied on PK 1400 4WD - PK 600 4WD - PK 800 4WD

item no.: 951712

weight: 15 kg

The heater kit ensures with its four orientable air outlet nozzles, and it assures the cabin's heating and the condense elimination.
In addition to that it is equipped with compartment lights.

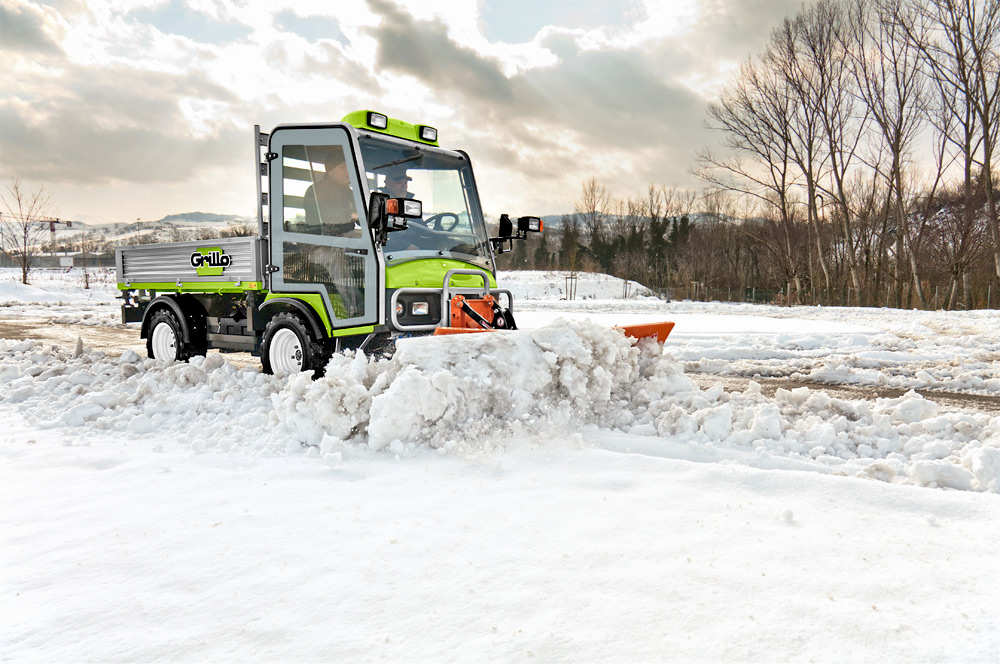

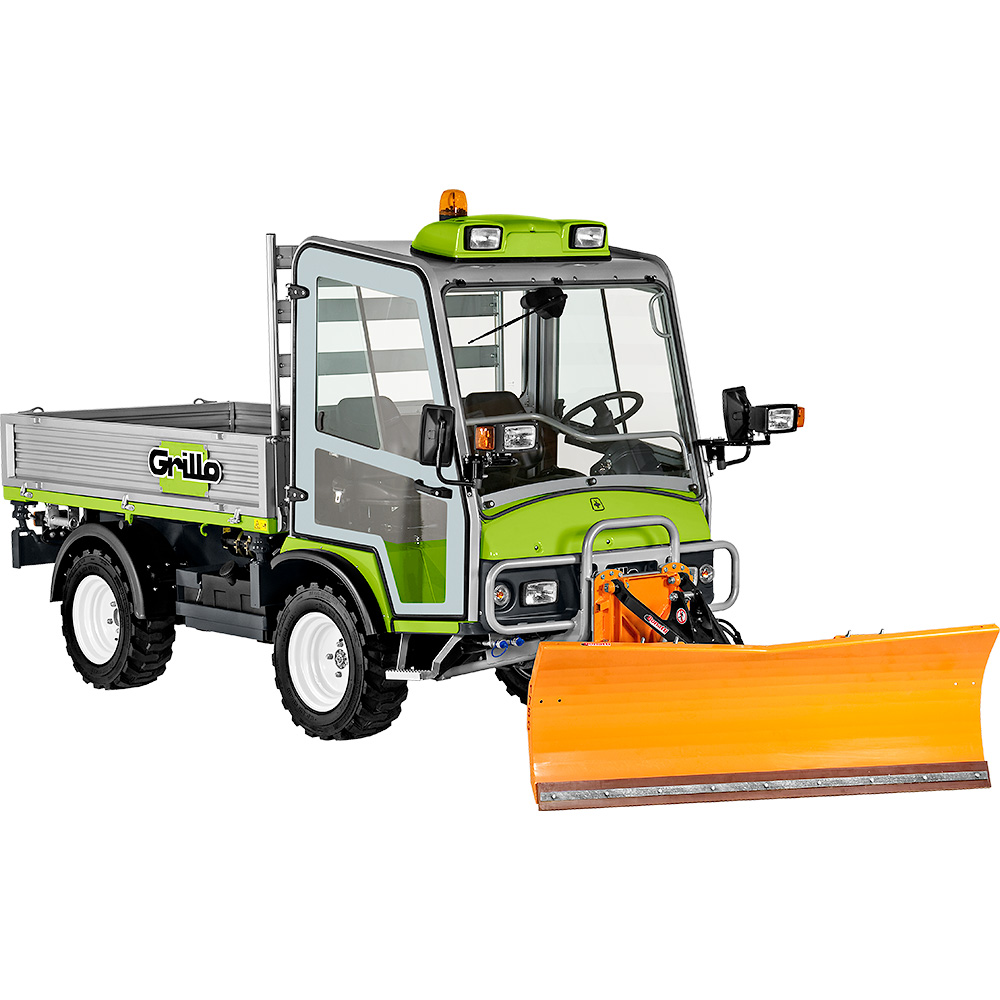

175 cm Front Blade

to be applied on PK 1400 4WD - PK 800 4WD

item no.: 9A9011

weight: 245 kg

Front blade 175 cm made of steel, equipped with rubber end and quick coupling.

The blade can be lifted up and is electric switch controlled from inside the cabin.

Together with the front blade we supply the supplementary lights kit.

Universal frame for frontal implements cod. 9A9311 and hydraulic PTO cod. 9B4311 needed

Universal frame quick coupling for frontal implements

to be applied on PK 1400 4WD - PK 800 4WD

item no.: 9A9311

weight: 13 kg

Kit for hydraulic PTO shaft 1"3/8 at 540 rpm

to be applied on PK 1400 4WD - PK 800 4WD

item no.: 9B2611

weight: 11 kg

Kit PTO with 1” 3/8 splined shaft DIN 9611 Form1
This kit ensures implement coupling where the mechanical PTO at 540 rpm is needed
Hydraulic PTO cod. 9B4311 needed.
