Dumper 507

The multi-purpose track carrier!

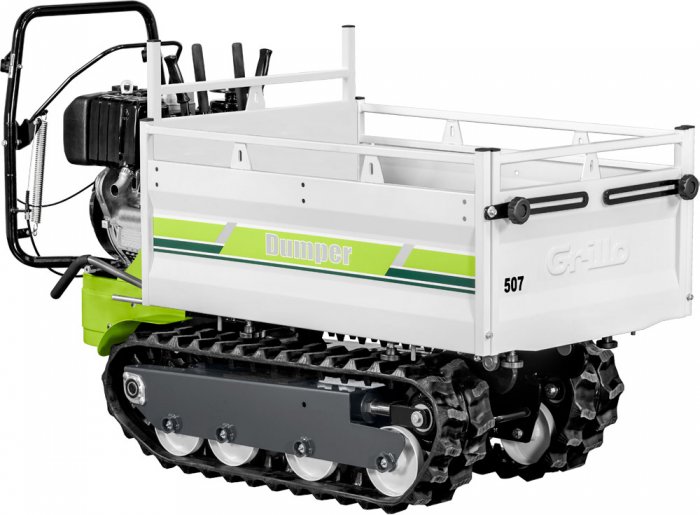

The Grillo Dumper 507 is a powerful and versatile rubber tracked carrier, ideal for the transport of any kind of material in different sectors.
The Dumper 507 is a compact machine and has a low centre of gravity. These characteristics ensure an easy advance in all security, especially on sloping grounds. The loading surface can be enlarged; the side walls can be blocked horizontally enabling large bulky loads to be loaded. Grillo Dumper 507 Two engine types available: Subaru EX27 petrol engine and Lombardini 15LD350 diesel engine. Key feature of both engines is the low r.p.m. torque.   Thanks to the mechanic P.T.O. and the frontal hydraulic lift kit you can connect all purpose flail, sweeper, snow blade and snow thrower.  The body “Dumper” with 230 L capacity has an automatic opening of the front wall Grillo Dumper 507 Grillo Dumper 507 Grillo Dumper 507 Grillo Dumper 507
The Dumper 507 is a powerful and versatile track carrier,for transporting of various types of material in various applications.
The completely mechanized traction allows the full exploitation of the engines power; rubber tracks with chain links made of steel as well as optional high performing engine models are the basis for a useful carrying capacity of 500 kg.
Thanks to the large number of connectable accessories the Dumper 507 is not only a simple carrier, but an all round multi-purpose equipment vehicle!

The body with its floor and side boards made of steel, has a wide load platform and is equipped with hooks to secure the load. The body can be enlarged, side boards can be blocked horizontally enabling large bulky loads to be carried.
The body, in standard form, is manual front tipping; by means of an optional hydraulic kit, tipping can be made via hydraulics.


Dumper 507 is compact with a low centre of gravity. These characteristics ensure stability and safety especially on slopes.



The rubber tracks profile allows traction under types of soil conditions and gives good stability and safety especially on soils with little load bearing capacity, crumbly soil or soil located on steep slopes.
No soil type is too difficult for Dumper 507!


500kg capacity and 8,7 km/h maximal speed allows fast transportation of whatever load.
With 4 forward gears and 3 reverse gears you will always get the correct gear ration to amply meet all requirements of the numerous possibilities of use.


All control levers of the Dumper 507 are ergonomic and easy to use.
The levers were designed so to reduce the necessary force required to activate them; the result is practical and simple to operate controls.
The steering system of the Dumper 507 designed by Grillo allows the drive’s gradual modulation by acting on the steering levers. Dumper 507 can make very tight curves by keeping one rubber track blocked as well as with a modulated radius also a wide radius. It’s that easy!
During the first movement step, traction is taken away from one of the two steering levers and, by continuing the movement, you will progressively slowdown the rubber track by means of the brake drum. This is the secret of the Dumper 507’s extreme manoeuvrability!


The Dumper 507’s rubber tracks are supported by steel rollers mounted on bushings and grease points, these are very important features to ensure high reliability and longevity over the years.



The front steel rollers are fitted with compensation springs which turn out to be useful in case of debris infiltrating the rollers or in between the rubber track and drive crown wheel thereby avoiding any damage which may occur and always ensuring that the belts are correctly tensioned.



The rubber track’s front inclination allows you to climb over steps of other obstacles.

Dumper 507 is a safe machine! It’s possible to stop quickly at all times the Dumper 507 by simply releasing the control lever. The automatic brake of the Dumper 507 will activate immediately ensuring so an immediate stop even when fully loaded and also on slopes up to 48%!

You have the possibility to choose among two available engine types, i.e. Subaru EX 17 petrol engine and Lombardini 15LD350 diesel engine. Both engines have excellent torque characteristics at lower rpm.
The engines of Dumper 507 are modern and employ the latest technology; with low emissions and noise reduction; they are available both with recoil starter and electric starter.


Dumper 507 is an ideal carrier for the use in the most different sectors: on the countryside, on construction sites, in snow, in agriculture, zootechny, industry, distribution and gardening to name just a few.



There is a large range of accessories, such as the choice between two bodies, standard or “Dumper” 230 L with automatic opening. It’s possible to use the frontal hydraulic tipping system to connect an all purpose flail, sweeper, snow blade or snow thrower.
A comfortable shock-absorbed folding platform helps the operator with quick transfers.


Varnishing of Grillo machines consists of a double electrostatic powder coated process. At the first stage are the washing baths and the preparation, then a first protective coat is applied which, after the baking in the oven, turns out to be the best base for the application of the finish. The second coat consisting of powder and further baking in the oven at 190°C convey the characteristic hardness and brilliance.



All Grillo machines have been assembled with the utmost care in every detail and tested scrupulously by specialised personnel. Final inspection includes running the engine with a simulated load! This is a further and final guarantee for a high quality product.

Dumper 507, as with all products by Grillo, has been designed and built to last and retain their value over many years. All Grillo products  are distributed and serviced by a widespread Grillo specialised dealer net. Spare parts remain available also after a lot of years.




Technical data sheet
Technical data sheet Dumper 507
Engine Robin Subaru EX27 OHC
Start recoil starter
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter
Engine Lombardini 15LD350
Start recoil starter
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Engine Robin Subaru EX27 OHC
Start electric, with 12 V battery
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter
Engine Lombardini 15LD350
Start electric, with 12 V battery
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 6,1 L eng. EX 27 OHC - 4,3 L eng. 15 LD 350
Transmission with oil bath gears
Traction rubber tracks with inner steel links
Gearbox 4 forward gears + 3 reverse gears
Clutch clutch per belt tension
Supporting surface of the track 700 mm
Load bed Standardversion equipped with side dump boards and forward tipping system. Optional: Dumper version 230 L body forward tipping system
Internal size of the load bed 100 x 65 x 20 (H 33 cm with top extension side)
Total load bed height 435 mm
Capacity 500 kg
P.T.O. 965 rpm independent on the gearbox . Right hand rotation sense
Speed 1st gear 1,0 km/h, 2nd gear 2,0 km/h, 3rd gear 3,5 km/h, 4th gear 8,7 km/h, 1st reverse gear 1,0 km/h, 2nd reverse gear 2,0 km/h, 3rd reverse gear 3,5 km/h
Steering wheel with clutches in oil bath combined with brakes
Safety devices automatic handbrake
Length 171 cm
Width 78 cm
Height 108 cm
External sizes of the track 650 mm
Weight Weight of standard machine with eng. EX27 kg 276 - Weight of standard machine with eng.. EX27 with electric starter kg 288 - Weight of standard machine with eng. 15LD350 kg 286 - Weight of standard machine with eng. 15LD350 with electric starter kg 311
In action! Photos and Videos
In action! Photos and Videos
The Dumper 507 is a powerful and versatile track carrier,for transporting of various types of material in various applications
The Dumper 507 is a powerful and versatile track carrier,for transporting of various types of material in various applications
Grillo Dumper 507 with two stage snow thrower
Grillo Dumper 507 with two stage snow thrower
Grillo Dumper 507 with 125 cm orientable snow blade
Grillo Dumper 507 with 125 cm orientable snow blade
Grillo Dumper 507
Grillo Dumper 507
Implements
Implements Dumper 507

Body 70 x 105 cm

991011
to be applied on Dumper 406 - Dumper 507
item no.: 991011
weight: 48 kg

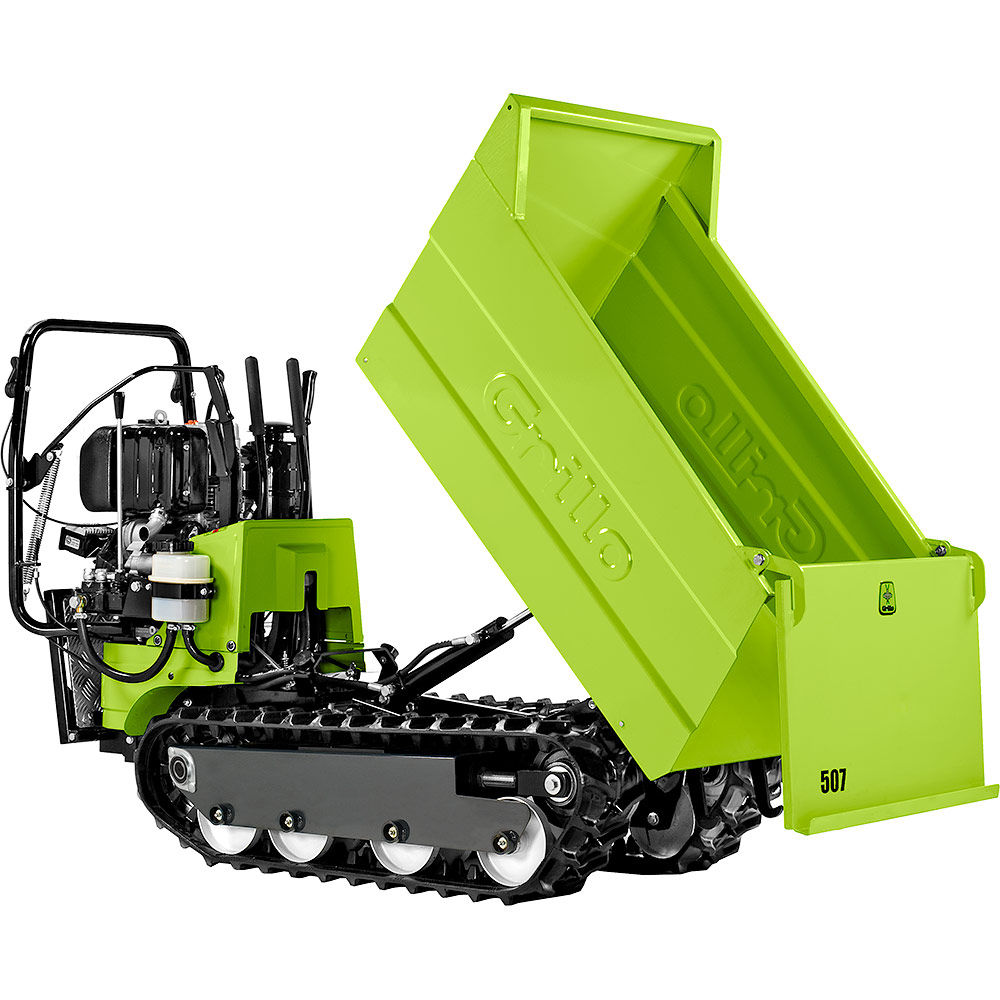

Body “Dumper” 230 L (Kit for hydraulic tipping item cod. 9B5012/cod. 9C1312 needed)

Body "Dumper" 230 L - COD. 972711
to be applied on Dumper 507
item no.: 972711
weight: 75 kg

Kit for hydraulic tipping system

Kit for hydraulic tipping system for EX27 engine - COD 9B5012
to be applied on Dumper 507
item no.: 9B5012
weight: 20 kg

Kit for hydraulic tipping system

Kit for hydraulic tipping system for 15 LD 350 engine - COD 9C1312
to be applied on Dumper 507
item no.: 9C1312
weight: 20 kg

Kit for hydraulic lift with cardan joint + P.T.O.

Kit for hydraulic lift with cardan joint + P.T.O. for EX 27 engine - COD. 9C2912
to be applied on Dumper 507
item no.: 9B5112
weight: 30 kg

Kit for hydraulic lift with cardan joint + P.T.O.

Kit for hydraulic lift with cardan joint + P.T.O. for 15 LD 350 engine - COD. 9C2912
to be applied on Dumper 507
item no.: 9C2912
weight: 30 kg

Kit for tipping body item 991011 for hydraulic lift kit

Kit for tipping body 70 x 105 cm item 991011 for hydraulic lift kit - COD. 9C5412
to be applied on Dumper 507
item no.: 9C5412
weight: 5 kg

Shock-absorbed operator platform

Liftable and shock absorbed operator platform - COD. 938412
to be applied on Dumper 507
item no.: 938412
weight: 10 kg

All purpose flail for diesel engines 68 cm (hydraulic lift kit + item no. 954412 needed)

All purpose flail 68 cm for diesel engines - COD. 9F5722
to be applied on Dumper 507 - G 131
item no.: 9F5722
weight: 87 kg

Front blade 125 cm with quick coupling Ø 5 cm (item 954712 needed)

Floating front blade 125 cm with quick coupling Ø 5 cm - COD. 9E6511
to be applied on Dumper 507 - G 107d - G 131 - G 85d - GF 3 - GF 3DF
item no.: 9E6511
weight: 40 kg

Weight for front blade

Weight 20 kg for front blade - COD. 9E6111
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF
item no.: 9E6111
weight: 20 kg

Rubber end for blade 125 cm

Rubber end for blade 125 cm - COD. 9E5911C
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G 85d - GF 3 - GF 3DF - MD 13 - MD 18 - MD 22 - MD 22N
item no.: 9E5911C
weight: 1 kg

P.T.O

P.T.O. -COD. 9B4612
to be applied on Dumper 507
item no.: 9B4612
weight: 2 kg

Front coupling assembly for quick coupling Ø 6 cm

Front quick coupling assembly for quick coupling Ø 6 cm  - COD. 954412
to be applied on Dumper 507 - G 107d - G 85d - GF 3 - GF 3DF
item no.: 954412
weight: 2,5 kg

Front coupling assembly for quick coupling Ø 5 cm for swinging front blade

Front quick coupling Assembly for quick coupling Ø 5cm for swinging blade - COD. 954912
to be applied on Dumper 507
item no.: 954912
weight: 2 kg

Inverter

Rotation Inverter - COD. 9A3912
to be applied on Dumper 507
item no.: 9A3912
weight: 3 kg

Snow thrower two-stage 70 cm

9E9622
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9E9622
weight: 69 kg

Orientable sweeper 100 cm (inverter item no. 9A3912 needed)

9F5422
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9F5422
weight: 55 kg
