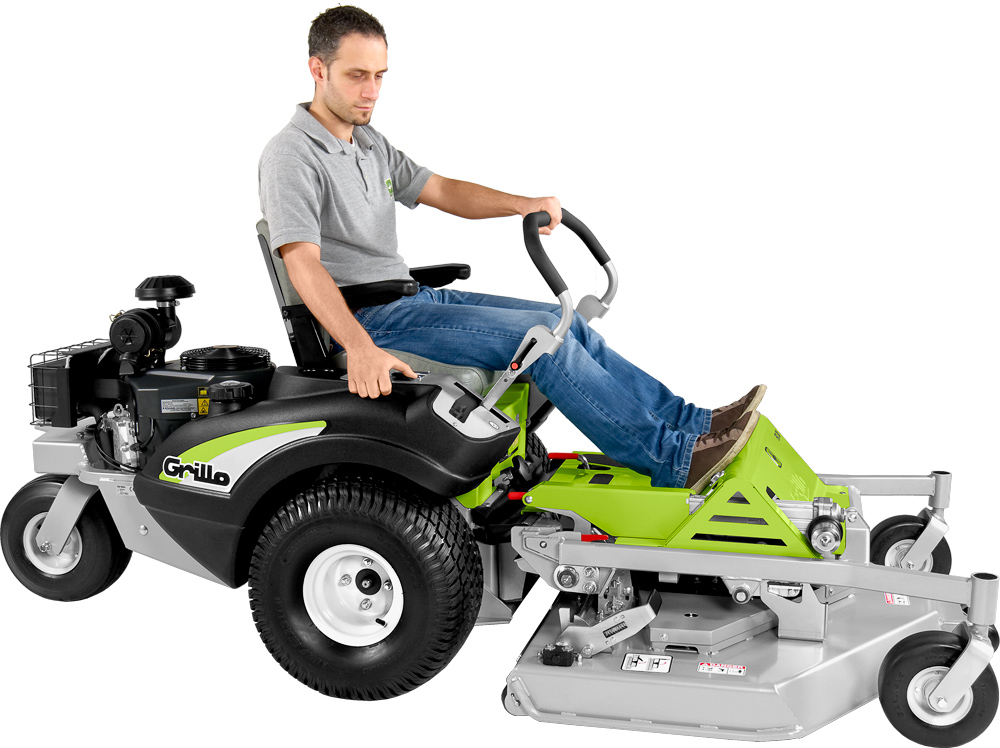

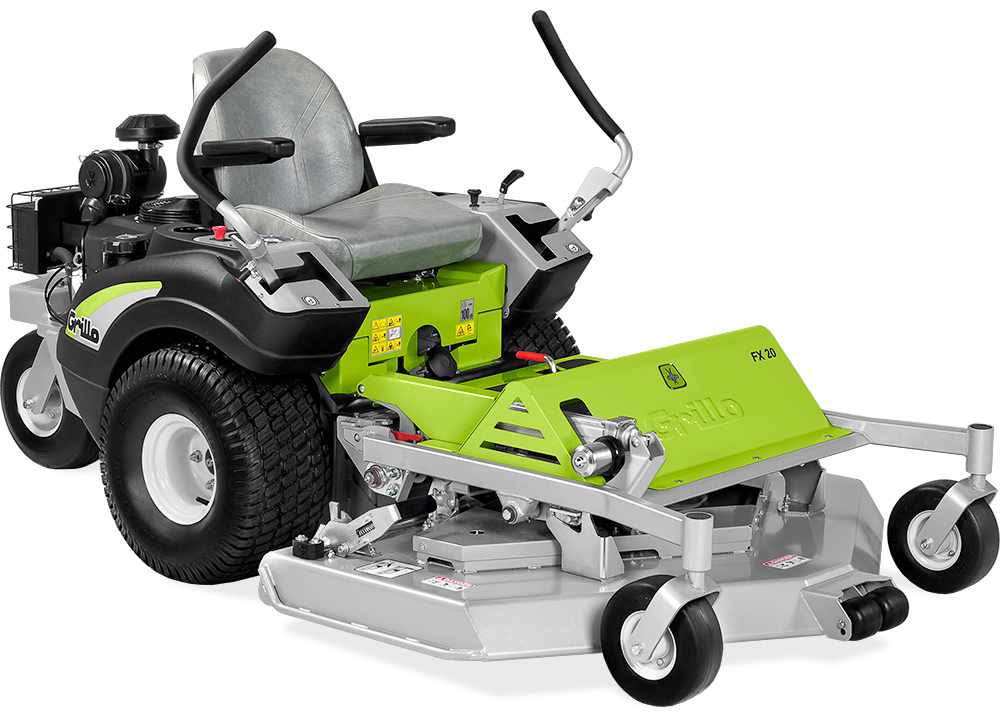

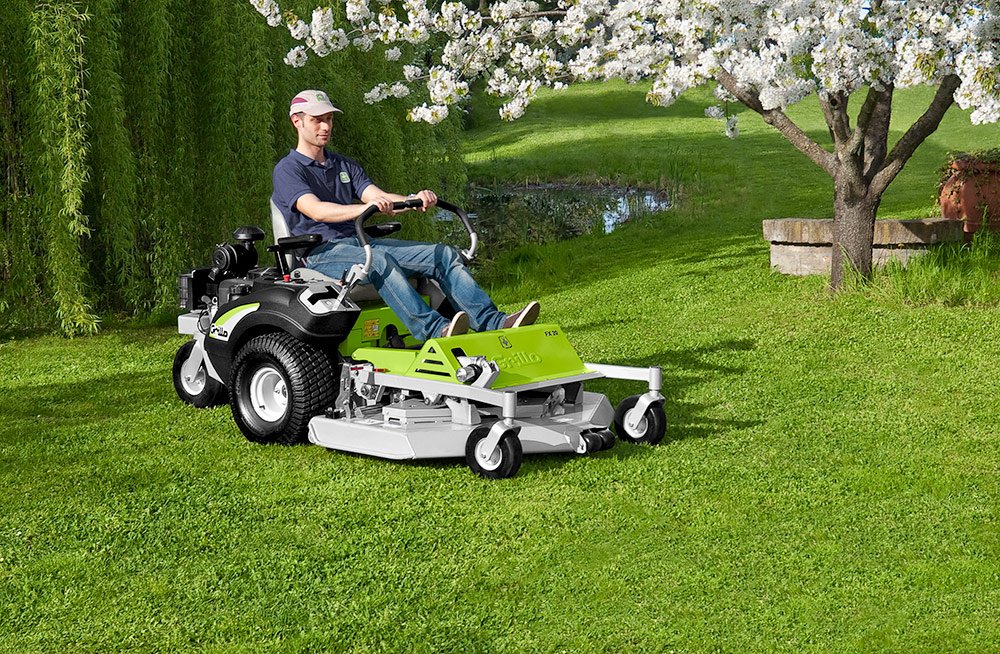

FX 20

	Engine	Kawasaki FX600V Start electric, with 12 V battery Supply fuel Displacement 603 cc, 2 Cylinders Power 20.3 HP (14.9 kW) Air cooled Dry air filter with interchangeable filter cartridges, safety filter and prefilter
	Fuel tank capacity	30 L (2 x 15 L)
	Traction	2-Wheel Drive
	Gearbox	Hydrostatic transmission with integrated ZT3100 Hydro-Gear pump
	Clutch	Clutch: electromagnetic with P.T.O

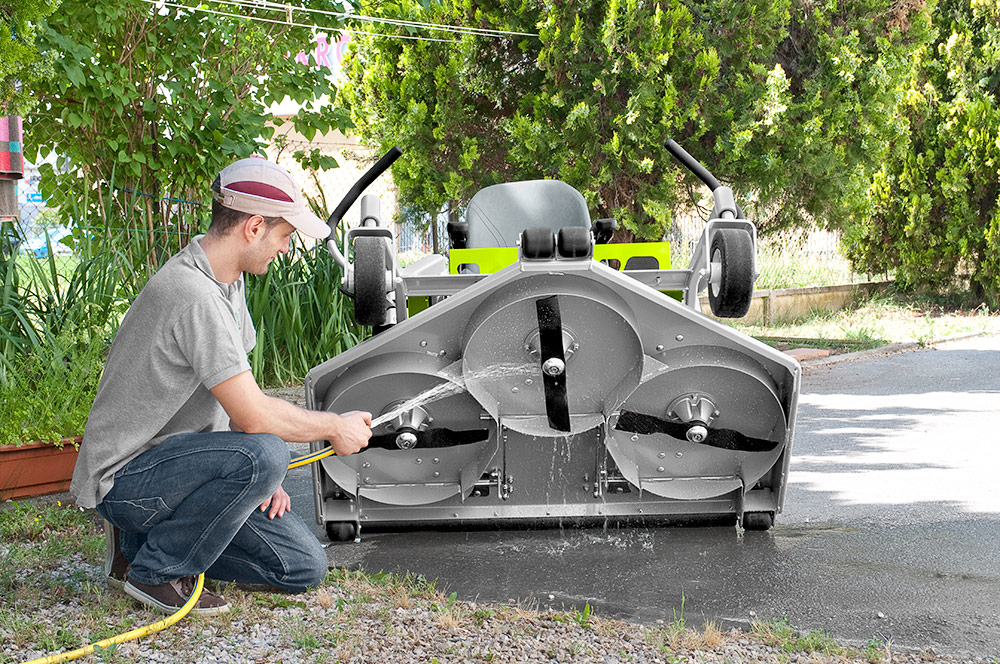

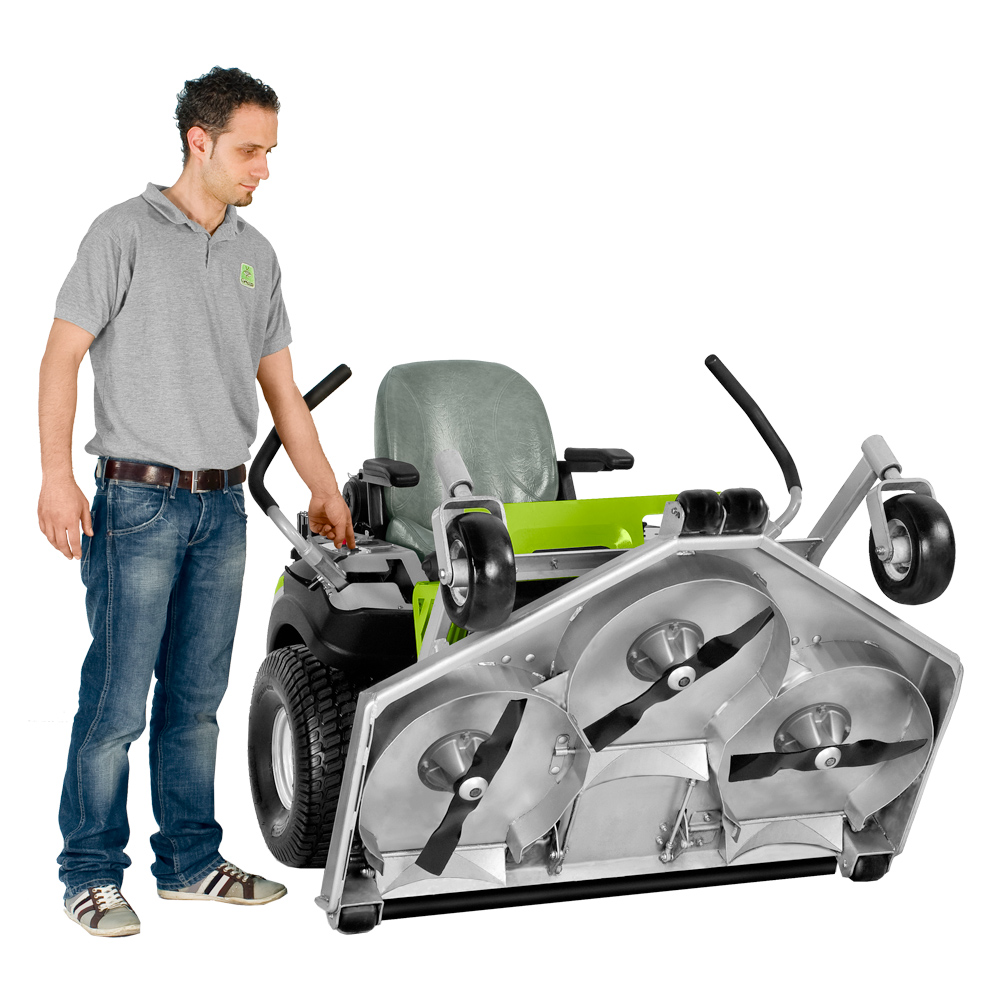

	Cutter deck	Frontal cutting deck with 3 blades, floating, with mulching system/rear discharge operated by lever action from the driver’s seat. Electric operated deck lifting system for maintenance.
	Cutting deck width	1320 mm
	Cutting width	1250 mm
	Cutting height	Continuously adjustable from 30 to 85 mm, electric.

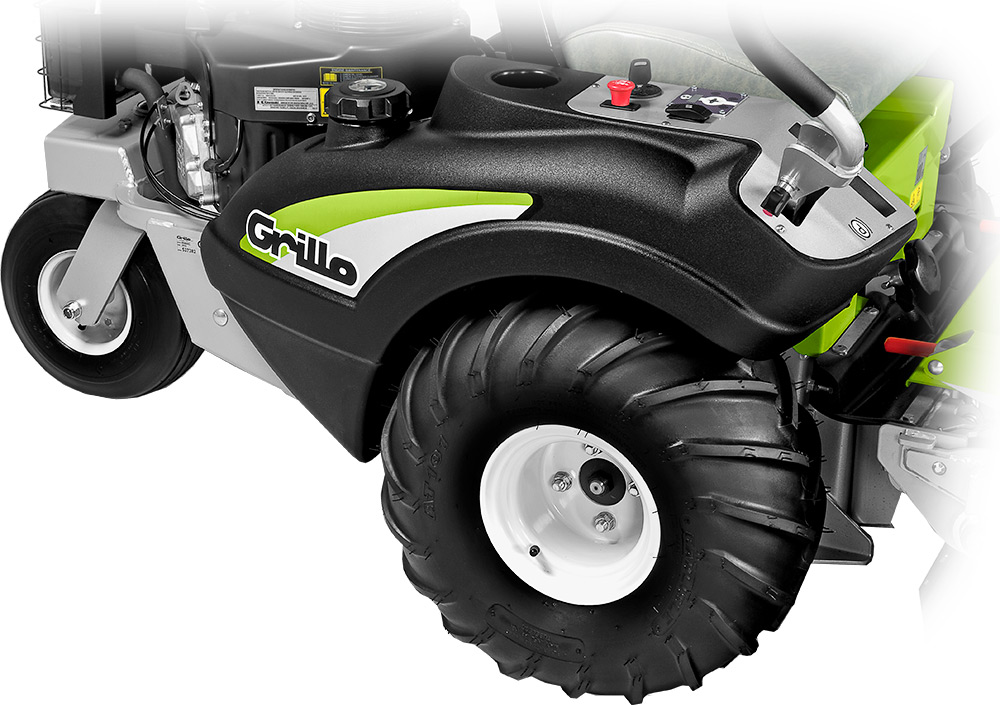

	Front tyres	Turf 20x10-8
	Rear tyre	Turf 15x6-6
	Steering system	Steering system with levers with longitudinal and height adjustment
	Speed	Continuously variable from 0 to 12 km/h. Reverse gear 0 to 6 km/h

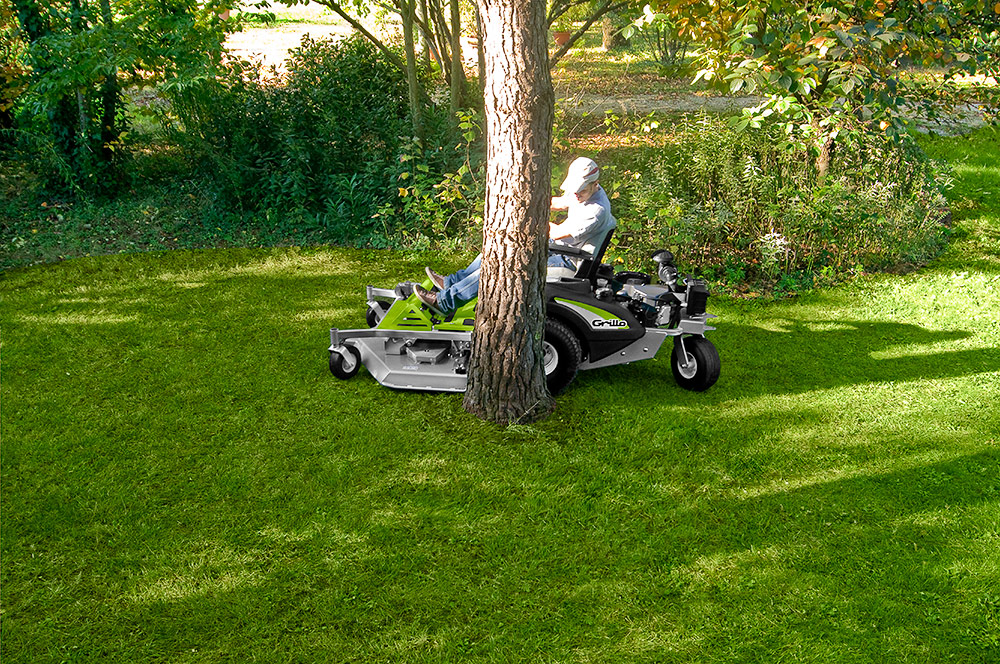

	Inner turning radius	Zero turn

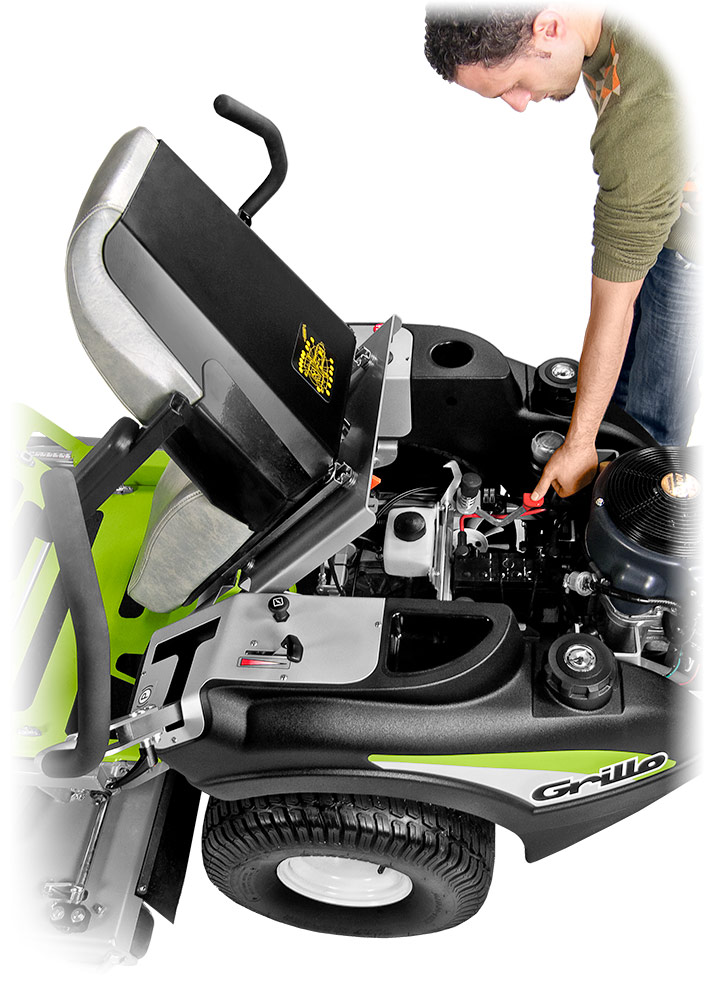

	Seat	Comfortable seat equipped with arm-rest, adjustable and fitted with springs. Tipping system operated by gas spring.
	Parking brake	Built-in inside the hydrostat. Automatic operated when opening the levers.
	Mowing capacity per hour (indicative)	13000 m^2/h

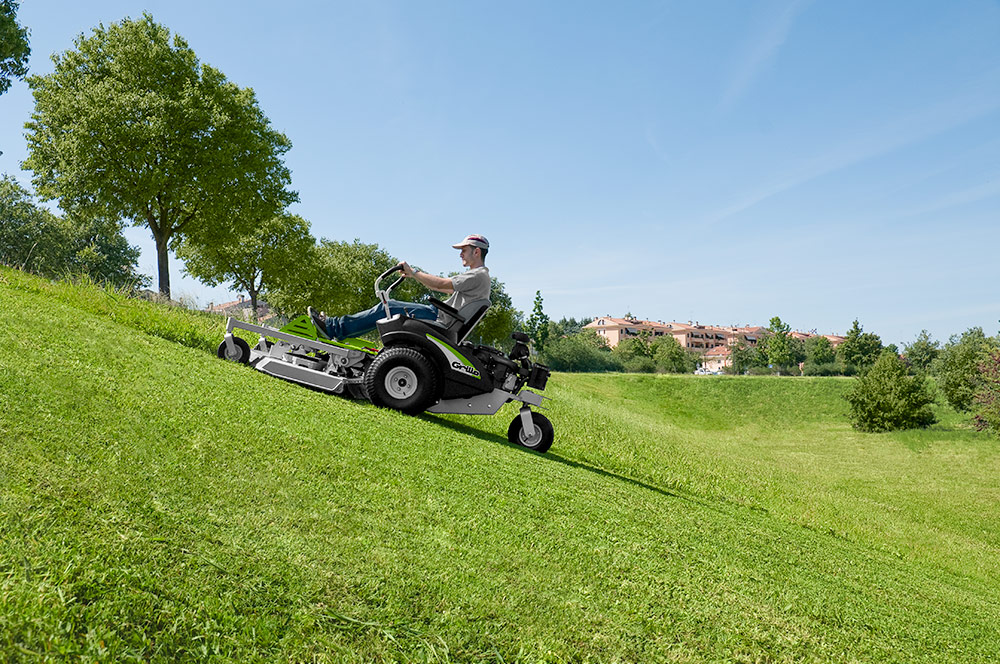

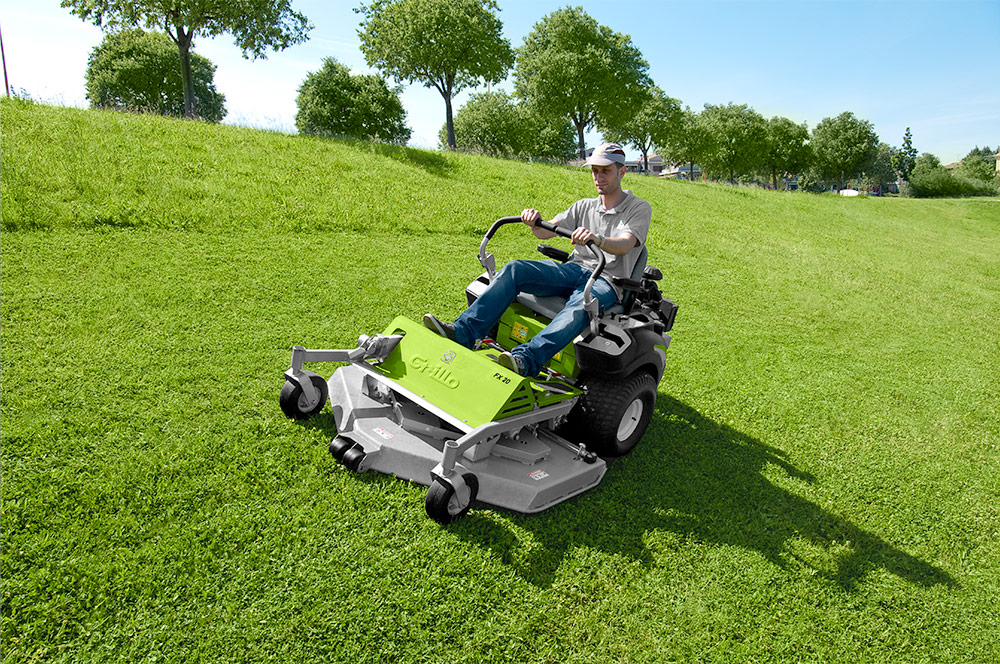

	Standard features	Anti-lift system in order to improve the drivability of the machine on slopes, rear tow bar
	Length	2580 mm with cutting deck
	Width	1120 mm without cutting deck - 1320 mm with cutting deck
	Height	1100 mm
	Weight	460 kg with cutting deck
