Home > Products > Trimmer - Wheeled Trimmers > HWT 570 Multiforce

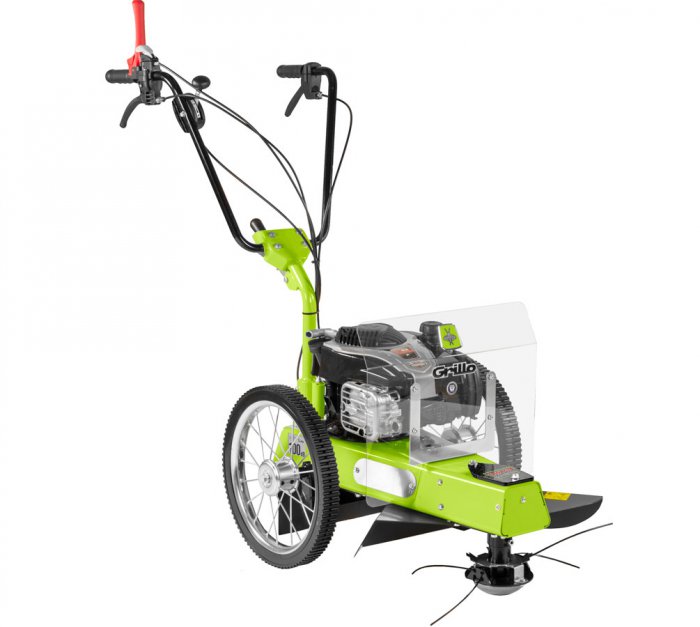

HWT 570 Multiforce

Wheeled trimmer.

The HWT 570 Multiforce is a corded, maneuverable, easy-conducting trimmer indicated for finishing where ordinary mowers will not reach. It can also be used as a mower for small, level plots. The Trimmer is equipped with a 4-stroke 140 cc (3 HP) gasoline engine. The drive belt between the engine and cutting rotor is high-strength for long life. The machine comes standard with a steel side grass deflector that prevents debris from being thrown onto the road or driveway. Standard features include a transparent screen to protect the engine and a rubber bulkhead between the wheels to ensure maximum operator protection from cut grass and possible throwing of objects. Large (non-drive) wheels allow for agile and maneuverable operation near obstacles.



In some cases, such as edging or trimming near low walls, it may be useful to cut close to the ground. To achieve this, the brushcutter is equipped with the TILT device: by operating the left handlebar lever, you can release the frame from the center position and tilt it to the right or left, accompanying the tilt with the handlebar. In this mode, a tilted cut will be performed. In order to achieve skim cutting of the ground, it is advisable to mount the strands in the lowest allowed position, with the wire holder plate upside down.



The 35 cm diameter steel strand brush is an accessory that can be attached to the upper PTO of the machine body. It is the ideal accessory for cleaning concrete driveways and yards, removing invasive grass, moss and general dirt.


Technical data sheet
Technical data sheet HWT 570 Multiforce
Engine Briggs & Stratton 575EX OHV
Start recoil starter
Supply fuel
Displacement 140 cc, 1 Cylinder
Power 3 HP (2.2 kW)
Air cooled
Dry air filter
Fuel tank capacity 0,8 L.
Cutting width 60 cm.
Cutting height adjustable at 1.5 - 3 - 5 - 6 cm
P.T.O. double
Wheels 16", (Ø 41 cm) non-driven
Handlebar With height and side adjustment
Standard features transparent engine protection, flexible rubber protection betweeen the wheels, steel guard in the cutting area.
Weight 46 kg
In action! Photos and Videos
In action! Photos and Videos
Implements
Implements HWT 570 Multiforce

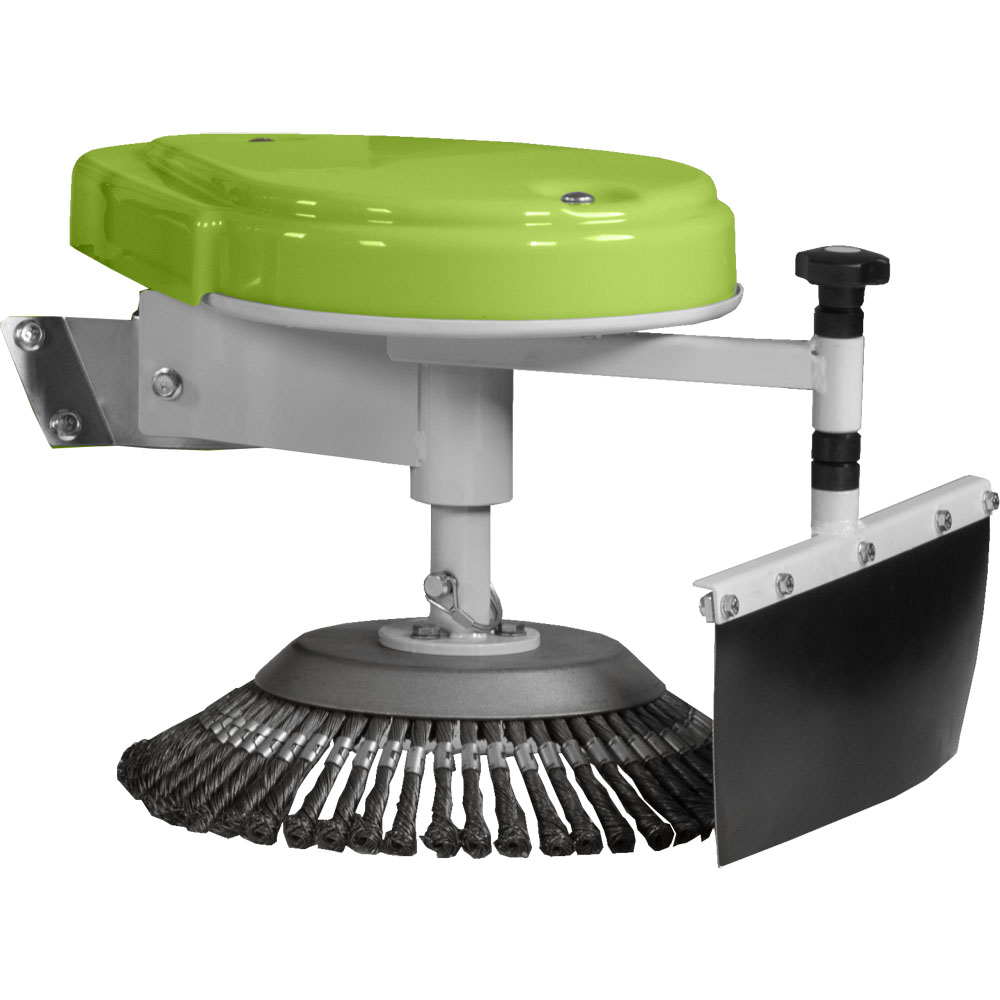

Weeder brush

to be applied on HWT 570 Multiforce
item no.: 9M7411
weight: 12 kg

Diam.35 cm weeder brush kit with steel strands for interlocking pavers and kerb.

Download
Download
Pdf HWT Trimmer catalogue (Download - file pdf - 1,97 MB)
