MD 22

Hydrostatic lawnmower with dual function cutter deck, side discharge and Mulching, with diff-lock, front safety brakes and a 18HP engine!

Dear Customer, we remind you that this model has been discontinued but its spare parts and our After Sales&Service are always at your disposal. Discover the new models!

Technical data sheet MD 22

Back to

	Engine	Briggs & Stratton 7220 PXi PROFESSIONAL Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) - Gross power 22 HP Air cooled Dry air filter
	Fuel tank capacity	Fuel tank 13 litres (reserve tank 3 litres)
	Gearbox	hydrostatic transmission with reduction gear unit and diff
	Clutch	Clutch: electromagnetic for PTO with blade brake
	Cutter deck	With rear discharge and mulching, with Quick Shift lever

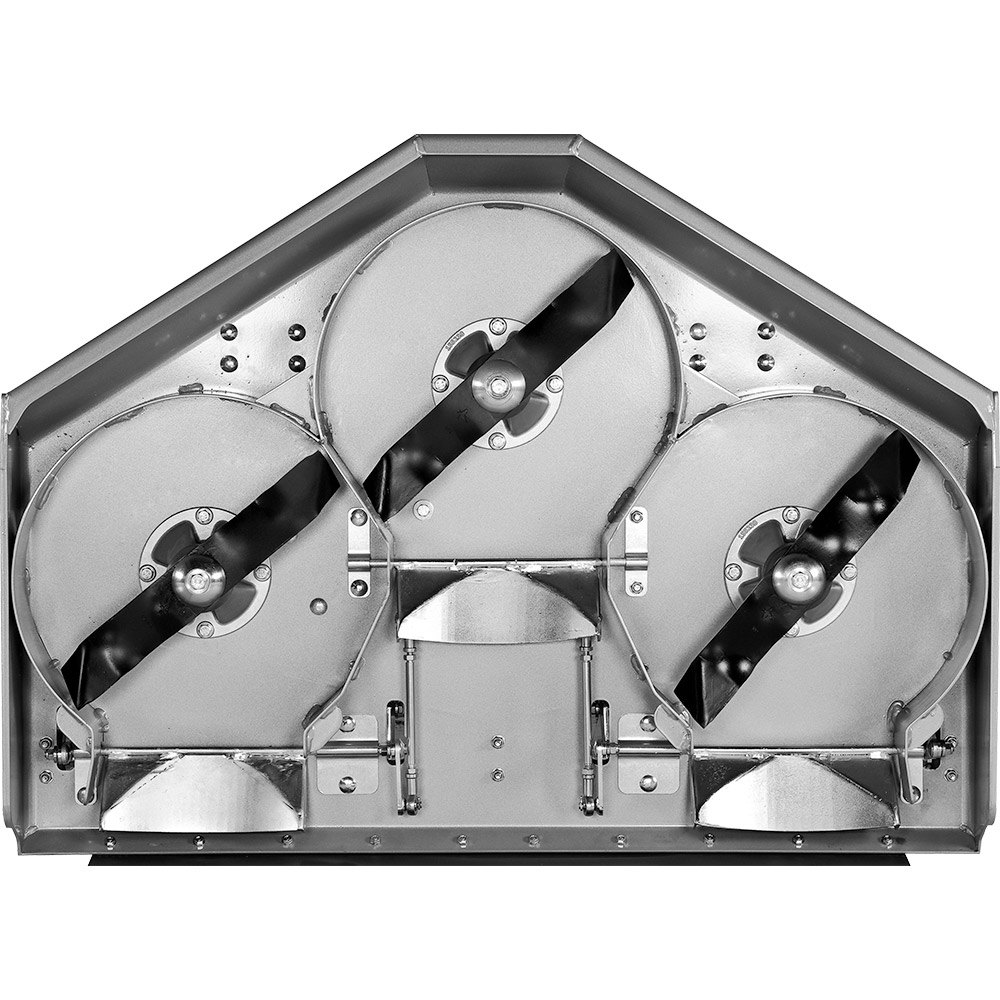

	Cutting configuration	3 rotating blades
	Cutting width	110 cm
	Cutting height	Electrically and continuously adjustable from 30 to 70 mm with Quick Transfer position
	Differential locking	Differential with locking device by pedal action
	Front tyres	Turf 13x5.00-6
	Rear tyres	Turf 18x8.50-8
	Speed	Continuously variable from 0 to 10 km/h, reverse gear from 0 to 6 km/h
	Inner turning radius	38 cm
	Seat	Comfortable seat equipped with springs and adjustable, with arm-rests and roll bar
	Service brake	On the front wheels brakes are pedal-operated
	Parking brake	On the rear wheels brakes are lever-operated
	Mowing capacity per hour (indicative)	8500 m^2/h
	Length	1800 mm
	Width	1320 mm
	Height	1070 mm
	Weight	325 kg

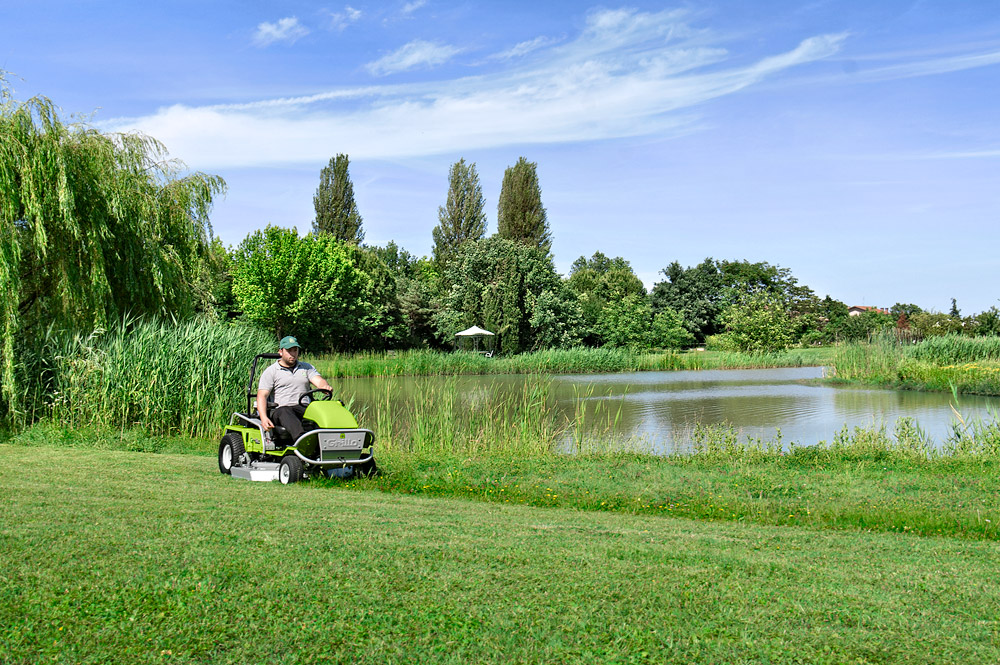

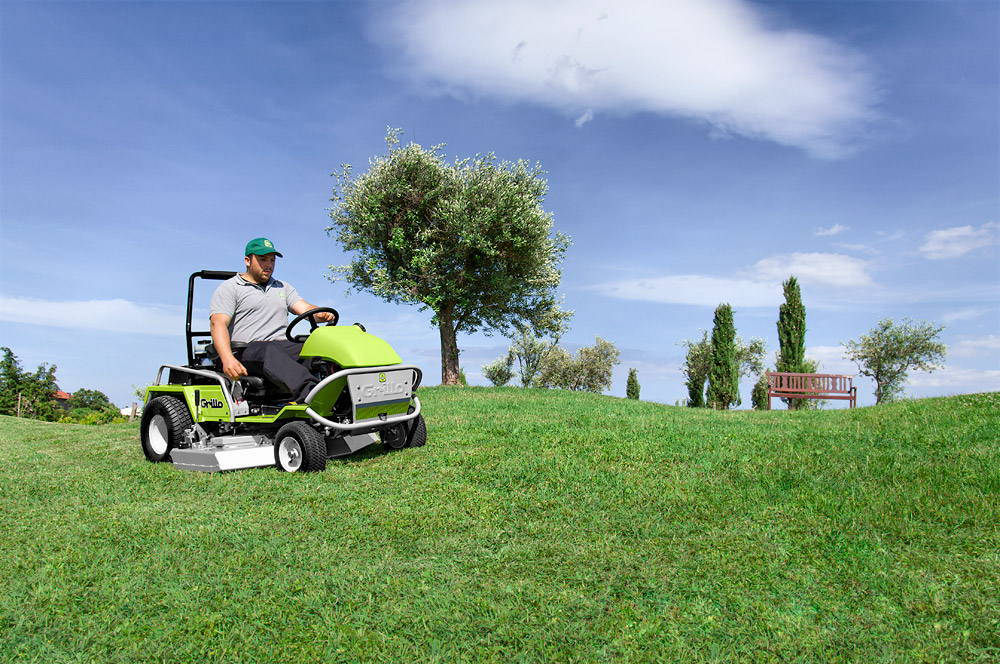

In action! Photos and Videos
