MD 18

Grillo MD 18
Grillo MD18 Grillo MD18 Grillo MD18 Grillo MD18 Grillo MD18

Technical data sheet
Technical data sheet MD 18
Engine Briggs & Stratton 7180 Intek
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 15.2 HP (11.3 kW) - Gross power 18 HP
Air cooled
Dry air filter
Fuel tank capacity 7 L (emergency supply 1 L)
Gearbox Hydrostatic transmission
Clutch Electromagnetic with P.T.O and blade brake.

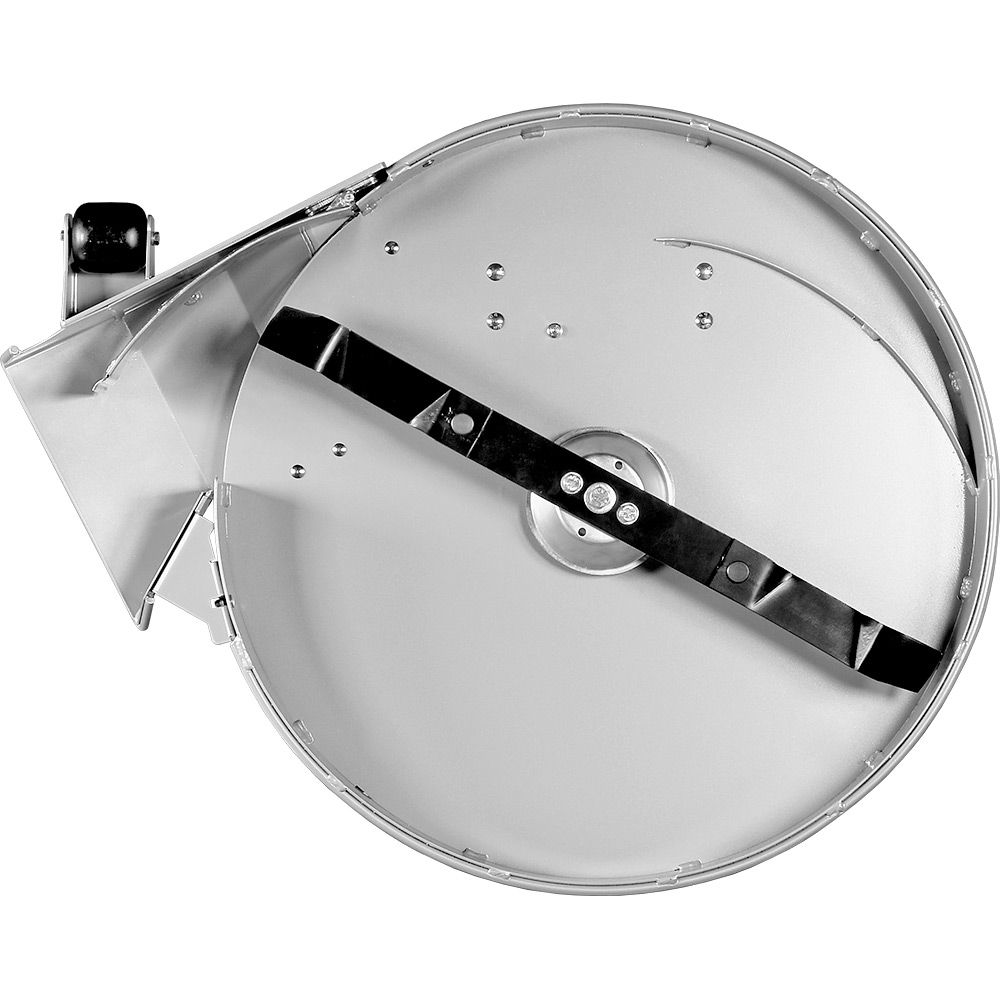

Cutter deck Side discharge and mulching with Quick Shift lever.
Cutting configuration
Cutting width 83 cm
Cutting height From 2,5 cm (±1.3’’) to 8 cm (±3.1’’), with 6 different cutting positions and 1 transfer position.
Peripheral blade speed 72 m/s
Differential locking Engaged via a pedal
Front tyres 13x5.00-6 Turf wheels
Rear tyres 16x7.50-8 Turf wheels
Speed Continuously variable from 0 to 9 km/h + reverse speed from 0 to 6 km/h
Inner turning radius 45 cm
Seat With adjustable suspension and equipped with armrests and roll-bar
Service brake
Parking brake Rear parking disc brake
Mowing capacity per hour (indicative) 6000 m^2/h
Standard features Tow bar and front headlight led
Length 175 cm
Width 113 cm
Height 102,5 cm
Weight 238 kg
In action! Photos and Videos
In action! Photos and Videos
Grillo MD18
Grillo MD18
Grillo MD 18
Grillo MD 18
Grillo MD 18
Grillo MD 18
Implements
Implements MD 18

Tractor wheel set MD18

918412
to be applied on MD 18
item no.: 918412
weight: 20 kg

Orientable front blade 125 cm

9G2611
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9G2611
weight: 54 kg

Rubber end for blade 125 cm

Rubber end for blade 125 cm - COD. 9E5911C
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9E5911C
weight: 1 kg

Coupling for 125 cm snow blade for Climber 7 series, MD

949311
to be applied on Climber 7.15 - Climber 7.18 - MD 15 - MD 18
item no.: 949311
weight: 5 kg

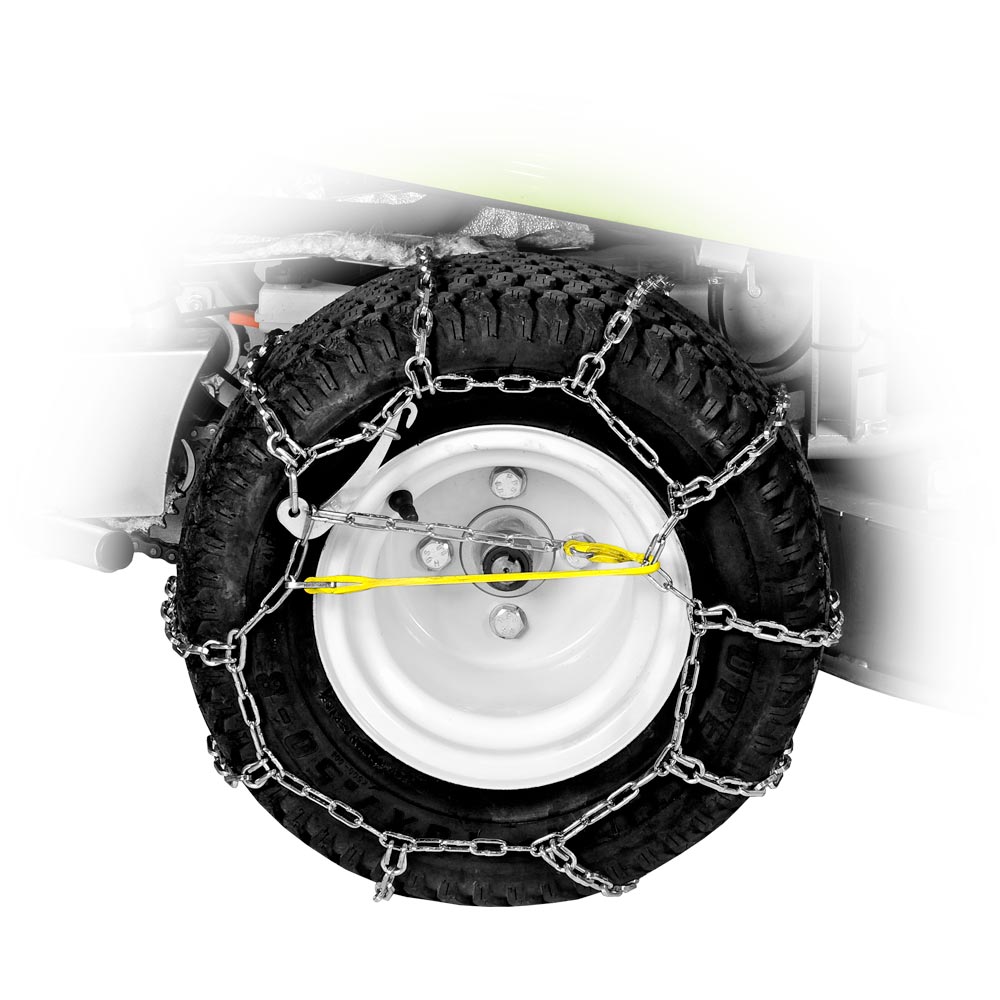

Snow chains for rear wheels 16x7.50-8 (pair) for MD13 and MD16

9M3822
to be applied on MD 15 - MD 18
item no.: 9M3822
weight: 1,5 kg
Download
Download
Pdf Full Range Catalogue 2023 (Download - file pdf - 22,93 MB)
Pdf MD catalogue (Download - file pdf - 2,97 MB)
