MD 15

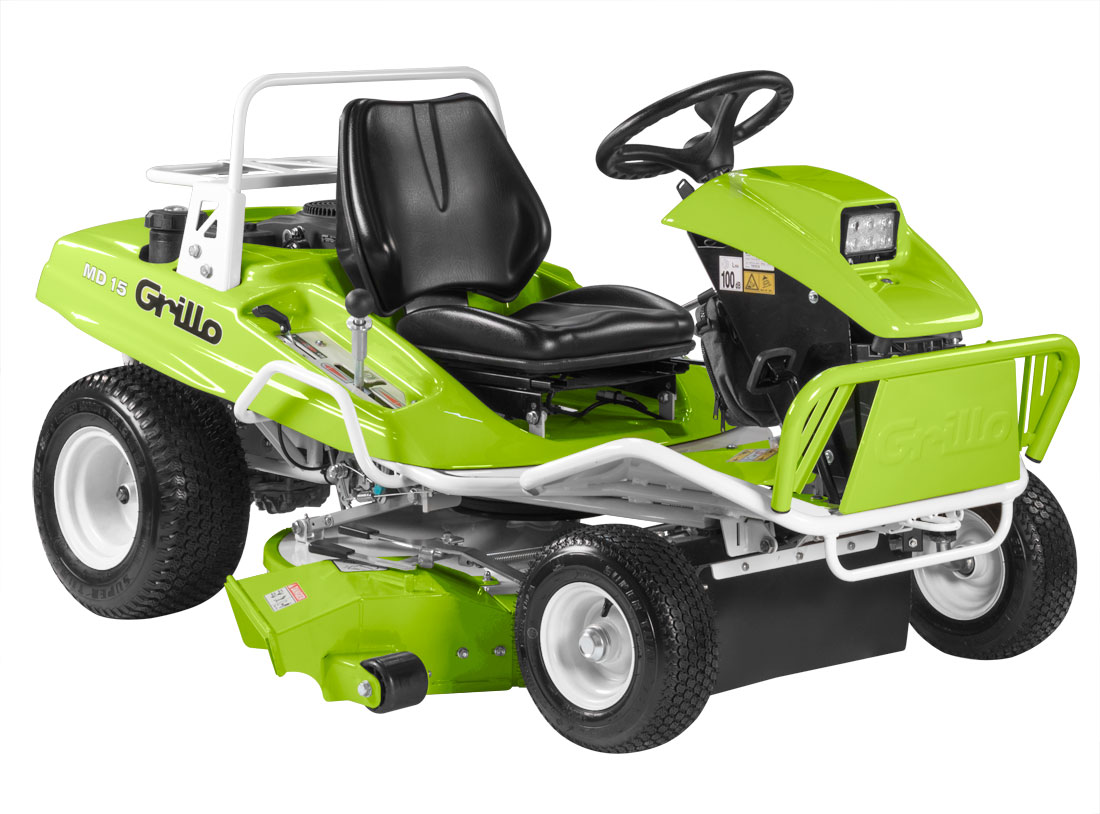

Grillo MD 15


The MD 15 is a hydro-static lawnmower with an 83 cm deck with dual cutting function, equipped with a 'Quick Shift' lever to switch directly from the driver's seat from mulching to side discharge.
It is an ideal lawnmower for mowing lawns where an excellent finish is required, even on slopes.
Its low ground clearance makes it ideal for undergrowth work.
The MD 15 is equipped with the 452 cc single-cylinder Loncin LC1P92F OHV petrol engine that delivers 12 HP (15 HP Gross power).

The single-blade cutting deck is made entirely of steel, the blade ends are floating shock-resistant with a special cutting edge profile that favors precise cutting in all grass conditions.

The cutting height adjustment ranges from 2.5 to 7.5 cm and is made by means of a 6-position lever. The same lever has an additional transfer position that allows the entire cutting deck to be lifted off the ground, automatically stopping the rotation of the blades to easily overcome kerbs and obstacles.

The tension of the deck belt is self-adjusting. The entire deck is kept parallel to the ground at all times, improving cutting quality even after years of use!

The blades are engaged via an electric button located near the steering wheel that activates the PTO's electromagnetic clutch.

The 'Quick Shift' lever allows you to change cutting mode while comfortably seated in the driver's seat, even during cutting and without interrupting work. There is no need to change blades.

Side discharge cutting is practical when the grass is high, suitable for those who do not cut regularly.
The cut grass is channeled into the steel side casing. The protruding casing is constructed in accordance with standards, ensuring optimum safety for the operator. It is also equipped with an anti-skid roller.
As an additional measure to improve reliability and impact protection, the casing hinges are located on the inside of the casing.

The Mulching cut, which is ideal for regular cutting, finely chops up the cuttings, thereby promoting the re-absorption of nutrients by the soil.
In addition, Mulching cutting can be performed after the first pass in rear discharge cutting for a better finish.

The transmission consists of a hydro-static axle equipped with a fan to cool the oil, an essential feature to increase the efficiency of the transmission by reducing its operating temperature. The speed is infinitely variable from 0 to 9 km/h and allows the precise choice of forward speed.

The tilting front axle keeps the four wheels attached to the ground even in very uneven conditions.

The mechanical steering is smooth and precise, the inner turning radius is 45 cm and allows excellent maneuverability even on paths full of obstacles such as plants, lampposts, etc.

The MD 15 is compact, with a low center of gravity, optimal weight distribution, and is built for maximum stability and operator safety.
The seat placed close to the ground, the endothermic engine with vertical axis positioned very low down, the ventral plate placed exactly between the 4 wheels and the battery placed on the front axle, make the machine exceptionally stable.

The feet rest on a foot board that can be adjusted in 2 positions to meet the needs of all users.

The driving controls are ergonomic, and the advance lever allows precise speed selection. With the help of the brake pedal, the advance lever automatically returns to zero and the 4 wheels are braked.
The parking brake acts on the rear wheels.

All components, from the simplest to the most complex, are of high quality.
Frame, cutting transmission, plate, everything is built by Grillo in Italy, using the best materials and the latest technology to achieve high, consistent and 100% controlled quality.
The painting of Grillo machines is double-layer electrostatic powder. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking at 190°C give the characteristic hardness and gloss.
The Grillo MD 15 is meticulously assembled and thoroughly tested by specialized personnel. The final testing of the MD 15 includes a test with the engine running to check all functionality. A further and final guarantee for a high quality product.

Like all Grillo products, the MD 15 is designed and built to last and retain its value for many years.
Grillo products are distributed and serviced extensively by Grillo's network of specialist dealers. Spare parts are available even after many years.

Technical data sheet
Technical data sheet MD 15
Engine Loncin LC1P92F
Start electric, with 12 V battery
Supply fuel
Displacement 452 cc, 1 Cylinder
Power 12 HP (9 kW) - Gross power 15 HP
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity Fuel tank 7 litres (reserve tank 1,5 litres)
Gearbox hydrostatic transmission
Clutch Clutch: electromagnetic for PTO with blade brake
Cutter deck side discharge and mulching, with “QUICK SHIFT” lever in order to change the cutting function
Cutting configuration rotating single blade with floating terminals
Cutting width 83 cm
Cutting height 6 different cutting positions from 2,5 to 7,5 cm plus 1 for transfer
Peripheral blade speed 72 m/s
Front tyres Turf 13x5.00-6
Rear tyres Turf 16x7.50-8
Speed continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h
Inner turning radius 45 cm
Seat Adjustable seat
Service brake
Parking brake rear parking disc brake
Mowing capacity per hour (indicative) 4500 m^2/h
Standard features tow bar and front headlight
Length 165 cm
Width 113 cm
Height 975 mm
Weight 225 kg
In action! Photos and Videos
In action! Photos and Videos
Grillo MD 15
Grillo MD 15
Implements MD 15

Orientable front blade 125 cm

to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9G2611
weight: 54 kg

Rubber end for blade 125 cm

Rubber end for blade 125 cm - COD. 9E5911C
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9E5911C
weight: 1 kg

Coupling for 125 cm snow blade for Climber 7 series, MD

to be applied on Climber 7.15 - Climber 7.18 - MD 15 - MD 18
item no.: 949311
weight: 5 kg

Snow chains for rear wheels 16x7.50-8 (pair) for MD13 and MD16

to be applied on MD 15 - MD 18
item no.: 9M3822
weight: 1,5 kg

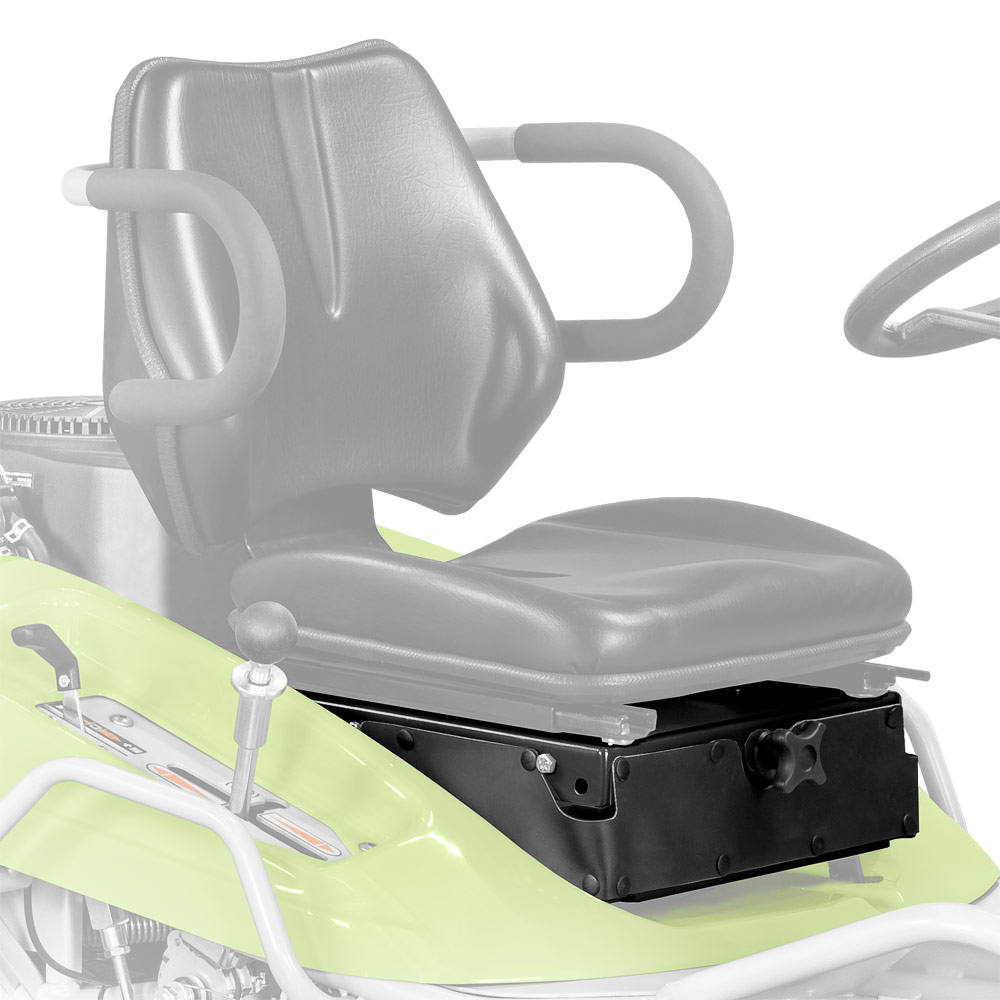

Seat suspension kit

to be applied on Climber 10 AWD 22 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.27 - MD 15 - MD 28 AWD
item no.: 9A4511AF
weight: 8 kg
