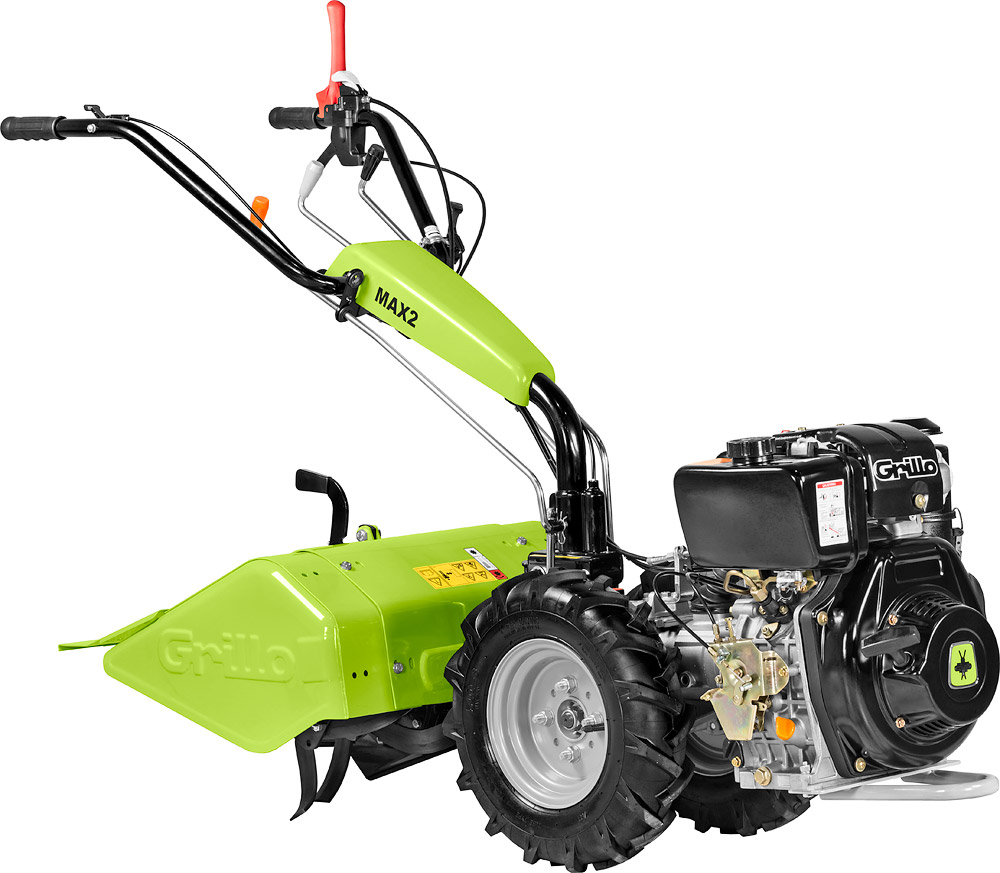

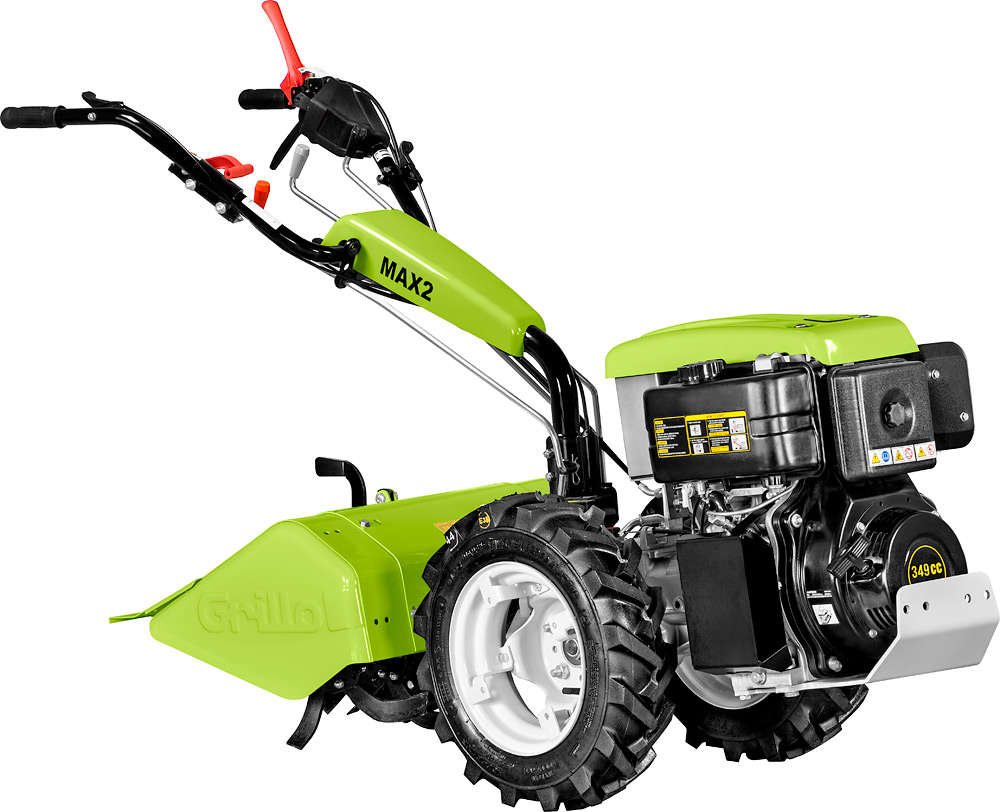

MAX2
|
Engine |
Loncin D350FD Start recoil starter and electric with 12V battery Supply diesel Displacement 349 cc, 1 Cylinder Power 6.5 HP (4.8 kW) Air cooled Dry air filter |
|
Fuel tank capacity | 3,5 Lt. |
|
Transmission | with oil bath gears |
| Gearbox | With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears | |
| Clutch | conic active | |
|
Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 580 mm / Adjustable rotary tiller with x 4 tines. Working width 680 mm |
| Hoes system diametre | 32 cm | |
| Working depth | 16 cm | |
| P.T.O. | 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. | |
|
Differential locking | by lever on the handlebar |
|
Available tyres | Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit only. |
| Handlebar | Height and side adjustment. Fitted on anti-vibration blocks | |
| Safety devices | Active clutch, reverse speed – PTO cut-out | |
|
Weight | Weight: standard version 150 kg |
