G 107d

Exceptional performances, amazing versatility and great safety

Grillo G 107d Grillo G 107d Grillo G 107d Grillo G 107d Grillo G 107d

The Grillo G 107 d is a walking tractor equipped with a reversible handlebar and ideal for working on medium-sized areas. The six-speed gearbox with gears in oil-bath 3 forward gears and 3 reverse gears. The differential lock comes as a standard feature on this machine.
The G 107 d is also fitted with an automatic quick gear-inverter, a device that manages the drive when turning the handlebar of 180°.
The reverse gear handlebar is placed on the handlebar, and is easily achievable.
Together with its broad offer implements and its reversible handlebar, G 107 d turns out to be an extremely versatile walking tractor.
The implements can be attached via a flanged coupling or a quick coupling, available as an extra, without the need of tools.
A plough kit containing larger wheels, adjustable extensions, 180° turn-wrest plough and wheel weights is available as an optional attachment.
To achieve a greater stability on slopes you can widen the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.


Technical data sheet
Technical data sheet G 107d
Engine Kohler KD15 440
Start recoil starter
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
Engine Kohler KD15 440
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
Engine Honda GX270 OHV
Start recoil starter
Supply fuel
Displacement 270 cc, 1 Cylinder
Power 8.4 HP (6.3 kW)
Air cooled
Oil bath air filter
Engine Loncin G300FA
Start recoil starter
Supply fuel
Displacement 302 cc, 1 Cylinder
Power 9.3 HP (6.8 kW)
Air cooled
Dry air filter
Engine Rato R300D
Start recoil starter and electric with 12V battery
Supply fuel
Displacement 301 cc, 1 Cylinder
Power 8.2 HP (6 kW)
Air cooled
Dry air filter
Fuel tank capacity 5.3 L eng. GX270 - 5.4 L eng. R300D - 6.1 L eng. G300FA - 5.0 L eng. KD15 440
Transmission with oil bath gears
Gearbox With clutch engagement. The walking tractor version has 3 forward gears + 3 reverse gears. The sickle bar version has 3 forward gears + 3 reverse gears
Reverse gear unit Inverter: rapid type with lever
Clutch conic active
Standard rotary tiller Adjustable rotary tiller with x 4 tines, includes extension kits. Working width 680 mm
Hoes system diametre 32 cm
Working width Adjustable at 680, 470 at 370 mm
Working depth 16 cm
Item no. standard rotary tiller 984611
P.T.O. 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Differential locking Differential with locking device by lever on the handlebar
Available tyres Pneumatic wheels Tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels Tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20x10.00-8 (extensions cod. 937112 needed)
Speed With 5.00-10 wheels 1st gear 1,3 km/h, 2nd gear 3,1 km/h, 3rd gear 3,6 km/h
Service brake Brake drum (kit upon request cod. 978111)
Handlebar height and side adjustment, reversible
Safety devices Active clutch, reverse speed – PTO cut-out
Weight Weight: standard version 136 kg

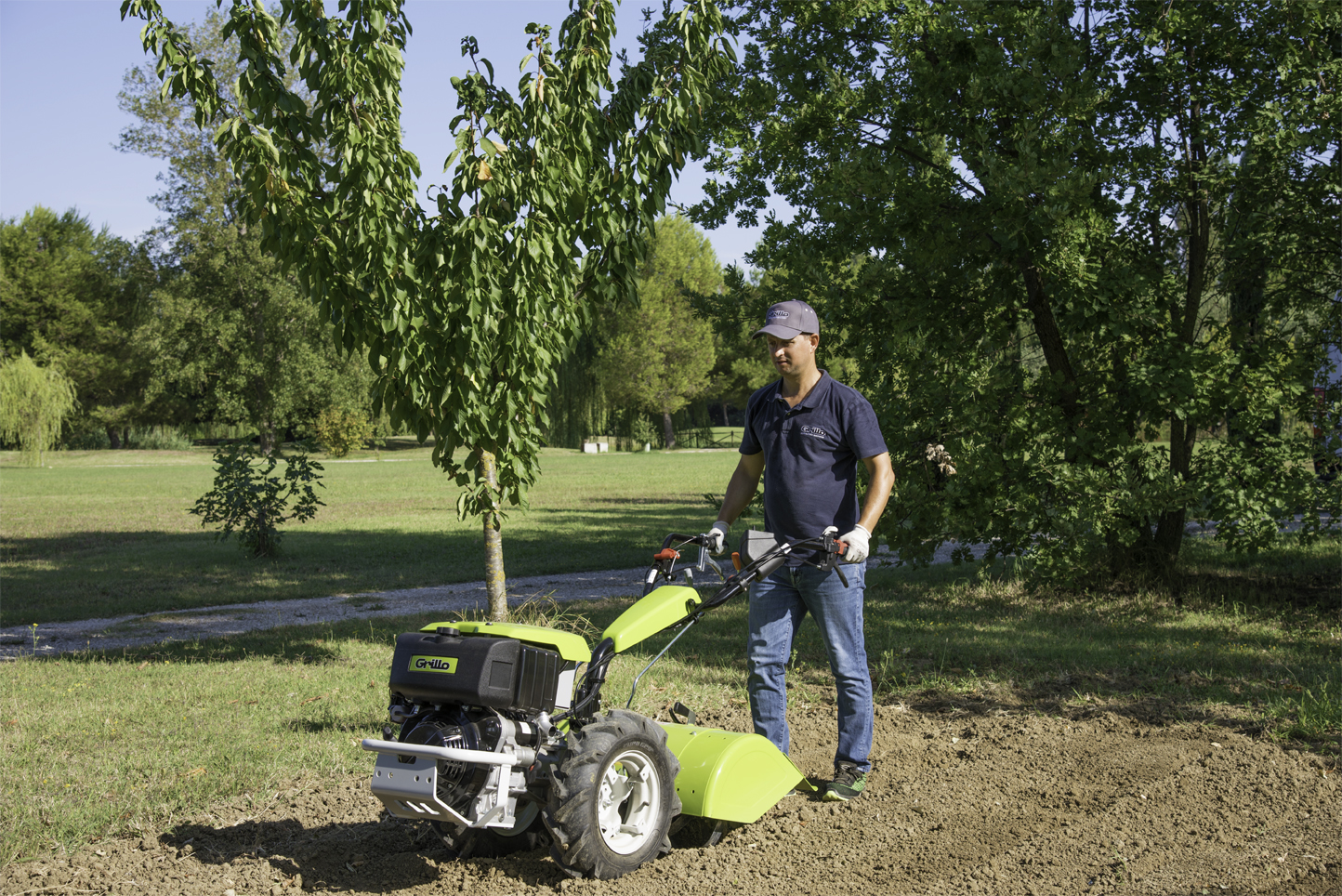

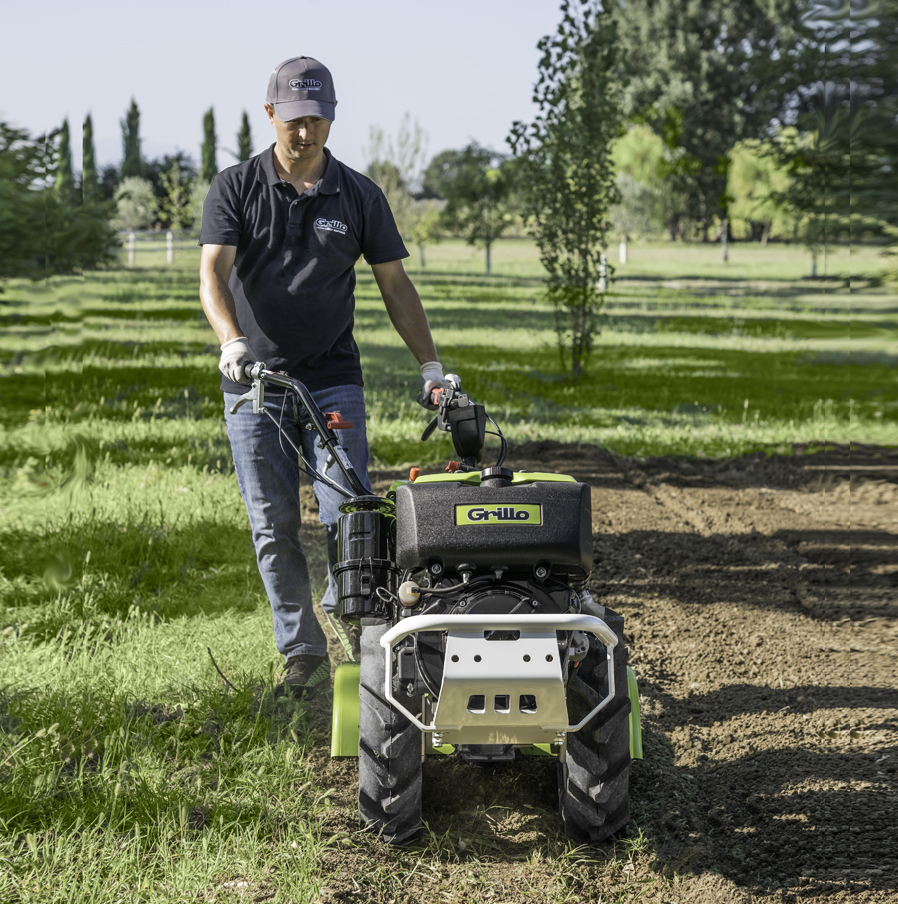

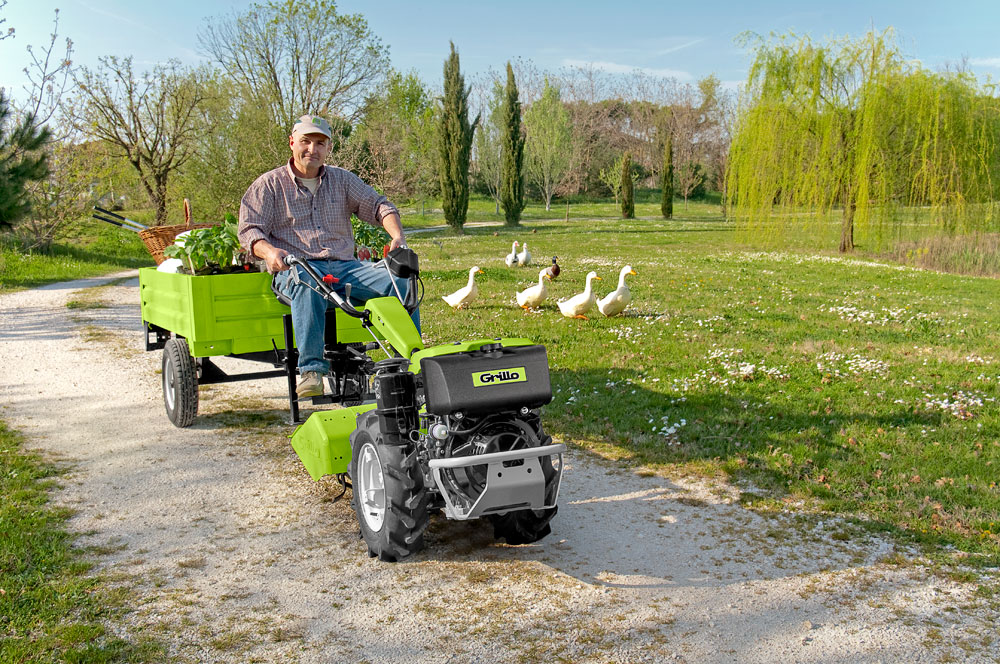

In action! Photos and Videos
In action! Photos and Videos
Grillo G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
G 107d
G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
Grillo G 107d
Implements
Implements G 107d

Pneumatic tractor wheels 4.00-8 (fixed disks with two positions); pair

Pair pneumatic "Tractor" wheels 4.00-8 [fixed discs] - COD. 900112
to be applied on G 107d - G 55 - G 84 - G 85d - GF 2 - GF 3 - GF 3DF - MAX1 - WR77 PRO - WR78 PRO
item no.: 900112
weight: 9 kg

Pneumatic tractor wheels 4.00-10 (fixed disks with two positions); pair

900312
to be applied on G 107d - G 85d
item no.: 900312
weight: 14 kg

Pneumatic tractor wheels 4.00-10 (adjustable disks); pair

Pair pneumatic "Tractor" wheels 4.00-10 [adjustable discs] - COD. 902412
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 902412
weight: 16 kg

Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair

Pair pneumatic “Tractor” wheels  5.00-10 [adjustable discs] - COD. 900412
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 55 - G 85d - GF 3 - GF 3DF
item no.: 900412
weight: 22 kg

The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.



On walking tractor G55 they can be mounted only when using plough or furrower.



Item 9C4312 (wheels extensions) is needed on 3500, 11500 rotavators equipped with plough.

Pneumatic tractor wheels 5.00-12 (adjustable disks) for plough (pair)

Pair pneumatic "Tractor" wheels 5.00-12 [adjustable discs] - COD. 902512
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 902512
weight: 25 kg

Wide steel wheels Ø 40 x 10 cm (pair)

Pair wide steel wheel Ø 40X10 cm- COD. 920312
to be applied on CL 75 - G 107d - G 108 - G 110 - G 85d
item no.: 920312
weight: 12.5 kg

Pneumatic Turf wheels 20x10.00-8(fixed disks); item 937112 needed

911712
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 918712
weight: 17 kg

Agri wheels 21x11.00-8 (pair)

Pair pneumatic "Tractor" wheels 21X11.00-8 - COD. 919212
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 919212
weight: 21 kg

Adjustable Wheel extensions to 25 cm (pair) (weight item no. 9G2512 can be used)

937312
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 937312
weight: 11,5 kg

Wheel extensions 12 cm (pair) (fit 2 pairs max)

Pair wheels extensions 12 cm - COD. 937112
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 937112
weight: 2 kg

Adjustable rotary tiller 58 cm (4x4 tines)

Adjustable rotary tiller 58 cm [4x tines] - COD. 984511
to be applied on G 107d - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 984511
weight: 40 kg

Adjustable rotary tiller 68 cm (4x4 tines)

Adjustable rotary tiller 68 cm [4x tines] - COD. 984611
to be applied on G 107d - G 85d
item no.: 984611
weight: 42 kg

Rotary tiller extension cod. 984511 to 68 cm (pair)

Rotary tiller extension cod. 984511 to 68 cm (pair) - 929112
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 929112
weight: 3 kg

Rotary tiller extensions (pair) cod. 984611 to 77 cm

to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 929612
weight: 4 kg

Adjustable rotary tiller 70 cm (x 6 tines)

Adjustable rotary tiller 70 cm [X6 tines] - COD. 984711
to be applied on G 107d - G 85d
item no.: 984711
weight: 42 kg

Rotary tiller extension cod. 984711 to 83 cm (pair)

Rotary tiller extension for cod. 984711 to 83 cm (pair) - COD. 929312
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 929312
weight: 7,5 kg

Adjustable counter-rotating tiller, 68 cm (4 x tines)

to be applied on G 107d - G 85d
item no.: 994511
weight: 40 kg

This kind of tiller is particularly recommended for hard soils. Tines and wheels move in opposite directions to each other, keeping the walking
tractor perfectly adherent to the ground and allowing the operator to till more efficiently with minimum effort.
There is no need to push down hard on the handlebar, just allow the walking tractor to move forwards under its own power.
This rotary tiller is equipped with tines x4.
Tempered-steel tines have 32 cm diameter and are fixed with nuts.
It can be adjusted at 37 – 47 and 58 cm.
Carter is made of cast-iron and gears are in oil bath.
Thanks to its “all enveloping hood” the soil is kept inside and thinly tilled.
Special protections mounted on the tines shaft prevent soil residues or grass from getting into the transmission.
For better results the skid positioned at the centre of the hoes can be adjusted according to the kind of soil, hard or sandy/soft soils.
The tilling depth can be adjusted using the lever positioned outside the tiller hood.


68 cm adjustable tiller with diam. 340 mm bigger tines (4 x tines)

994611
to be applied on G 107d - G 85d
item no.: 994611
weight: 50 kg

Rotary tiller support wheel

Rotary tiller support wheel for transport  - COD. 9C7012
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 9C7012
weight: 2 kg

The tiller support wheel is fitted to the rear of the rotary tiller using a spring-loaded quick pin.
It keeps the hoes off the ground and facilitates transfers.

It cannot be used with double rotation tiller code 994711

Middle-cut finger cutter bar 110 cm with crank action

to be applied on G 107d - G 84 - G 85d - GF 3 - GF 3DF - MAX1 - WR77 PRO - WR78 PRO
item no.: 9M7211 9M7111
weight: 36 kg

to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9M7311 9M7111
weight: 40 kg

110 cm, middle-cut finger cutter bar with oil bath action

to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9M7211 997811
weight: 43 kg

127 cm, middle-cut finger cutter bar with oil bath action

to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9M7311 997811
weight: 47 kg

To fit the cutter bar code 9M7311 (127 cm) on the G131BC it is necessary the kit 9C2012 (18 cm extension and levers)

Single-blade pro cutter bar 117 cm with crank action

to be applied on G 107d - G 84 - G 85d - GF 3 - GF 3DF - MAX1 - WR77 PRO - WR78 PRO
item no.: 9M6811 9M7111
weight: 32 kg

The central middle-cut toothed CUTTER BAR PRO is a special bar especially designed for professional use.
It has been conceived to cut in rough and fallow land, but it can be successfully used to cut hay too and also in agriculture to clean in-between orchards, thanks to its excellent manageability.
It is provided with an anti-clogging cutting system with a high resistance to impact with foreign objects.
Great efficiency is achieved thanks to high-quality steel.

Single-blade pro cutter bar 137 cm with crank action

to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9M6911 9M7111
weight: 35 kg

Single-blade PRO cutter bar 117 cm with oil-bath movement

9M6811 997811
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9M6811 997811
weight: 39 kg

9M6911 997811
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9M6911 997811
weight: 42 kg

132 cm professional double cutting-bar with oil-bath movement

COD. 996011 999011
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 996011 999011
weight: 52 kg

132 cm professional double cutting-bar with oil-bath movement and self-regulating elastic hold-down clamps (Busatis Austria System)


Cutter bar crank action

Cutter bar crank action - COD. 998111
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9M7111
weight: 15 kg

Cutter bar oil bath action

Cutter bar oil bath action - COD. 997811
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 997811
weight: 22 kg

Rotary cutter 75 cm with blade brake, wheel and skid hoes (for diesel engines item no. 9G4812 needed)

Rotary cutter 75 cm - COD. 9M1111
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9M1111
weight: 60 kg

Weight for grass cutter for diesel engine

Weight for grass cutter 6 kg - COD. 9G4812
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9G4812
weight: 6 kg

All purpose flail for diesel engines 68 cm (item no. 954412 needed)

All purpose flail 68 cm
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9G6111
weight: 75 kg

Scarifier kit for all purpose flail 68 cm

9G6411
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9G6411
weight: 1.6 kg

All purpose flail 85 cm

All purpose flail 85 cm
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 9G8111
weight: 80 kg

Scarifier kit for all purpose flail 85 cm

9G7011
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - GH 9
item no.: 9G7011
weight: 2,5 kg

Rear coupling assembly for quick coupling Ø 6 cm

Rear quick coupling assembly for quick coupling Ø 6 cm  - COD. 954312
to be applied on G 107d - G 85d - GF 3
item no.: 954312
weight: 2,5 kg

Front coupling assembly for quick coupling Ø 6 cm

Front quick coupling assembly for quick coupling Ø 6 cm  - COD. 954412
to be applied on Dumper 507 - G 107d - G 85d - GF 3 - GF 3DF
item no.: 954412
weight: 2,5 kg

Complete quick coupling diametre 5 cm

Complete quick coupling Ø  5cm - COD. 954612
to be applied on G 107d - G 85d
item no.: 954612
weight: 3 kg

Rear coupling assembly for quick coupling Ø 5 cm

Rear quick coupling assembly for quick coupling Ø 5cm  - COD. 954812
to be applied on G 107d - G 85d
item no.: 954812
weight: 2 kg

Front coupling assembly for quick coupling Ø 5 cm

Front quick coupling assembly for quick coupling Ø 5cm  - COD. 954712
to be applied on G 107d - G 85d - GF 3 - GF 3DF
item no.: 954712
weight: 2 kg

Extension for central cutter bar

Extension for central cutter bar - COD. 9C1512
to be applied on G 107d - G 85d
item no.: 9C1512
weight: 2 kg

Frame for attachments for furrow plough

Frame for attachments for single furrow and plough - COD. 945322
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 945322
weight: 9 kg

Single furrow plough - item no. 945322 needed, pneumatic wheels 5.00-12 and wheel weights are recommended

Single furrow plough - COD. 943122
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 85d
item no.: 943122
weight: 12 kg

Turn-wrest plough 180°

Turn-wrest plough 180 ° - COD. 943222
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 943222
weight: 21 kg

on motorhoes item no. 950522 needed;



on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

Adjustable furrower (item no. 945322 needed, 5.00-12 tyres and wheel weights recommended)

Adjustable furrower - COD. 944122
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 944122
weight: 12 kg

Potato lifter

to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 9E6822
weight: 11 kg

Fitted on the back, enables the process of quickly harvesting small crops of root vegetables such as potatoes.

If applied on G85 - G85d - G107d - G108 - G110: item code 945322 needed, 5.00-12 tyres and wheels weights are suggested.

If applied on G131: item code 948522 needed, 6.50/80-12 tyres and and wheels weights code 9G2512 are suggested.

Adjustable furrower behind the rotary tiller (cod. 945022)

Adjustable furrower behind the rotary tiller - COD. 945022
to be applied on G 107d - G 108 - G 110 - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 945022
weight: 5 kg

This implement carry out accurate furrows of any dimension. The furrower behind the rotary tiller slots into the back of the rotary tiller so enabling rotavating and ridging in one pass.

Not applicable on code 994711.

Plough kit for G85d and G107d

952111
to be applied on G 107d - G 85d
item no.: 952111
weight: 79 kg

The plough kit comprehends: demi-wrest plough 180°, frame for attacchments, wheel weights, engine weight and wheel extensions.

5.00-12 wheels cod.902512 and spacers cod.9A3211 needed

Tow bar

Tow bar for walking tractor - COD. 9F4212
to be applied on G 107d - G 108 - G 110 - G 55 - G 85d
item no.: 9F4212
weight: 4 kg

Tipping towed trailer 150x110 cm with brakes

Tipping towed trailer 150X110 cm, with brakes - COD. 9D0321
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9D0321
weight: 150 kg

on walking tractors G 55, G 85, G85d and G 107d cod. 9F4212 needed

on walking tractors G 131 cod. 9F4712 needed

Transport Sulky with brake

942811
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 943411
weight: 36 kg

Item 9F4212 needed for G55, G85, G107, G108 and G110.

Item 9F4712 needed for G131BC.

Wheel weights 20 kg per pair for wheels 4.00-8, 4.00-10 and 5.00-10 (fixed and adjustable)

Wheel weights (Pair), total weight 20 kg - COD. 9G1212
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9G1212
weight: 20 kg

Cast-iron wheel weights.

Wheel weights 36 kg per pair for wheels 5.00-12 with adjustable disks

Wheel weights (pair), total weight 36 kg - COD. 9G2512
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 9G2512
weight: 36 kg

Wheel-weights 11kg for GX 160 engine

COD. 9G3211
to be applied on G 107d - G 55 - G 85d
item no.: 9G3211
weight: 11 kg

Brakes kit for G85, G85d, G107d, 4bis ( handlebars cover removal needed)

Drum brakes kit - COD. 978111
to be applied on G 107d - G 85d
item no.: 978111
weight: 6 kg

Spacers 25 mm for engines

9A3211
to be applied on G 107d - G 55
item no.: 9A3211
weight: 0,5 kg

It can be fitted to :

GX200 gasoline
G300FA gasoline
KD15-350 diesel, recoil starter
KD15-440 diesel, recoil starter

Front blade 125 cm with quick coupling Ø 5 cm (item 954712 needed)

Floating front blade 125 cm with quick coupling Ø 5 cm - COD. 9E6511
to be applied on Dumper 507 - G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9E6511
weight: 40 kg

Weight for front blade

Weight 20 kg for front blade - COD. 9E6111
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9E6111
weight: 20 kg

Rubber end for blade 125 cm

Rubber end for blade 125 cm - COD. 9E5911C
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9E5911C
weight: 1 kg

Snow chains for 5.00-10 wheels (pair)

9M3522
to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9M3522
weight: 2 kg

Snow thrower two-stage 70 cm

9E9622
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 9
item no.: 9G8022
weight: 77 kg

The 70 cm wide, two-stage snow blower is built with steel components to ensure strength and long service life.
The turbine has a chimney that can be swivelled from the driver's seat and adjustable slides to find the ideal working position.
The two-stage snow blower is ideal for heavy, prolonged and intensive use.

On Dumper 507 requires hydraulic lift kit, part no. 9A3912 and part no. 66397N (chimney rod)

Orientable sweeper 100 cm (inverter item no. 9A3912 needed)

9F5422
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF
item no.: 9F5422
weight: 55 kg

Power harrow 50 cm for diesel engines

Power harrow 50 cm for walking tractors with diesel engine - COD. 975922
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 991122
weight: 57 kg

Rotary plough of 30 cm (wheels 5.00-10 needed)

Rear rotary plough 30 cm for walking tractors - COD. 943622
to be applied on G 107d - G 108 - G 110 - G 85d
item no.: 943622
weight: 44 kg

For G108 and G110, item 946911 and item 946511 needed.

Download
Download
Pdf Full Range Catalogue 2024 (Download - file pdf - 21,78 MB)
Pdf Walking Tractors catalogue (Download - file pdf - 6,91 MB)
Pdf DOUBLE BLADE CUTTER BAR PRO_Catalogue (Download - file pdf - 183,50 KB)
Pdf PRO CUTTING BAR_Catalogue (Download - file pdf - 184,21 KB)
Grillo spa
Via Cervese 1701 - 47521 Cesena - Italy


Tel. +39 0547 633111 - Fax +39 0547 632011
grillo@grillospa.it

VAT ID number IT00814230405
