G 131 - G131 BC

Strength and outstanding performance!

Grillo G 131 BC
Grillo G 131 BC Grillo G 131 BC Grillo G 131 BC Grillo G 131 BC Grillo G 131 BC

The Grillo G 131 (Diesel version) and G131 BC (gasoline version) are motorcultivators ideal in agriculture, horticulture, vegetable and vegetable gardens and large areas.
They are perfectly balanced, equipped with an oil-bath gearbox with 6 gears, including 4 forward and 2 reverse gears, and differential
with locking
. Numerous features make the G 131 / G131 BC always safe for the user. Many implements are available, both rear and front, thanks to the ability to rotate the handlebars 180°: tiller, cutterbar, mulcher, snowplow, and many others.
Implements are mounted via the sturdy flanged hitch. It is also possible to plow using the dedicated kit consisting of oversized wheels, screw-adjustable wideners, 180° turner plow and ballasts. To facilitate movement with the engine off, it is possible to disengage the wheel axle.
For better stability on slopes, the track width can be increased by 12 or 24 cm by using the wheel wideners.


Technical data sheet
Technical data sheet G 131 - G131 BC
Engine Briggs & Stratton 16 Vanguard V-Twin OHV
Start electric, with 12 V battery
Supply fuel
Displacement 479 cc, 2 Cylinders
Power 14 HP (10.3 kW) - Gross power 16 HP
Air cooled
Dry air filter with interchangeable filter cartridges
Engine Kohler KD15 440
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 8.5 L (Vanguard 16) - 5 L. (KD15 440)
Transmission with oil bath gears
Gearbox With clutch engagement. The walking tractor version has 4 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
Clutch single dry disc with manual control
Standard rotary tiller Adjustable rotary tiller with x 4 tines Working width 700 mm
Hoes system diametre 32 cm (tiller x 4) - 36 cm (tiller x 6)
Working width Adjustable at 550 and 700 mm (850 mm with extension kit cod. 930312)
Working depth 18 cm
Item no. standard rotary tiller 989011
P.T.O. a higher one (upon request) synchronised with the gearbox; one lower at 1028 rpm in clockwise rotation with engine at 3000 rpm
Differential locking Differential with locking device by lever on the handlebar
Available tyres Tractor 5.00-12 wheels (adjustable disks) and 6.5/80-12 wheels (adjustable disks). Wide steel wheels having diametre 46 x 12 cm
Speed In the walking tractor version with 5.00-12 wheels 1st gear 1,2 km/h, 2nd gear 2,4 km/h, 3rd gear 3,4 km/h, 4th gear 7,1 km/h, 1st reverse gear 1,7 km/h, 2nd reverse gear 3,5 km/h. In the sickle bar version with 5.00-12 wheels 1st gear 1,7 km/h, 2nd gear 3,5 km/h , 1st reverse gear 1,2 km/h, 2nd reverse gear 2,4 km/h
Service brake Brake drum (kit upon request cod. 978611)
Handlebar height and side adjustment, reversible
External sizes of the wheels 55, 60, 70 or 75 cm with 5.00-12 wheels
Weight 195 kg (with Vanguard 16) - 192 kg (with KD15 440)
In action! Photos and Videos
In action! Photos and Videos
Grillo G 131 BC
Grillo G 131 BC
Grillo G 131 BC
Grillo G 131 BC
Grillo G 131
Grillo G 131
Grillo G 131 BC
Grillo G 131 BC
Implements
Implements G 131 - G131 BC

Pneumatic tractor wheels 5.00-12 (adjustable disks) for plough (pair)

Pair pneumatic "Tractor" wheels 5.00-12 [adjustable discs] - COD. 902512
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 902512
weight: 25 kg

Pneumatic tractor wheels 6.5/80-12 (adjustable disks) pair

901212
to be applied on G 131 - G131 BC
item no.: 901212
weight: 28 kg

Wide steel wheels Ø 46 x 12 cm (pair)

Pair wide steel wheels Ø 46 X 12 cm - COD. 922212
to be applied on G 131 - G131 BC
item no.: 922212
weight: 21 kg

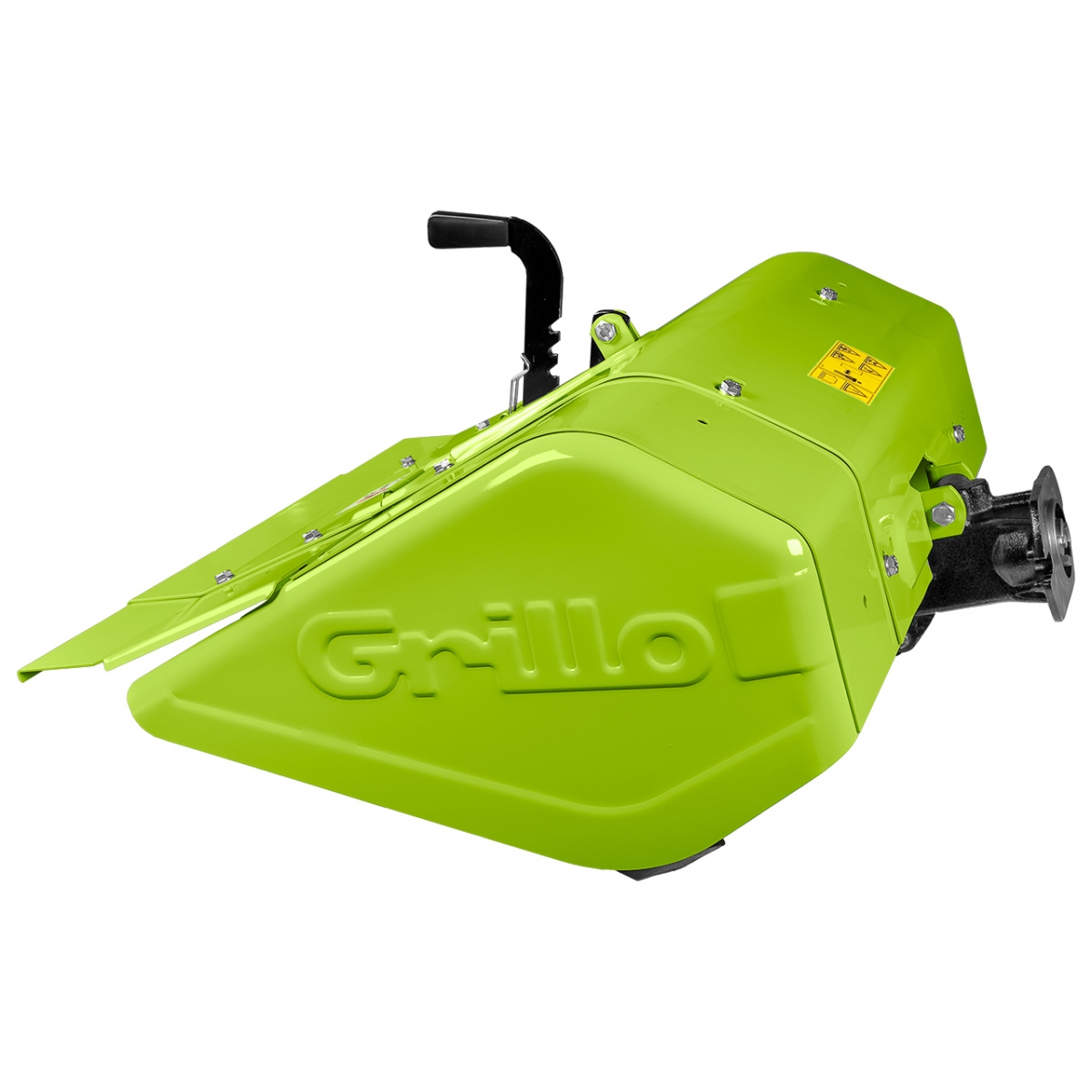

Adjustable rotary tiller 70 cm (x4 tines)

Adjustable rotary tiller 70 cm [x4 tines] - COD. 989011
to be applied on G 131 - G131 BC
item no.: 989011
weight: 50 kg

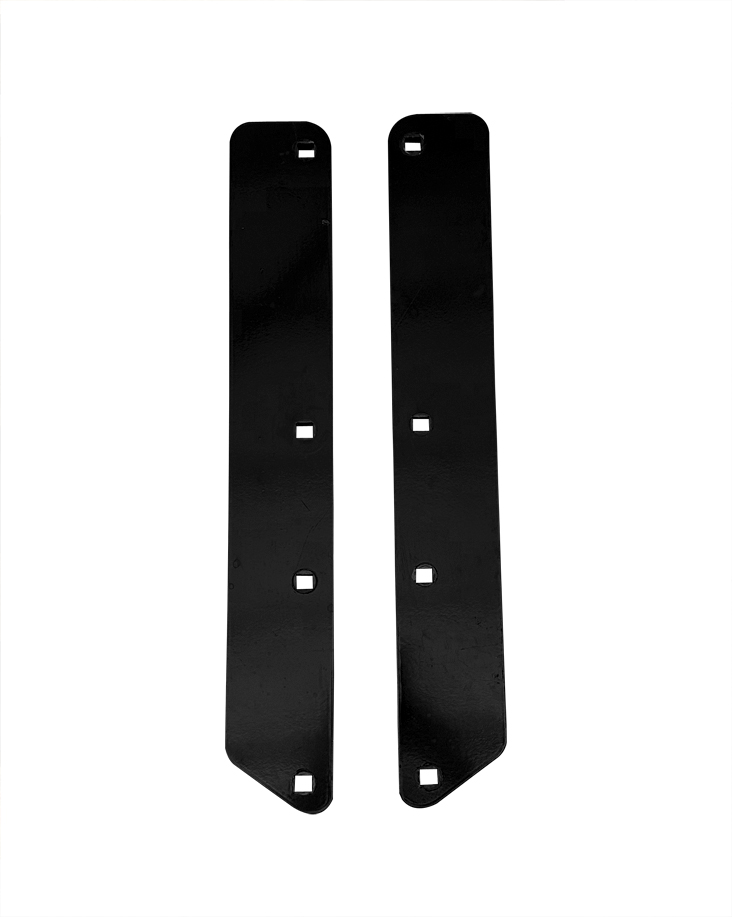

Rotary tiller extension cod. 989011 to 85 cm

ROTARY TILLER EXTENSION FOR COD. 989011 TO 85 CM (PAIR) - COD. 930312
to be applied on G 131 - G131 BC
item no.: 930312
weight: 5 kg

Adjustable rotary tiller 70 cm (x 6 tines)

Adjustable rotary tiller 70 cm [X6 tines] - COD. 989111
to be applied on G 131 - G131 BC
item no.: 989111
weight: 54 kg

Rotary tiller extension cod. 989111 to 70 cm

Pair wheel extension for tiller cod. 989111 to 70 cm - cod. 930212
to be applied on G 131 - G131 BC
item no.: 930212
weight: 7 kg

Rotary tiller support wheel

Rotary tiller support wheel for transport  - COD. 9C7012
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 84 - G 85d
item no.: 9C7012
weight: 2 kg

The tiller support wheel is fitted to the rear of the rotary tiller using a spring-loaded quick pin.
It keeps the hoes off the ground and facilitates transfers.

It cannot be used with double rotation tiller code 994711

Frame for attachments

Frame for attachments for walking tractors - COD. 948522
to be applied on G 131 - G131 BC
item no.: 948522
weight: 10 kg

Single furrow plough (item 948522 needed; pnumatic wheels 6.50-80/12 and weights are recommended)

Single furrow plough - COD. 945822
to be applied on G 131 - G131 BC
item no.: 945822
weight: 13 kg

Turn-wrest plough 180°

Turn-wrest plough 180 ° - COD. 943222
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 943222
weight: 21 kg

on motorhoes item no. 950522 needed;



on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

Adjustable furrower (item no. 945322 needed, 5.00-12 tyres and wheel weights recommended)

Adjustable furrower - COD. 944122
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 944122
weight: 12 kg

Potato lifter

to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 9E6822
weight: 11 kg

Fitted on the back, enables the process of quickly harvesting small crops of root vegetables such as potatoes.

If applied on G85 - G85d - G107d - G108 - G110: item code 945322 needed, 5.00-12 tyres and wheels weights are suggested.

If applied on G131: item code 948522 needed, 6.50/80-12 tyres and and wheels weights code 9G2512 are suggested.

Adjustable furrower behind the rotary tiller

Adjustable furrower behind the rotary tiller - COD. 945122
to be applied on G 131 - G131 BC
item no.: 945122
weight: 8 kg

Plough kit for G 131

950911
to be applied on G 131 - G131 BC
item no.: 950911
weight: 68 kg

Only with 5.00-12 wheels cod.902512 and flange cod.9A3211.
It includes turn-wrest plough 180°, frame for attachments, wheel weights, wheel extensions.

127 cm, middle-cut finger cutter bar with oil bath action

to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9M7311 997811
weight: 47 kg

To fit the cutter bar code 9M7311 (127 cm) on the G131BC it is necessary the kit 9C2012 (18 cm extension and levers)

9M6911 997811
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9M6911 997811
weight: 42 kg

132 cm professional double cutting-bar with oil-bath movement

COD. 996011 999011
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 996011 999011
weight: 52 kg

132 cm professional double cutting-bar with oil-bath movement and self-regulating elastic hold-down clamps (Busatis Austria System)


Cutter bar oil bath action

Cutter bar oil bath action - COD. 997811
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 997811
weight: 22 kg

9C0212
to be applied on G 131 - G131 BC
item no.: 9C2012
weight: 5 kg

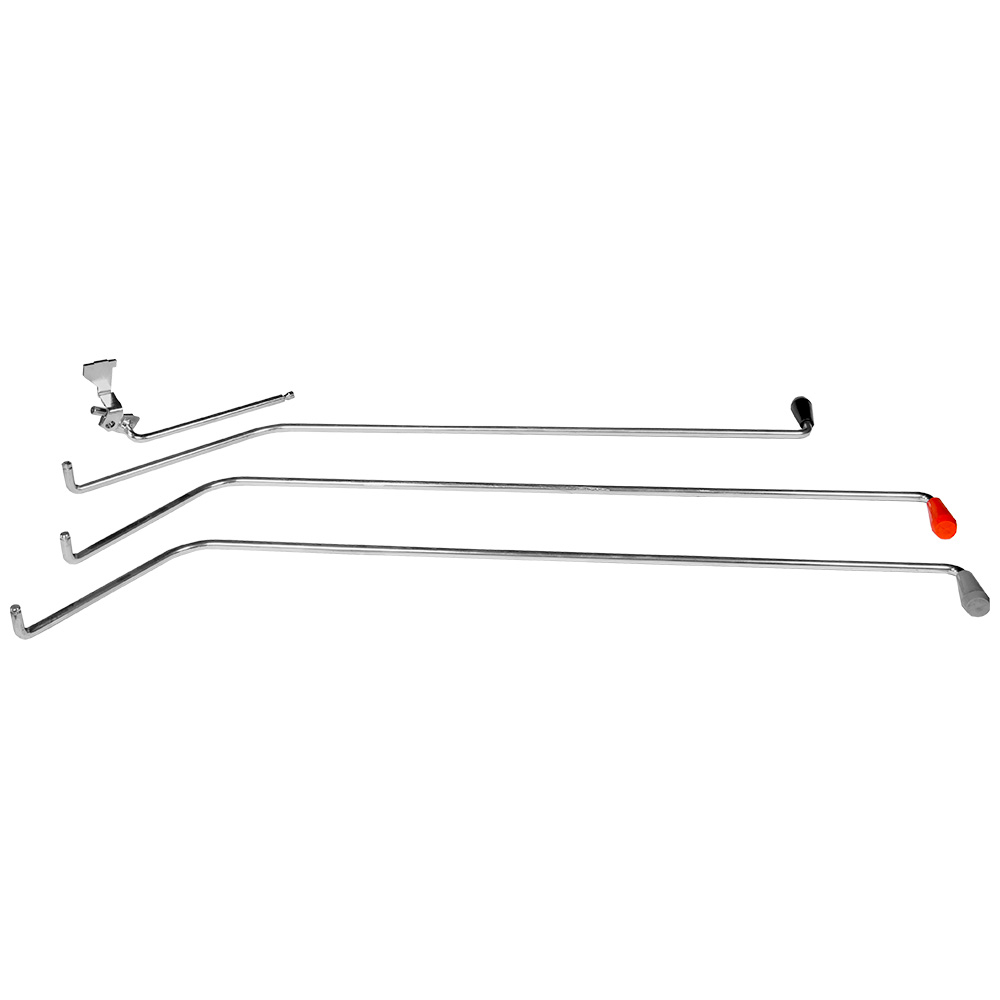

Rods and gearlevers for snow thrower and rotary mower and lawnmower

Rods and gearlevers for snowthrower, rotary mower and lawnmower - COD. 9C2112
to be applied on G 131 - G131 BC
item no.: 9C2112
weight: 1 kg

Tipping towed trailer 150x110 cm with brakes

Tipping towed trailer 150X110 cm, with brakes - COD. 9D0321
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9D0321
weight: 150 kg

on walking tractors G 55, G 85, G85d and G 107d cod. 9F4212 needed

on walking tractors G 131 cod. 9F4712 needed

Transport Sulky with brake

942811
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 943411
weight: 36 kg

Item 9F4212 needed for G55, G85, G107, G108 and G110.

Item 9F4712 needed for G131BC.

Tow bar

Tow bar for walking tractor MOD. G 131 - COD. 9F4712
to be applied on G 131 - G131 BC
item no.: 9F4712
weight: 4 kg

Wheel extensions 12 cm (pair) (fit 2 pairs max)

Pair wheels extensions 12 cm - COD. 937112
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 937112
weight: 2 kg

Wheel weights 36 kg per pair for wheels 5.00-12 with adjustable disks

Wheel weights (pair), total weight 36 kg - COD. 9G2512
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 9G2512
weight: 36 kg

Wheel weights 20 kg per pair for wheels 4.00-8, 4.00-10 and 5.00-10 (fixed and adjustable)

Wheel weights (Pair), total weight 20 kg - COD. 9G1212
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9G1212
weight: 20 kg

Cast-iron wheel weights.

9G8211
to be applied on Dumper 507 - G 131 - G131 BC
item no.: 9G8211
weight: 80 kg

Dumper 507: hydraulic lift kit + item 954412 needed.

Scarifier kit for all purpose flail 85 cm

9G7011
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - GH 9
item no.: 9G7011
weight: 2,5 kg

Front blade 125 cm with quick coupling Ø 5 cm (item 954712 needed)

Floating front blade 125 cm with quick coupling Ø 5 cm - COD. 9E6511
to be applied on Dumper 507 - G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9E6511
weight: 40 kg

Weight for front blade

Weight 20 kg for front blade - COD. 9E6111
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9E6111
weight: 20 kg

Rubber end for blade 125 cm

Rubber end for blade 125 cm - COD. 9E5911C
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9E5911C
weight: 1 kg

Front blade extension and control levers and coupling

9B4711
to be applied on G 131 - G131 BC
item no.: 9B4711
weight: 6 kg

Snow chains for 5.00-12 wheels (pair)

973422
to be applied on G 131 - G131 BC
item no.: 973422
weight: 2 kg

9M3222
to be applied on G 131 - G131 BC
item no.: 9M3222
weight: 60 kg

Snow thrower two-stage 80 cm (item no. 9C2112 needed)

9F0922
to be applied on G 131 - G131 BC
item no.: 9F0922
weight: 78 kg

Stone burier 70 cm for G131 with 3 LD 510 engine

Stone burier 70 cm - COD. 975822
to be applied on G 131 - G131 BC
item no.: 975822
weight: 97 kg

Rotary plough 30 cm

Rear rotary plough 30 cm and weights for walking tractors - COD. 943722
to be applied on G 131 - G131 BC
item no.: 943722
weight: 47 kg

Power harrow 75 cm

Power harrow 75 cm, for walking tractor G 131 - COD. 976422
to be applied on G 131 - G131 BC
item no.: 976422
weight: 92 kg

Synchromesh PTO

9B5812
to be applied on G 131 - G131 BC
item no.: 9B5812
weight: 7 kg

Drum brakes kit

995611
to be applied on G 131 - G131 BC
item no.: 995611
weight: 7 kg
Download
Download
Pdf Full Range Catalogue 2024 (Download - file pdf - 21,78 MB)
Pdf Walking Tractors catalogue (Download - file pdf - 6,91 MB)
