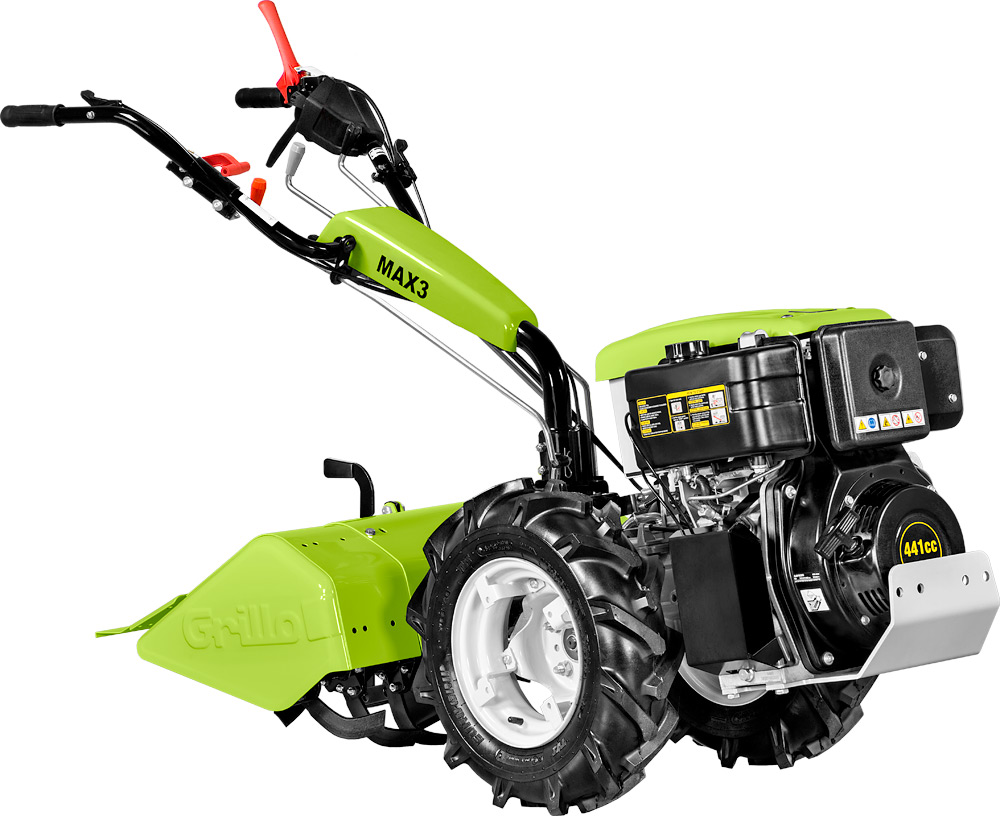

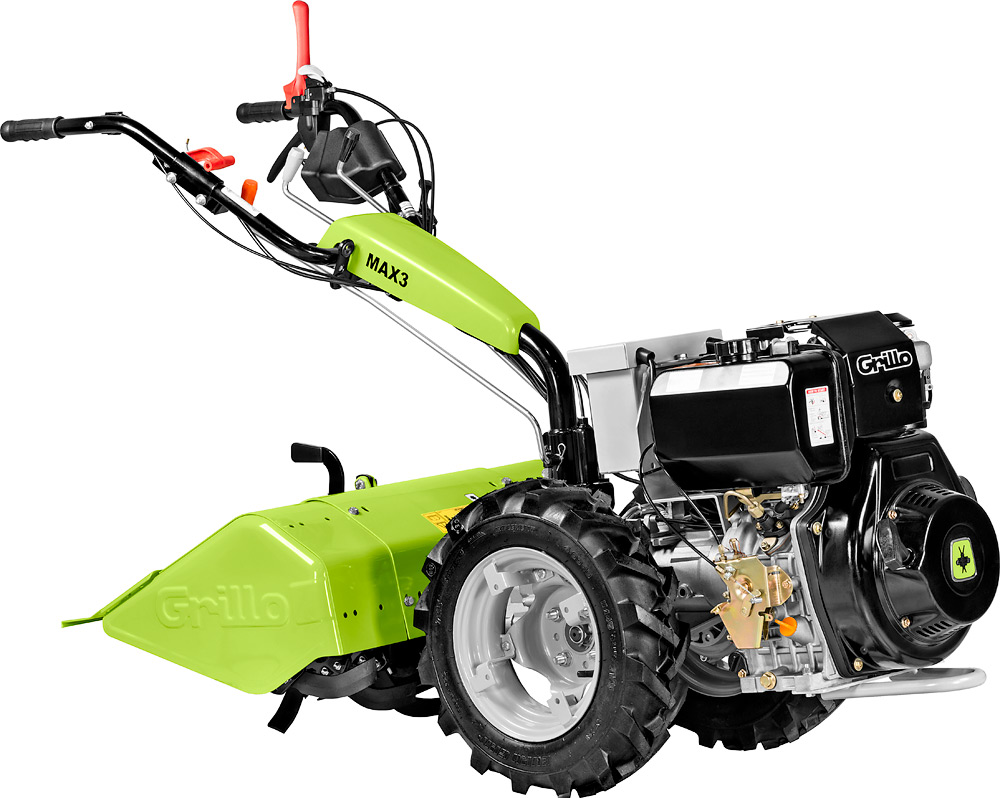

MAX3
|
Engine |
Loncin D440FD Start recoil starter and electric with 12V battery Supply diesel Displacement 441 cc, 1 Cylinder Power 9.1 HP (6.7 kW) Air cooled Dry air filter |
|
Fuel tank capacity | 4,5 Lt. |
|
Transmission | with oil bath gears |
| Gearbox | The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears | |
| Reverse gear unit | by lever | |
| Clutch | conic active | |
|
Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 68 cm |
| Hoes system diametre | 32 cm | |
| Working depth | 16 cm | |
|
Differential locking | Differential with locking device by lever on the handlebar |
| Handlebar | Height and side adjustment. Fitted on anti-vibration blocks | |
| Safety devices | Active clutch, reverse speed – PTO cut-out | |
|
Weight | 164 kg (standard version) |
