CL 75

A hydrostatic grass cutter for all situations

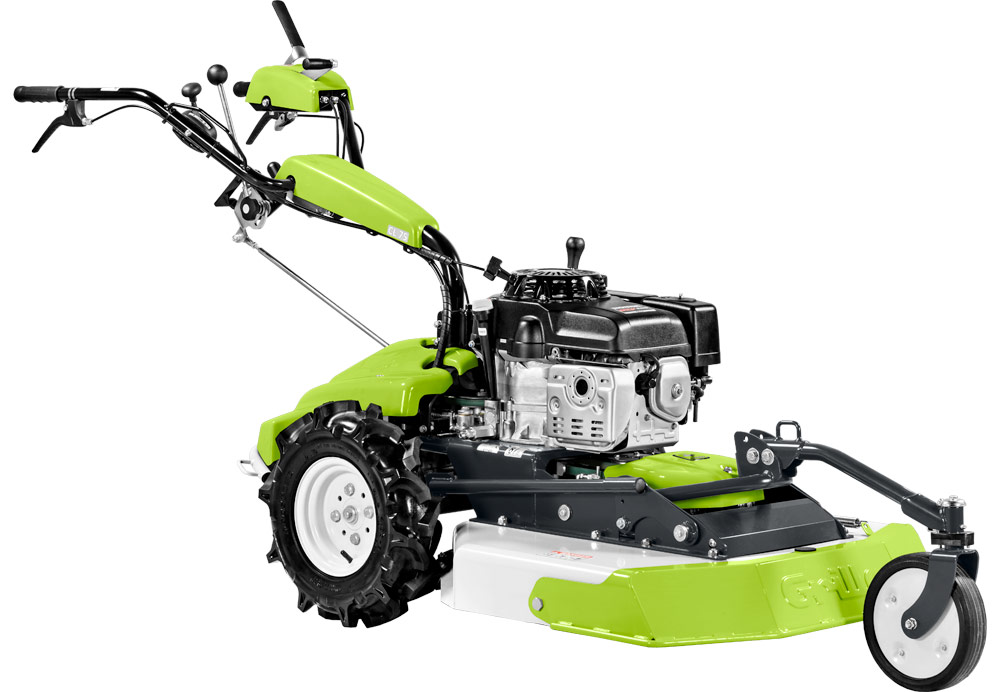

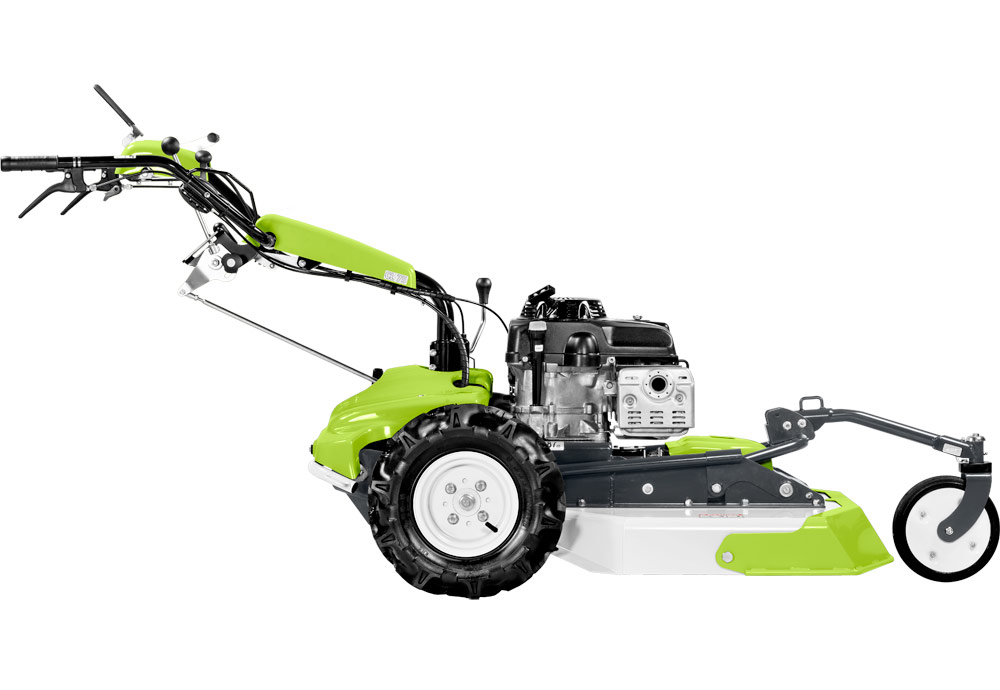

Grillo CL 75
The CL75 has a perfect weight distribution and a very low centre of gravity. The result is a perfect balance. Grillo CL 75 Grillo CL 75 Grillo CL 75 The CL75' cutter deck is completely made of steel; the cutting height can be adjusted as from minimum 50 up to 150 mm High grass, coppices and bushes are guided into the cutter deck and cut by a blade with  swinging (shock-resistant) tips made of special steel. The cut material is discharged out of the rear. The CL75' s cutter deck is front mounted therefore allowing the cut also under low-positioned branches and bushes

Thanks to the CL 75’s maneuverability, cutting high grass and other vegetation becomes quick and efficient. Uneven ground, steep slopes and different types of obstacles do not present a problem for the CL 75!. The perfect weight distribution and the special tractor tyres give great adherence to the ground under all conditions. The cutter deck has a single blade with swinging tips, producing a very good finish even when mowing grass, making it an ideal machine for grass care both for the professional or domestic user.

The deck of the CL 75 is mounted at the front therefore allowing the operator to cut under low positioned branches or bushes. High grass, coppices and bushes are guided into the cutter deck and cut by the blade with (shock-resistant) swinging tips which are made from special steel, the cut material is then discharged out of the rear. If necessary the cutter deck’s front aperture will lift up automatically when entering high vegetation without crushing in down, which considerably increases the efficiency of the machine.

The deck is completely made of steel, the cutting height can be adjusted from a minimum of 50mm up to a maximum 150 mm. The adjustment is progressive and can easily be regulated by means of a hand wheel. The cutter deck is kept parallel to the ground in all positions.

The cutter decks blade tips are produced with a special profile to reduce noise and produce an excellent quality cut even on English lawns!



The 150 mm maximum cutting height is ideal especially when the ground is very uneven and also to avoid striking the soil. The deck’s front wheel is made of solid rubber, i.e. puncture-proof!


CL 75 has a perfect weight distribution and a low centre of gravity. The result is perfect balance!



It is possible to use the handlebar with one hand whilst working; this allows the adjustment of the drive and engagement of the reverse gear by a simple lever. When cutting on slopes, near trees and obstacles or if you are cutting in coppices and bushes near low branches, adjusting the grass cutter’s drive so easily turns out to be a very useful addition!

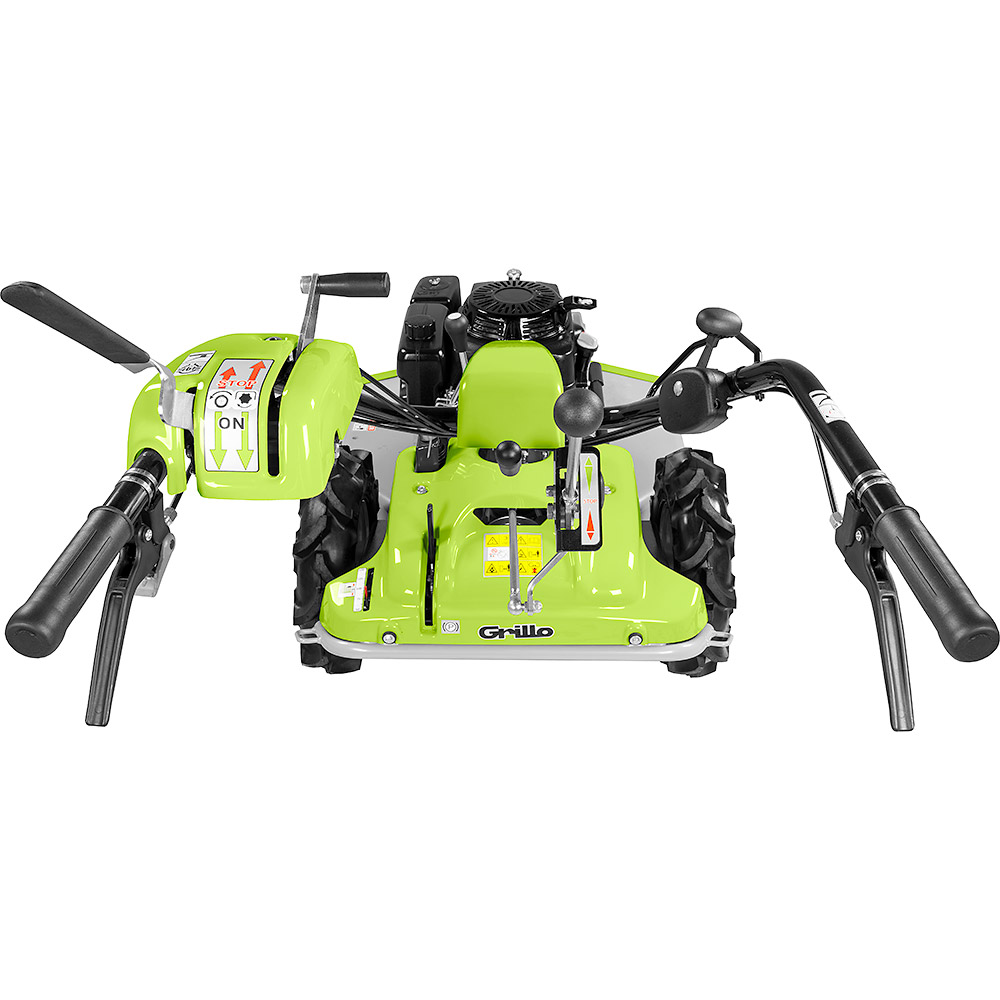

The handlebar of the CL 75 has a double adjustment device, ie. height adjustment, in order to meet the operators’ requirements, and lateral adjustment to make cutting easier in difficult areas such as under low positioned branches or in the presence of obstacles.



Also under extreme conditions such as a very steep slope or uneven ground, mowing is easy thanks to the 4 ply wheels mounted on ball bearings and equipped with differential lock.

The CL 75’s transmission is hydrostatic with differential lock. It is possible to adjust the speed progressively by means of a lever on the handlebar from 0 to 6 km/h and in reverse gear up to 3,5 km/h.



The CL 75 has parking brake enabling you to keep the machine stable even on slopes. All controls are in a comfortable position including the handlebar adjusting levers.

The CL 75 is powered by a Honda GXV340 OHV petrol engine with integrated fuel tank having 2,1ltrs capacity. The single cylinder engine has a displacement of 337cc and features all the latest innovations, giving great reliability, low emissions, reduced consumption, high performance and vibration reduced to the minimum, The engine’s manual recoil start is easy and reliable thanks to the particular design of the camshaft, which, during start-up, opens the exhaust valve slightly. The engine is equipped with a lubrication pump allowing the machine to work on slopes without damaging the engine itself.

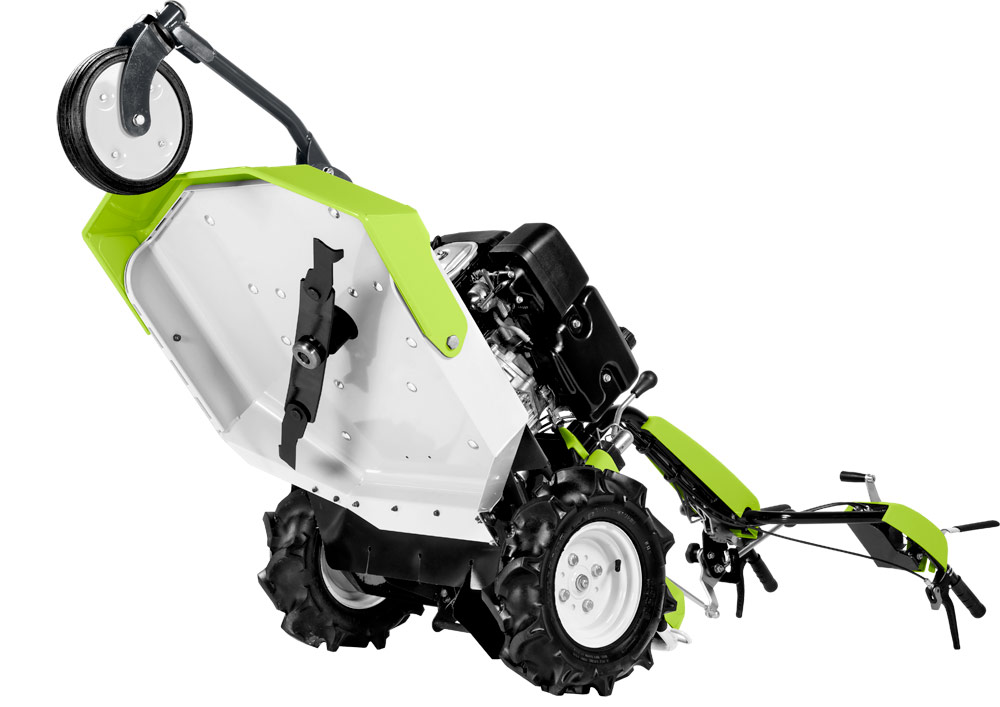

The CL 75 can be easily be stood in a vertical position by simply placing the handlebar on the ground. Maintenance and cleaning of the cutter deck is then easily achieved.


Belt tension of the cutter deck is self-adjusting; there is also a parallelogram lift system, that regulates the cutter deck’s height, and this system gives the belt reliability and longevity as well as the bearings.


All components, from the simplest to the most complex, are of a high quality standard. Chassis, handlebar, cutter deck, are all manufactured by Grillo using only premium materials and cutting edge technology. All this to achieve a constant and 100% controlled high level quality.



Painting of Grillo machines incorporates a double electrostatic powder coating process. At the first stage are the washing baths and preparation, then a first protective coat is applied which is then baked in a special oven, this has proven to be the best base for the application of the finish. The second coat consists of powder coating and still further baking in an oven at 190°C, this then produces the characteristic hardness and shine. All CL75s are assembled with care in every detail and tested scrupulously by specialized personnel. Final inspection includes running the engine in order to check all its functions to ensure a further and final guarantee of a first class product.



The CL75, as with all Grillo products, was designed and built to last plus retain its value over many years. All Grillo machines are distributed and serviced by a widespread dealer network. Spare parts remain available for many years after production has stopped giving you extra confidence in Grillo.



Technical data sheet
Technical data sheet CL 75
Engine Honda GXV340 OHV
Start recoil starter
Supply fuel
Displacement 337 cc, 1 Cylinder
Power 8.9 HP (6.6 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 2.1 L
Transmission Hydrostatic
Traction 2WD
Cutter deck Rear discharge with front tipping opening
Cutting configuration 1 rotating blade with 2 shockproof floating blades
Cutting width 750 mm
Cutting height From 50 to 150 continuously and rapidly adjustable by means of a crank lever
Peripheral blade speed 74 m/s
Differential locking Manual engaged differential lock
Drive wheels Tractor wheels with 4 plies 4.00-8
Front wheel 8x3.00-4 puncture-proof wheels
Speed Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3,5 km/h
Parking brake By lever
Handlebar By means of a rapid height and lateral adjustment of the handlebar
Mowing capacity per hour (indicative) 2500 m^2/h
Length 2150 mm
Width 845 mm
Height 1050 mm
Weight 140 kg
In action! Photos and Videos
In action! Photos and Videos
Grillo CL75
Grillo CL75
Grillo CL75
Grillo CL75
If necessary the cutter deck's front aperture will lift up automatically when entering high vegetation without crushing in down.
If necessary the cutter deck's front aperture will lift up automatically when entering high vegetation without crushing in down.
Mowing even in extremely sloping and uneven grounds has never been that easy.
Mowing even in extremely sloping and uneven grounds has never been that easy.
Grillo CL75
Grillo CL75
Grillo CL75
Grillo CL75
Implements
Implements CL 75

Twin wheels kit CL 75

Twin wheelkit CL75 - COD.918311
to be applied on CL 75
item no.: 918311
weight: 13 kg

The twin wheels increase stability and grip on transversal cut on slopes.
The kit consists of two 4.00-8 wheels with grip profile, with 4 plies and spacers.

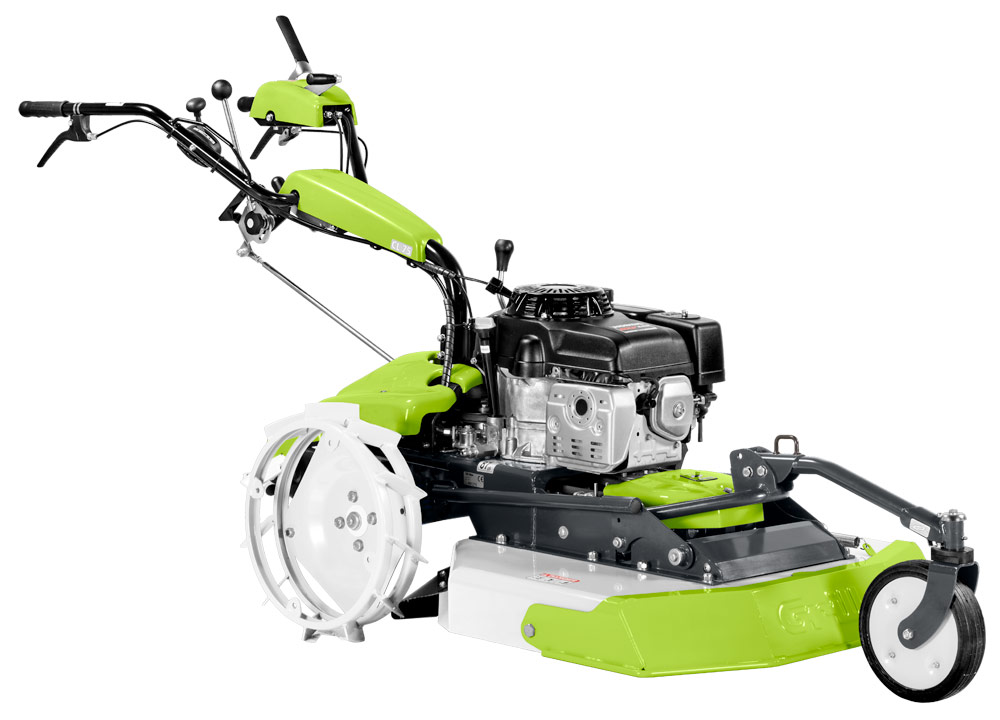

Wide steel wheels Ø 40 x 10 cm (pair)

Pair wide steel wheel Ø 40X10 cm- COD. 920312
to be applied on CL 75 - G 107d - G 108 - G 110 - G 85 - G 85d
item no.: 920312
weight: 12.5 kg
