Climber 8.22

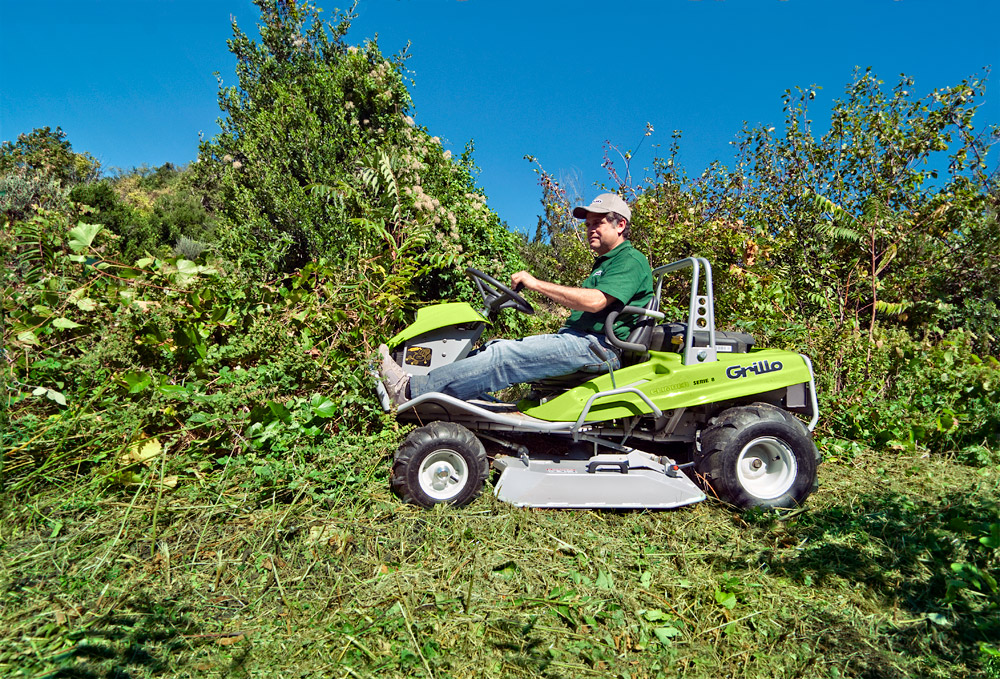

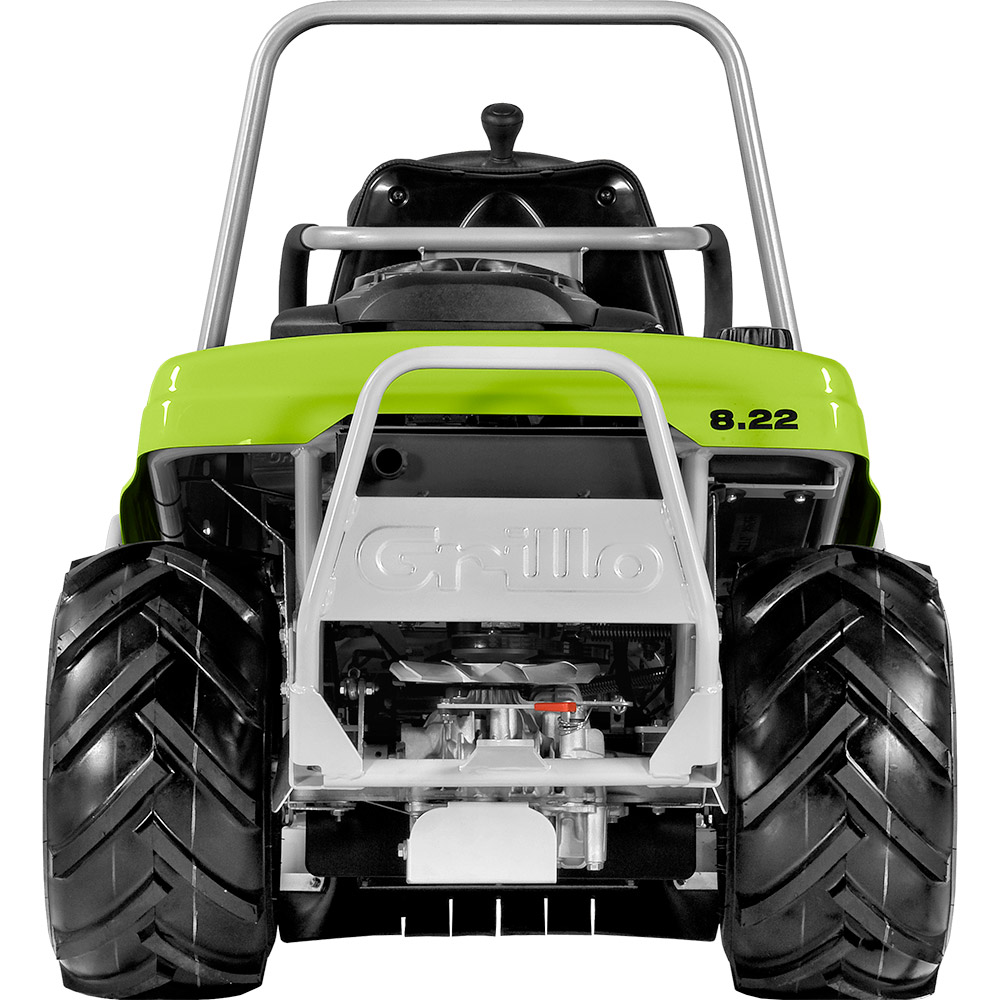

Grillo Climber 8.22 is a hydrostatic single-blade brush-cutter featuring innovative components resulting in excellent performance.
It has a professional hydrostatic axle with integrated differential lock and service brake on the 4 wheels, an electromagnetic clutch, light and smooth steering, a cutter deck with internal baffles to evenly distribute the cut grass, a wider cutting height range to make transfers and driving over kerbs and bumps easier, bigger wheels 3.50-6. Impressive performance on slopes and when cutting shrubs and high grass.
Widely used in agriculture and ideal in vineyards, olive groves and underneath foliage. 60 cm steering radius.
Transfer speed ranges from 0 up 10 km/h. The rear wheels 18×9.50-8 are comfortable and totally safe on slopes.
|
Engine |
Briggs & Stratton 7220 PXi PROFESSIONAL Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) - Gross power 22 HP Air cooled Dry air filter |
|
Fuel tank capacity | 7 Litres (emergency supply 1 L) |
|
Gearbox | Hydrostatic transmission |
| Clutch | Electromagnetic with PTO and blade brake | |
|
Cutter deck | Rear/side discharge |
| Cutting configuration | 1 rotating blade | |
| Cutting width | 91 cm | |
| Cutting height | continuously adjustable from 3,5 cm (±1.3’’) to 11 cm (±4.3’’) via gas spring | |
|
Differential locking | With pedal engagement |
|
Front tyres | 3.50-6 TRACTOR and puncture-proof treated |
| Rear tyres | 18x9.50-8 TRACTOR | |
| Speed | Continuously variable from 0 to 10 km/h, reverse gear from 0 to 6 km/h | |
| Inner turning radius | 60 cm | |
| Seat | Sprung and adjustable, equipped with roll-bar. | |
| Service brake | Service brake on the front and rear wheels with pedal engagement. | |
| Parking brake | on the rear wheels with level engagement. | |
|
Mowing capacity per hour (indicative) | 7.000 m^2/h |
|
Length | 196,5 cm |
| Width | 99 cm | |
| Height | 98 cm | |
|
Weight | 290 kg |
Mulching kit for cutting deck 91 cm
to be applied on Climber 8.22 - Climber 9.18 - Climber 9.22
item no.: 9M2011
weight: 13 kg
Seat suspension kit
to be applied on Climber 10 AWD 22 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.27 - MD 15 - MD 28 AWD
item no.: 9A4511AF
weight: 8 kg
Coupling for 125 cm snow blade
to be applied on Climber 8.22 - MD 22N
item no.: 9G6911
weight: 6 kg
Orientable front blade 125 cm
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9G2611
weight: 54 kg
Rubber end for blade 125 cm
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9E5911C
weight: 1 kg
Snow chains for wheels 18x9.50-8 (pair)
to be applied on Climber 8.22 - Climber 9.27
item no.: 9M4322
weight: 2 kg
To increase the wheels grip on snow and ice, easy to mount and dismount.
Full Range Catalogue 2024
(Download - file pdf - 21,78 MB)
Hydrostatic BRUSH CUTTERS leaflet
(Download - file pdf - 6,10 MB)
Cutting systems
(Download - file pdf - 1,63 MB)
