GH 8

Hydrostatic all purpose flail.

Grillo GH 8

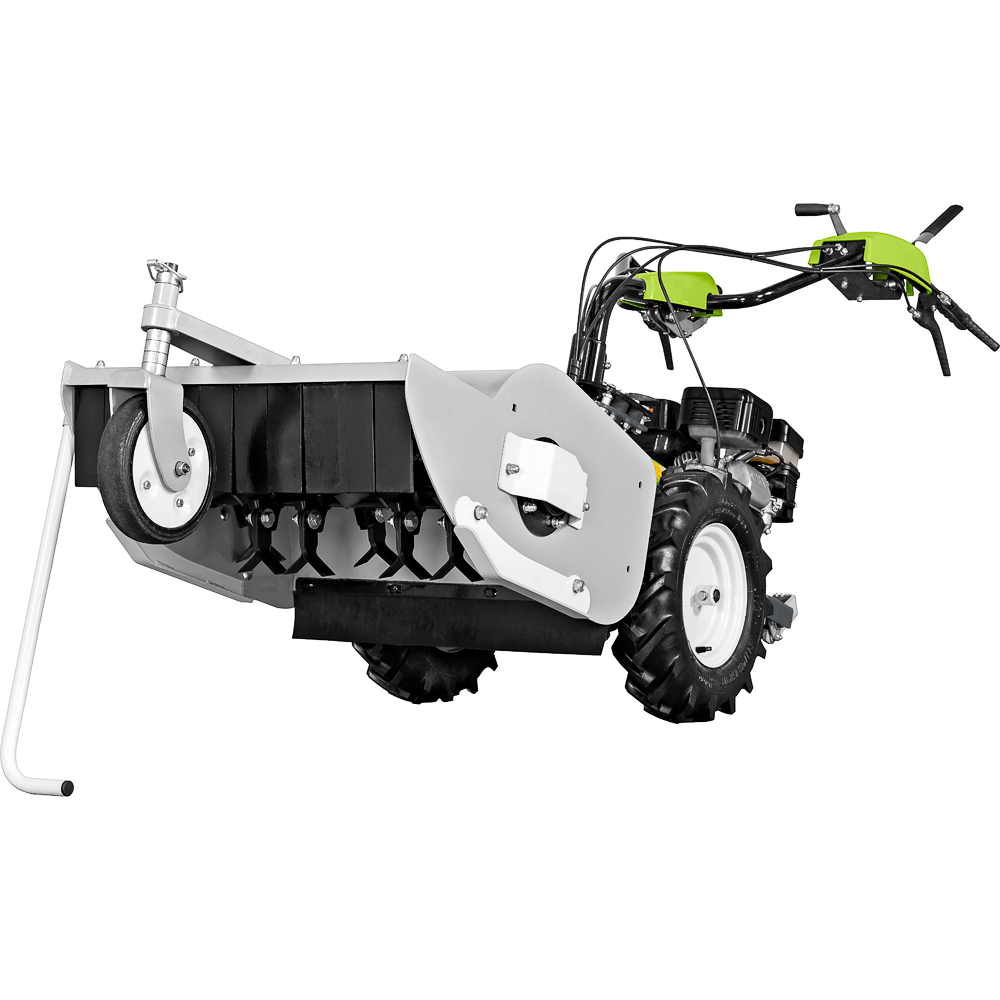

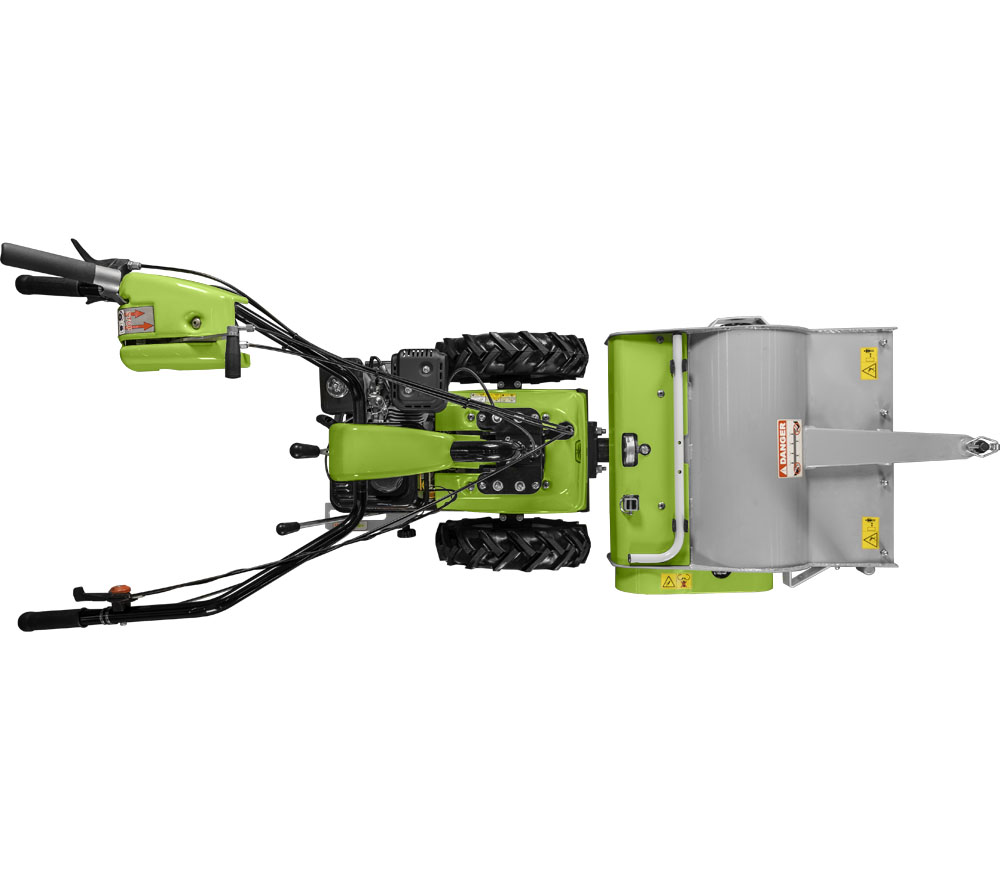

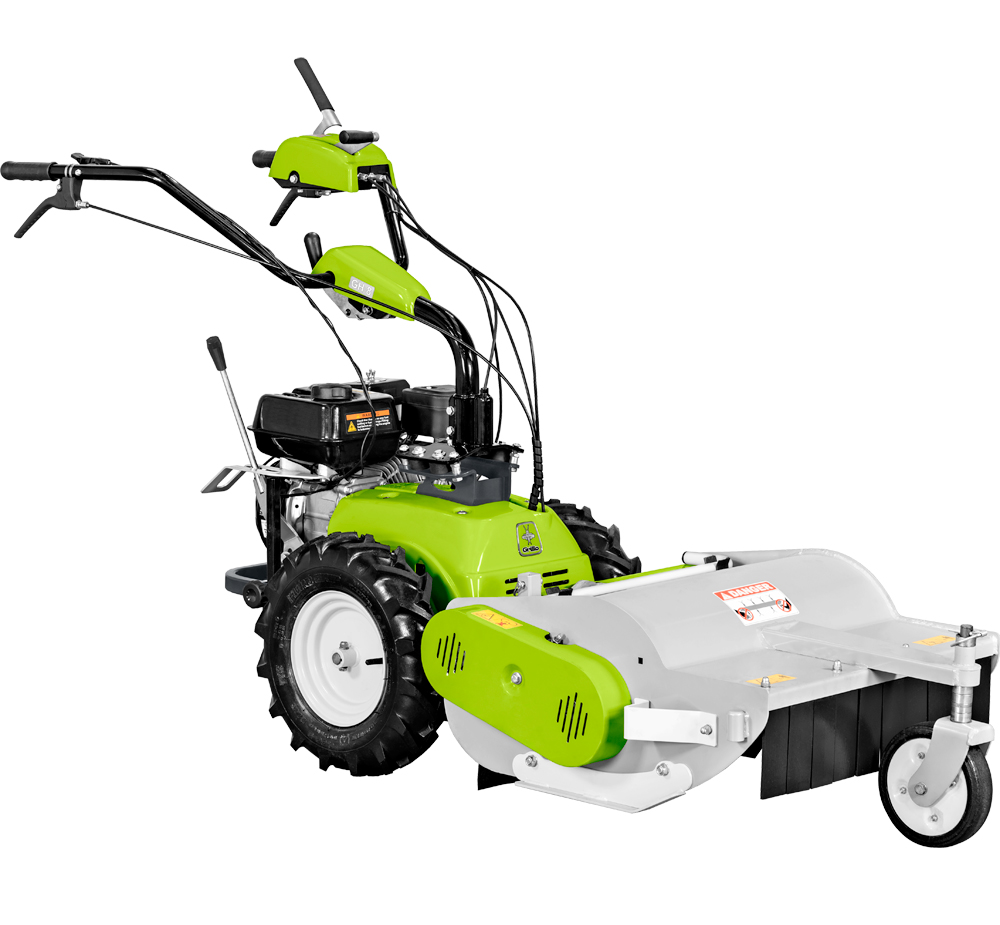

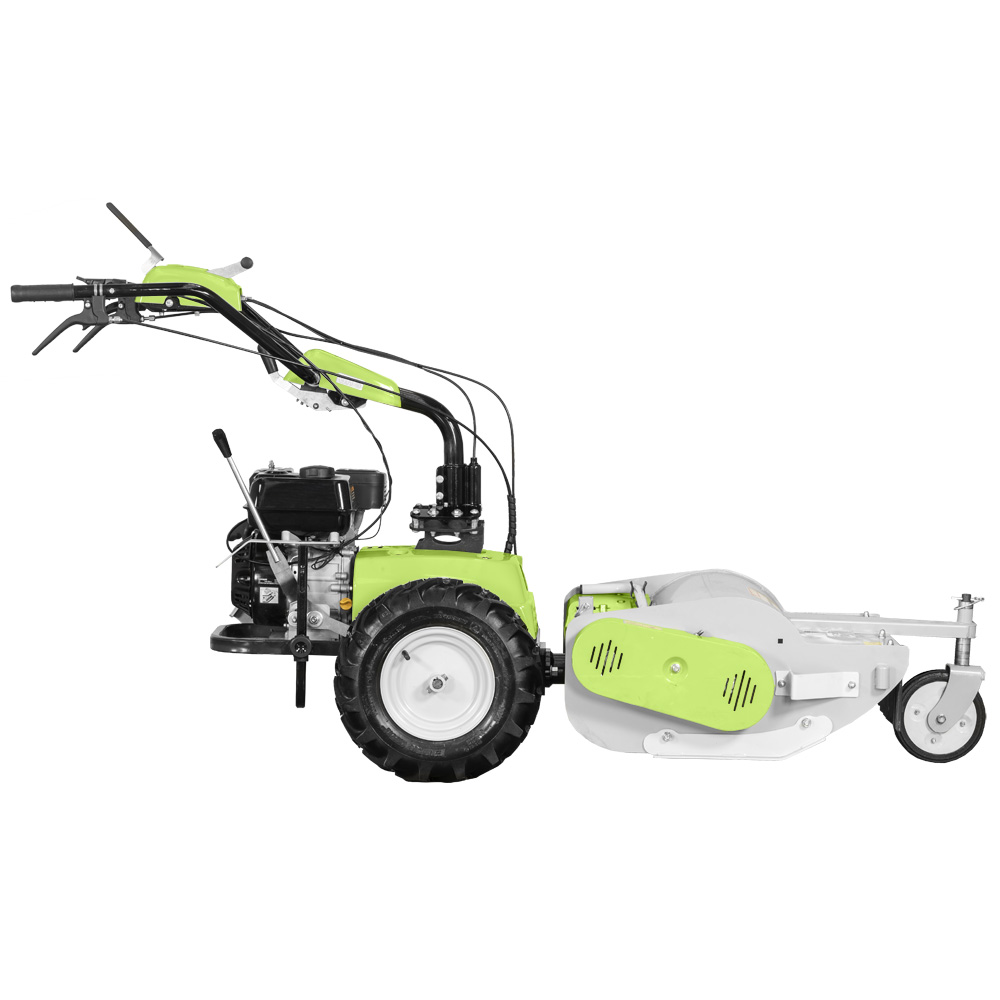

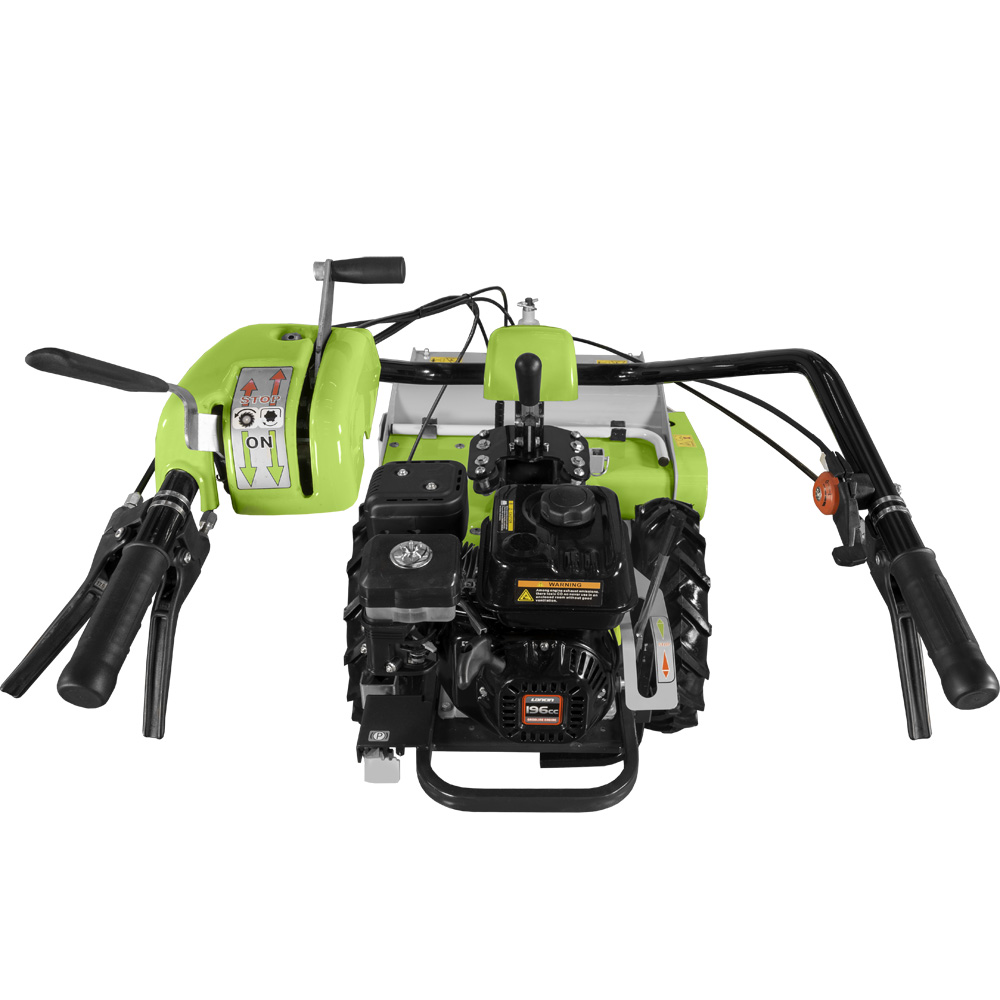

The Grillo GH8 is a mulcher with hydro-static transmission, ideal for cleaning rustic areas, cutting tall grass, shrubs or pruning residues, even on slopes.
It is equipped with a Loncin G200FA engine, single-cylinder, petrol, 196 cc, 5.5 HP.
The 4.00-8 pneumatic wheels have tractor treads.
Because of its compact dimensions and perfect weight distribution, the Grillo GH8 is maneuverable in all working conditions, in agriculture and in professional and private green maintenance.

All controls are comfortably positioned and the handlebar is equipped with dampers.
The transmission is hydro-static and the forward speed ranges from 0 to 6 km/h continuously variable, the reverse gear from 0 to 3 km/h.
The handlebar can be adjusted in height and moved sideways to meet all requirements and to work easily even near low branches or obstacles.
The parking brake is pedal-operated.

The Grillo GH 8 can be equipped with two mulchers with a working width of 58 and 68 cm. They are equipped with a rotor with 14 and 16 pairs of 'Y' shaped blades respectively, capable of mulching leaves, pruning branches, plant residues, and crop waste.
For both models the cutting height adjustment is progressive by means of a crank. The control is located on the body of the mulcher.
The cutting mouth of the mulchers is equipped with pivoting rubber blades to prevent the throwing of residues.
In addition, they are equipped with a removable support to keep the machine raised and stable so that maintenance of the mulcher's inner chamber is easy.

Because of the flange and power take-off with 3-tine coupling, it is also possible to use a variety of implements, making the Grillo GH8 an extremely versatile machine.
The attachments available are a 100 cm swiveling and tilting brush, a 132 cm twin-blade cutter bar and a 100 cm swiveling blade.
To make changing attachments on the GH8 quicker, the optional quick hitch can be used.

The painting of Grillo machines is a double-layer electrostatic powder coating. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking in the oven at 190°c give the characteristic hardness and gloss.
All machines are meticulously assembled and thoroughly tested by specialized personnel. In addition, all functions are checked in the final test. A further and final guarantee for a high quality product.

Grillo products are distributed and serviced extensively by Grillo's network of specialist dealers. Spare parts are available even after many years.


Technical data sheet
Technical data sheet GH 8
Engine Loncin G200FA
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 3 L.
Transmission Hydrostatic
Traction 2WD
Cutter deck Rotor with 14 pairs of Y-shaped blades and front opening with tilting flaps
Cutting width 58 cm.
Cutting height from 2 to 6 cm.
P.T.O. At 965 revolutions with clockwise rotation
Drive wheels Tractor 4.00-8
Speed Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3 km/h
Parking brake Engaged by pedal
Handlebar With height and side adjustment
Implements Cm 68 all purpose flail, 132 cm professional double cutting bar, 100 cm orientable and tilting sweeper, snow chains for wheels, front blade 100 cm.
Length 200 cm.
Width 70 cm.
Height 97 cm.
Weight 135 kg (with 58 cm all purpose flail); 75 kg (without attachment)
In action! Photos and Videos
In action! Photos and Videos
GH8 - GH9
GH8 - GH9
Implements
Implements GH 8

Pneumatic wheels fixed disks 4.00-8 (pair)

917012
to be applied on GH 7 - GH 8 - GH 9
item no.: 917012
weight: 9 kg

Pneumatic wheels fixed disks 16x6.50-8 (pair)

919411
to be applied on GH 7 - GH 8 - GH 9
item no.: 919411
weight: 15 kg

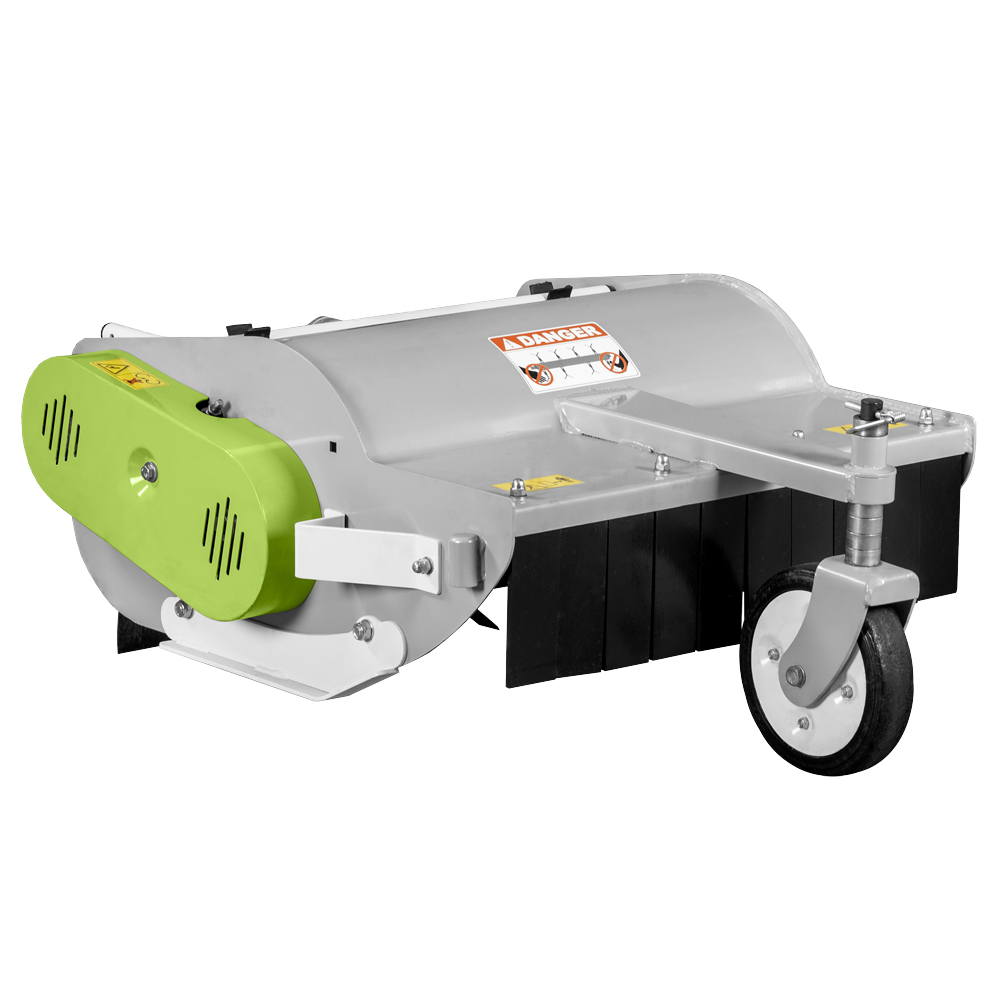

All purpose flail, 58 cm.

to be applied on GH 8
item no.: 9G7911
weight: 60 kg

All purpose flail 68 cm

9G6011
to be applied on GH 7 - GH 8 - GH 9
item no.: 9G6011
weight: 70 kg

Scarifier kit for all purpose flail 68 cm

9G6411
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9G6411
weight: 1.6 kg

Rear coupling assembly for quick coupling (implement side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9
item no.: 946511
weight: 2.5 kg

Front coupling assembly for quick coupling (machine side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9
item no.: 946911
weight: 2.5 kg

937511
to be applied on GH 7 - GH 8 - GH 9
item no.: 937511
weight: 1.5 kg

937611
to be applied on GH 7 - GH 8 - GH 9
item no.: 937611
weight: 1.5 kg

132 cm professional double cutting-bar with oil-bath movement

COD. 996011 999011 946311
to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9
item no.: 996011 999011 946311
weight: 52 kg

132 cm professional double cutting-bar with oil-bath movement and self-regulating elastic hold-down clamps (Busatis Austria System)


Orientable and tilting sweeper, 100 cm

9M6022
to be applied on GH 7 - GH 8 - GH 9
item no.: 9M6022
weight: 55 kg

Brushes are applied on the front of Grillo walking tractors.
They are equipped with a 400 mm diameter roller with polypropylene spatula.
It is ideal to put aside fresh snow and to clean up sideways, roads, cycle paths, avenues and parking lots.
The gear transmission is in oil-bath.
A lever is comfortably operated from the driver's position to quickly incline the brush up to 25° towards right or left.
The brush is also equipped with height-adjustable, pivoting support wheels to suit any working condition.
Grillo brushes do not damage nor scratch the areas where they are used thanks to their highly-resistant and flexible spatula.

Snow chains for rear wheels 16x6.50-8 Climber 7 series (pair)

9M3722
to be applied on Climber 7.15 - Climber 7.18 - G 55 - GF 2 - GH 7 - GH 8 - GH 9
item no.: 9M3722
weight: 2 kg

Snow chains for 4.00-8 wheels (pair)

9M3422
to be applied on G 55 - GF 2 - GH 7 - GH 8 - GH 9
item no.: 9M3422
weight: 2 kg

COD. 9E6411 946711
to be applied on GH 7 - GH 8 - GH 9
item no.: 9E6411 946711
weight: 40 kg

946711
to be applied on G 108 - GH 7 - GH 8 - GH 9
item no.: 946711
weight: 1 kg

Weight for front blade

Weight 20 kg for front blade - COD. 9E6111
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9E6111
weight: 20 kg

Rubber end for blade 100 cm

Rubber end for blade 100 cm - COD. 9E5911B
to be applied on G 55 - GF 2 - GH 7 - GH 8 - GH 9
item no.: 9E5911B
weight: 1 kg
