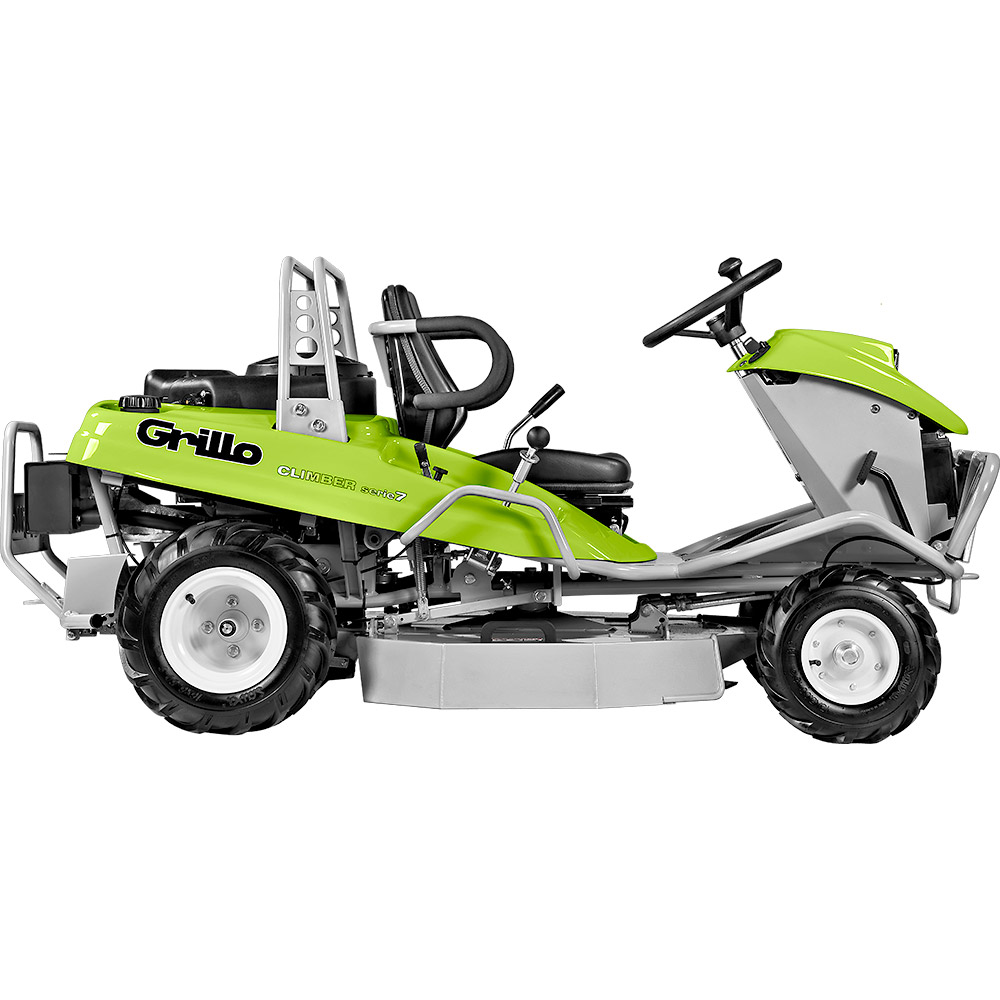

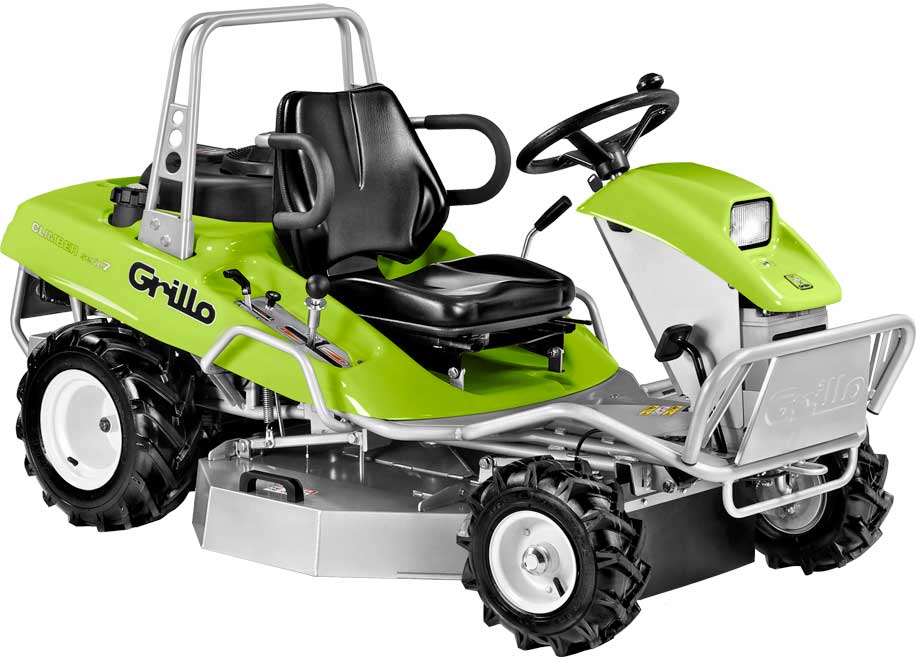

Climber 7.18

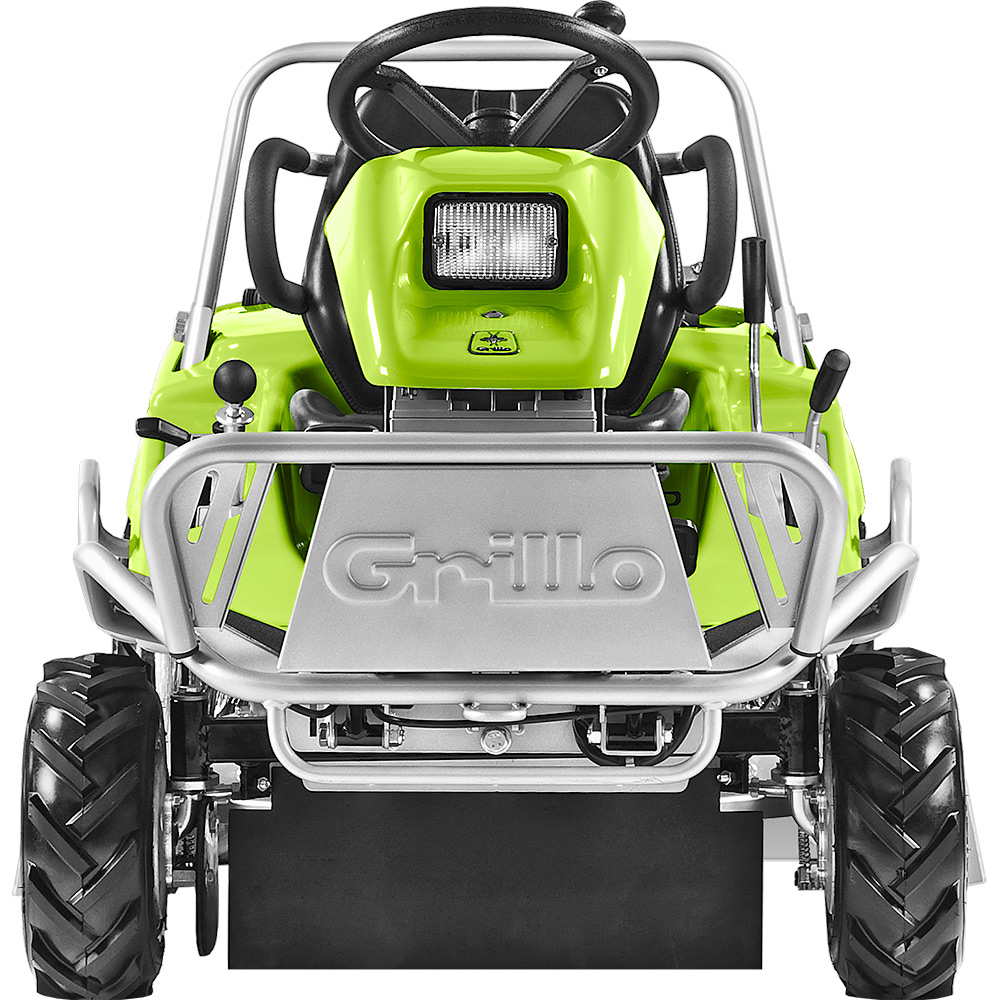

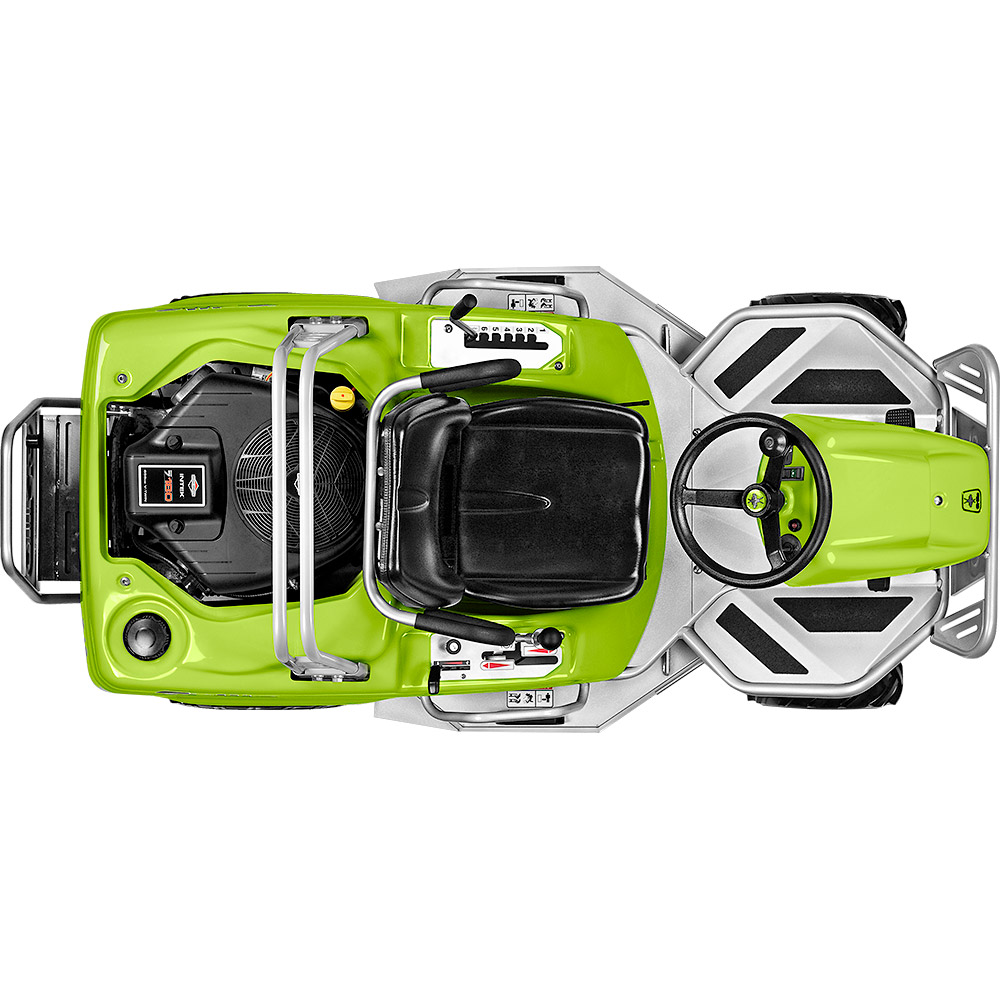

Grillo Climber 7.18
Grillo Climber 7.18 Grillo Climber 7.18 Grillo Climber 7.18 Grillo Climber 7.18 Grillo Climber 7.18

Technical data sheet
Technical data sheet Climber 7.18

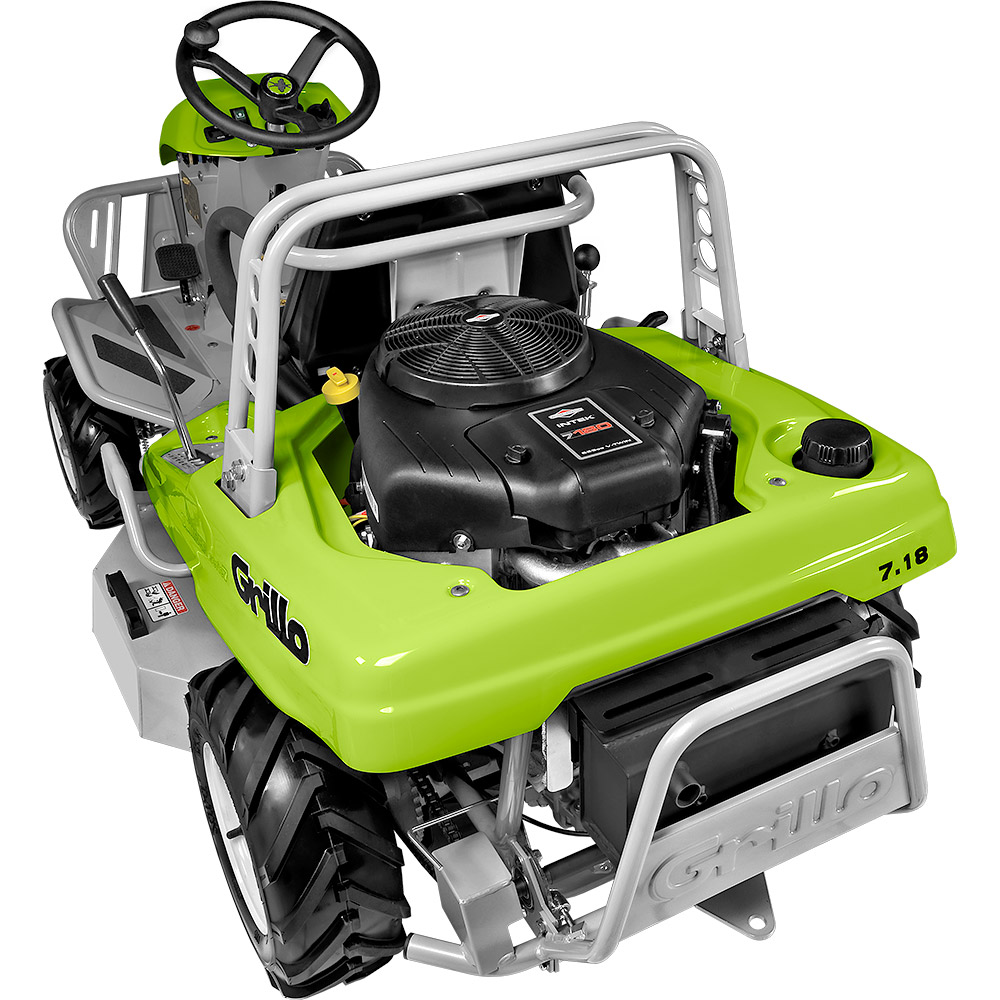

Engine Briggs & Stratton Intek 7180
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 15.2 HP (11.3 kW)
Air cooled
Dry air filter
Fuel tank capacity 7 L (emergency supply 1L)
Gearbox Hydrostatic transmission
Clutch Electromagnetic with P.T.O and fitted with blade brake
Cutter deck With rear discharge
Cutting configuration 1 rotating blade
Cutting width 850 mm
Cutting height From 35 mm (±1.3’’) to 85 mm (±3.3’’) with 6 different cutting positions and 1 transfer position.
Peripheral blade speed 76 m/s
Differential locking With pedal engagement
Front tyres 3,50-6 TRACTOR and puncture-proof treated
Rear tyres 16×6.50-8 TRACTOR
Speed Continuously variable from 0 to 9 km/h + reverse speed from 0 to 6 km/h.
Inner turning radius 45 cm
Seat Sprung and adjustable, fitted with roll bar
Service brake On the front wheels with pedal engagement
Parking brake On the rear wheels with lever engagement
Mowing capacity per hour (indicative) 6000 m^2/h
Standard features Tow bar, front headlight
Length 1895 mm
Width 950 mm
Height 985 mm
Weight 245 kg

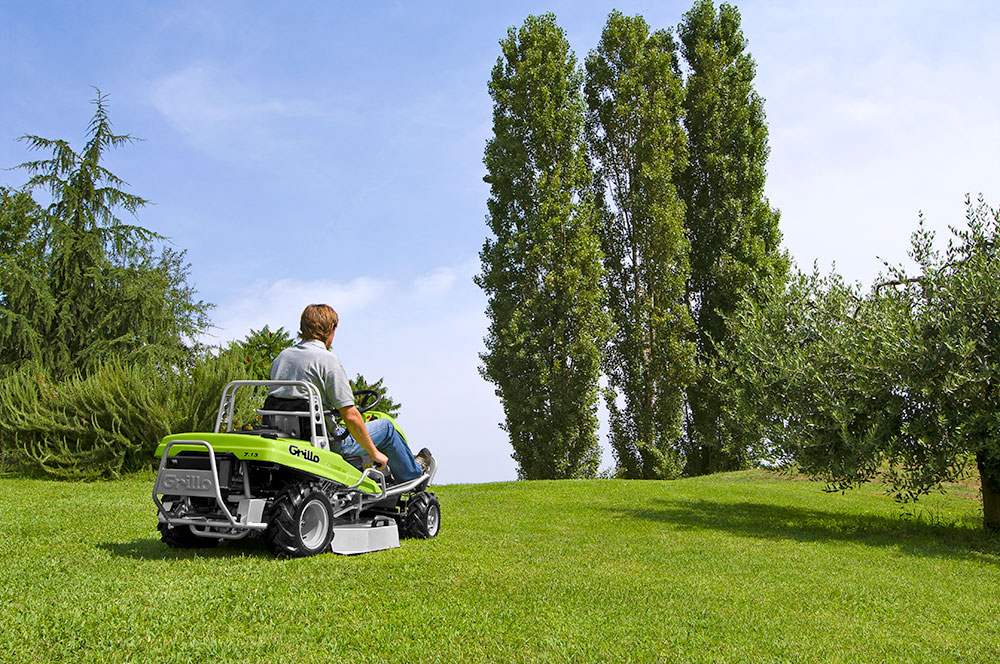

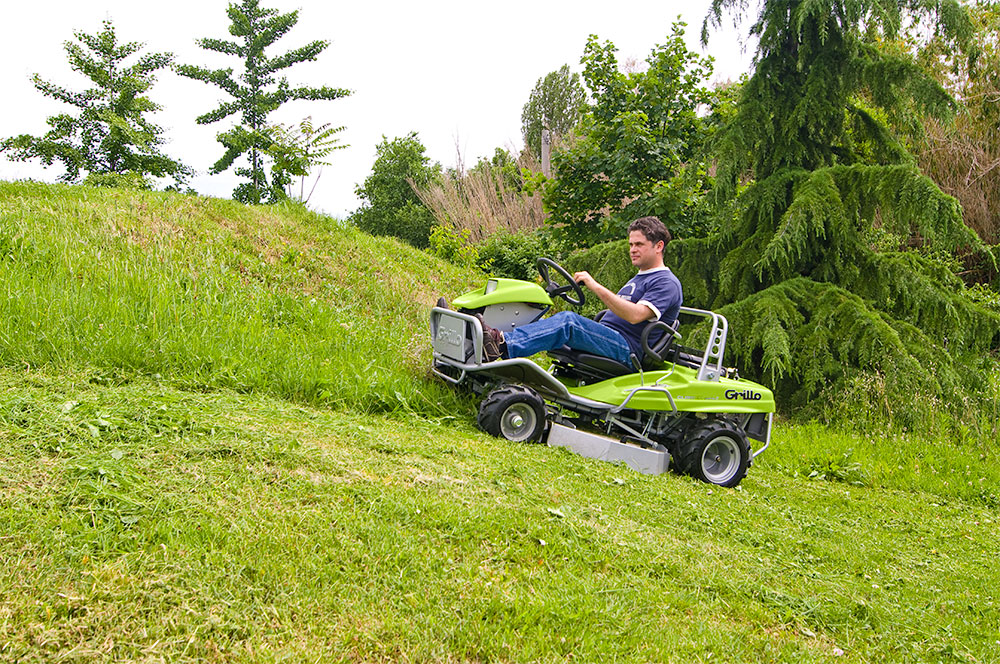

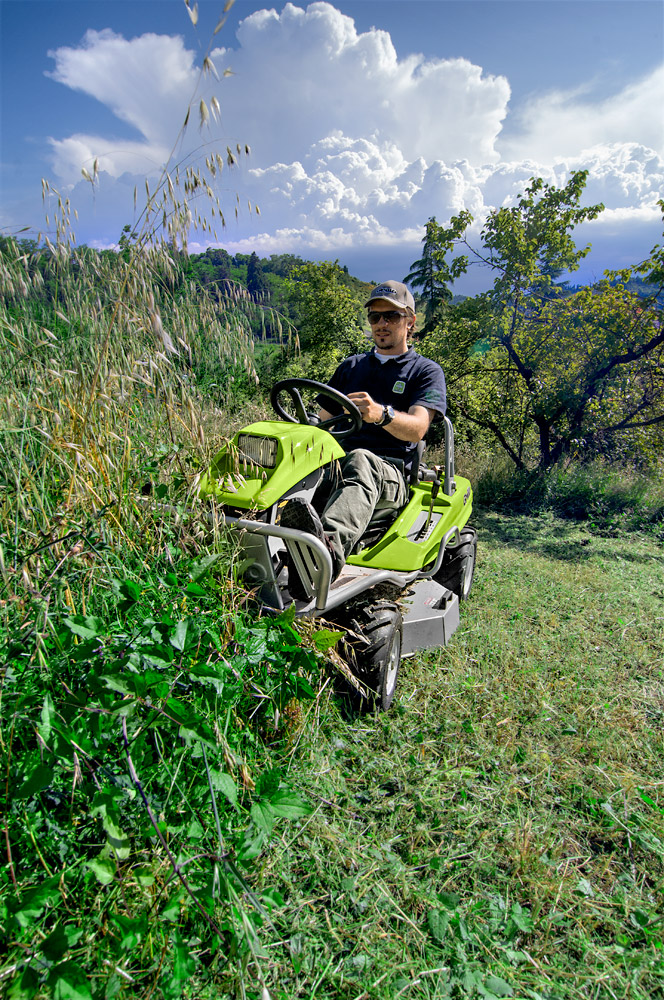

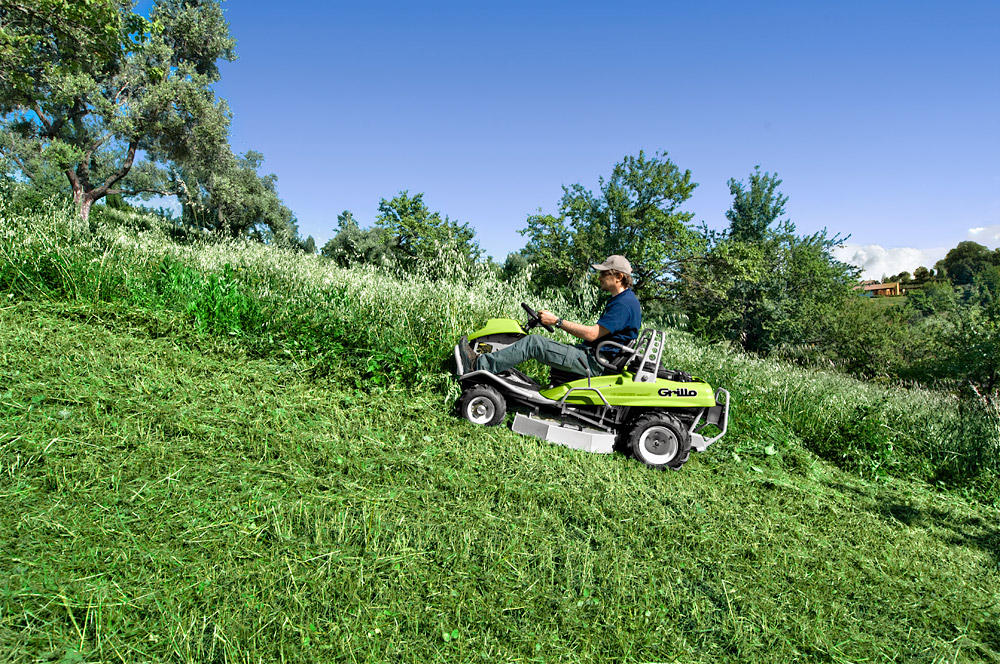

In action! Photos and Videos
In action! Photos and Videos
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Grillo Climber 7.18
Implements
Implements Climber 7.18

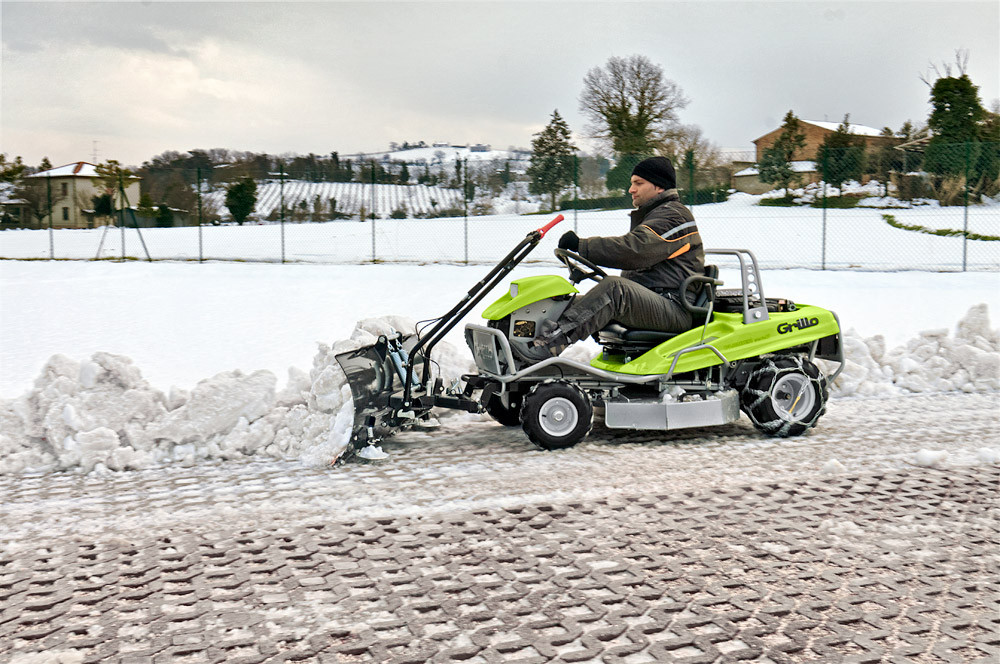

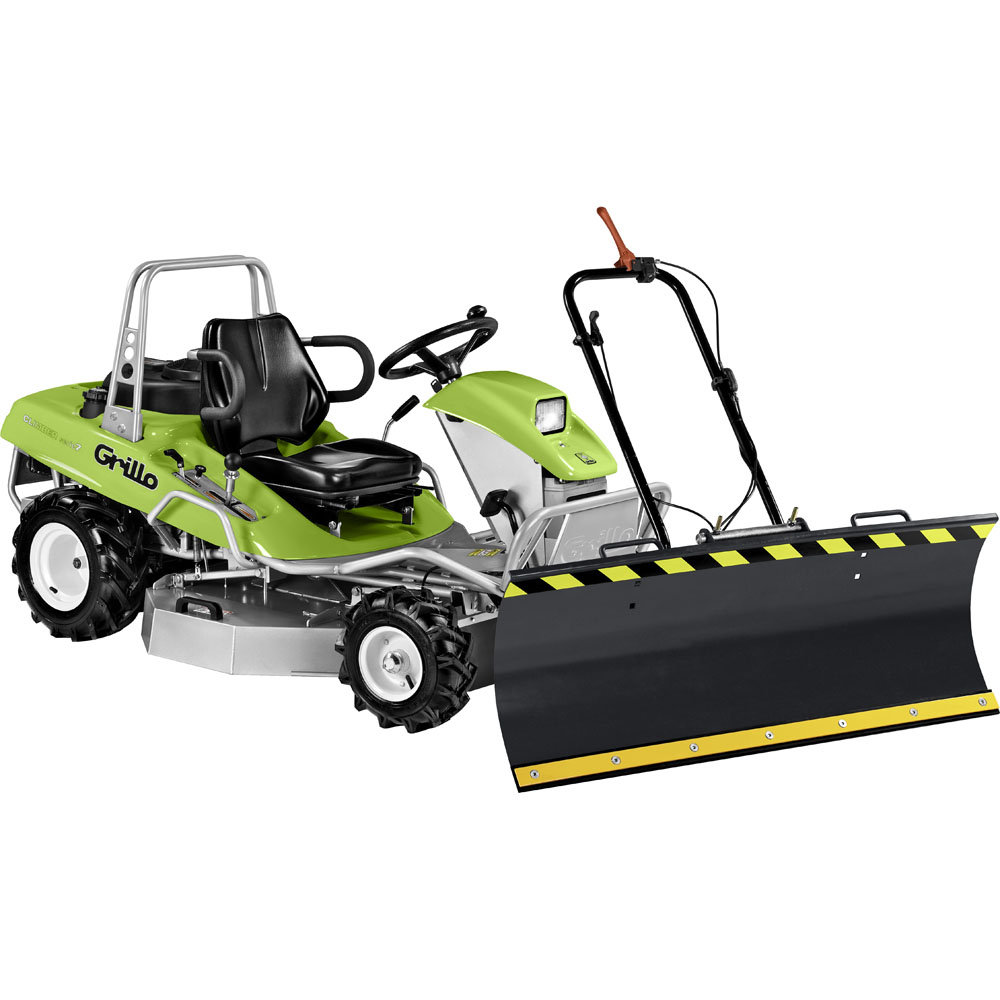

Orientable front blade 125 cm

9G2611
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - MD 13 - MD 18 - MD 22 - MD 22N
item no.: 9G2611
weight: 54 kg

Item no. 949411 for Climber 9 Series needed

Item no. 949311 for Climber 7 Series needed

Rubber end for blade 125 cm

Rubber end for blade 125 cm - COD. 9E5911C
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G 85d - GF 3 - GF 3DF - MD 13 - MD 18 - MD 22 - MD 22N
item no.: 9E5911C
weight: 1 kg

Coupling for 125 cm snow blade for Climber 7 series, MD

949311
to be applied on Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - MD 13 - MD 18 - MD 22N
item no.: 949311
weight: 5 kg

Snow chains for rear wheels 16x6.50-8 Climber 7 series (pair)

9M3722
to be applied on Climber 7.13 - Climber 7.16 - Climber 7.18 - GH 7
item no.: 9M3722
weight: 2 kg

Seat suspension kit

9A4511
to be applied on Climber 10 AWD 22 - Climber 7.13 - Climber 7.16 - Climber 7.18 - Climber 8.22 - Climber 9.27 - MD 13
item no.: 9A4511
weight: 9 kg
