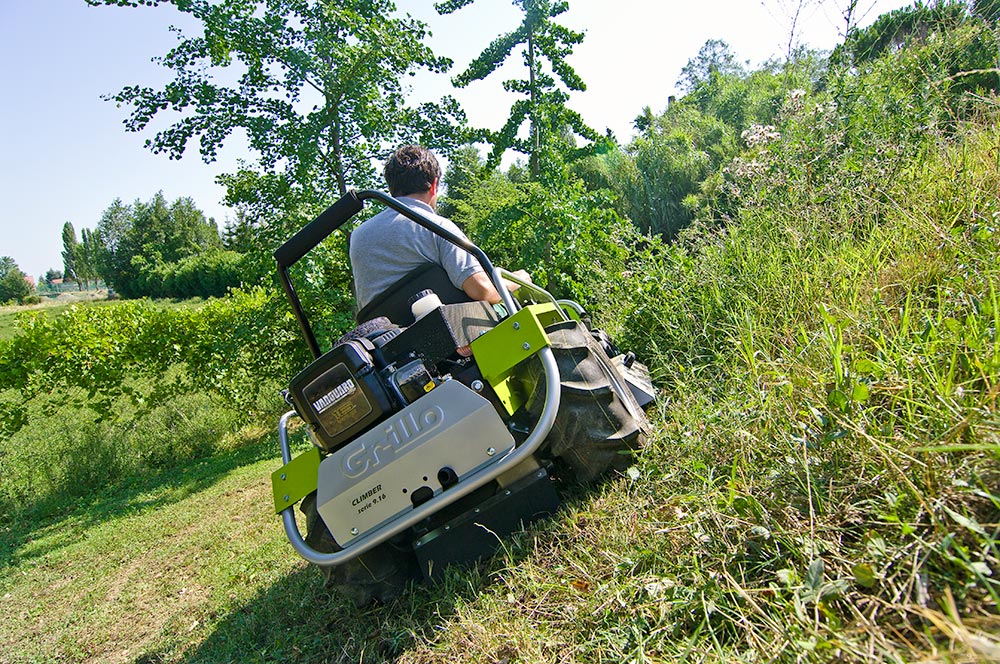

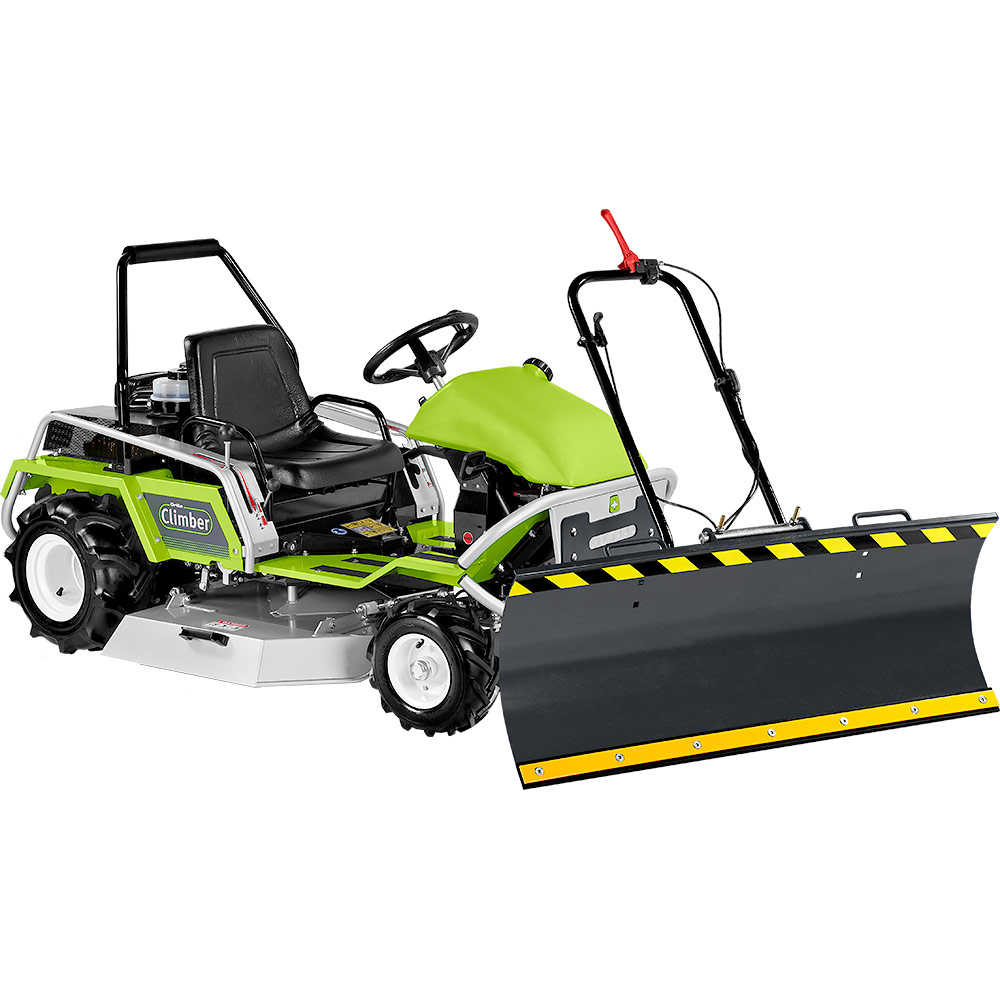

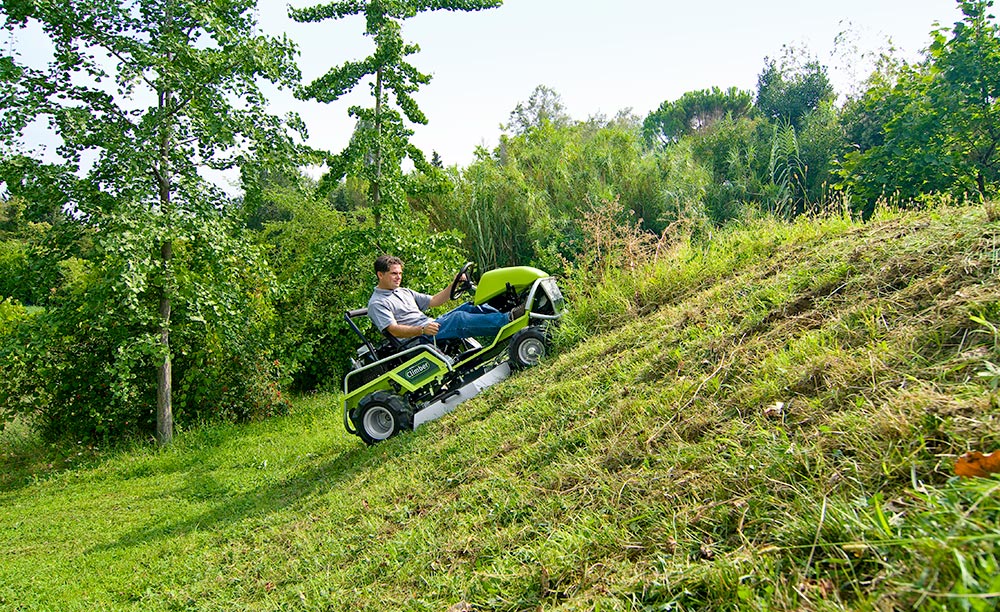

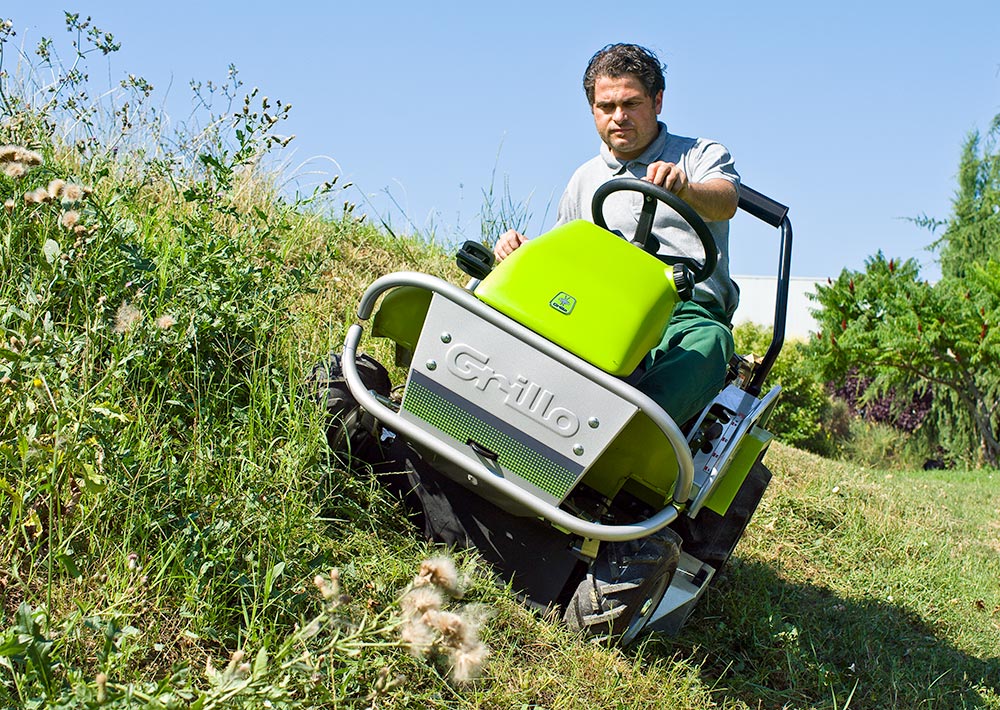

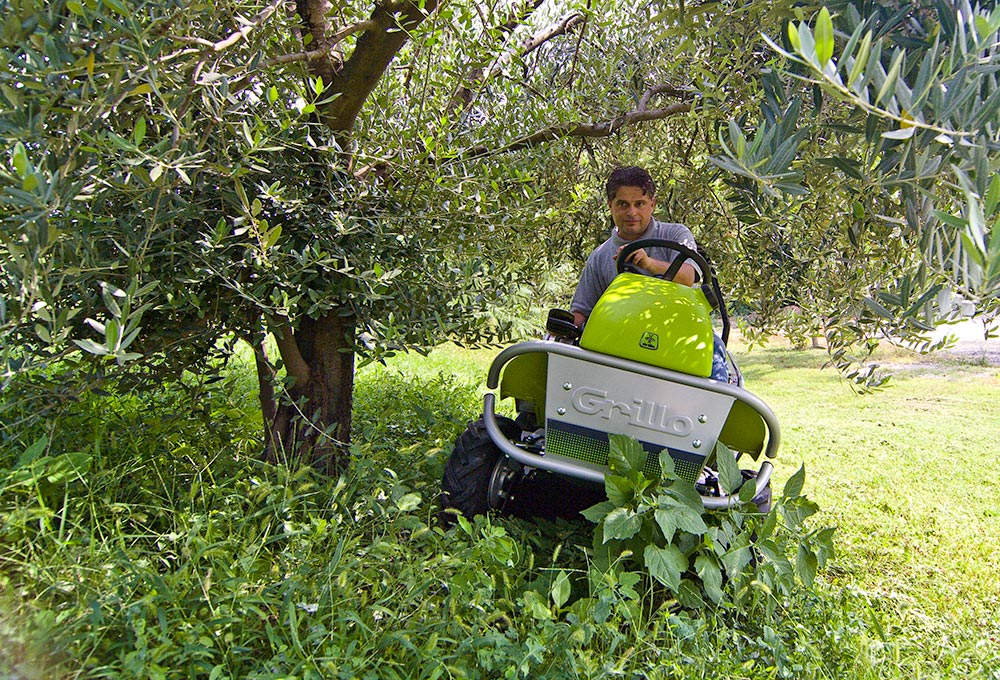

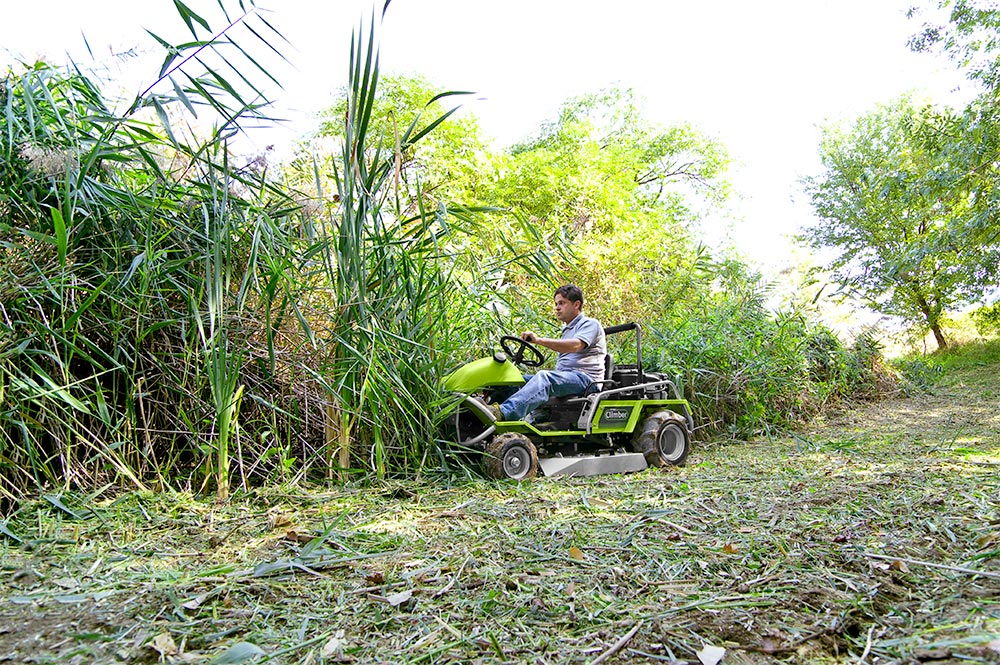

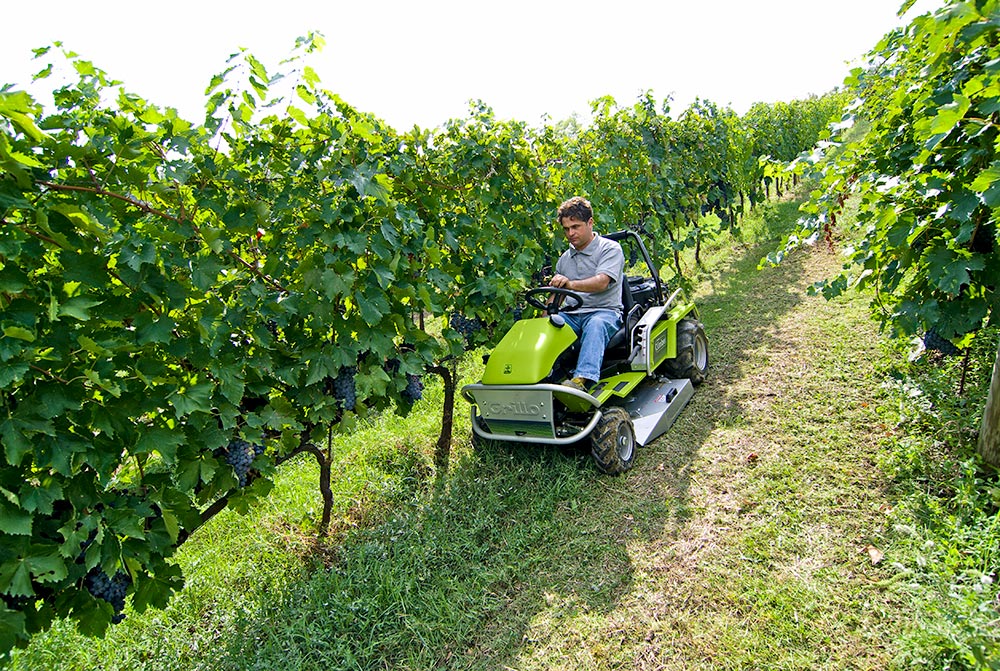

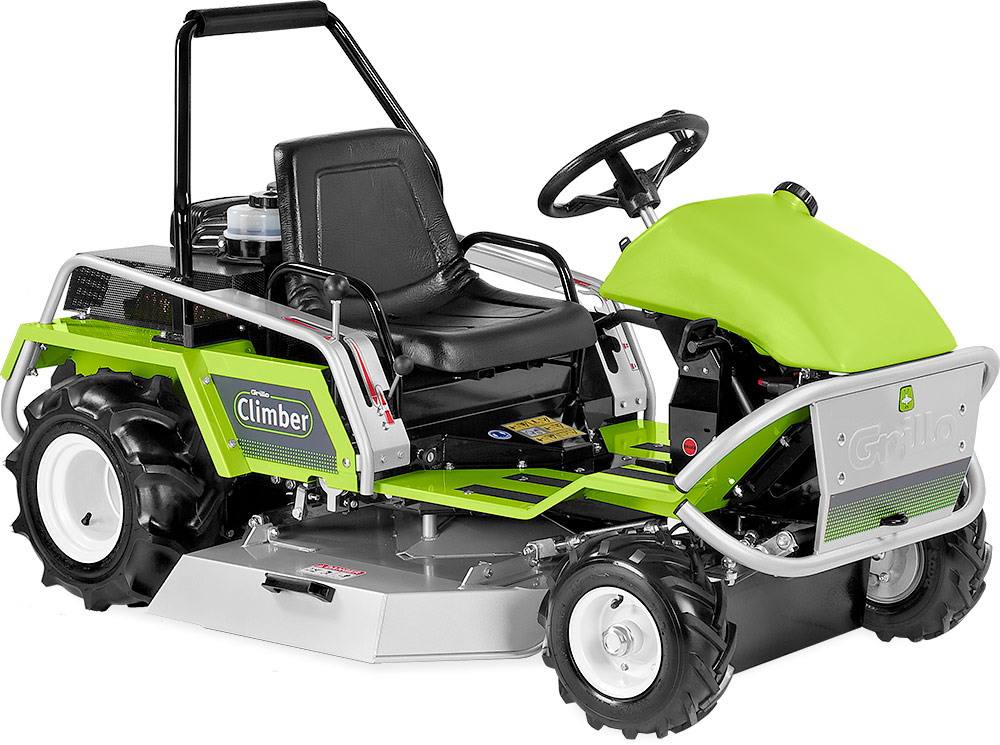

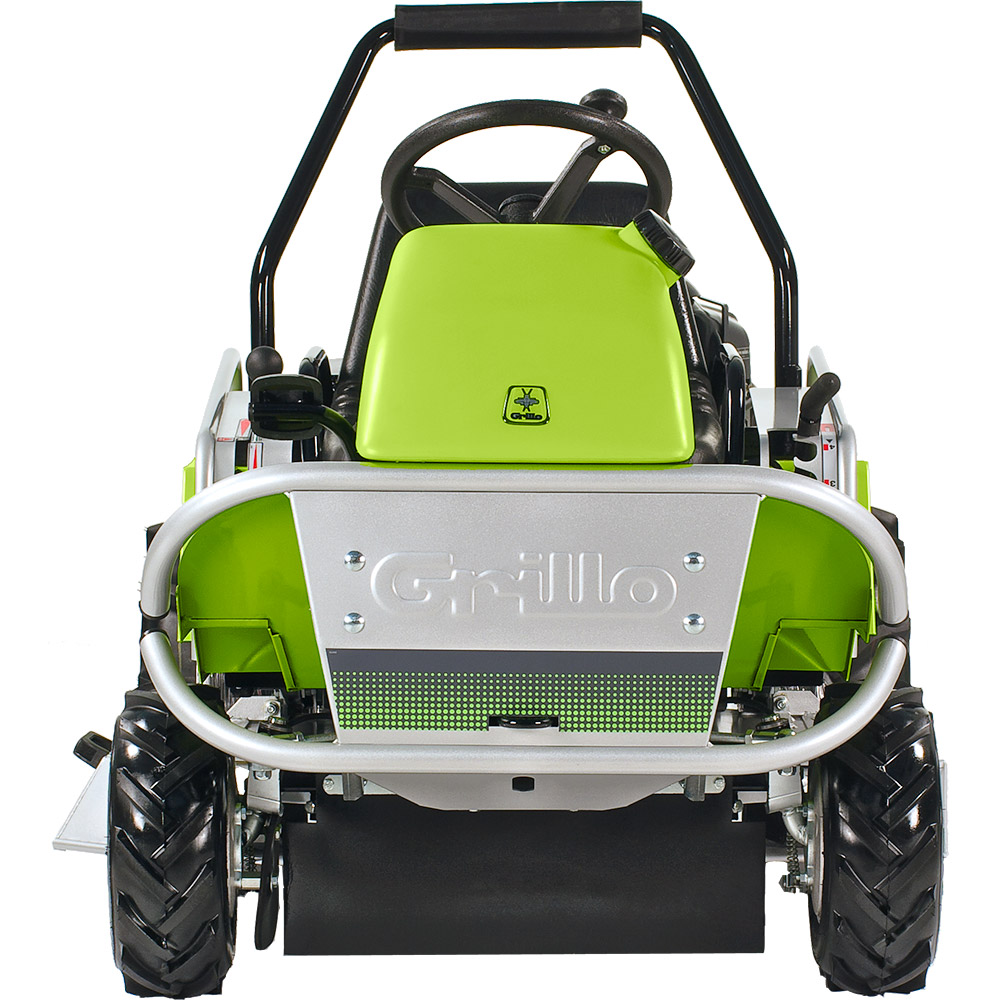

Climber 9.16

	Engine	Briggs & Stratton 16 Vanguard V-Twin OHV Start electric, with 12 V battery Supply fuel Displacement 479 cc, 2 Cylinders Power 14 HP (10.3 kW) - Gross power 16 HP Air cooled Dry air filter with interchangeable filter cartridges
	Fuel tank capacity	Fuel tank 13 litres (reserve tank 3 litres)
	Traction	Clutch: electromagnetic with P.T.O and blade brake
	Gearbox	hydrostatic transmission with reduction gear unit and diff
	Cutter deck	side/rear discharge

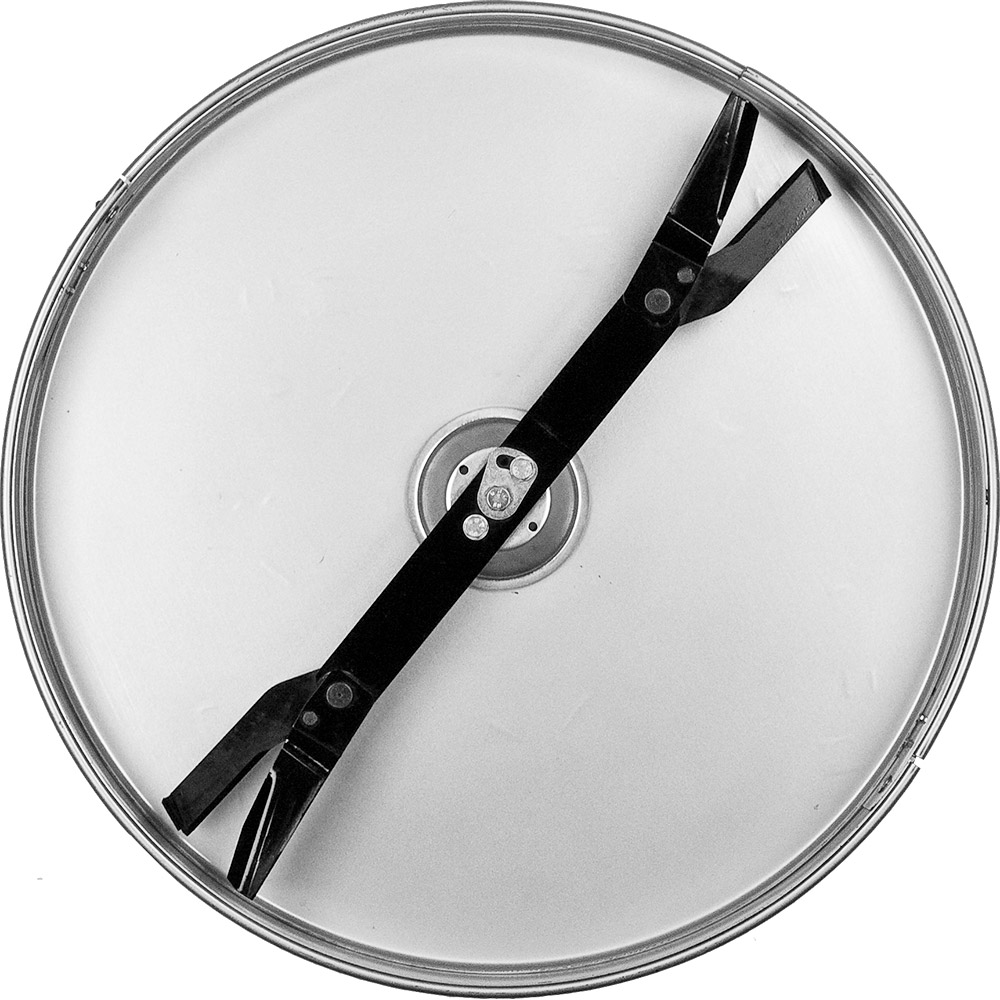

	Cutting configuration	1 rotating blade
	Cutting width	910 mm
	Cutting height	4 different cutting positions from 30 to 90 mm and 1 position for transport
	Differential locking	Differential lock device by pedal action
	Front tyres	Tractor 13x5.00-6 wheels
	Rear tyres	Tractor 17x8.00-8 wheels
	Speed	Continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h
	Inner turning radius	38 cm
	Seat	Seat equipped with springs, adjustable, with armrests and roll bar
	Service brake	On the front wheels brakes are pedal-operated
	Parking brake	On the rear wheels brakes are lever-operated
	Mowing capacity per hour (indicative)	7200 m^2/h
	Length	1800 mm
	Width	990 mm
	Height	1070 mm
	Weight	293 kg
