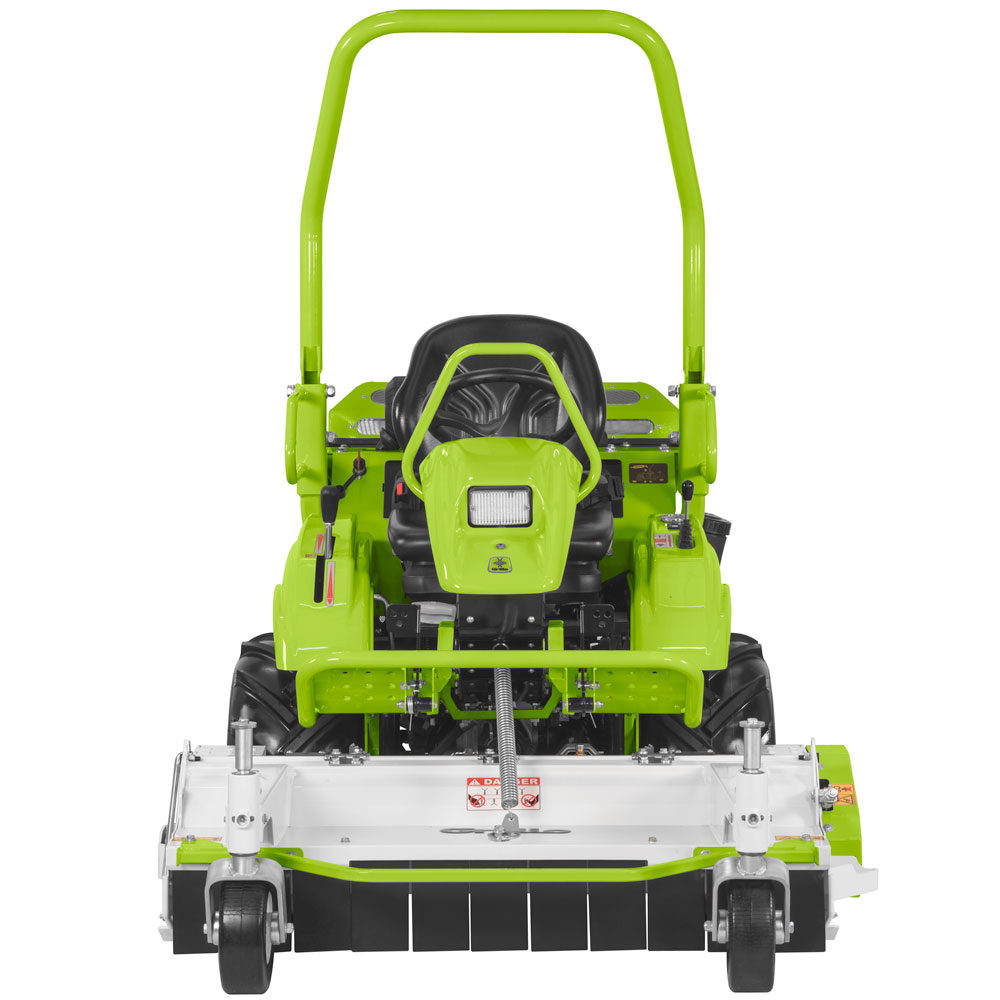

FK 700

Professional front brush cutter.

GRILLO FK700
GRILLO FK700  GRILLO FK700 GRILLO FK700 GRILLO FK700

The FK 700 is a professional front brush cutter, designed for high performance, maximum comfort, great cutting efficiency, and low fuel consumption.


The front flail mower allows full visibility of the working area, prevents the cutting area from being pressed and facilitates cutting under low branches and bushes!


The floating cutting attachment ensures a perfect result even on undulating terrain. The pivoting rear axle and tractor-profiled front wheels provide a precise finish over bumps and hollows.


The cutting height is mechanically adjustable from a minimum of 0 cm to a maximum of 10 cm. Adjustment is quick and easy without using spacers.


A smooth and progressive single lever controls forward and reverse speed from 0 to 15 km/h in fast gear and from 0 to 8 km/h in slow gear. The lever offers maximum control and ease of use when driving while cutting as well as during transfers.


The disc parking brake is conveniently activated with a hand lever from the driver’s seat.


The compact dimensions, 37 cm turning radius and front cutting attachment make the FK 700 ideal for areas with obstacles or narrow spaces.


Technical data sheet
Technical data sheet FK 700
Engine Kubota D722
Start electric, with 12 V battery
Supply diesel
Displacement 722 cc, 3 Cylinders
Power 18 HP (13.2 kW)
Liquid cooled with electric impeller and equipped with automatic radiator cleaning device
Cyclonic integrated air filter
Fuel tank capacity 31 L.
Hydraulic oil tank 6,7 L.
Traction hydraulic motor + 2 speeds mechanical gearbox slow and fast
Clutch electromagnetic with blade brake.
Cutter deck front-mounted flail mower with 3-row knife rolle and front opening
Cutting width 115 cm
Cutting height from 0 to 10 cm, quick mechanical adjustment
Differential locking mechanical, pedal-operated

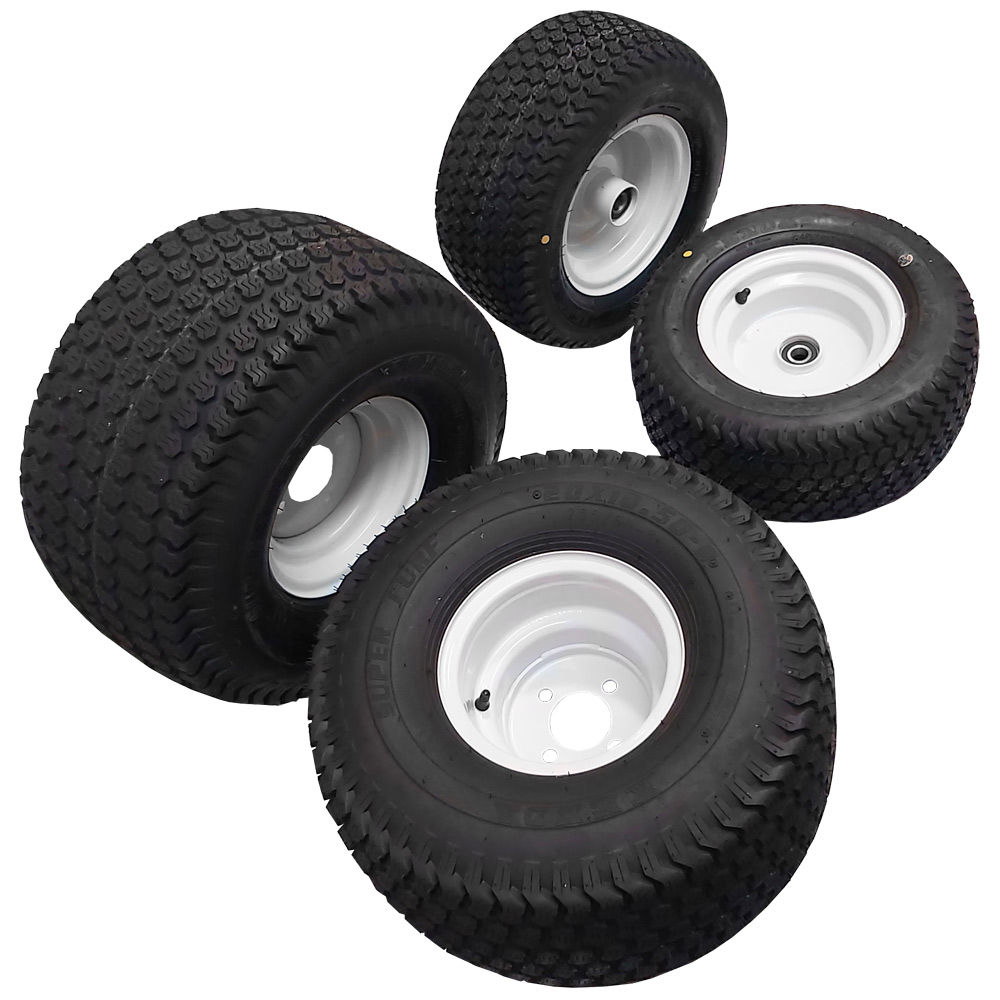

Front tyres 20x10.00-8 Tractor
Rear tyres 16x6.50-8 Tractor
Steering system steering wheel; forward/reverse lever and service brake
Speed 0 - 15 km/h fast; 0 - 8 km/h slow
Inner turning radius 37 cm
Seat Grammer, cushioned, adjustable with safety belts
Brakes lever-operated with disc brake
Mowing capacity per hour (indicative) 10000 m2/h
Length 283 cm
Width 131 cm
Height 139 cm (without roll bar) ; 182 cm (with roll bar)
Clear span from the ground 15 cm
Weight 615 kg
In action! Photos and Videos
In action! Photos and Videos

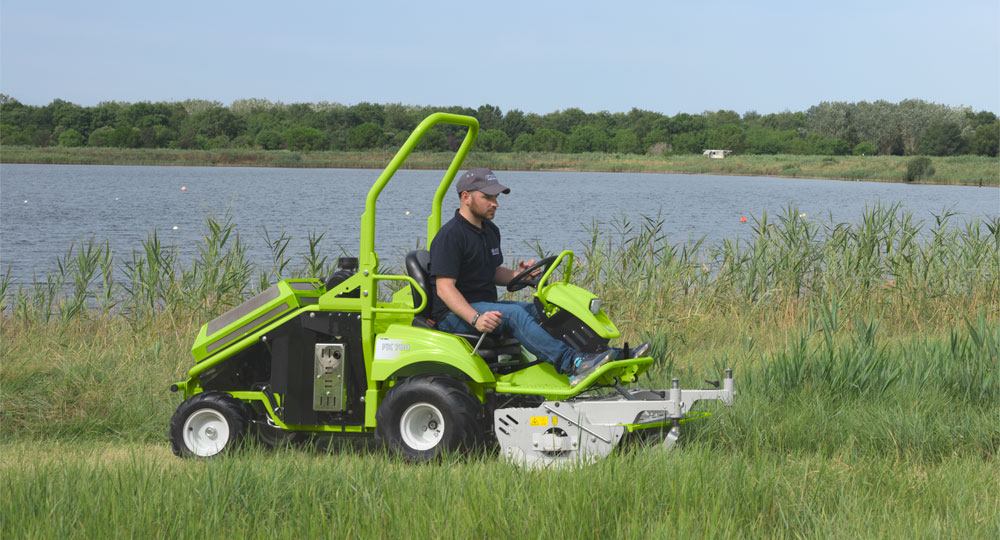

GRILLO FK700 flail mower
GRILLO FK700 flail mower
GRILLO FK700
GRILLO FK700

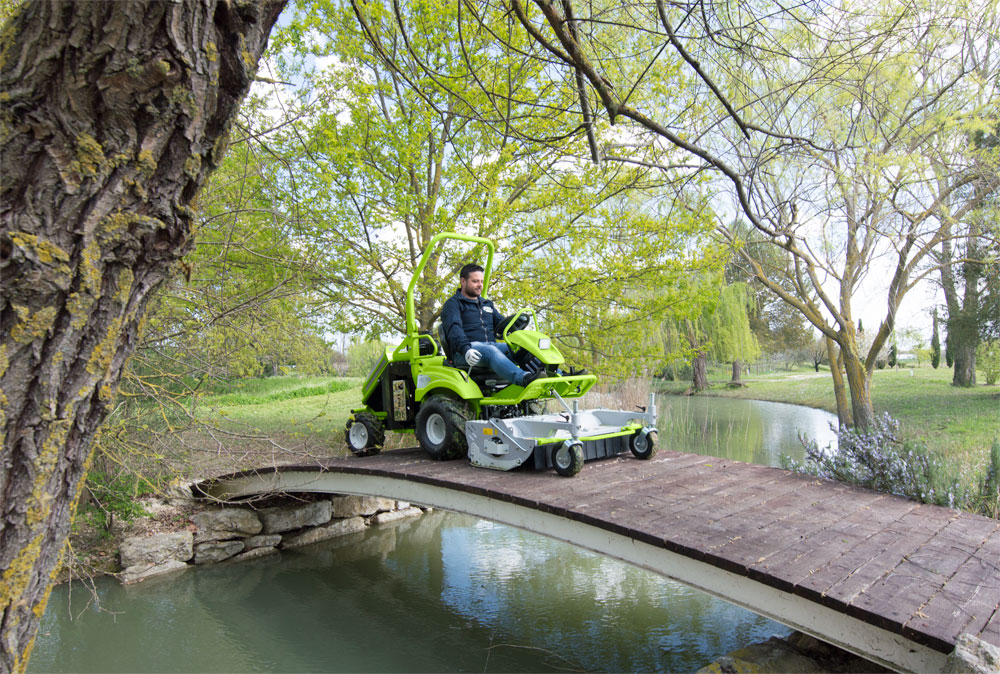

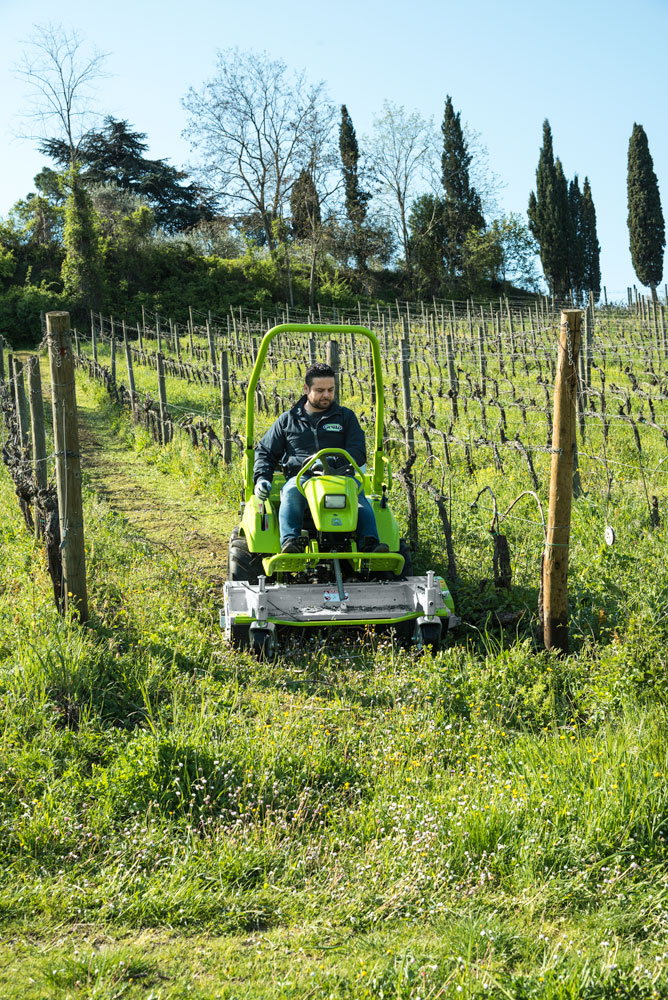

GRILLO FK 700 in action!
GRILLO FK 700 in action!
Implements
Implements FK 700

All purpose flail 118 cm

9G8411
to be applied on FK 700
item no.: 9G8411
weight: 120 kg

With 3 rows of knives, openable at the front.

Adjustable rear roller for 118 cm all purpose flail

9G8511
to be applied on FK 700
item no.: 9G8511
weight: 9 kg

Blade kit for 118 cm all purpose flail

9G8611
to be applied on FK 700
item no.: 9G8611
weight: 3,8 kg

Blades scarifier kit for all purpose flail 118 cm

9G8711
to be applied on FK 700
item no.: 9G8711
weight: 2,8 kg

It needs adjustable roller p/n 9G8511, can be installed along with kit 9G8611, can't be installed with standard "Y" knives.

Download
Download
Pdf FK700 Catalogue (Download - file pdf - 1,28 MB)
