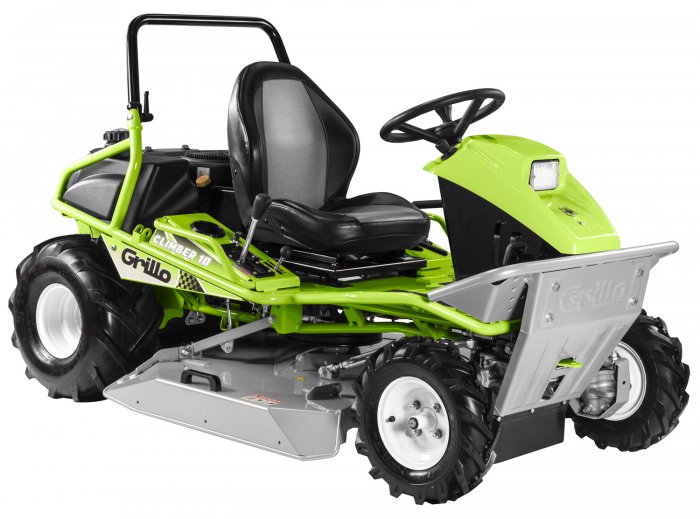

Climber 10 AWD 23
|
Engine |
Loncin LC2P77F Start electric, with 12 V battery Supply fuel Displacement 708 cc, 2 Cylinders Power 19 HP (14 kW) Air cooled Dry air filter |
|
Fuel tank capacity | 13 L. |
|
Cutting width | 93 cm |
| Peripheral blade speed | 83 m/sec. | |
|
Differential locking | |
| Inner turning radius | 95 cm | |
|
Length | 206 cm |
| Width | 103 cm | |
| Height | 118,5 cm | |
|
Weight | 350 kg |
Orientable front blade 125 cm
to be applied on Climber 10 AWD 22 - Climber 10 AWD 23 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9G2611
weight: 54 kg
Rubber end for blade 125 cm
to be applied on Climber 10 AWD 22 - Climber 10 AWD 23 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9E5911C
weight: 1 kg
Coupling for 125 cm snow blade
to be applied on Climber 10 AWD 22 - Climber 10 AWD 23 - Climber 10 AWD 27 - MD 24 AWD - MD 28 AWD
item no.: 944311
weight: 7 kg
Snow chains for 20x10.00-8 wheels (pair)
to be applied on Climber 10 AWD 22 - Climber 10 AWD 23 - Climber 10 AWD 27
item no.: 973722
weight: 2 kg
