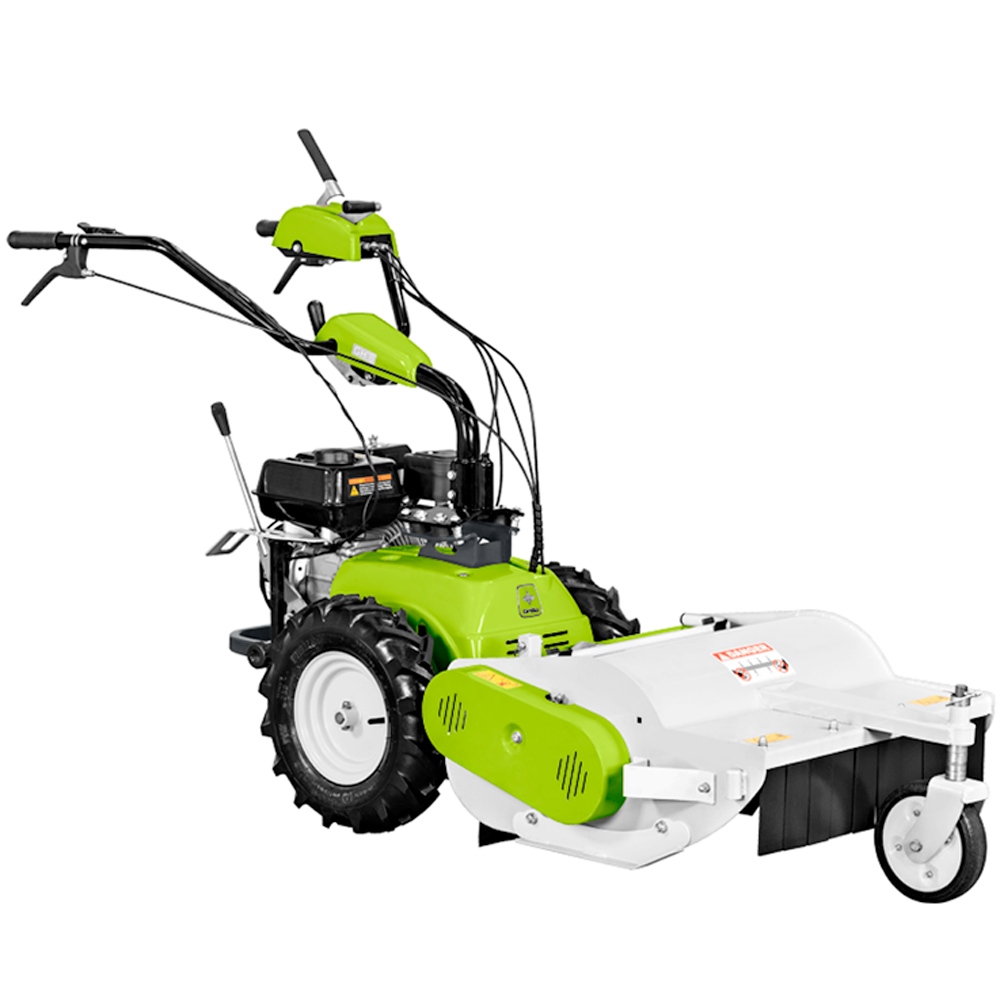

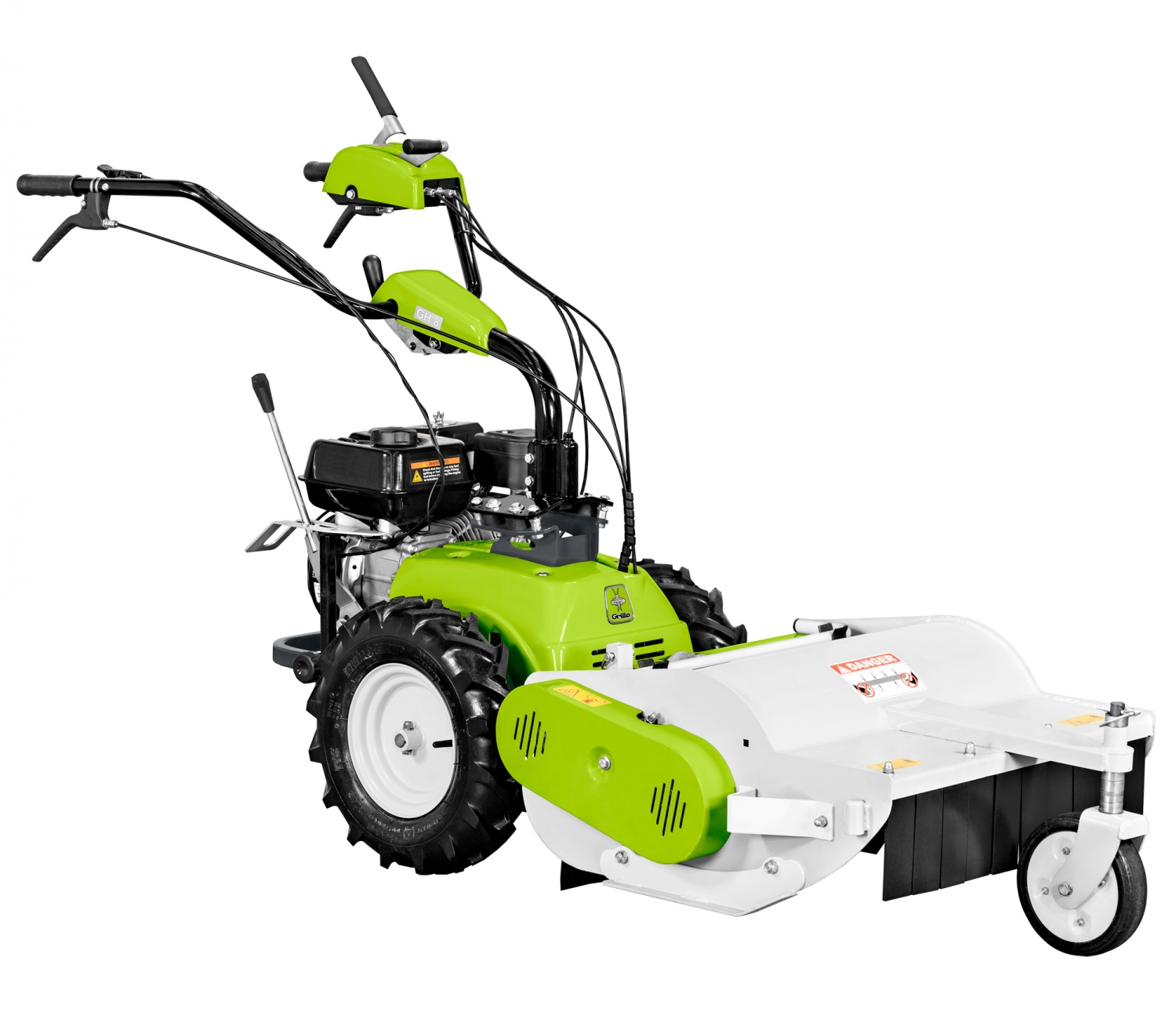

GH 8 AGM

Hydrostatic all purpose flail.

Technical data sheet GH 8 AGM

	Engine	Loncin G210FA Start recoil starter Supply fuel Displacement 212 cc, 1 Cylinder Power 6 HP (4.4 kW) Air cooled Dry air filter
	Fuel tank capacity	3 L.
	Transmission	Hydrostatic
	Traction	2WD
	Cutter deck	Rotor with 14 pairs of Y-shaped blades and front opening with tilting flaps
	Cutting width	58 cm.
	Cutting height	from 2 to 6 cm.
	P.T.O.	At 965 revolutions with clockwise rotation
	Drive wheels	Tractor 4.00-8
	Speed	Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3 km/h
	Parking brake	Engaged by pedal
	Handlebar	With height and side adjustment
	Length	200 cm.
	Width	70 cm.
	Height	97 cm.
	Weight	135 kg (with 58 cm all purpose flail); 75 kg (without attachment)

In action! Photos and Videos

Back to

Implements GH 8 AGM

Back to

Pneumatic wheels fixed disks 4.00-8 (pair)

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9

item no.: 917012

weight: 9 kg

Pneumatic wheels fixed disks 16x6.50-8 (pair)

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9

item no.: 919411

weight: 15 kg

Twin wheels kit

to be applied on CL 62M - GH 8 - GH 8 AGM

item no.: 937411

weight: 10 kg

All purpose flail, 58 cm.

to be applied on GH 8 - GH 8 AGM

item no.: 9G7911

weight: 60 kg

All purpose flail 68 cm

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9

item no.: 9G6011

weight: 70 kg

Scarifier kit for all purpose flail 68 cm

to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 7 - GH 8 - GH 8 AGM - GH 9

item no.: 9G6411

weight: 1.6 kg

Rear coupling assembly for quick coupling (implement side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 8 AGM - GH 9

item no.: 946511

weight: 2.5 kg

Front coupling assembly for quick coupling (machine side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 8 AGM - GH 9

item no.: 946911

weight: 2.5 kg

Grass-guard protection (for 4.00-8 wheels)

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9

item no.: 937511

weight: 1.5 kg

Recommended with cutting bar.

Orientable and tilting sweeper, 100 cm

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9

item no.: 9M6022

weight: 55 kg

Brushes are applied on the front of Grillo walking tractors.
They are equipped with a 400 mm diameter roller with polypropylene spatula.
It is ideal to put aside fresh snow and to clean up sideways, roads, cycle paths, avenues and parking lots.
The gear transmission is in oil-bath.
A lever is comfortably operated from the driver's position to quickly incline the brush up to 25° towards right or left.
The brush is also equipped with height-adjustable, pivoting support wheels to suit any working condition.
Grillo brushes do not damage nor scratch the areas where they are used thanks to their highly-resistant and flexible spatula.
