G Z2

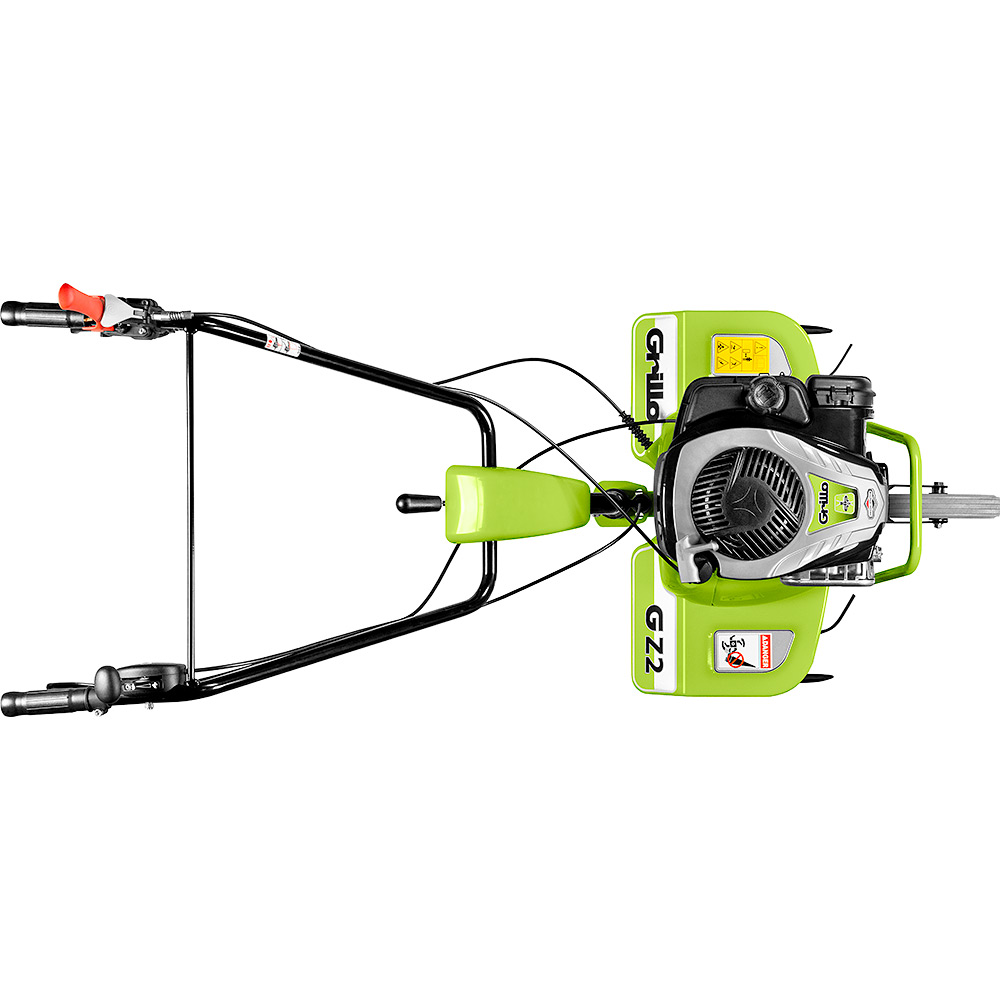

Grillo G Z2
Grillo G Z2 Grillo G Z2 Grillo G Z2 Grillo G Z2

Technical data sheet
Technical data sheet G Z2
Engine Briggs & Stratton 575EX OHV
Start recoil starter
Supply fuel
Displacement 140 cc, 1 Cylinder
Power 3 HP (2.2 kW)
Air cooled
Dry air filter
Fuel tank capacity 0,8 L
Transmission endless screw in oil bath
Gearbox 1 forward gear + 1 reverse gear
Clutch active coupling
Standard rotary tiller with 4 tines and side discs, working width 52 cm
Hoes system diametre 28 cm
Working width area with side disks 57 cm. With the optional kit, the tiller can be adjusted at 35 and 80 cm.
Working depth area without side disks 52 cm. With the optional kit, the tiller can be adjusted at 30 and 75 cm.
Working depth 28 cm
Max. revolutions tiller 155 rpm
Handlebar height and side - adjustable
Standard features Front transport wheel. Two different spurs, one for hard soils, one for soft and sandy soils.
Safety devices Active coupling: If the handlebar is released the machine stops; mudguards and handlebars compliant with the current laws and muffler protection.
Weight 41 kg
In action! Photos and Videos
In action! Photos and Videos
Grillo G Z2
Grillo G Z2
Grillo G Z2
Grillo G Z2
Grillo G Z2
Grillo G Z2
Implements
Implements G Z2

Furrower

947311
to be applied on G Z1 - G Z2 - G Z3
item no.: 947311
weight: 2 kg

Rotary tiller extentions (pair)

933611
to be applied on G Z1 - G Z2
item no.: 933611
weight: 2 kg

This kit enables to extend the tiller up to 80 cm (75 cm without side discs) or to narrow it at 35 cm (30 without side discs).
Important: effective for G Z1 starting from March 2016.

Download
Download
Pdf Full Range Catalogue 2023 (Download - file pdf - 22,93 MB)
Pdf Motorhoes leaflet - 2022 (Download - file pdf - 2,95 MB)
