HR76 PRO


Technical data sheet
Technical data sheet HR76 PRO
Engine Loncin G300FA
Start recoil starter
Supply fuel
Displacement 302 cc, 1 Cylinder
Power 9.3 HP (6.8 kW)
Air cooled
Dry air filter
Fuel tank capacity 6,1 L
Transmission Oil-bath gearbox
Gearbox 3 forward gears + reverse
Clutch Active conical
Hoes system diametre 32 cm
Working width area with side disks 72 cm - 99 cm (standard) - 125 cm (optional)
Working depth area without side disks 58 cm - 85 cm (standard) - 111 cm (optional)
P.T.O. Upper PTO with direct engagement at engine speed - Lower PTO synchronised with the gearbox
Standard features Adjustable handlebar, adjustable spur, transfer wheel
Implements Tiller extension, plough, furrower, transfer wheels, tiller rods
Length 138 cm (min.) - 165 cm (max.)
Width 61 cm (min.) - 99 cm (max.)
Height 90 cm (min.) - 125 cm (max.)
Weight 95 kg

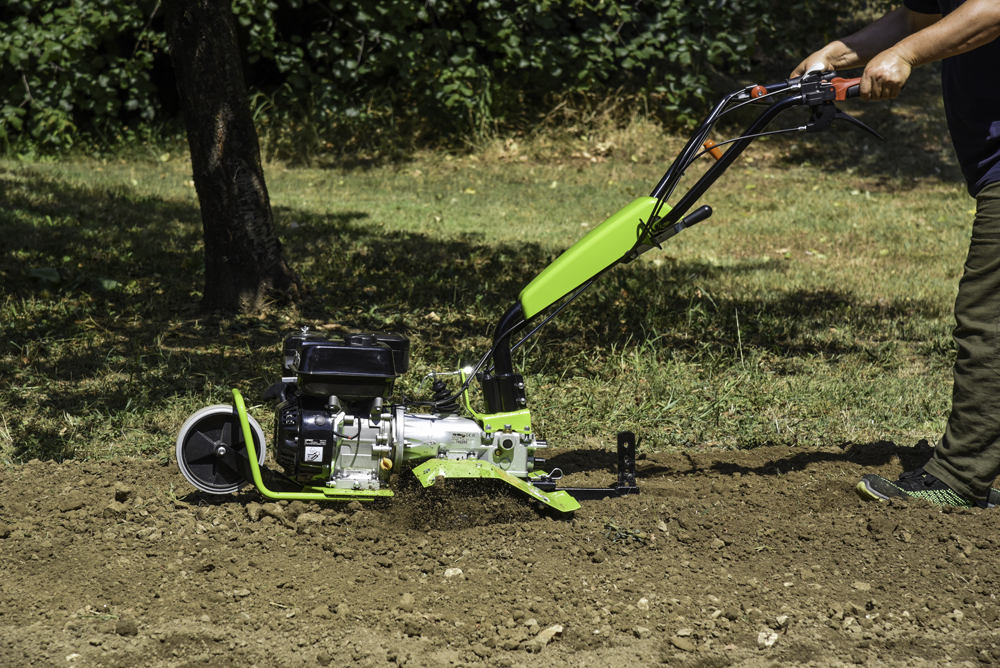

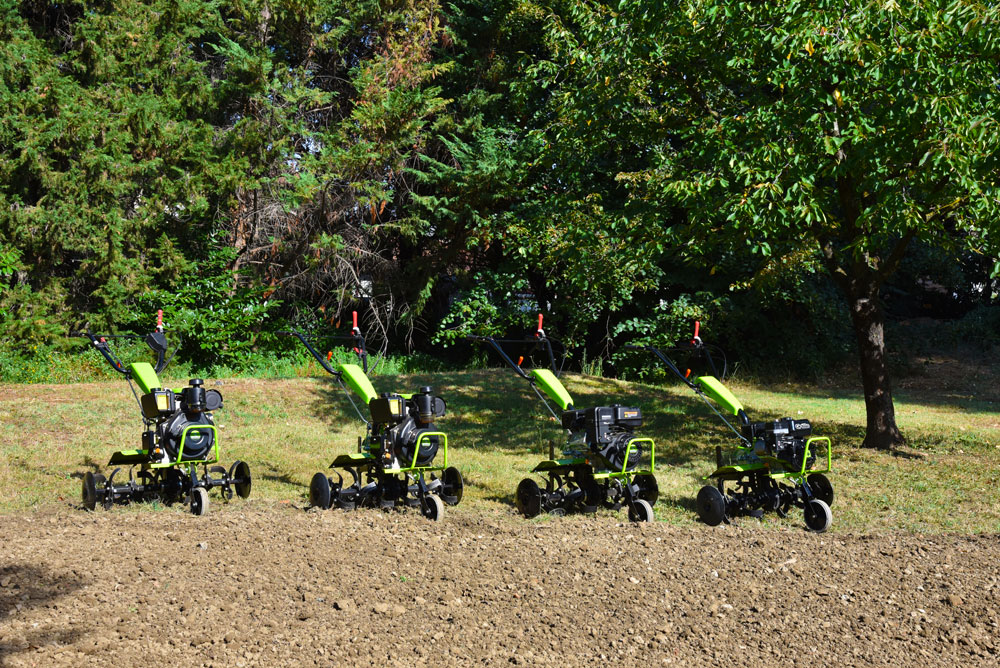

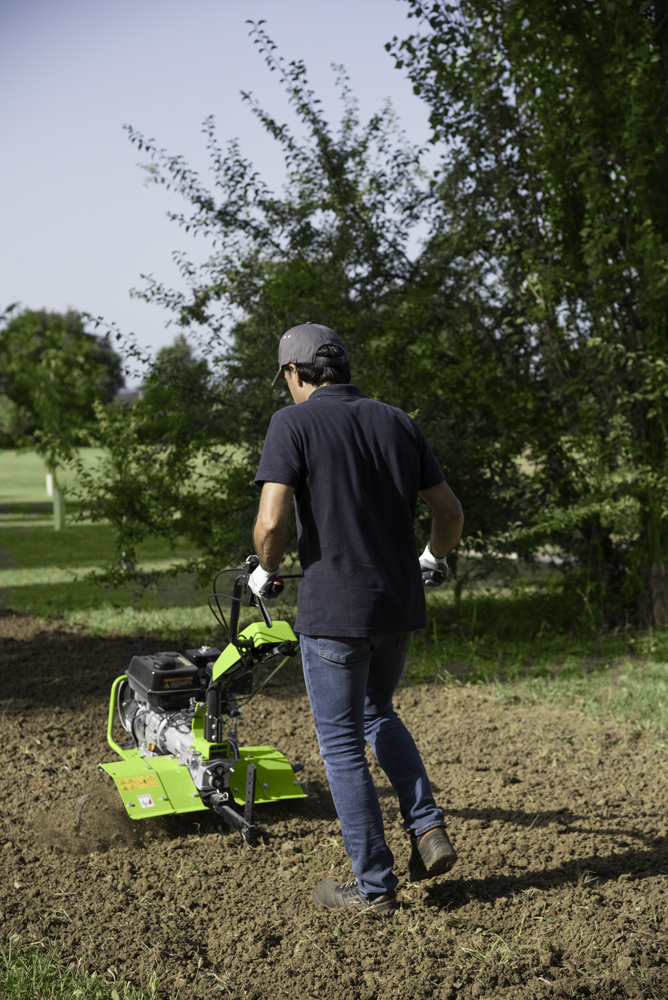

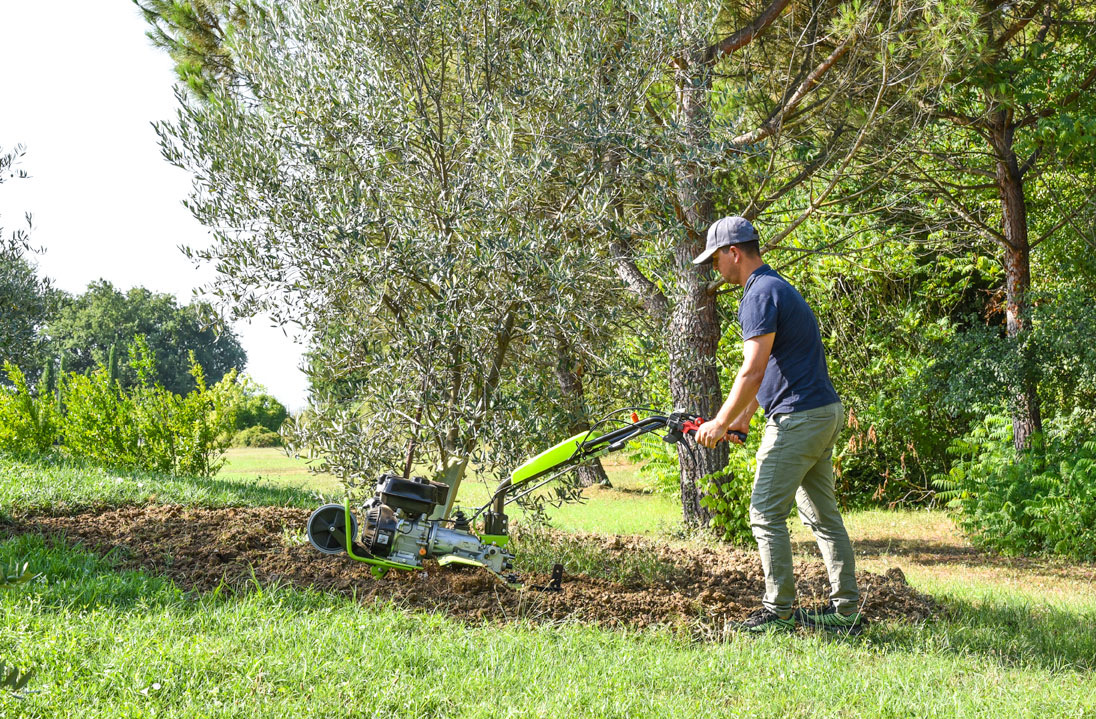

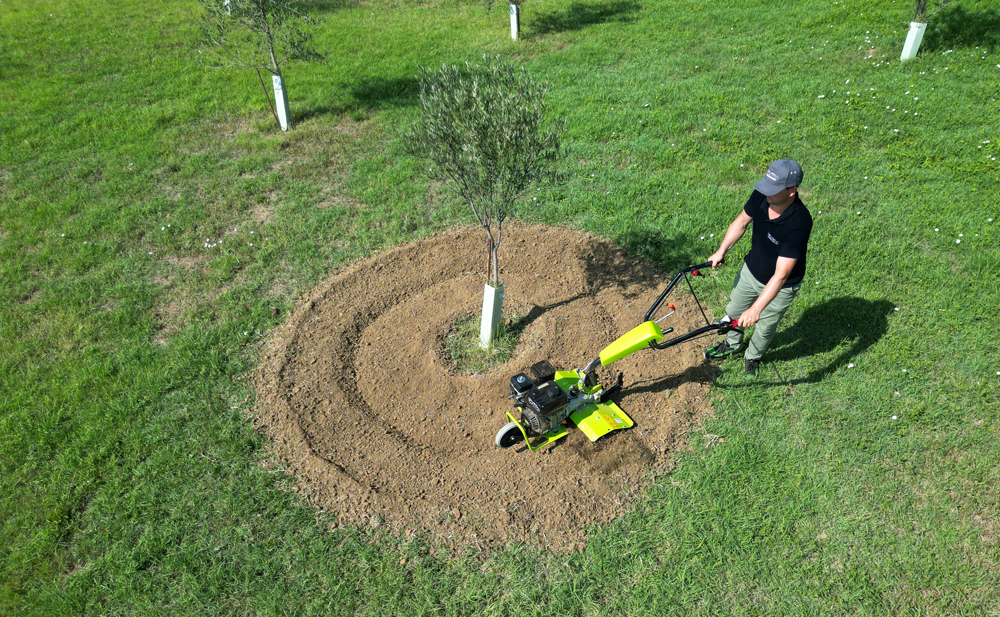

In action! Photos and Videos
