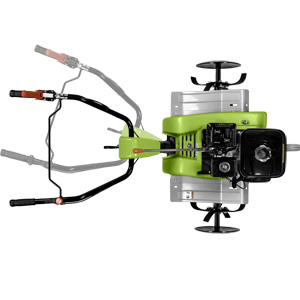

Princess MP3 PRO
|
Engine |
Honda GX200 OHV Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter |
| Engine |
Loncin G200FA Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter |
|
|
Fuel tank capacity | 3,1 L mot. GX200 - 3 L mot. G200FA |
|
Gearbox | 2 forward gears + reverse gear |
| Clutch | With lever control on the handlebar working on the belt tensioner | |
| Final drive | With pinion and chain | |
|
Standard rotary tiller | With 6 tines and side discs, working width 97 cm. With hexagonal shaft 27 mm |
| Hoes system diametre | 33 cm | |
| Working depth area without side disks | Adjustable at 82 and 56 cm | |
| Working depth | 33 cm | |
| Max. revolutions tiller | 1st gear 36 rpm – 2nd gear 160 rpm – reverse gear 36 rpm | |
| Carter of the tiller | Bolted, pressed steel with screwed shells | |
| Handlebar | Height and side adjustment | |
| Standard features | Front transfer wheel | |
| Safety devices | When the user leaves the handlebars the machine stops. Mudguards and handlebars according to the law. Silencer protection. | |
|
Weight | 66 kg (GX200); 68 kg (G200) |
Grillo Princess MP3 PRO
Furrower
to be applied on Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 948622
weight: 2 kg
Transport wheels for rotavator Ø 42 cm (pair)
to be applied on 11500 - 3500 - Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 9C7522
weight: 7 kg
Plough kit for Pricess MP3 PRO
to be applied on Princess MP3 PRO
item no.: 9A4211
weight: 68 kg
Plough, frame for attachments, wheels and wheel-weighs.
Wheelextensions (pair)
to be applied on 11500 - 3500 - Princess MP3 PRO
item no.: 9C4312
weight: 4 kg
Pneumatic wheels 5.00-10 (fixed discs)
to be applied on Princess MP3 - Princess MP3 PRO
item no.: 903512
weight: 16 kg
