GH 7

Technical data sheet GH 7

Back to

	Engine	Honda GX200 OHV Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter
	Fuel tank capacity	3,1 L.
	Transmission	Hydrostatic
	Traction	2WD
	Cutter deck	Rotor with 16 pairs of Y-shaped blades and front opening with tilting flaps
	Cutting width	68 cm
	Cutting height	From 3 to 11 cm continuously and rapidly adjustable by means of a crank lever and lock device
	P.T.O.	At 965 revolutions with clockwise rotation
	Wheels	Tractor 16x6.50-8 / 4.00-8
	Speed	Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3 km/h
	Parking brake	Engaged by pedal
	Handlebar	With height and side adjustment
	Standard features	Holder for maintenance
	Implements	Cm 68 all purpose flail, 117 cm central cutter double blade bar, 100 cm orintable and tilting sweeper, 60 cm snow thrower, snow chains for wheels
	Length	200 cm
	Width	80 cm
	Height	97 cm
	Weight	150 kg (with all purpose flail); 75 kg (without attachment)

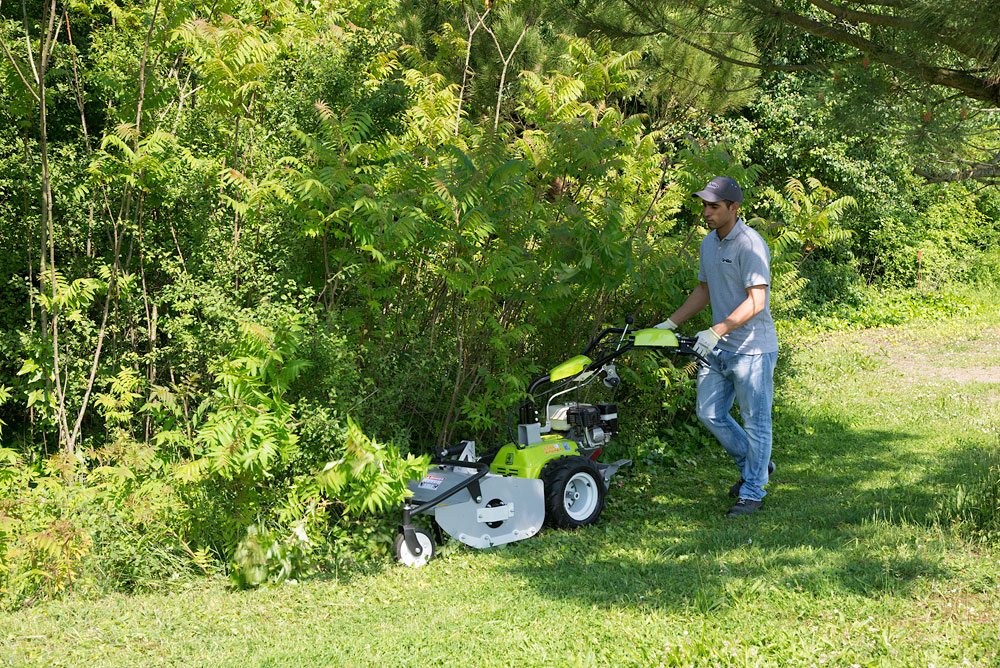

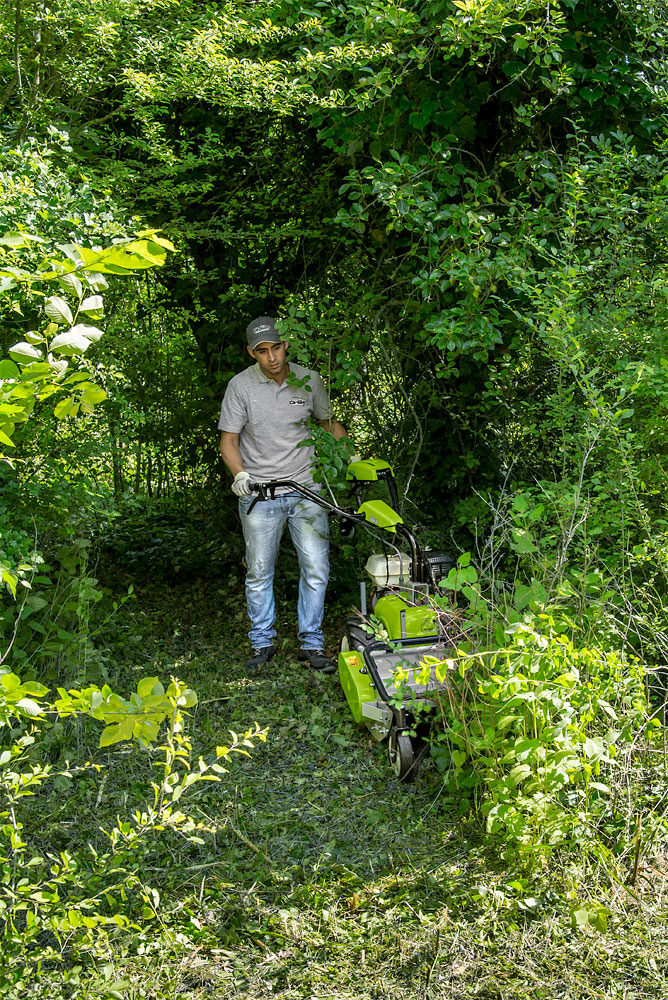

In action! Photos and Videos

Back to

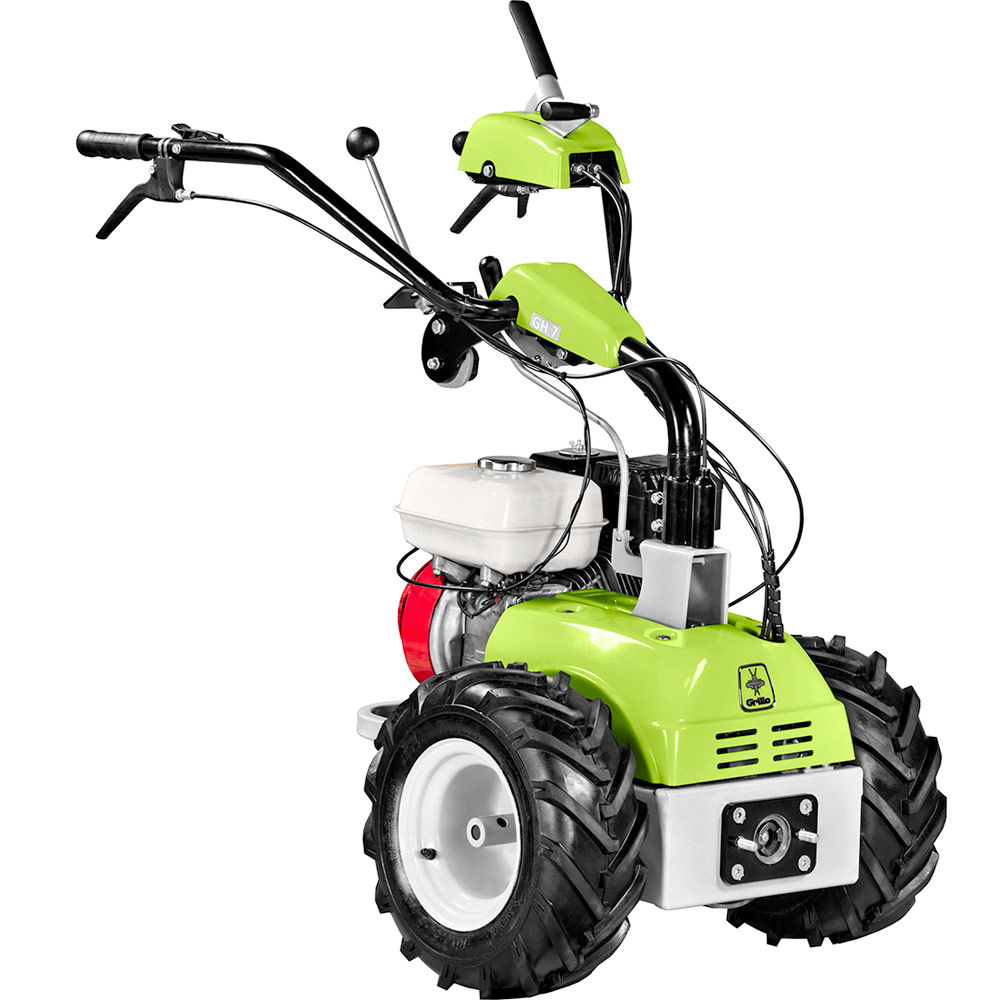

Grillo GH 7

Implements GH 7

Back to

Pneumatic wheels fixed disks 4.00-8 (pair)

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9 - GH 9 AGM

item no.: 917012

weight: 9 kg

Pneumatic wheels fixed disks 16x6.50-8 (pair)

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9 - GH 9 AGM

item no.: 919411

weight: 15 kg

Front coupling assembly for quick coupling (machine side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 8 AGM - GH 9 - GH 9 AGM

item no.: 946911

weight: 2.5 kg

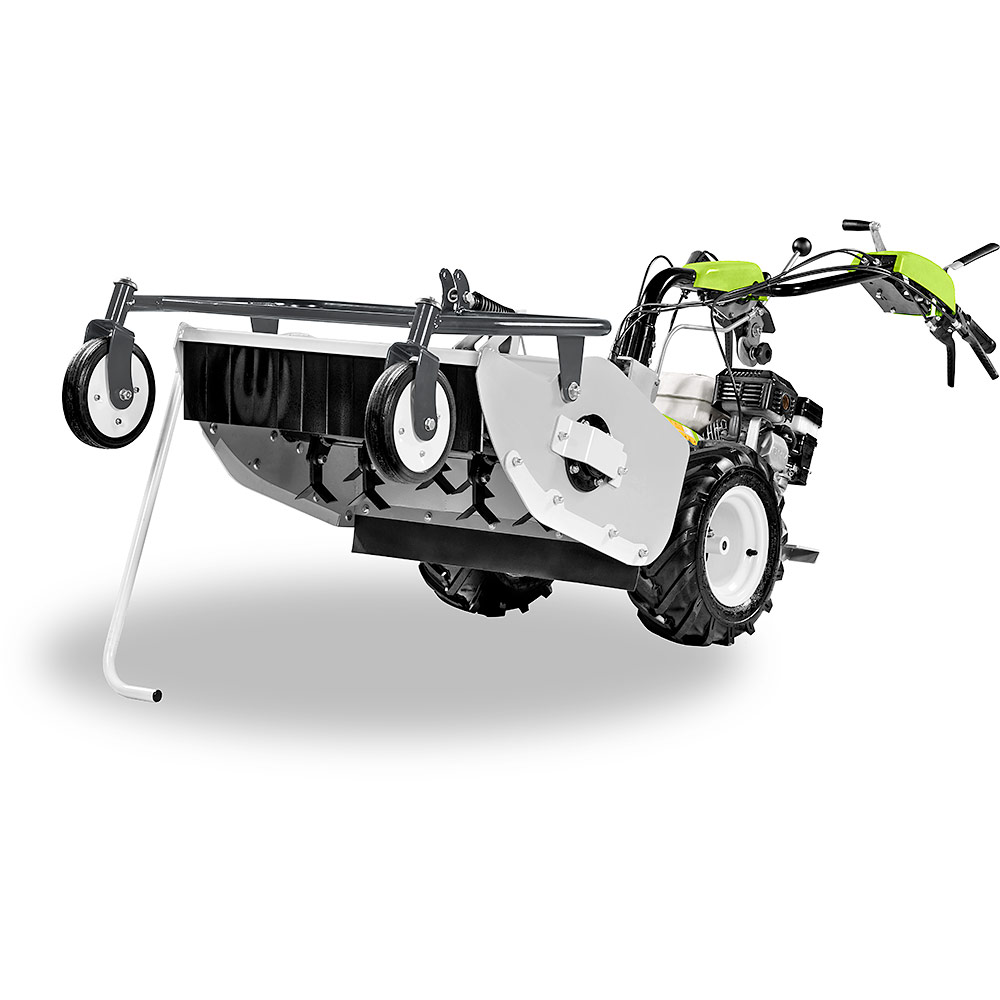

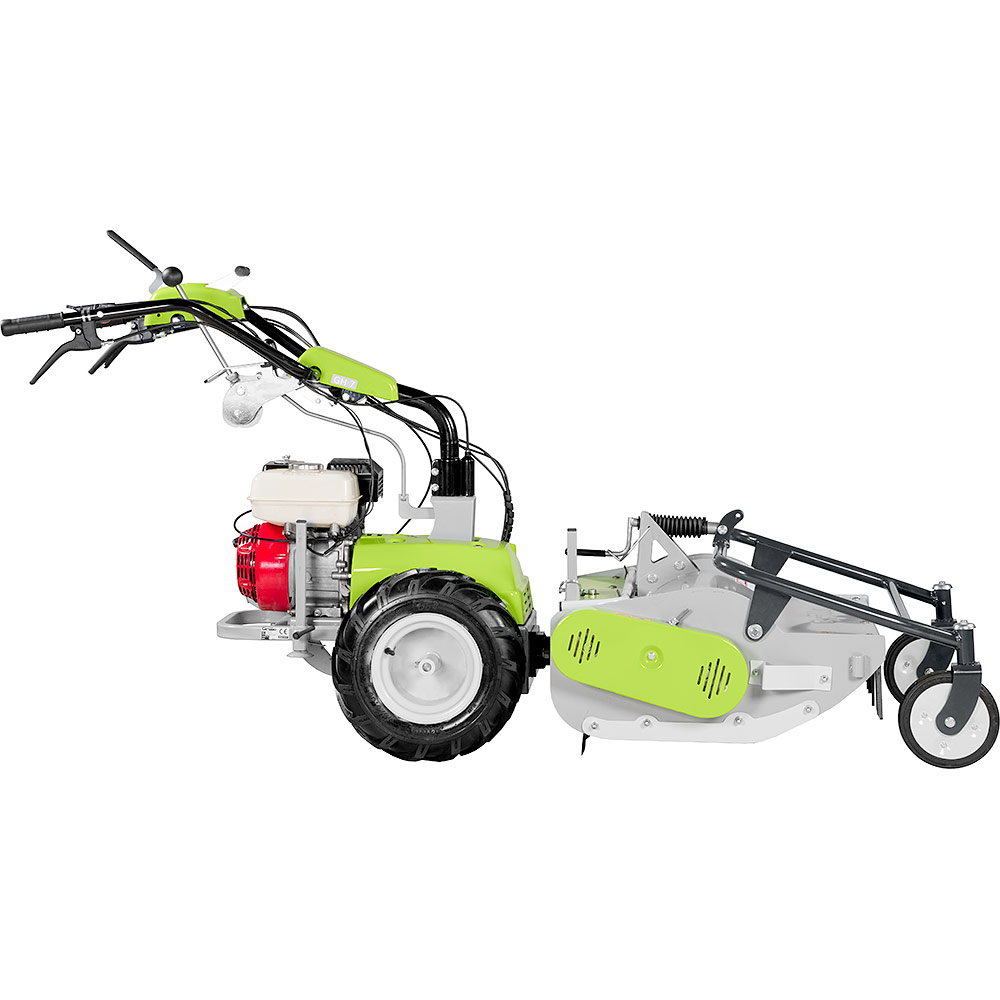

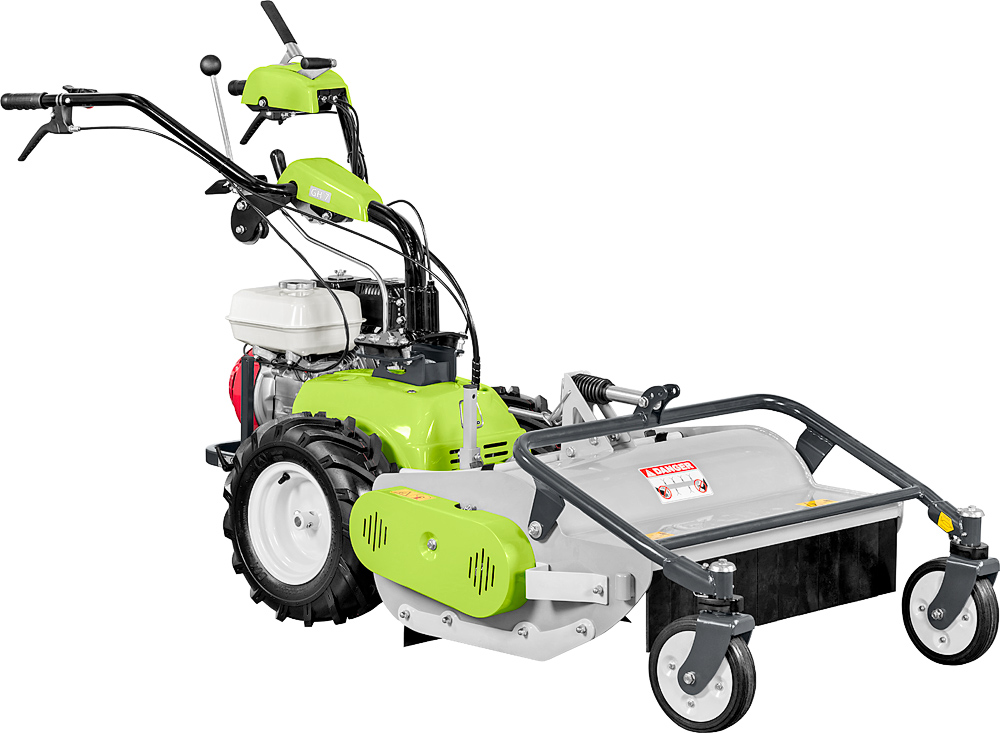

All purpose flail 68 cm

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9 - GH 9 AGM

item no.: 9G6011

weight: 70 kg

Scarifier kit for all purpose flail 68 cm

to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 7 - GH 8 - GH 8 AGM - GH 9 - GH 9 AGM

item no.: 9G6411

weight: 1.6 kg

Adapter coupling from diam 50 to 60 mm for front blade

to be applied on G 108 - GH 7 - GH 8 - GH 8 AGM - GH 9 - GH 9 AGM

item no.: 946711

weight: 2,5 kg

Rear coupling assembly for quick coupling (implement side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 8 AGM - GH 9 - GH 9 AGM

item no.: 946511

weight: 2.5 kg

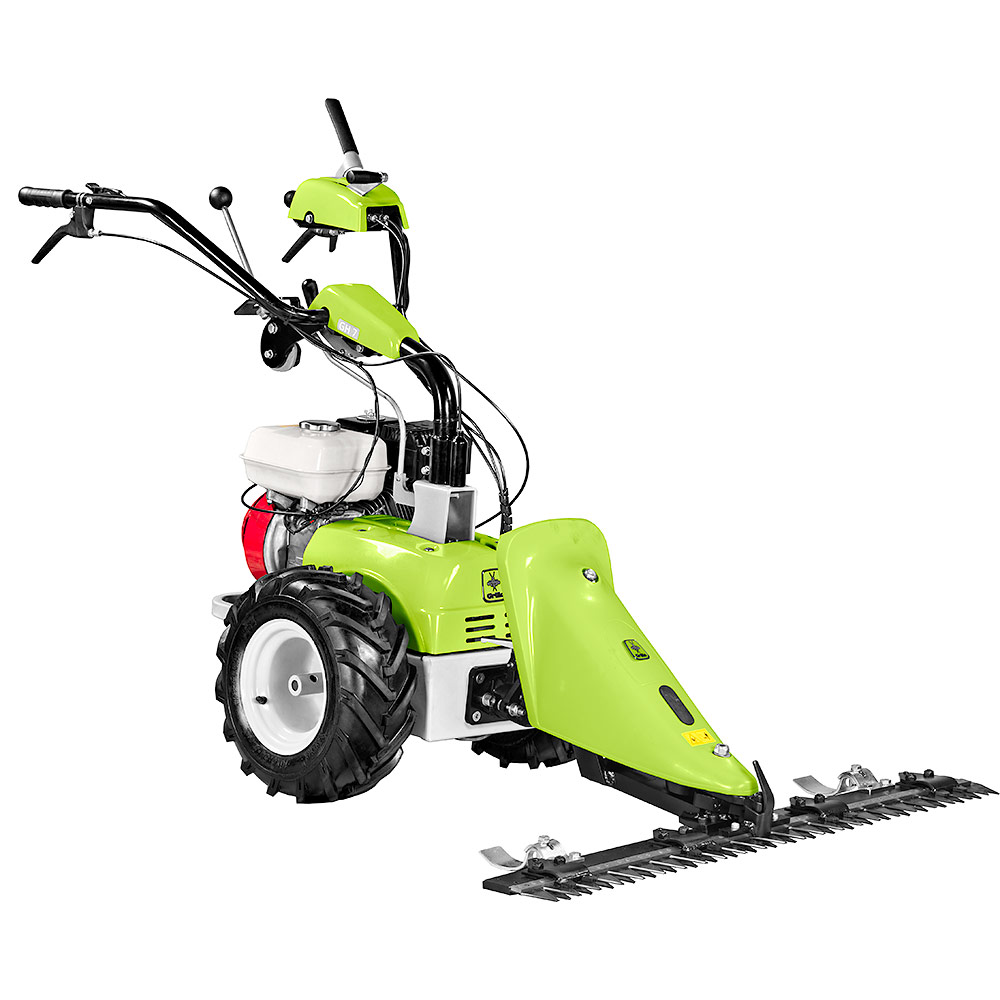

Double blade central cutter bar 117 cm with action

to be applied on GH 7

item no.: 9L6911

weight: 45 kg

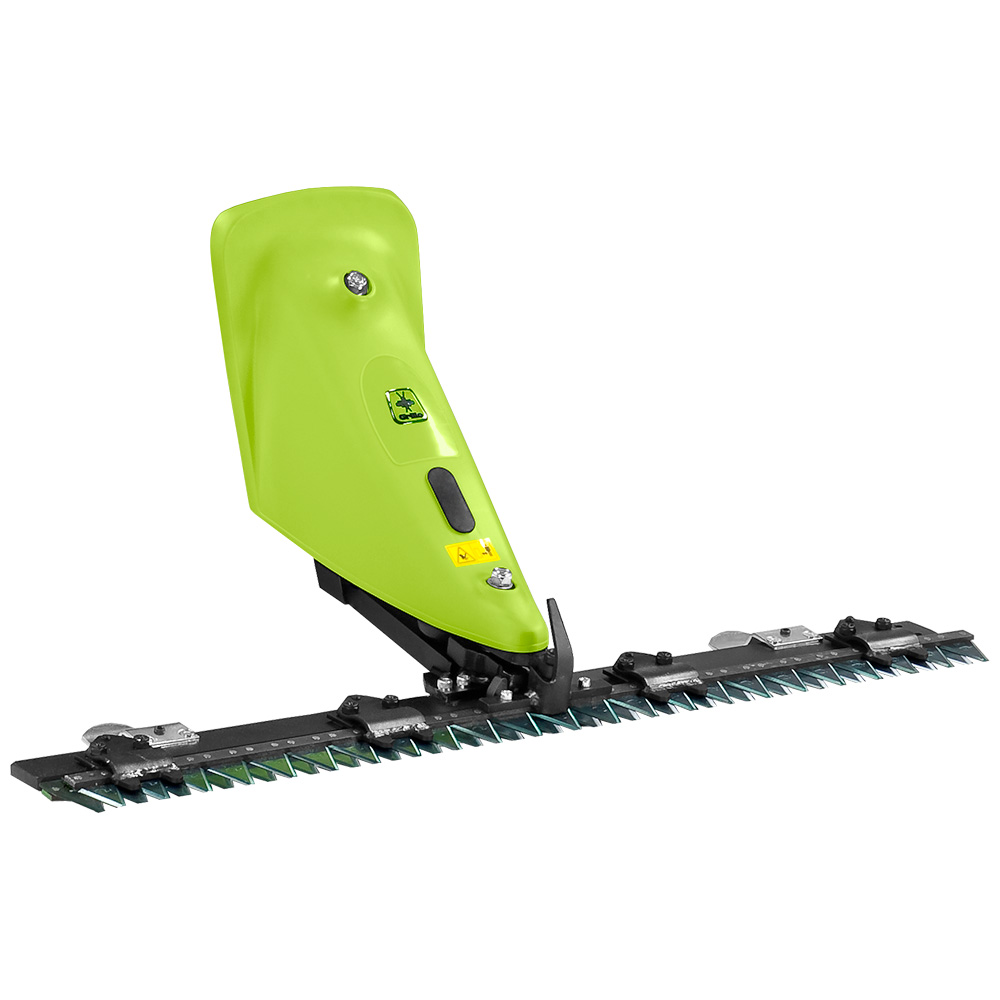

132 cm professional double cutting-bar with oil-bath movement

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9 - GH 9 AGM

item no.: 996011 999011 946311

weight: 52 kg

The central middle-cut toothed DOUBLE-BLADE CUTTING BAR PRO is equipped with two balancing, counter-moving cutter blades to reduce vibrations to the minimum and ensure maximum comfort for the operator.
It is a professional cutter bar suitable for any kind of grass, the perfect solution to avoid clogging. This cutting bar can be used to cut hay, to clean up rough pastures, orchards and to maintain green areas where it is fundamental to have a low environmental impact to preserve biodiversity. Both the high-quality steel and the self-adjustable blade holders ensure excellent quality of work.

The conveyor, made from shock-proof polypropylene, is oscillating and mounted on anti-vibration rubbers; this feature, combined with its special profile, allows the cutter bar to discharge grass under the most demanding working conditions, reducing clogging and making work more efficient.

The oil-bath movement reduces wear, does not need any special maintenance and offers a durable service life.

The adjustable support skids (a standard feature) allows the operator to easily choose the cutting height.

The steel blade holders are self-adjustable, their function is to set aside any free-play between the cutter bar and its movement. No adjustment needed.
The side protectors (also a standard feature) avoid damage to the cutter bar, should a solid item be encountered.

The cutter bar coupling is made of steel and it is easily adjusted via two plates, to clear free-play between the movement and the cutter bar.

The cutter bar teeth are jagged to ensure a durable service life and reduce wear; these alloy-steel teeth are manufactured by “Busatis Austria” and are subjected to special heat treatment.

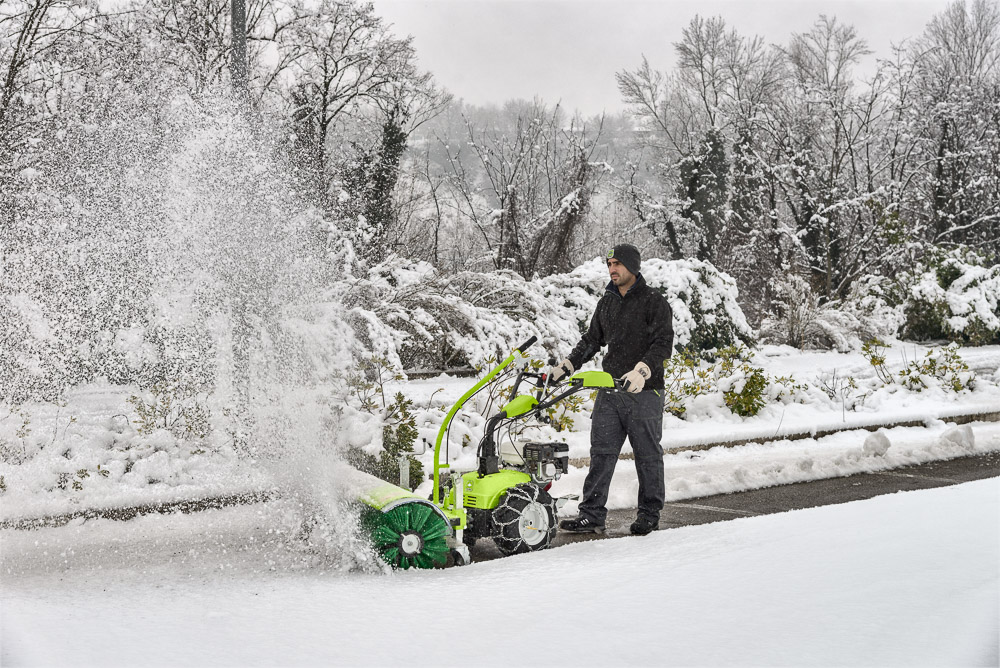

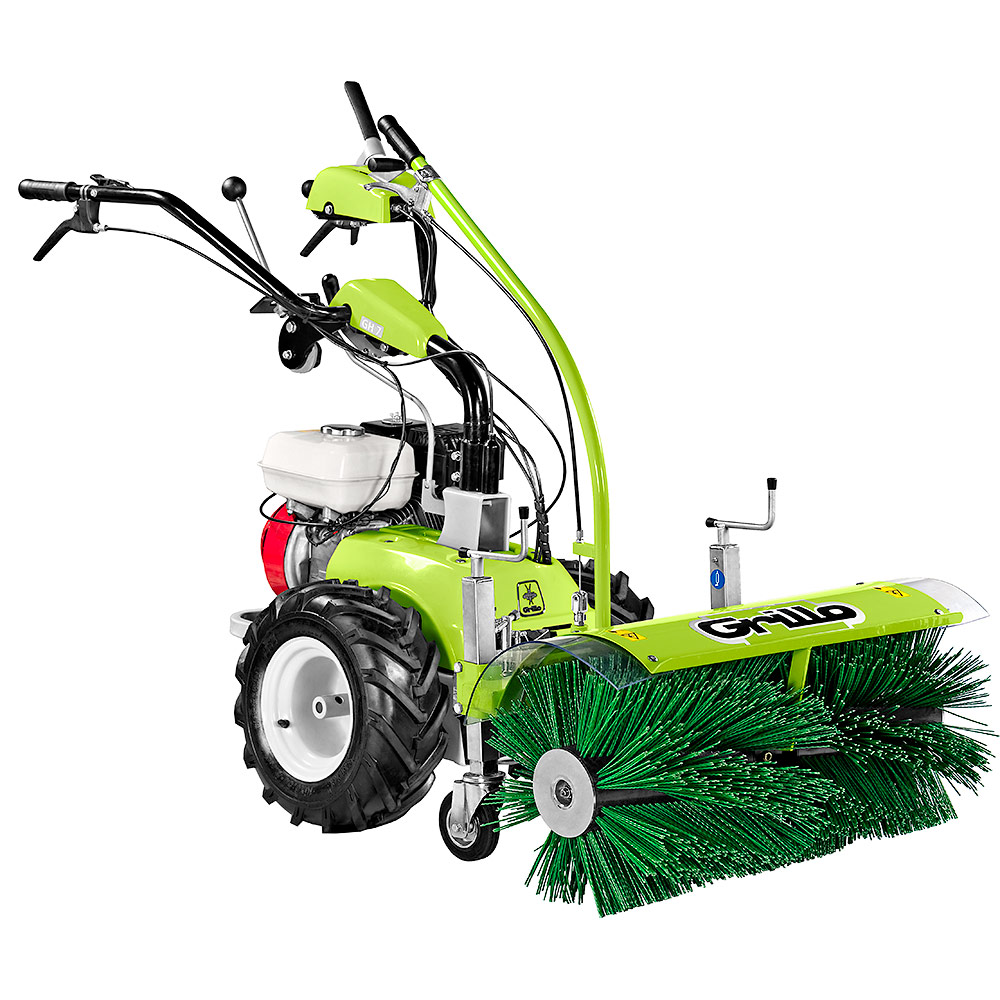

Orientable and tilting sweeper, 100 cm

to be applied on GH 7 - GH 8 - GH 8 AGM - GH 9 - GH 9 AGM

item no.: 9M6022

weight: 55 kg

Brushes are applied on the front of Grillo walking tractors.
They are equipped with a 400 mm diameter roller with polypropylene spatula.
It is ideal to put aside fresh snow and to clean up sideways, roads, cycle paths, avenues and parking lots.
The gear transmission is in oil-bath.
A lever is comfortably operated from the driver's position to quickly incline the brush up to 25° towards right or left.
The brush is also equipped with height-adjustable, pivoting support wheels to suit any working condition.
Grillo brushes do not damage nor scratch the areas where they are used thanks to their highly-resistant and flexible spatula.
