Technical data sheet 12000

Back to

	Engine	Kohler KD15 440 Start recoil starter Supply diesel Displacement 441 cc, 1 Cylinder Power 11 HP (8.1 kW) Air cooled Oil bath air filter
	Engine	Kohler KD15 440 Start recoil starter and electric with 12V battery Supply diesel Displacement 441 cc, 1 Cylinder Power 11 HP (8.1 kW) Air cooled Oil bath air filter
	Fuel tank capacity	5,0 L

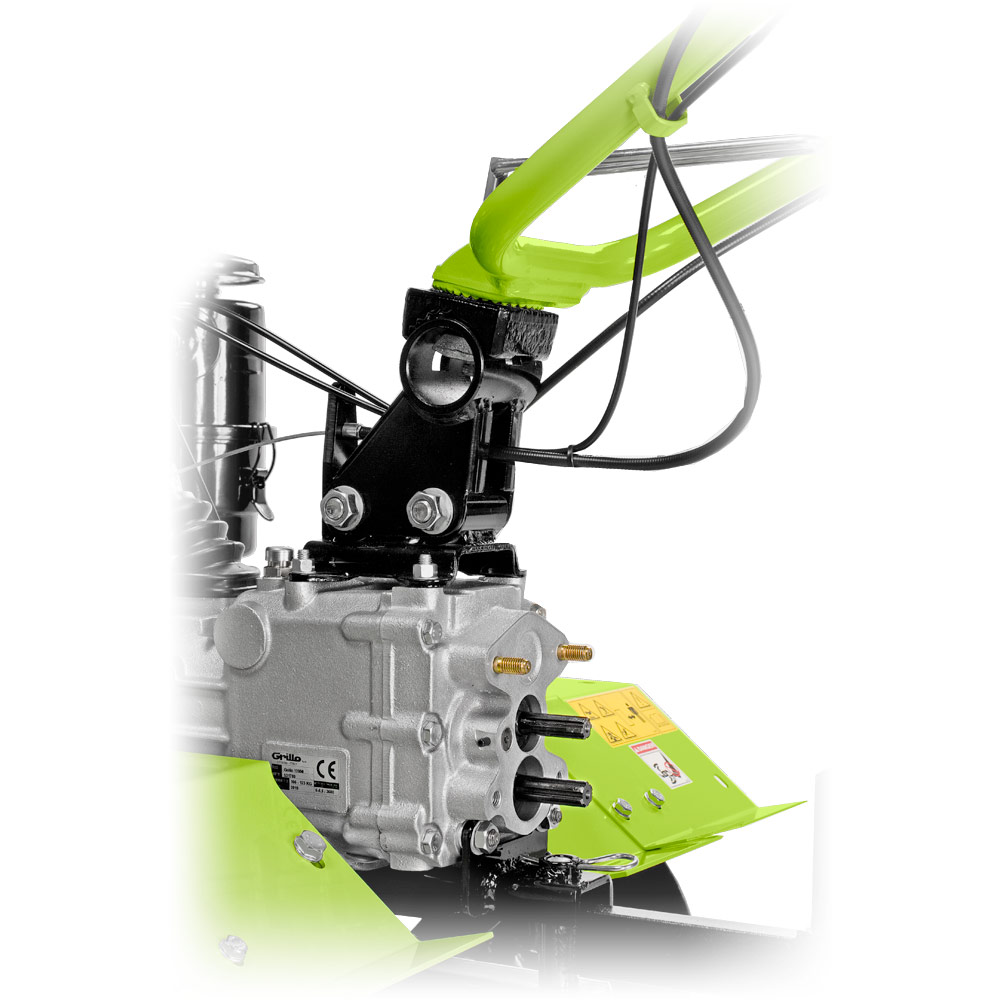

	Transmission	with oil bath gears
	Gearbox	3 forward gears + 1 reverse gear
	Clutch	conic active
	Standard rotary tiller	With 6 hoes system and side discs, working width 99 cm. With hexagonal shaft 27 mm
	Hoes system diametre	34 cm
	Working width area with side disks	Adjustable at 72 and 99 cm (125 cm with extension kit cod. 933112)
	Working depth area without side disks	Adjustable at 59 and 86 cm ( 112 cm with extension kit cod. 933112)
	Working depth	33 cm
	Max. revolutions tiller	1st gear 82 rpm – 2nd gear 137 rpm – 3rd gear 191 rpm – reverse gear 52 rpm
	P.T.O.	2 P.T.O: a superior P.T.O. running at the engine in anti-clockwise rotation, 11UNI 221. A second inferior synchronised P.T.O. with gearbox speeds in clockwise rotation 13 UNI 221

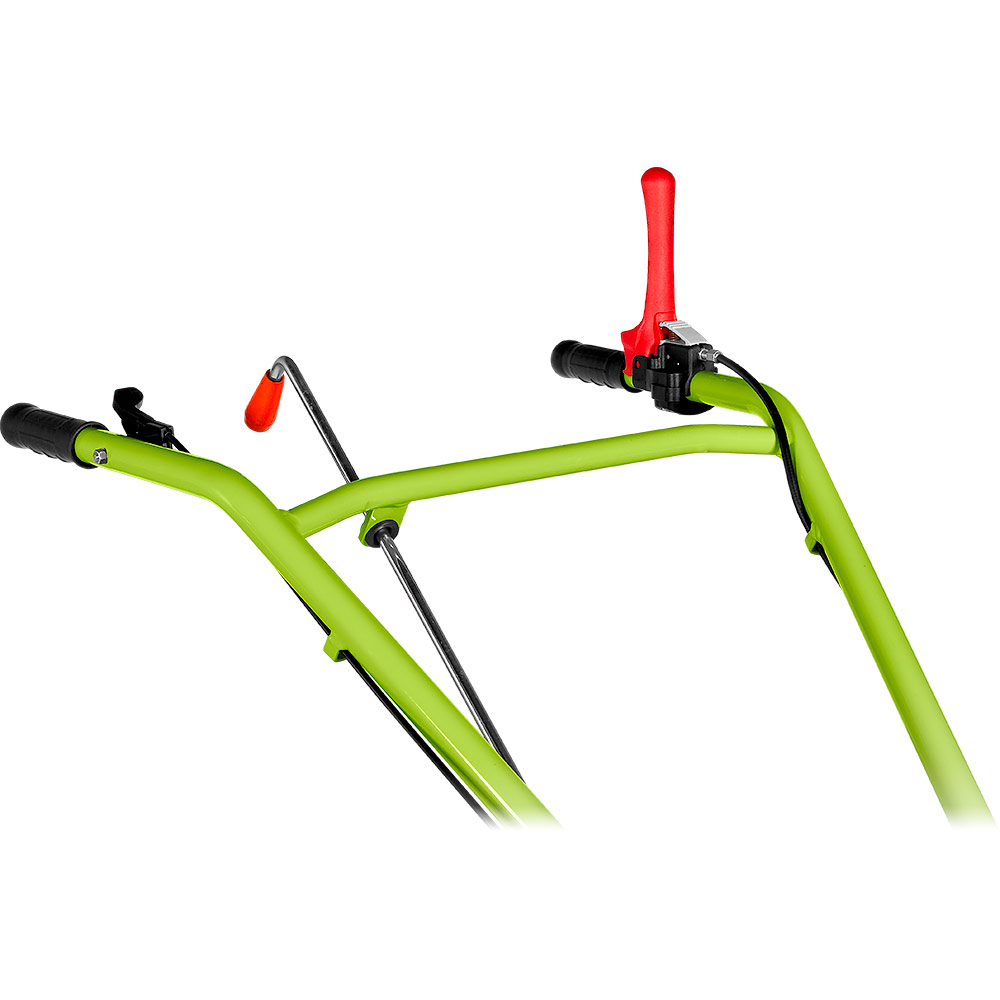

	Handlebar	Adjustable in all positions. Mounted on anti-vibration blocks.
	Weight	131 kg with eng. 15 LD 440 with electric starter - 118 kg with eng. 15 LD 440 with recoil starter
