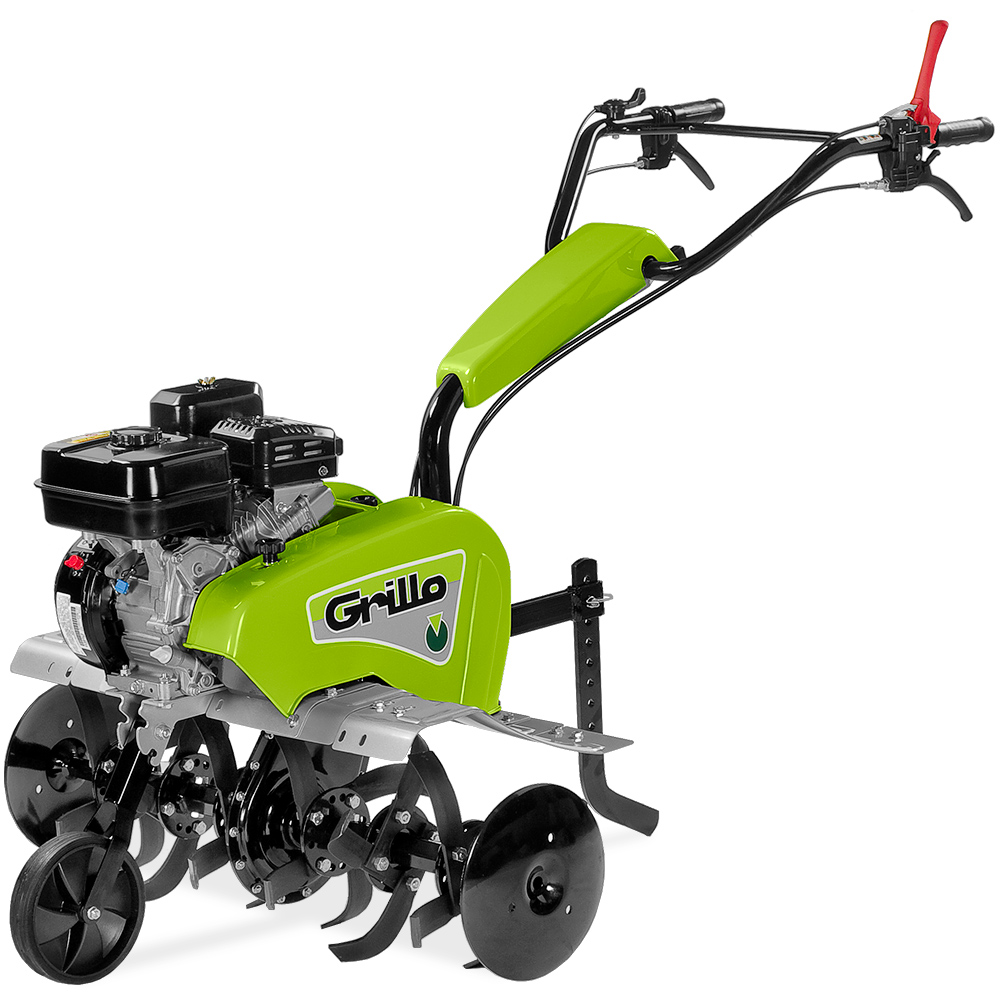

Princess 9 2MR PRO

NEW MODEL

2 forward + 1 reverse gear

Gear housing in press-formed plate sections secured by bolts

Belts in kevlar (high performance)

Handlebar easy to control and fully adjustable

Rotary tiller width 90 cm

Rotary tiller axle: hexagonal

Travel wheel at front supplied as standard

Technical data sheet Princess 9 2MR PRO

	Engine	Grillo EX17 OHC Start recoil starter Supply fuel Displacement 169 cc, 1 Cylinder Power 5 HP (3.7 kW) Air cooled Dry air filter with interchangeable filter cartridges
	Engine	Honda GX160 OHV Start recoil starter Supply fuel Displacement 163 cc, 1 Cylinder Power 4.8 HP (3.6 kW) Air cooled Oil bath air filter
	Fuel tank capacity	3,1 L eng. GX160 OHC - 3,6 L eng. EX 17
	Clutch	With lever control on the handlebar working on the belt tensioner
	Final drive	2 forward gears + 1 reverse gear
	Standard rotary tiller	with 6 hoes and several tillers, working width 97 cm. With hexagonal shaft 27 mm
	Hoes system diametre	33 cm
	Working width area with side disks	adjustable at 97 and 69 cm
	Working depth area without side disks	adjustable at 82 and 56 cm
	Working depth	33 cm
	Max. revolutions tiller	1st gear 105 rpm – 2nd gear 175 rpm – reverse gear 40 rpm
	Carter of the tiller	bolted, pressed steel with screwed shells
	Handlebar	height and side adjustment
	Standard features	front transfer wheel
	Safety devices	machine cut-out on release; mudguards and handlebar according to the law; muffler protection
	Weight	78 kg with eng. GX160 OHC - 80 kg with eng. EX 17
