PX32

Dear Customer, we remind you that this model has been discontinued but its spare parts and our After Sales&Service are always at your disposal. Discover the new models!

Technical data sheet PX32

Back to

	Engine	Honda GCV170 OHC Start recoil starter Supply fuel Displacement 166 cc, 1 Cylinder Power 4.8 HP (3.6 kW) Air cooled Dry air filter with interchangeable filter cartridges
	Fuel tank capacity	0,9 L
	Transmission	with gears in oil bath
	Gearbox	1 forward gear + 1 reverse gear
	Clutch	with coupling
	Standard rotary tiller	with 4 tines + tillers, working width 52 cm
	Hoes system diametre	28 cm

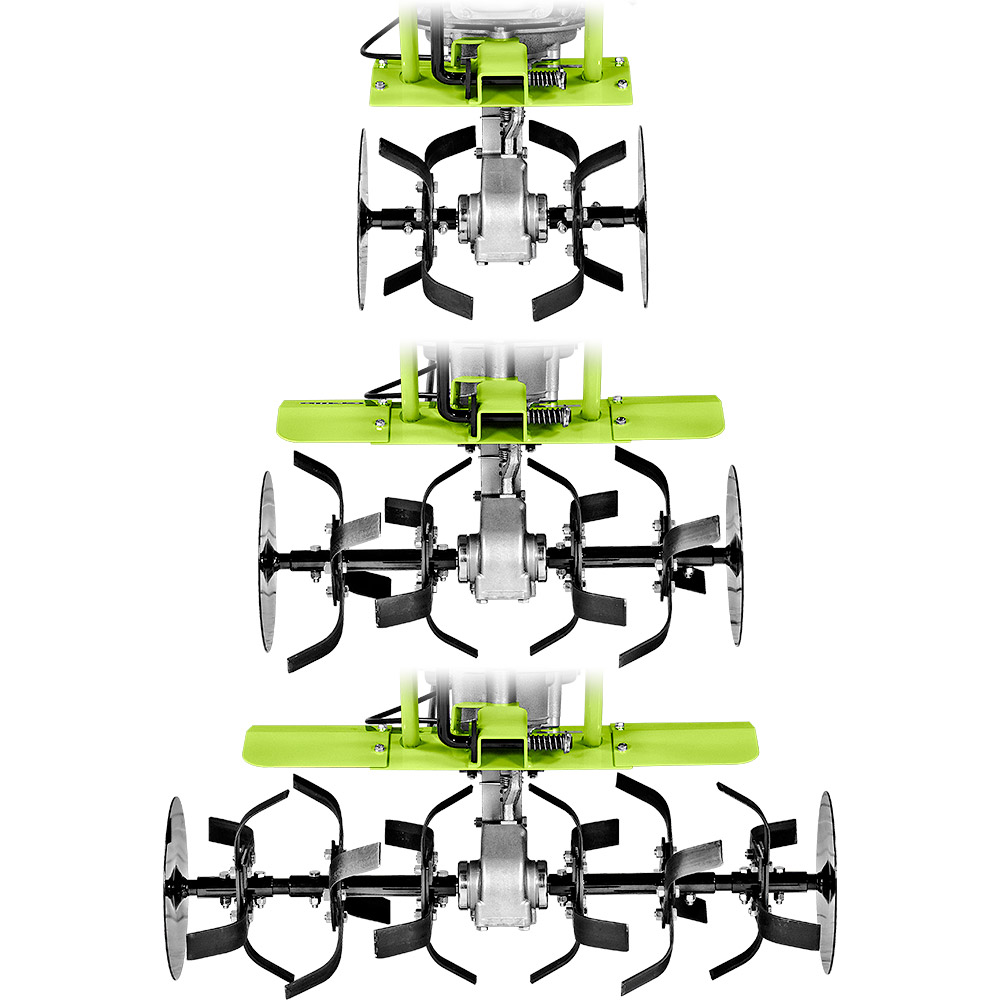

	Working width area with side disks	57 cm (adjustable at 35 and 79 cm with extension kit code 990012)
	Working depth area without side disks	52 cm (adjustable at 30 and 74 cm with extension kit code 990012)
	Working depth	28 cm
	Max. revolutions tiller	forward gear 140 rpm - reverse gear 52 rpm

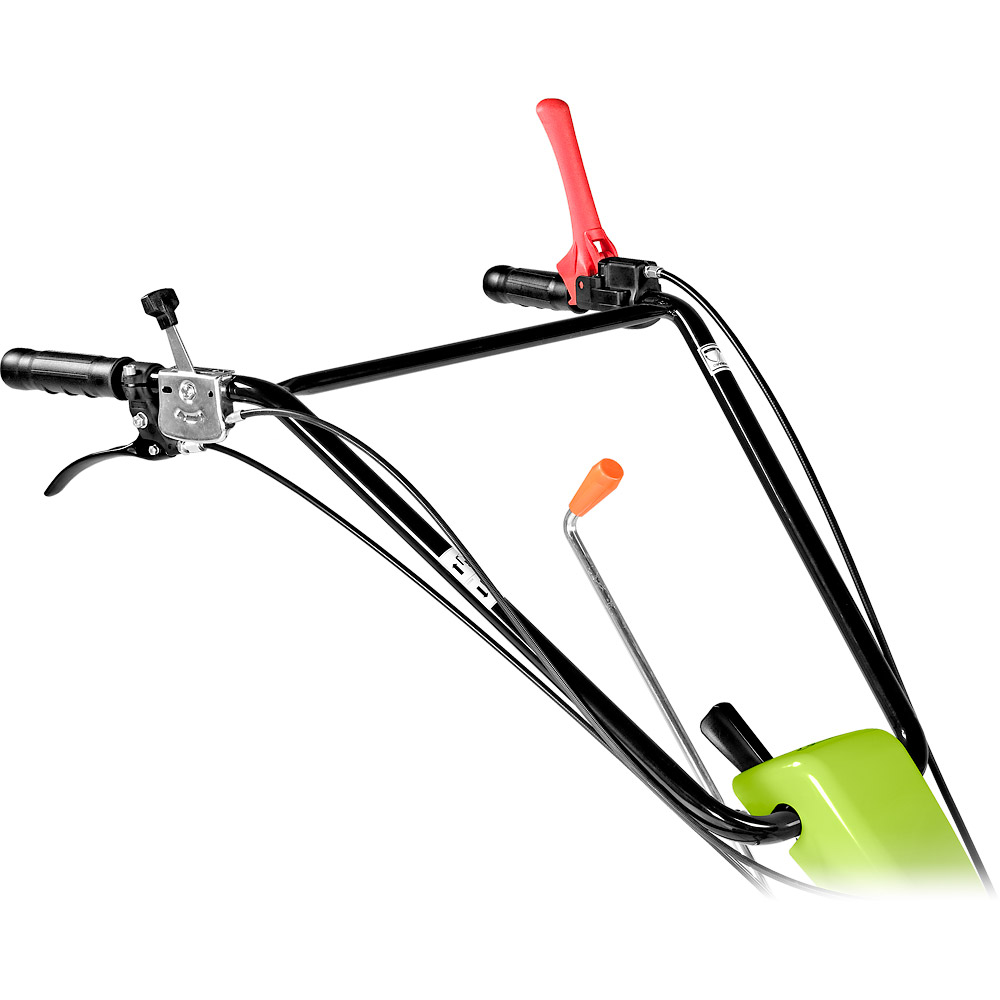

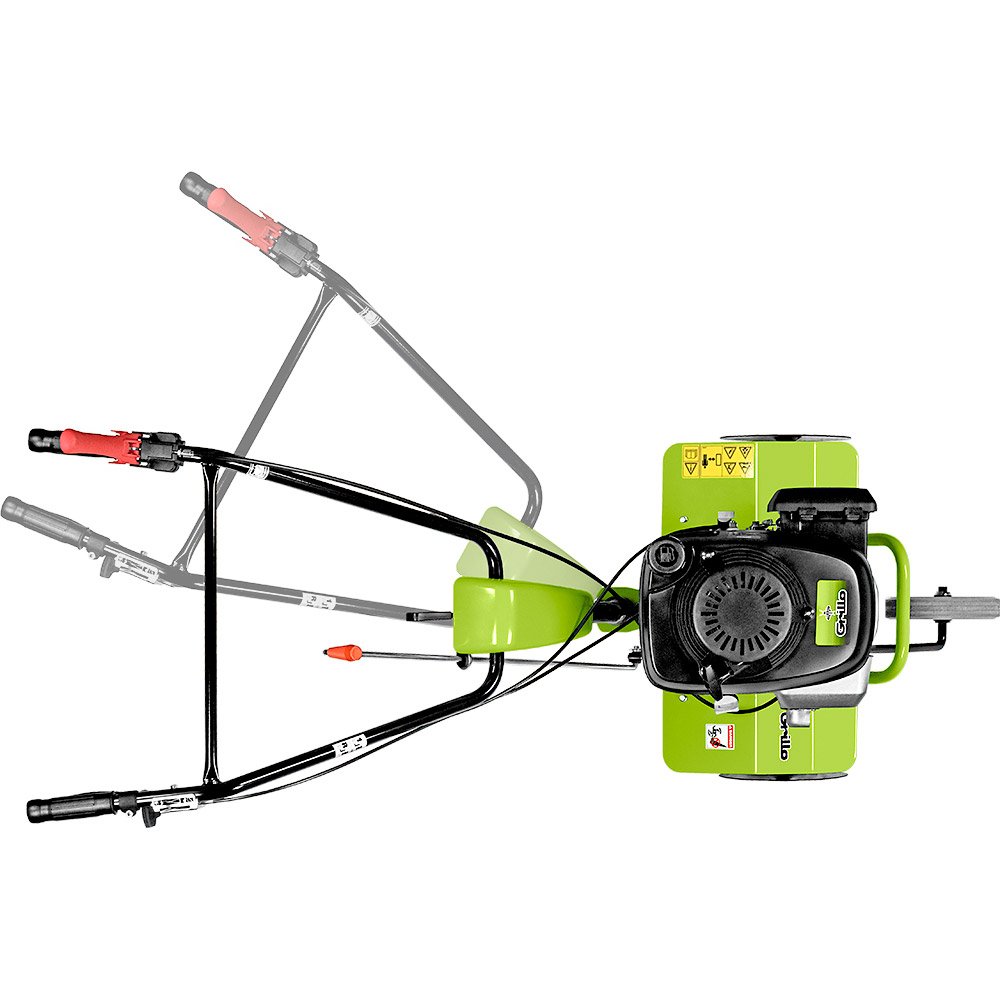

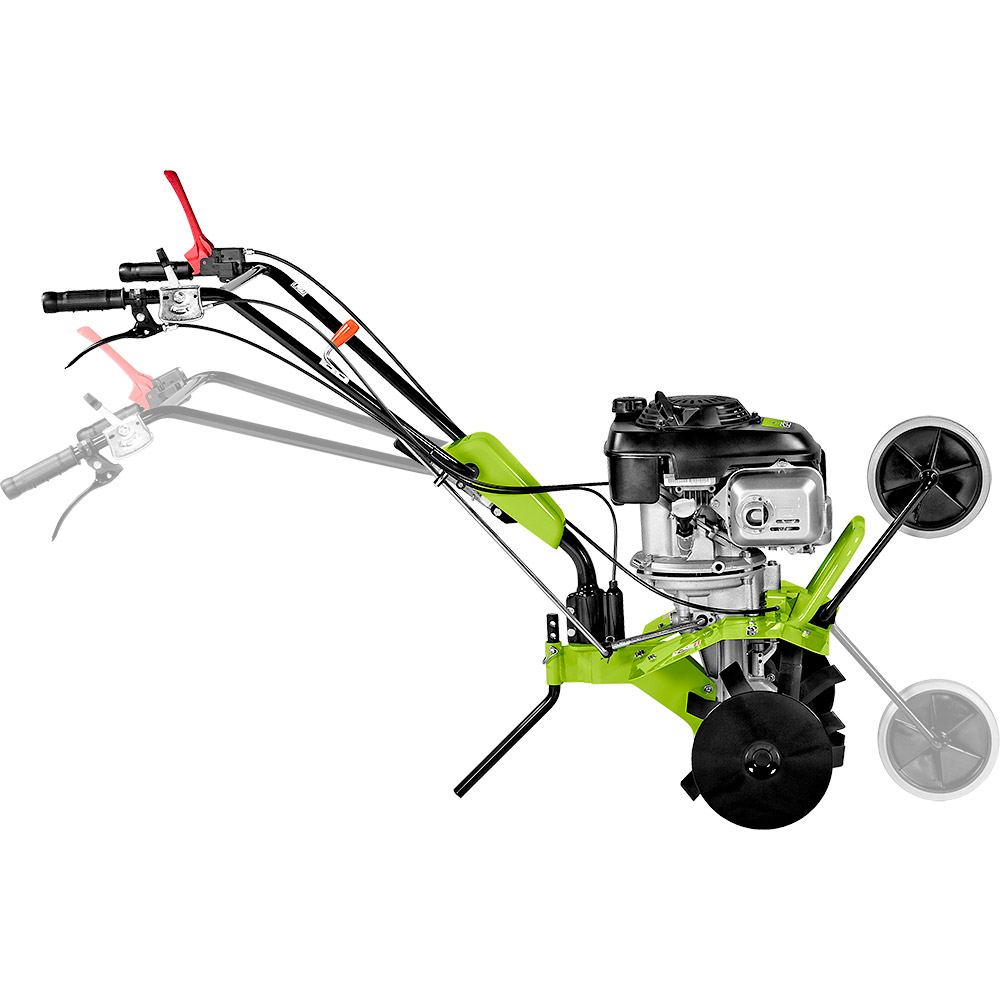

	Handlebar	height and side adjustment
	Standard features	transfer wheel
	Safety devices	machine cut-out on release; mudguards and handlebar according to the law; muffler protection
	Weight	42 kg
