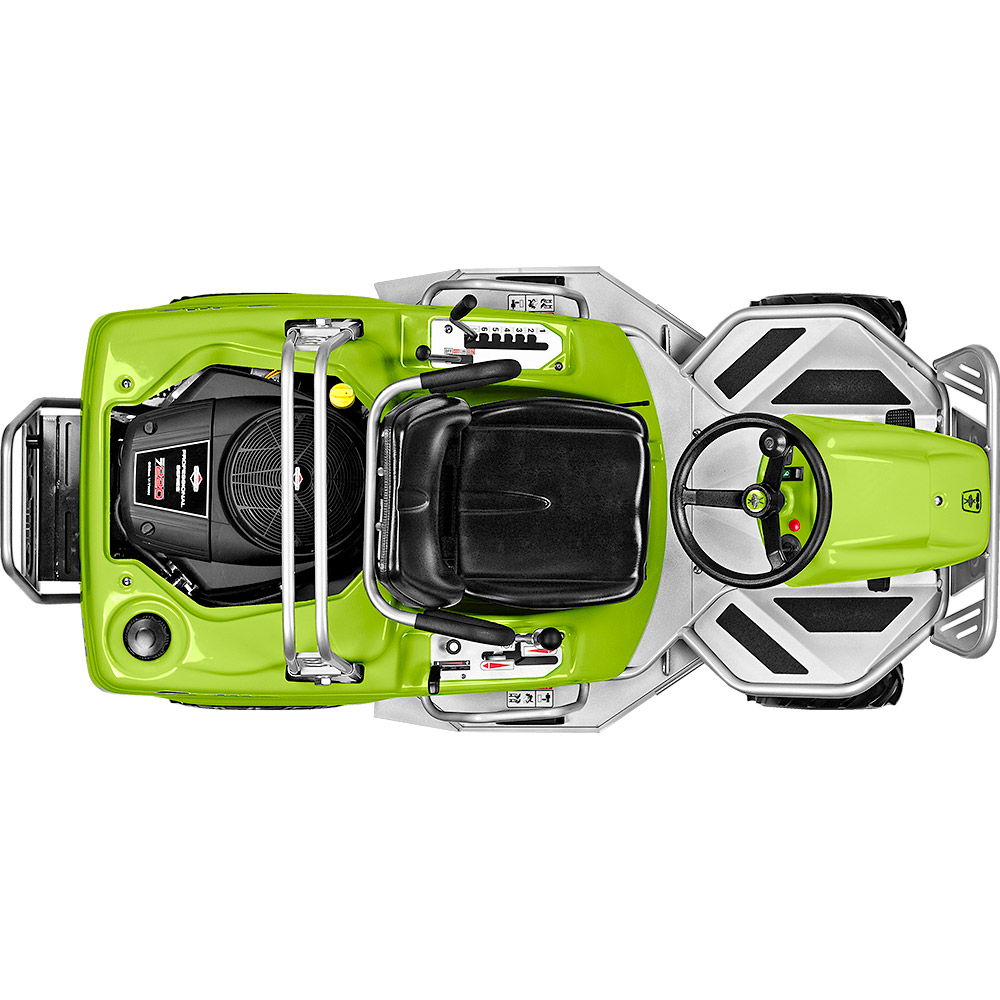

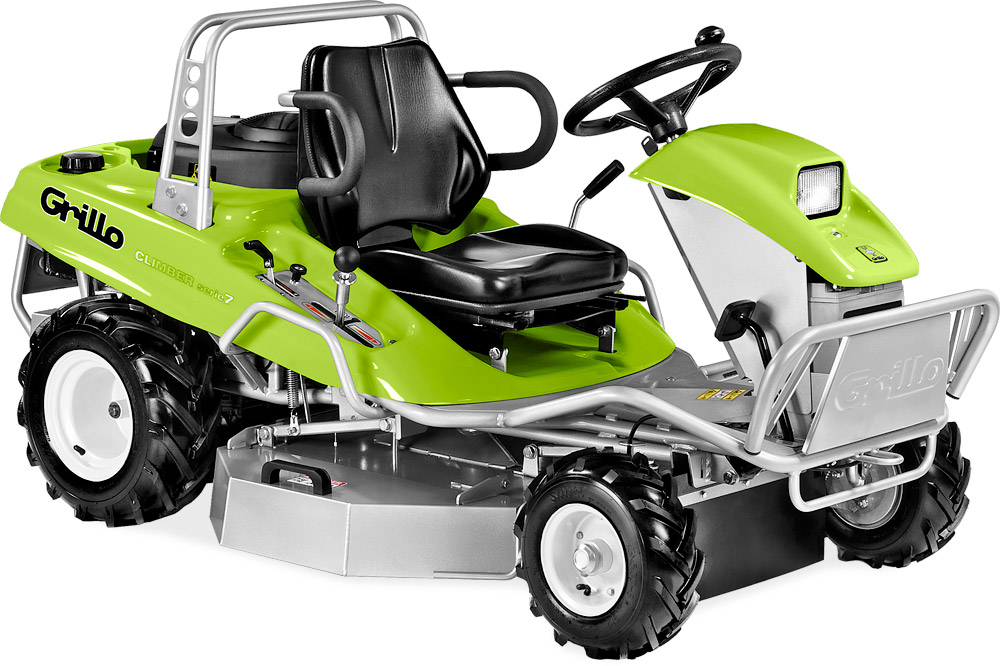

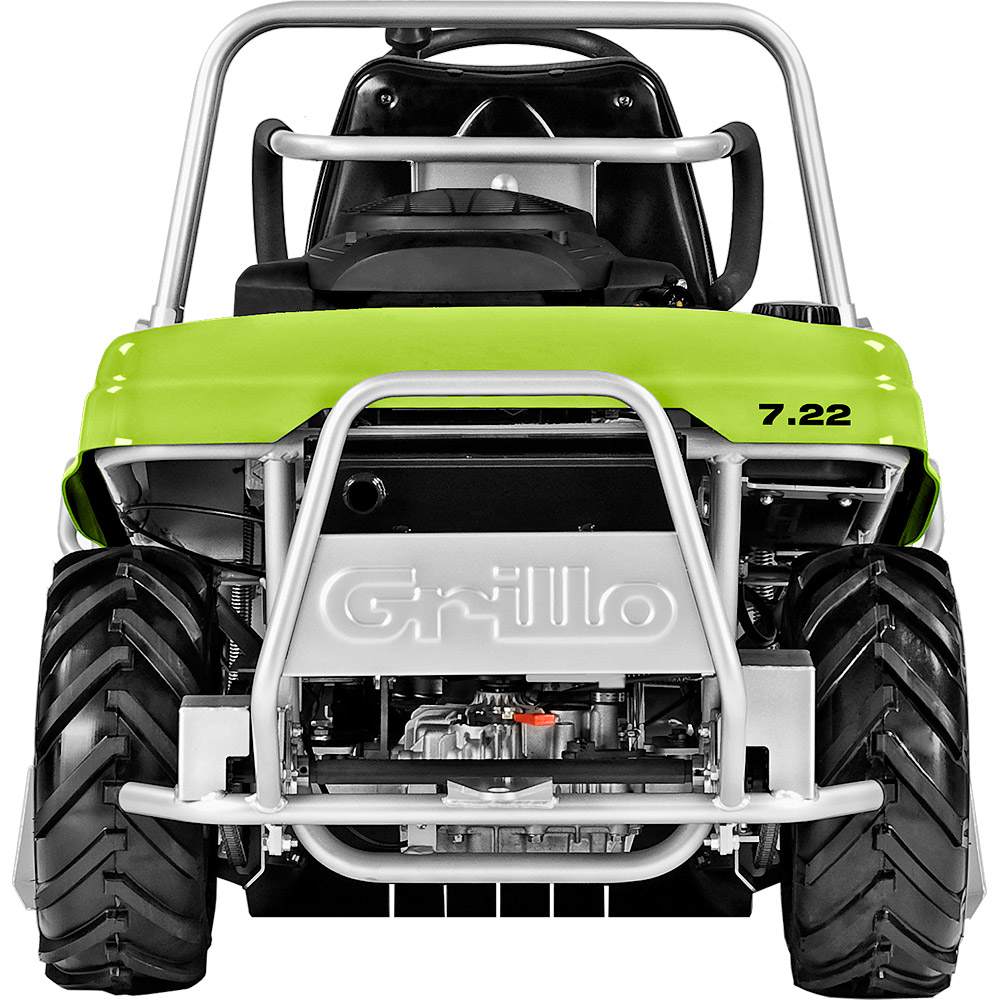

Climber 7.22

Dear Customer, we remind you that this model has been discontinued but its spare parts and our After Sales&Service are always at your disposal. Discover the new models!

Technical data sheet Climber 7.22

Back to

	Engine	Briggs & Stratton 7220 PXi PROFESSIONAL Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) - Gross power 22 HP Air cooled Dry air filter
	Fuel tank capacity	7 litres (reserve tank 1 litre)
	Gearbox	Hydrostatic transmission
	Clutch	Electromagnetic clutch for PTO with blade brake
	Cutter deck	Side/rear discharge
	Cutting configuration	1 rotating blade
	Cutting width	850 mm
	Cutting height	6 different cutting positions from 35 to 85 mm and 1 position for transport
	Peripheral blade speed	76 m/s
	Differential locking	Differential lock with pedal engagement
	Front tyres	Tractor 13x5.00-6 wheels
	Rear tyres	Tractor 16x6.50-8 wheels
	Speed	Continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h
	Inner turning radius	45 cm
	Seat	Dampened and adjustable seat, with roll bar
	Service brake	On the front wheels brakes are pedal-operated
	Parking brake	On the rear wheels brakes are lever-operated
	Mowing capacity per hour (indicative)	6000 m^2/h
	Standard features	Tow bar and front headlight
	Length	1895 mm
	Width	956 mm
	Height	980 mm
	Weight	245 kg

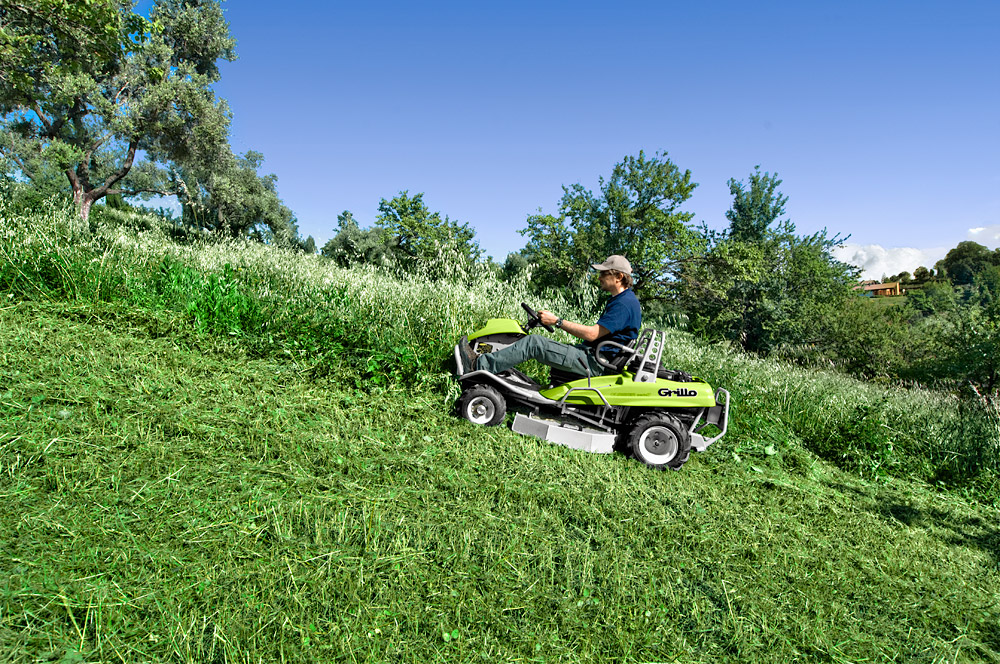

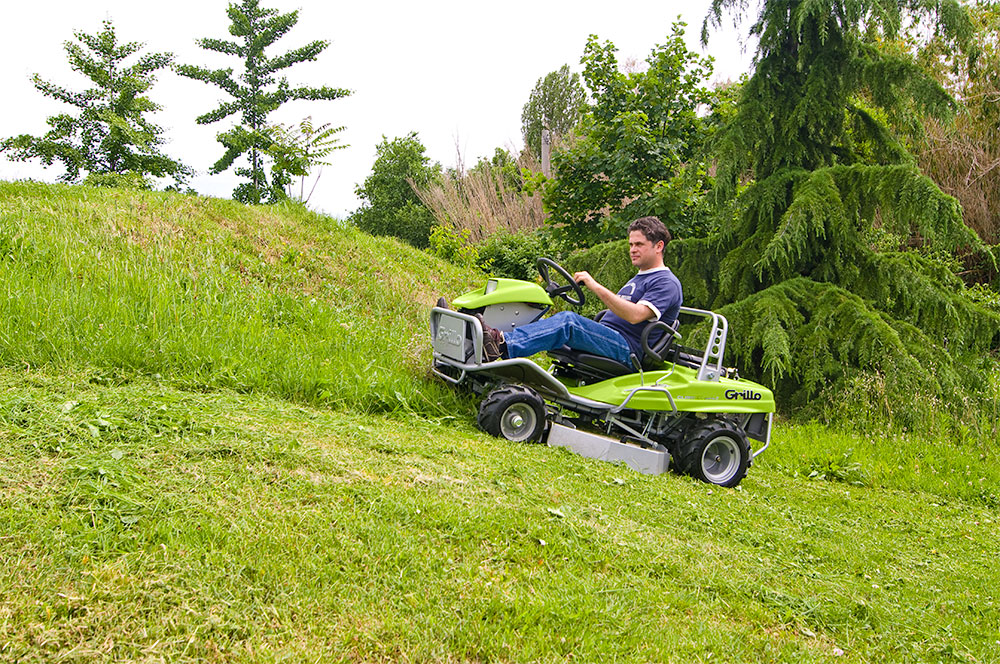

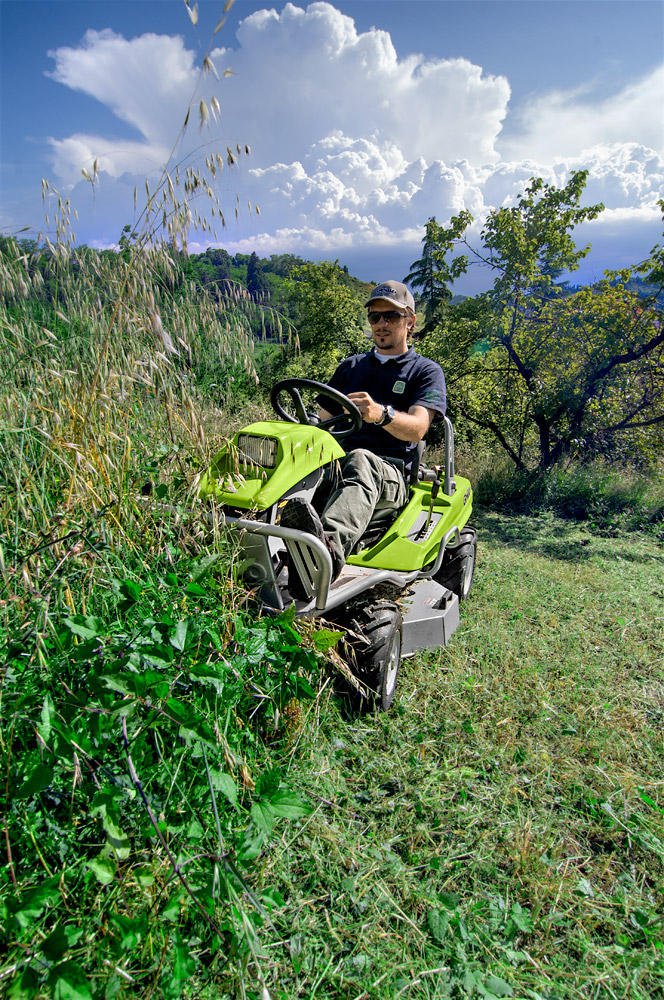

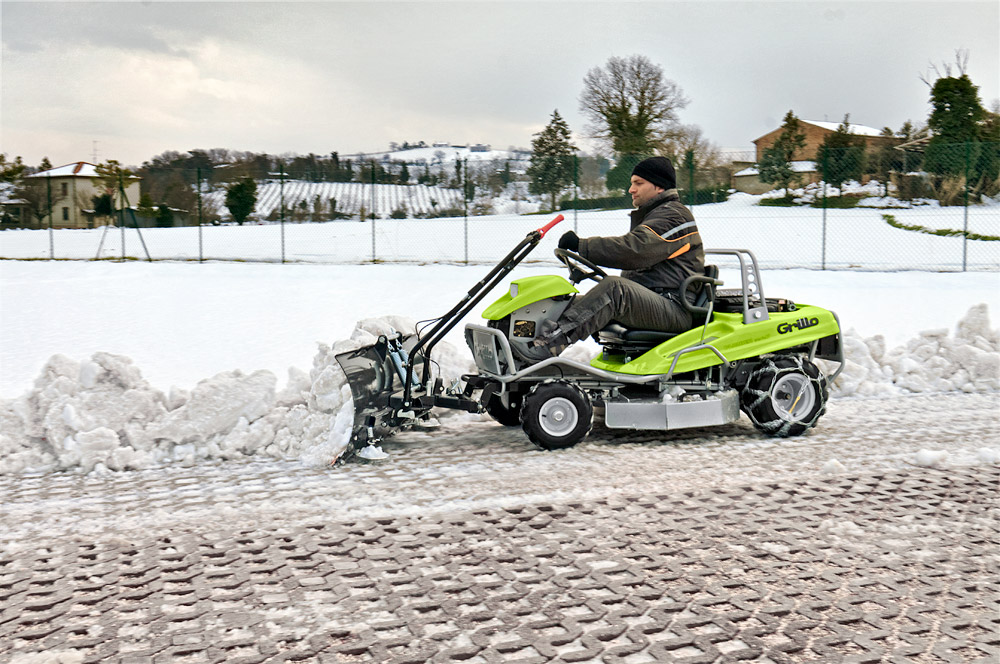

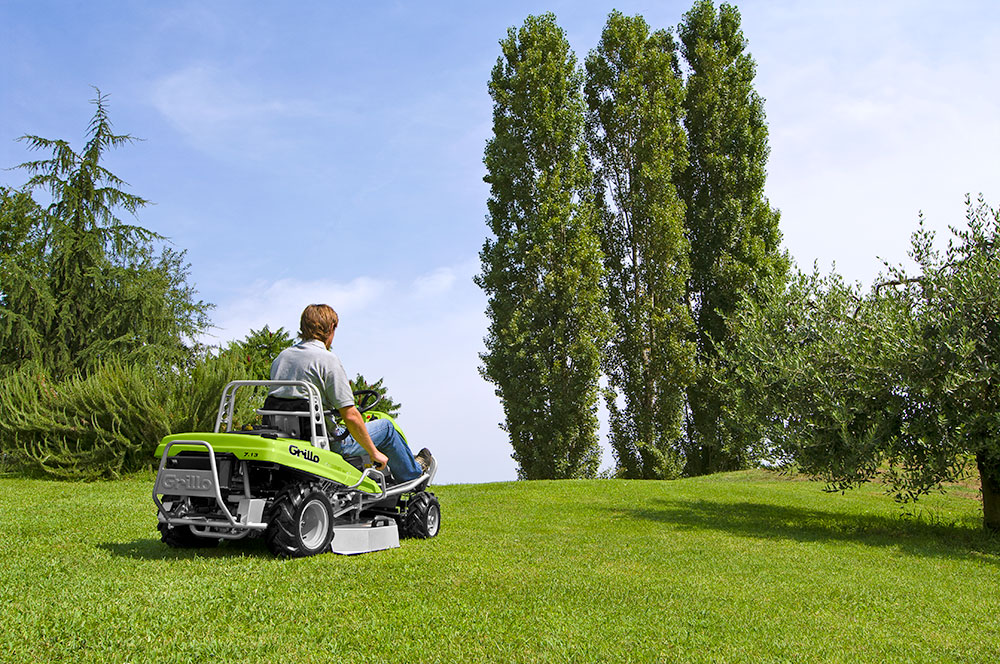

In action! Photos and Videos
