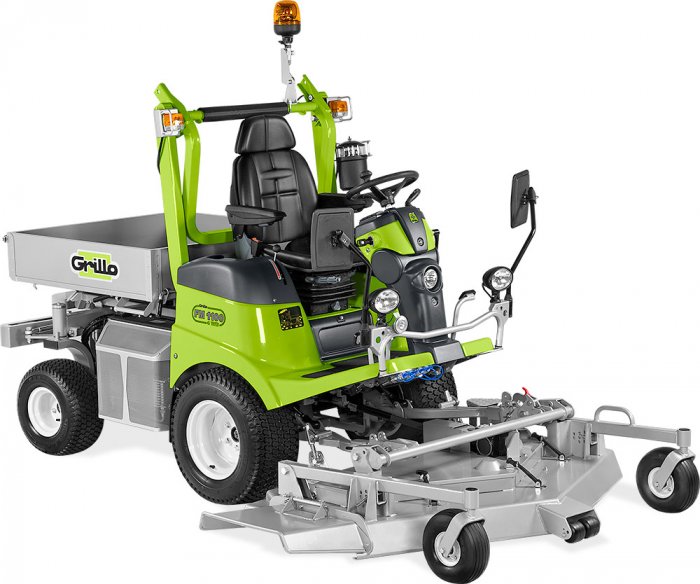

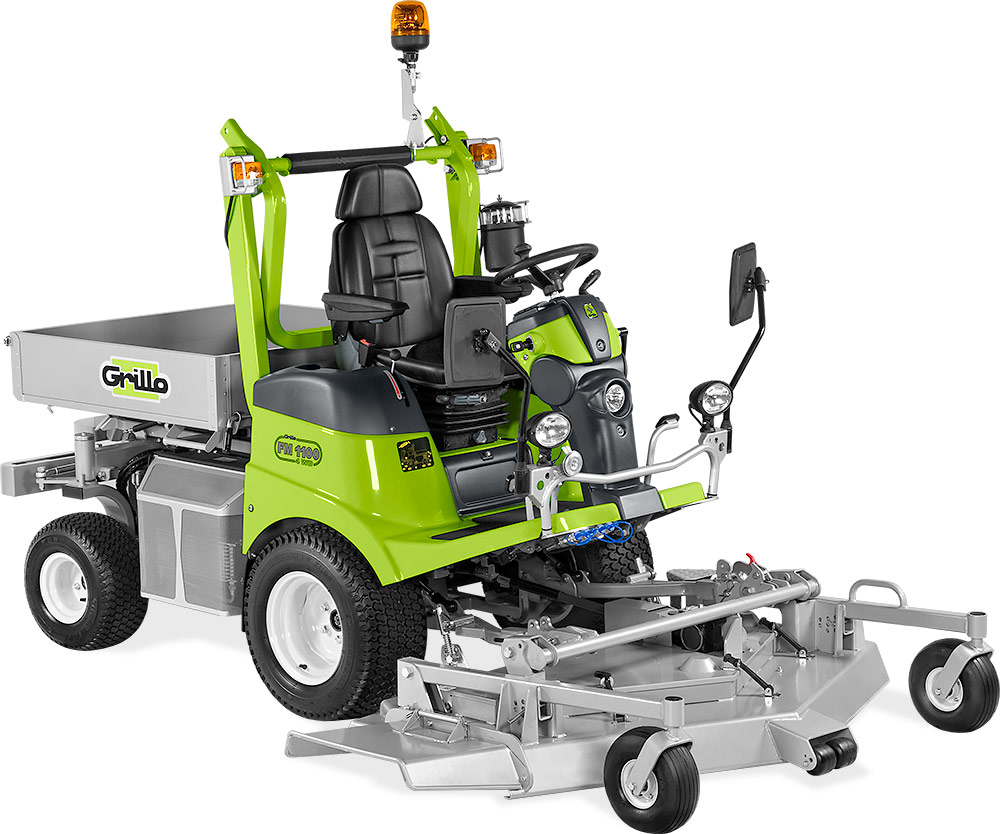

FM 1100 4WD

Hydrostatic 4WD lawnmower with out-front cutter deck and a high performance 26 HP engine

Dear Customer, we remind you that this model has been discontinued but its spare parts and our After Sales&Service are always at your disposal. Discover the new models!

Technical data sheet FM 1100 4WD

Back to

	Engine	Yanmar 3TNV76 Start electric, with 12 V battery Supply diesel Displacement 1116 cc, 3 Cylinders Power 26 HP (19.2 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges
	Fuel tank capacity	25 L
	Hydraulic oil tank	20 L
	Traction	Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
	Gearbox	Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
	Clutch	Clutch: electromagnetic for PTO with magnetic blade brake
	Load bed	Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened
	Differential locking	Automatic and manual by push-button control
	Front tyres	Turf 23x10.50-12
	Rear tyres	Turf 18x8.50-8
	Steering system	Steering wheel fixed on a reclinable column
	Speed	Continuously variable from 0 to 15 km/h
	Inner turning radius	310 mm
	Seat	Comfortable seat equipped with springs and adjustable, with arm-rests
	Service brake	Brake drum
	Parking brake	Brake drum
	Mowing capacity per hour (indicative)	10000 m^2
	Standard features	Twin-hydraulic takes-off (max. pressure 120 bar, max. capacity 18L/1’ at 3000 rpm) lights and indicator kit

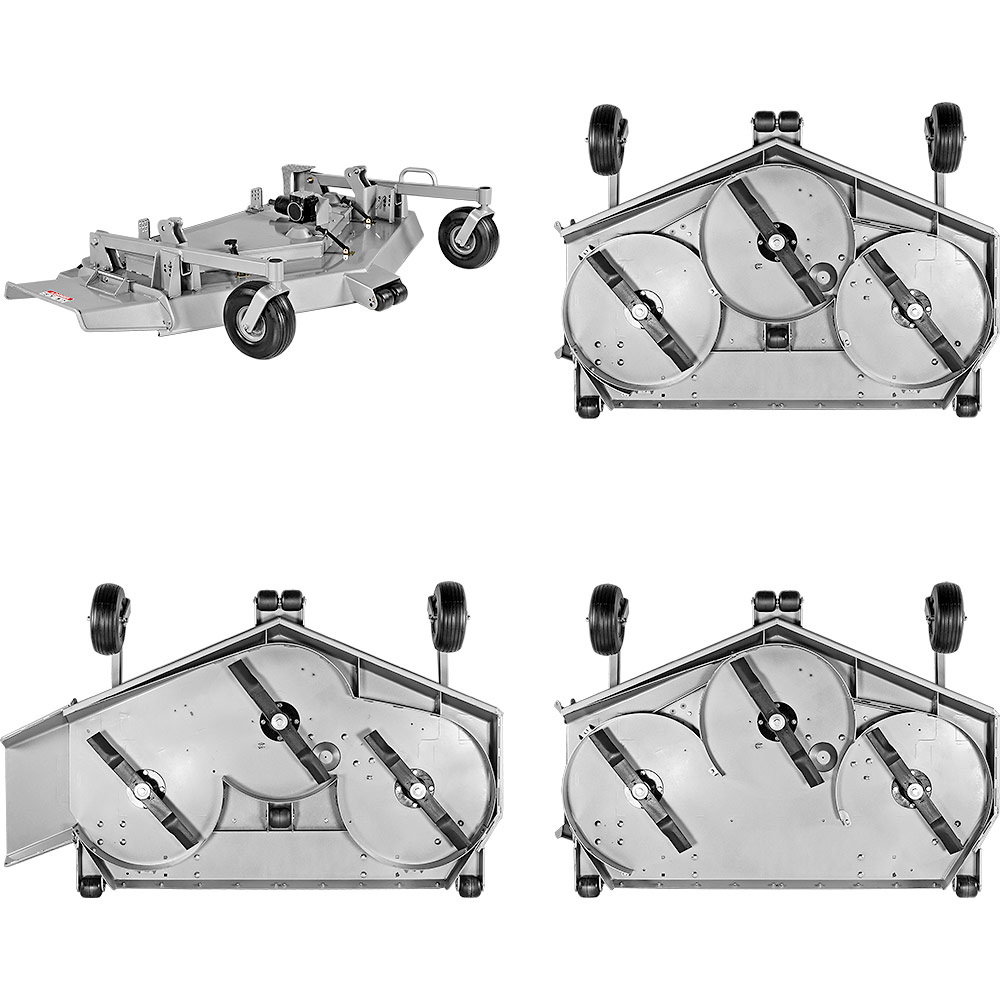

	Length	3250 mm with cutter deck [cod. 9M0412 9M2511]
	Width	1920 mm with cutter deck [cod. 9M0412 9M2511]
	Height	1750 mm with the roll bar let down
	Weight	880 kg without cutter deck - 1050 kg with cutter deck [cod. 9M0412 9M2511]

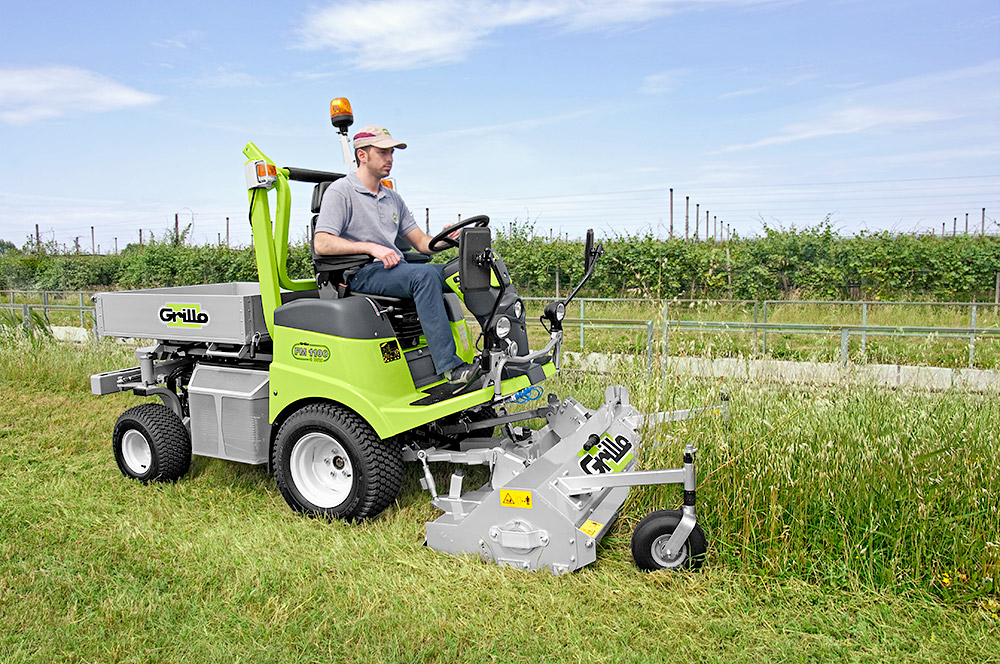

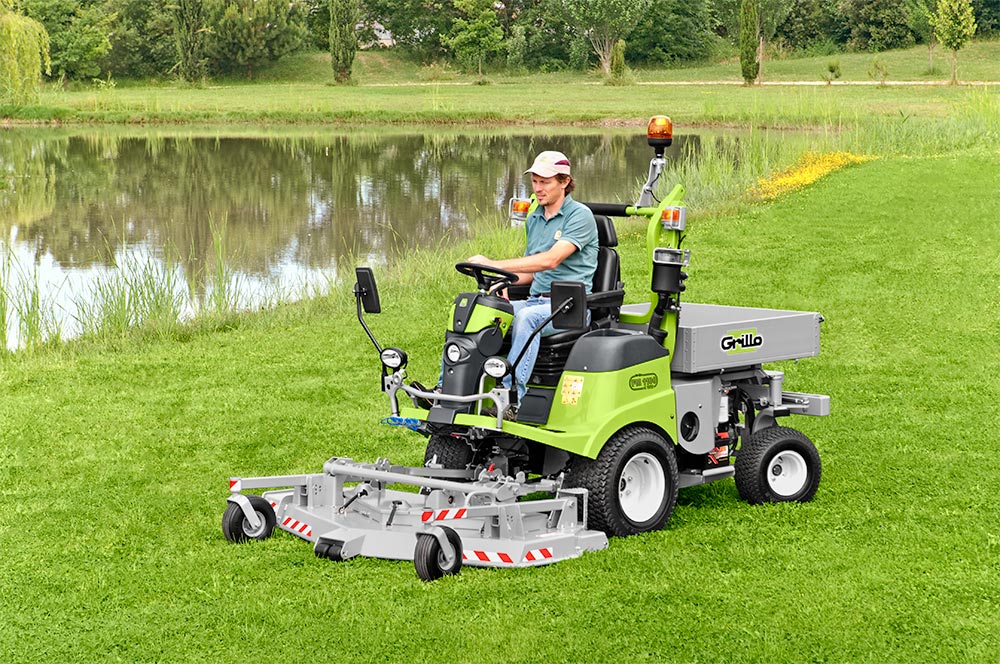

In action! Photos and Videos
