Grillo FM 13.09 guarantees great hourly output both in large spaces and in small areas with obstacles such as plants and benches.
The front deck of the Grillo FM 13.09, together with the comfortable driving position with pneumatic sprung seat, allow an inimitable working visibility.
The deck is floating with hydraulic assistance and allows a regular and precise cut even in terrain with bumps or dips. The cutting quality is exceptional, even in difficult conditions of wet and tall grass. The inner steering radius of just 31 cm and the automatic or manual differential lock allow to easily overcome any obstacles. The rear axle is tilting and allows to easily overcome pavements and kerbs, maintaining traction on the 4 wheels even on irregular terrain.

The Grillo FM 13.09 has the MP 130, LMP 160 3-blade with side discharge – mulching – rear discharge, the 130 cm and 160 cm mulchers and 150 cm snow blade. It is also equipped with 2 electrically operated hydraulic services for handling accessories, with a capacity of up to 18 l/1' at 120 bar. It uses 1/4" front-mounted quick couplings.

The 130 MP cutter deck with 3 blades and a cutting width of 130 cm is equipped with a rear discharge function and mulching cut. Switching between the two cutting modes, and also adjusting the cutting height, is done via elector-hydraulic push-button controls directly from the driver's seat.

The FM 13.09 has a steel caisson with aluminum sides, size 105×105 cm, which, once raised by means of a gas spring, provides easy access to the engine compartment cover.


It is also equipped with a self-cleaning radiator, with an electric fan that reverses the direction of rotation to eliminate any grass clippings on the radiator: this system is automatic and regulated by a sensor, but can also be activated manually.

The PTO clutch is hydraulic multi-plate with built-in blade brake and electrically actuated via a push button.
It guarantees high torque transmission with low usage and consequently long service life.
The ferrule-type blade brake is adjustable so that its efficiency can be maintained over time, recovering the wear and tear of the friction material. In addition, because of the arms used by Grillo, tipping and maintenance of the plates and replacement of accessories are easy.

The painting of Grillo machines is double-layer electrostatic powder. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking at 190°C give the characteristic hardness and gloss.
The Grillo FM 13.09 4WD is meticulously assembled and thoroughly tested by specialized personnel. The final testing of the FM 13.09 4WD includes a test with the engine running to check all functionality. A further and final guarantee for a high quality product.

Grillo products are distributed and serviced extensively by Grillo's network of specialist dealers. Spare parts are available even after many years.


Technical data sheet
Technical data sheet FM 13.09 Stage5 4WD
Engine Yanmar 3TNV82A Stage5
Start electric, with 12 V battery
Supply diesel
Displacement 1331 cc, 3 Cylinders
Power 26 HP (18.9 kW)
Liquid cooled
Dry air filter with interchangeable filter cartridges, safety filter and prefilter
Fuel tank capacity 23 L
Hydraulic oil tank 20 L
Traction Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
Gearbox Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
Clutch Clutch: electromagnetic for PTO with magnetic blade brake
Cutter deck with rear and side discharge / mulching
Cutting deck width 160 cm
Cutting height from 2 to 10 cm
Load bed Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened
Differential locking Automatic differential lock and manual with push button
Front tyres 23x10.50-12 TURF WHEELS
Rear tyres 18x8.50-8 TURF WHEELS
Steering system Hydraulic drive with steering wheel
Speed From 0 to 15 km/h continuously variable
Inner turning radius 31 cm
Seat Super comfort and adjustable sprung seat with arm-rests.
Service brake Drum brake
Parking brake Drum brake
Mowing capacity per hour (indicative) 12000 m²/h
Standard features Twin-hydraulic takes-off (max. pressure 120 bar, max. capacity 34L/1’ at 2400 rpm). Lights and indicator kit
Length 325 cm
Width 192 cm
Height 175 cm
Clear span from the ground 15 cm
Weight 1102 kg (with 160 LMP cutting deck)
In action! Photos and Videos
In action! Photos and Videos
FM 13.09 Stage5 4WD
FM 13.09 Stage5 4WD
Implements
Implements FM 13.09 Stage5 4WD

130 cm MP cutting deck

9M4411
to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9M4411
weight: 148 kg
  • Hydraulic cutting height adjustment
  • Rear discharge and mulching
  • Hydraulic operated Quick Shft lever

Cutting deck LMP 160 cm

9M4511
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9M4511
weight: 170 kg

Three functions:

  • side discharge
  • mulching
  • rear discharge

All purpose flail 160 cm

9G5122
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5711
weight: 240 kg

scarifier blades kit for flail 130 cm

9G6711
to be applied on FD 13.09 Stage5 4WD - FD 900 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9G6711
weight: 4.5 kg

blade kit for 160 cm. all pirpose flail

9G7122
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G7122
weight: 9 kg

Blades scarifier Kit

9G5822
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5822
weight: 4.5 kg

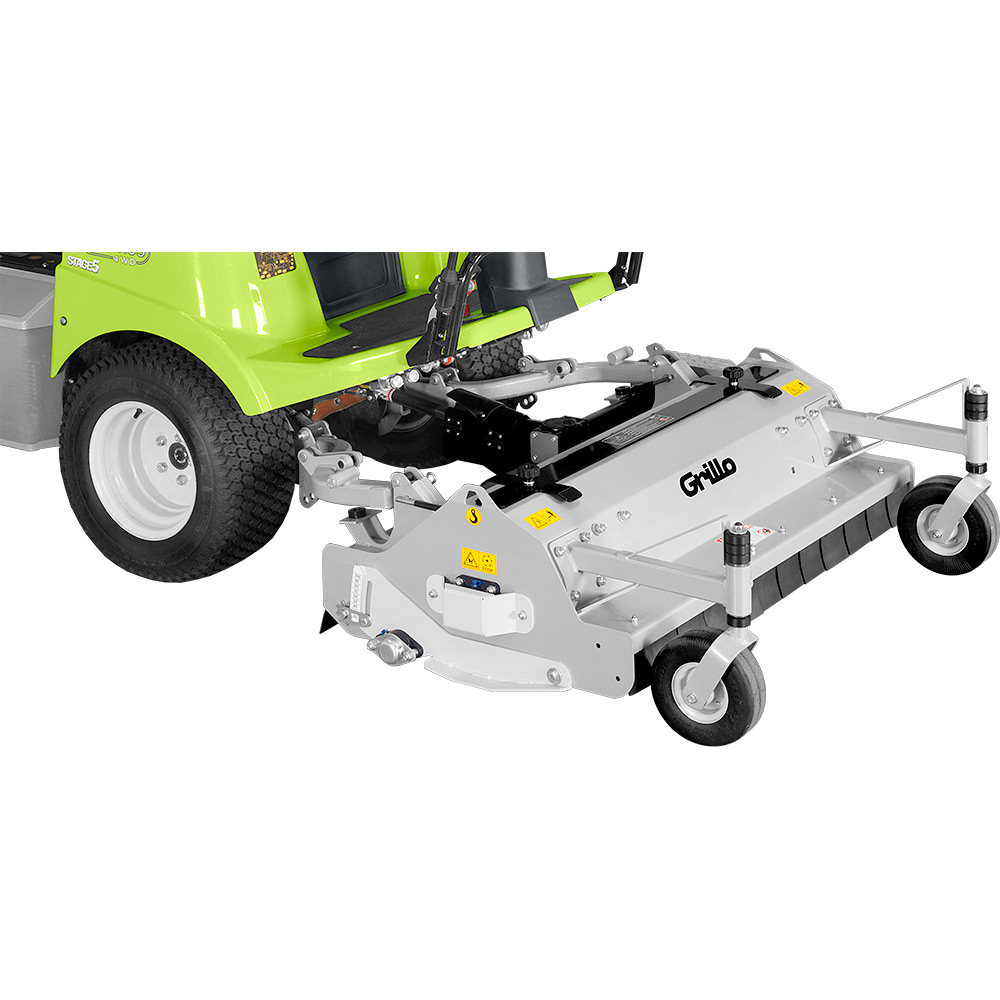

All purpose flail 130 cm with solid wheels

to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9G6811
weight: 200 kg

ALL PURPOSE FLAIL

Snow chains for 23x10.50-12 wheels (pair)

9M3622
to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9M3622
weight: 2 kg

Front blade 150 cm with rubber end

to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9G5222
weight: 135 kg

The orientable front blade allows to rapidly free pathways from snow and ice; it's useful for removing stone piles or sand heaps.
All blade movements are hydraulically controlled; the blade can be lifted up and inclined laterally of + / - 30°.
The rubber end helps avoiding damages on stone pavings and streets.
Hydraulic kit is needed with this implement.

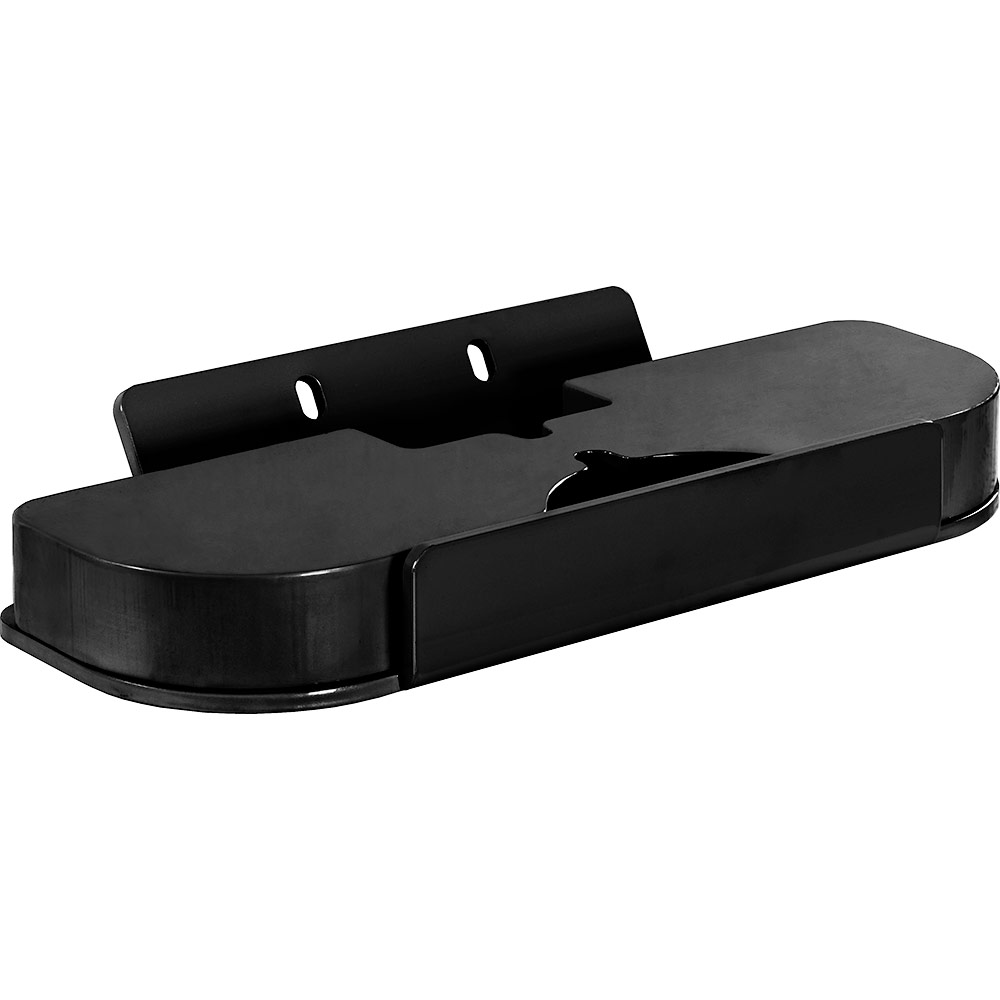

Rear stabiliser weight

9A9411
to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9A9411
weight: 34 kg
Download
Download
Pdf Full Range Catalogue 2024 (Download - file pdf - 21,78 MB)
Pdf FM1309 FM2200 - leaflet (Download - file pdf - 2,51 MB)
