FM 2200 Stage5 4WD

FM 2200 Stage5 4WD
FM 2200 Stage5 4WD FM 2200 Stage5 4WD FM 2200 Stage5 4WD FM 2200 Stage5 4WD FM 2200 Stage5 4WD

The Grillo FM 2200 guarantees a high hourly output in both large spaces and small areas with obstacles such as plants and benches. The FM 2200 offers maximum power and cutting quality in all working conditions, even with wet and tall grass. The large, comfortable driver's seat with pneumatically sprung seat allows perfect working visibility. The deck is floating and allows for a smooth and precise cut even in terrain with bumps or dips. The inner steering radius of only 62 cm and the differential lock with automatic or manual operation make it easy to overcome any obstacle. The rear axle is tilting and allows you to easily overcome pavements and road kerbs, maintaining traction on all four wheels even on irregular terrain.

The Grillo FM 2200 is equipped as standard, at the front, with a hydraulic PTO that can be operated by means of an electric button.
It allows commercial attachments such as salt spreaders, hedge trimmers, brushes, etc.
It delivers up to 34 l/1' at 230 bar.
The oil used by the hydraulic PTO is cooled by a radiator.
Uses 3/8" front-mounted quick couplings.

FM 2200 has the LMP 160 3-blade deck with side/mulching/rear discharge, 160 cm mulcher, and 175 cm snow blade.
It is also equipped with 2 hydraulic services for handling accessories, with a capacity of up to 34 l/1' at 230 bar.

The cab with optional heating allows you to continue working in comfort even during the coldest periods.

FM 2200 has a steel caisson with aluminum sides, size 105×105 cm, which once raised by means of a gas spring, allows easy access to the engine compartment cover.
It is also equipped with a self-cleaning radiator, with an electric fan that reverses the direction of rotation to eliminate any grass clippings on the radiator: this system is automatic and regulated by a sensor, but can also be activated manually.

The PTO clutch is hydraulic multi-plate with built-in blade brake and electrically actuated via a push button.
It guarantees high torque transmission with low wear and consequently long service life.
The friction-type blade brake is adjustable so that its efficiency can be maintained over time, recovering the usage of the friction material. In addition, because of the arms used by Grillo, tipping and maintenance of the plates and replacement of accessories are easy.

The painting of Grillo machines is double-layer electrostatic powder. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking at 190°C give the characteristic hardness and gloss.
The Grillo FM 2200 4WD is meticulously assembled and thoroughly tested by specialized personnel. The final testing of the FM 2200 4WD includes a test with the engine running to check all functionality. A further and final guarantee for a high quality product.

Grillo products are distributed and serviced extensively by Grillo's network of specialist dealers. Spare parts are available even after many years.

Technical data sheet
Technical data sheet FM 2200 Stage5 4WD
Engine Yanmar 3TNV88C Stage5
Start electric, with 12 V battery
Supply diesel
Displacement 1642 cc, 3 Cylinders
Power 37 HP (27.5 kW)
Liquid cooled with electric impeller and equipped with automatic radiator cleaning device
Dry air filter with interchangeable filter cartridges, safety filter and prefilter
Fuel tank capacity 50 L
Hydraulic oil tank 25 L
Traction Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
Gearbox Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
Clutch Hydraulic with electric control activated through PTO with blade brake
Load bed Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened
Differential locking Self-engaging and manual by pushing the button
Front tyres Turf 24x12.00-12
Rear tyres Turf 20x10.00-10
Steering system Steering wheel fixed on a height adjustable and reclinable column
Speed Continuously variable from 0 to 20 km/h
Inner turning radius 620 mm
Seat Comfortable seat equipped with springs and adjustable, with arm-rests and roll bar
Mowing capacity per hour (indicative) 15500 m^2/h
Standard features Twin-hydraulic takes-off (max. pressure 170 bar, max. capacity 34L/1’ at 2400 rpm) Additional hydraulic push-button operated PTO (max pressure 230 bar, max capacity 34 L/1' a 2400 rpm). Lights and indicator kit
Length 2500 mm without cutting deck - 3420 mm with cutting deck [cod. 9M0412]
Width 1350 mm without cutting deck - 1920 mm with cutting deck [cod. 9M0412]
Height 1850 mm with the roll bar let down – 2200 mm with raised roll bar
Clear span from the ground 180 mm
Weight 1127 kg without cutting deck - 1322 kg with cutting deck [cod. 9M0412]
In action! Photos and Videos
In action! Photos and Videos
FM 2200 Stage5 4WD
FM 2200 Stage5 4WD
Implements FM 2200 Stage5 4WD

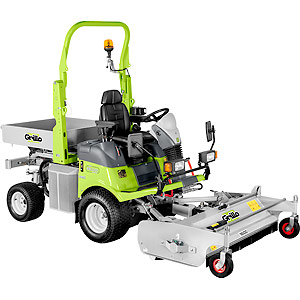

All purpose flail 160 cm

to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5711
weight: 240 kg

to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G7122
weight: 9 kg

Blades scarifier Kit

to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5822
weight: 4.5 kg

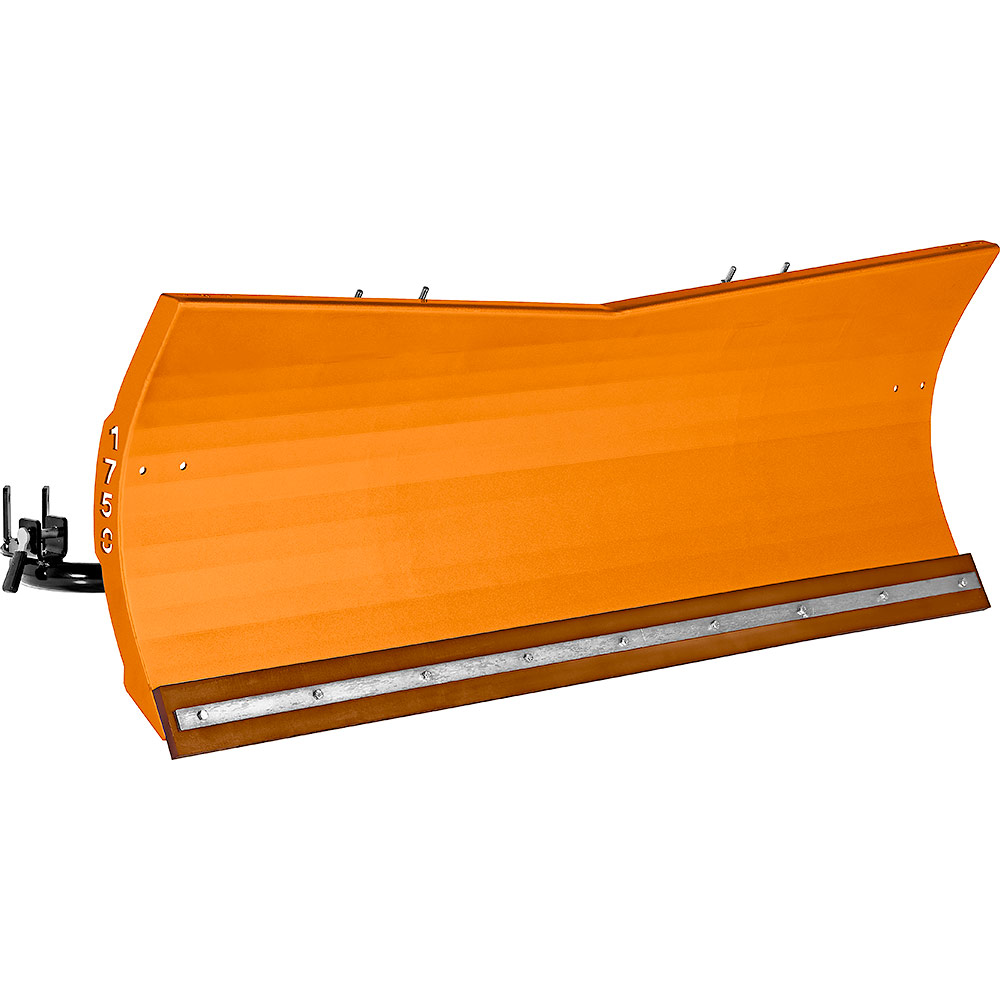

Front blade 175 cm with rubber end (for FD 2200 cod. 9B6712 needed)

Floating front blade 175 cm + rubber end - COD. 9G0822
to be applied on FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G0822
weight: 200 kg

The orientable front blade allows to rapidly free pathways from snow and ice; it's also useful for removing stone piles or sand heaps.
All blade's movements are hydraulically controlled; the blade can be lifted up and inclined laterally + / - 30°.
The rubber end helps avoiding damages on stone pavings and streets.
Hydraulic kit is needed with this implement.

Comfort cabin with heating FD2200

to be applied on FD 2200 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 950012
weight: 180 kg

The comfort cabin is equipped with anti-condensation heating system and it ensures a great visibility on the area to be cut.
The equipment includes windscreen wipers, windows as well internal and external safety closing
